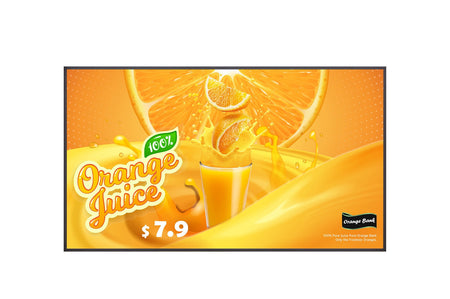

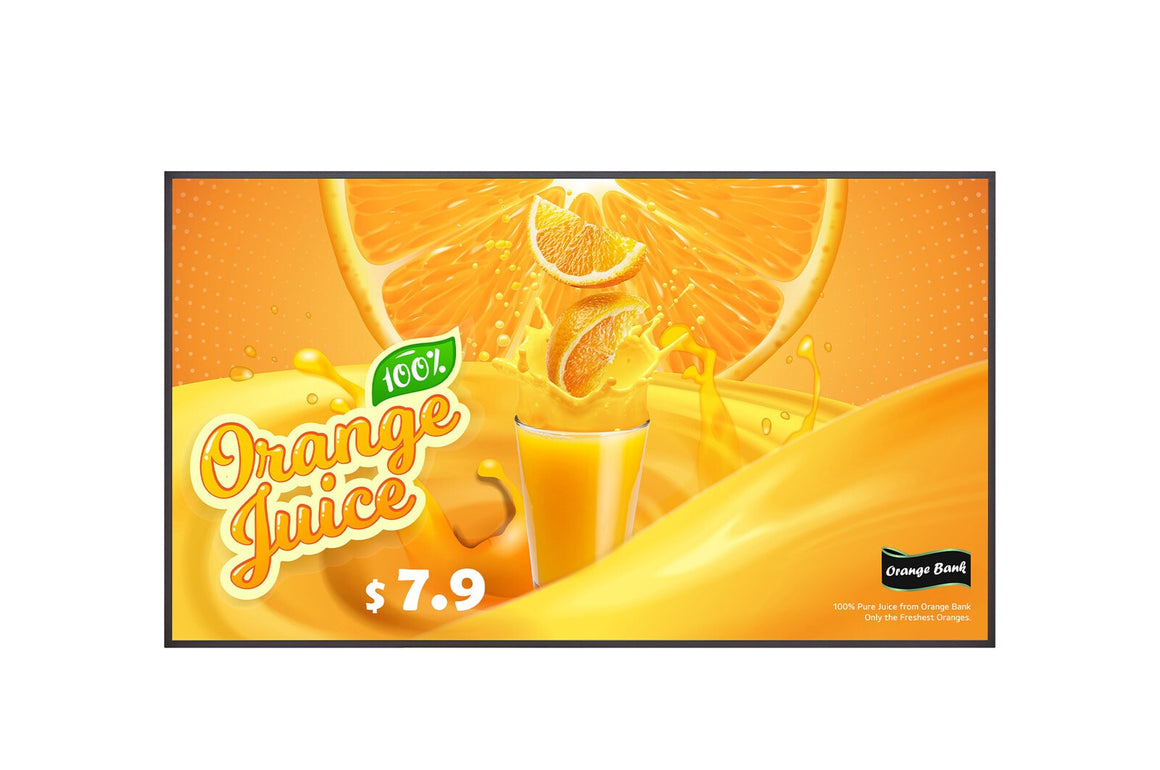

UHD Signage Display with LG webOS Platform and Advanced Security
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

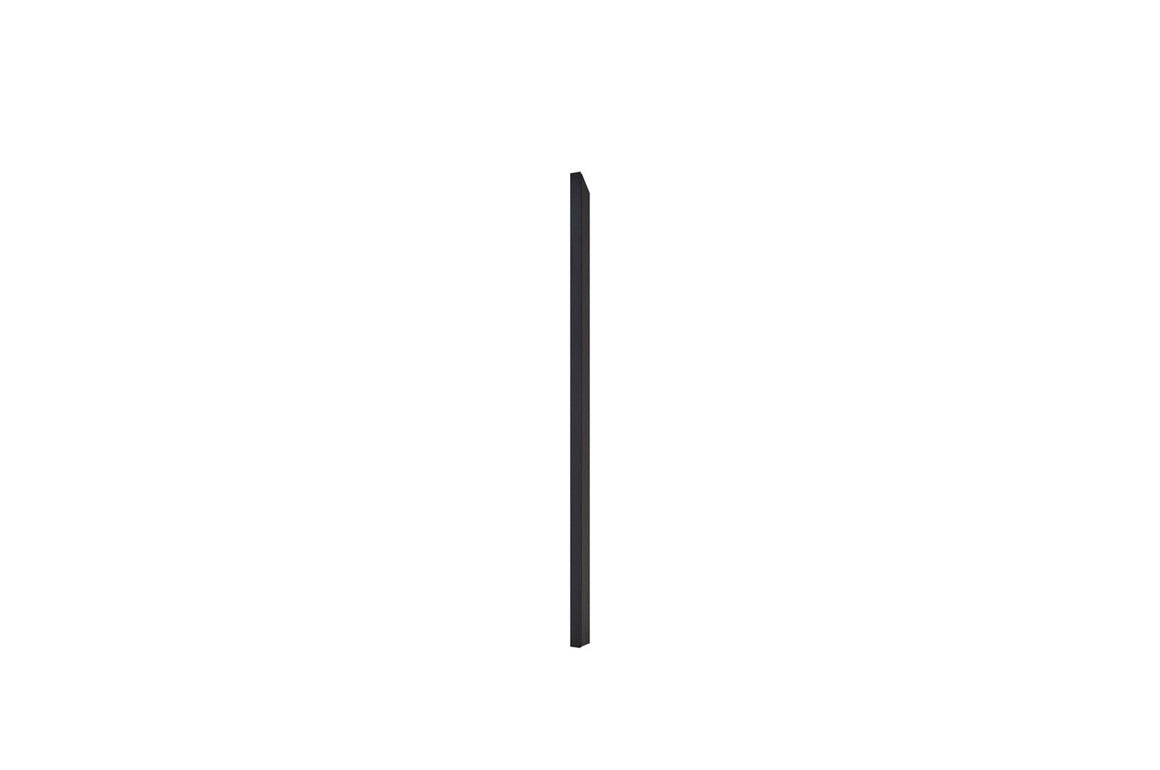

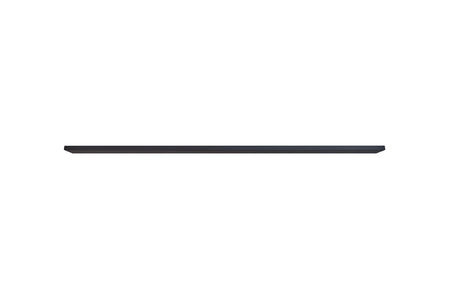

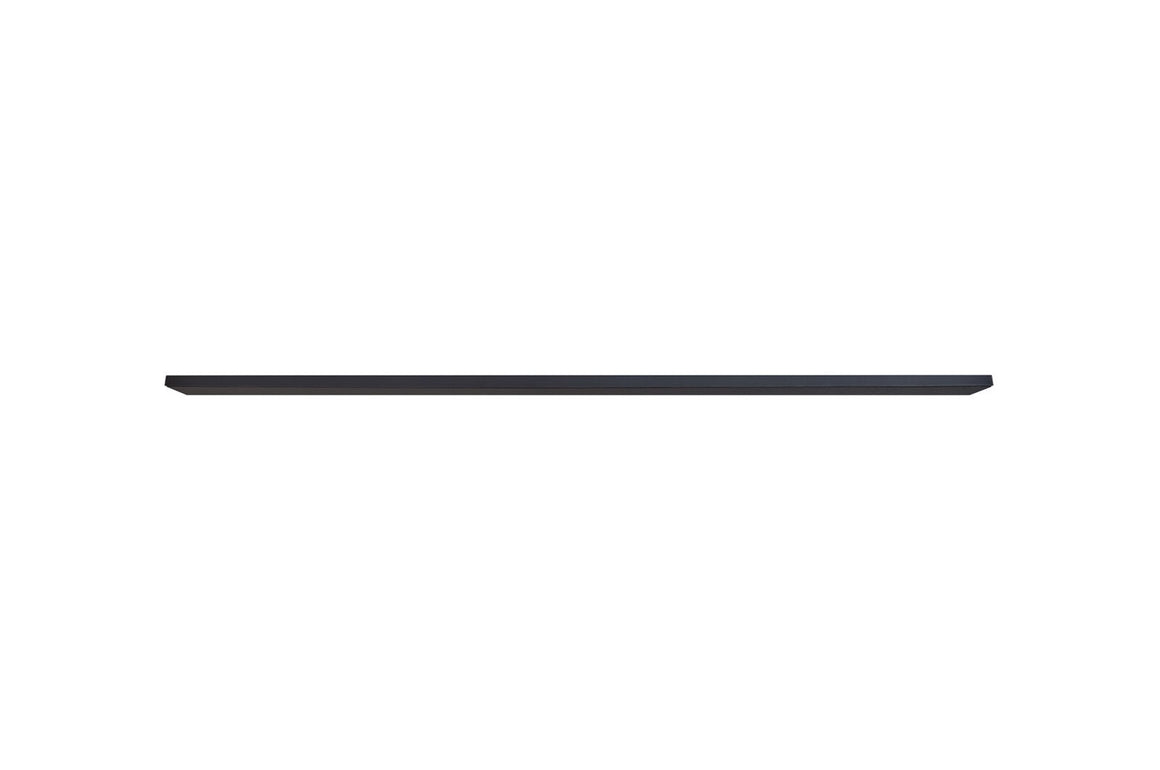

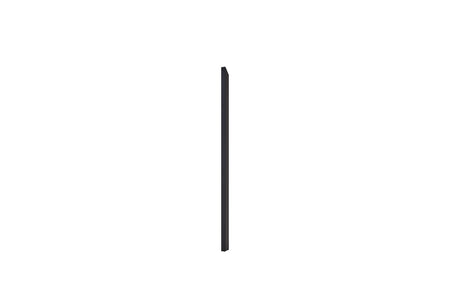

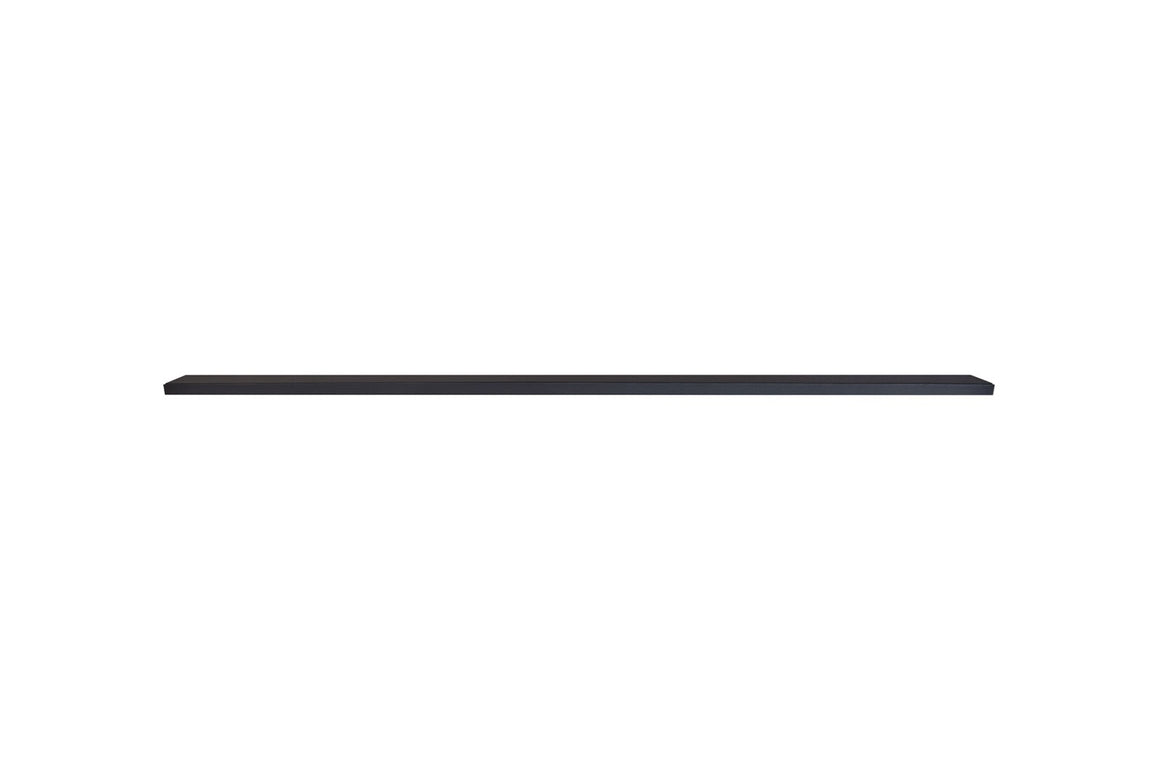

Even & Slim Bezel Design
The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.
Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
* SoC : System On Chip
** SI : System Integrator
Design for Space Utilization

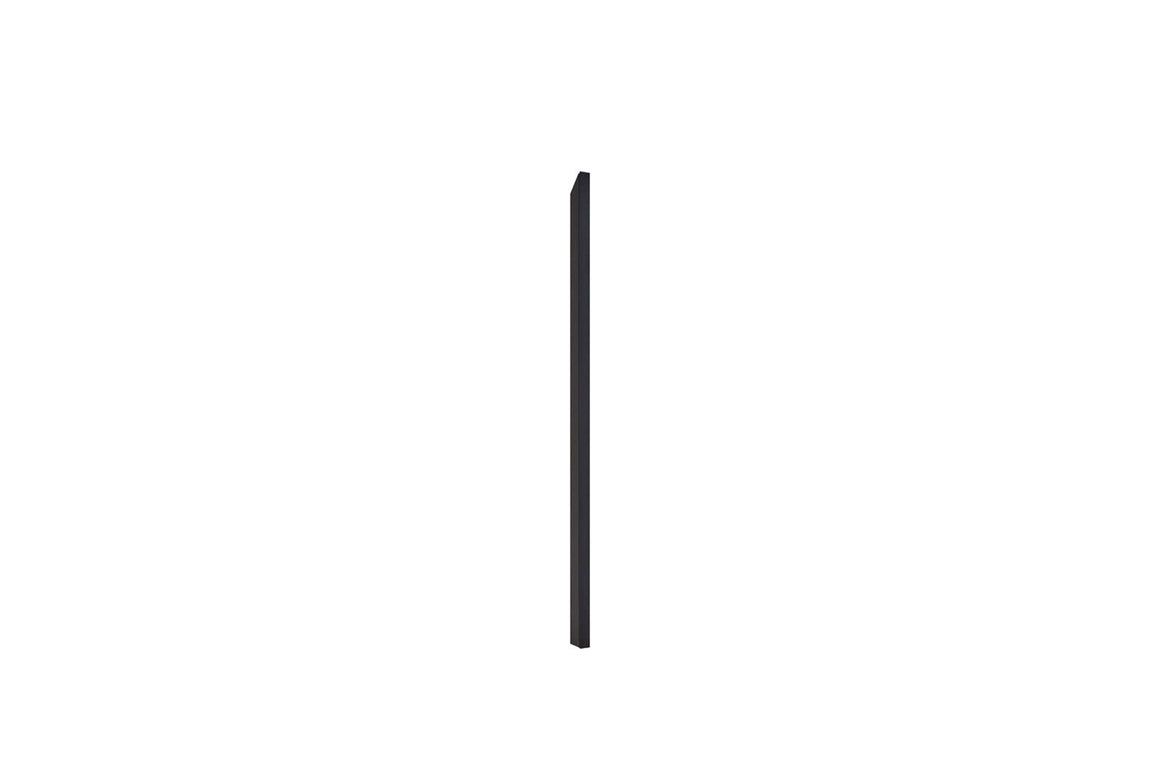

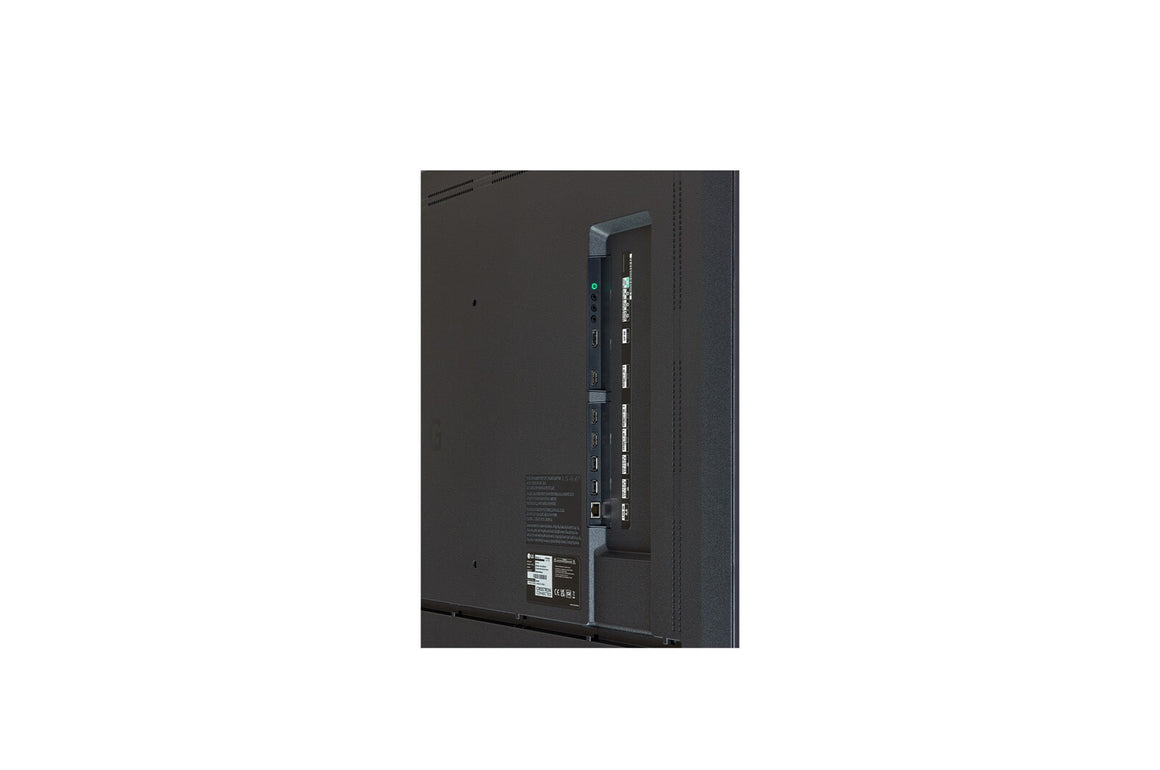

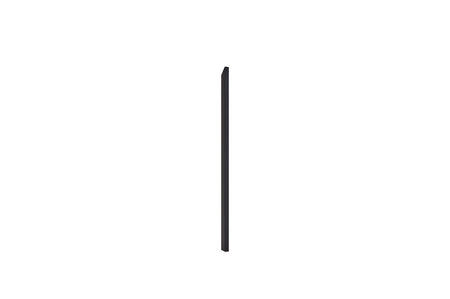

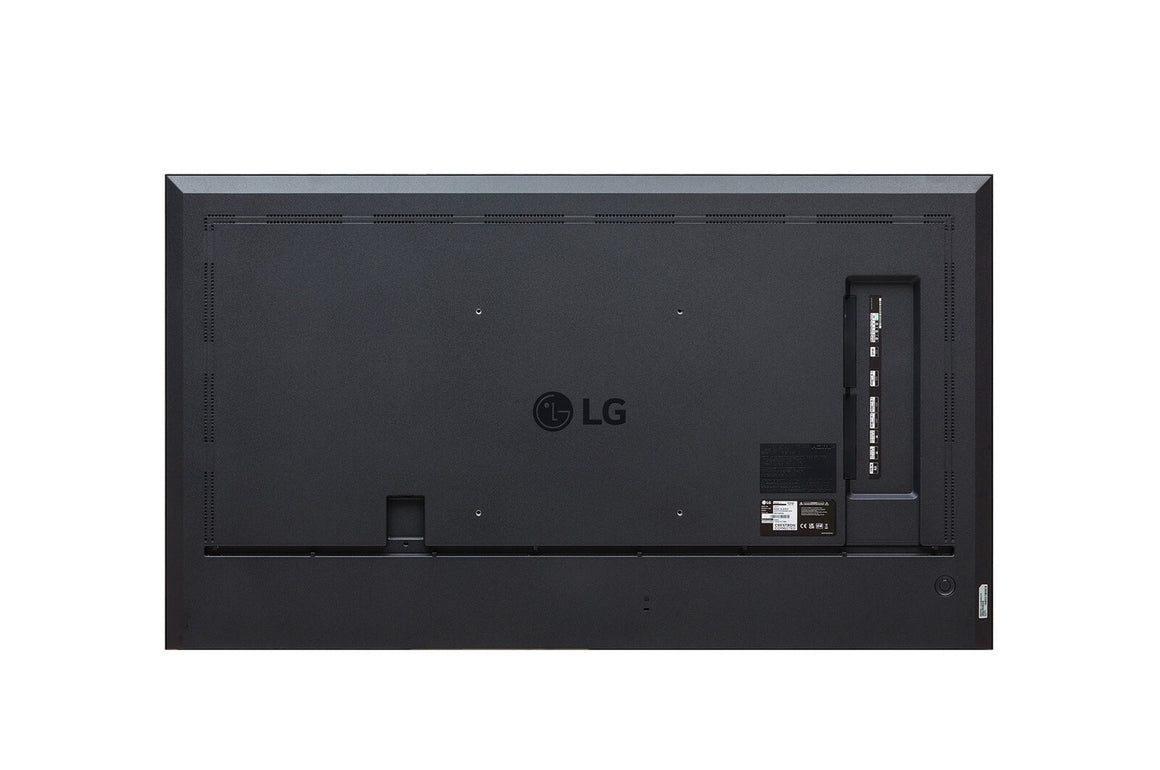

Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
Durability that Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.
* When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
* SuperSign must be purchased separately.
| Display |
|---|
| Colour gamut |
95% |
| Native refresh rate |
60 Hz |
| Colour depth |
10 bit |
| Panel life |
50000 h |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
1000000:1 |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
4K Ultra HD |
| Display brightness |
500 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| LED backlighting type |
Edge-LED |
| LED backlight |
Yes |
| Panel type |
ADS |
| Display technology |
LCD |
| Display diagonal |
139.7 cm (55") |
| Ports & interfaces |
|---|
| PC Audio out |
Yes |
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB connector type |
USB Type-A |
| USB version |
2.0 |
| USB ports quantity |
2 |
| USB port |
Yes |
| DisplayPorts in |
1 |
| DisplayPorts quantity |
1 |
| DVI port |
No |
| HDMI input ports quantity |
3 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Bezel colour |
Black |
| Panel mounting interface |
300 x 300 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Security algorithms |
SNMP |
| International Protection (IP) code |
IP5X |
| Automatic brightness control |
Yes |
| Smart modes |
Energy saving |
| HDCP |
Yes |
| HDCP version |
1.4/2.2 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
21 |
| On Screen Display (OSD) |
Yes |
| Picture-in-Picture |
Yes |
| Purpose |
Universal |
| Power |
|---|
| Heat dissipation |
351 BTU/h |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (max) |
154 W |
| Power consumption (off) |
0.5 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
130 W |
| Computer system |
|---|
| Operating system version |
webOS 8.0 |
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Computer system type |
System on Chip (SoC) |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
14.3 kg |
| Display height |
711.9 mm |
| Display depth |
29.7 mm |
| Display width |
1240.1 mm |
| Packaging data |
|---|
| Package weight |
18.1 kg |
| Package height |
810 mm |
| Package depth |
152 mm |
| Package width |
1360 mm |
| Packaging content |
|---|
| Cables included |
AC |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB / NRTL / FCC Class "B" / CE / KC |
| Features |
|---|
| Heat dissipation (max) |
525 BTU/h |
| Technical details |
|---|
| Real Time Clock (RTC) |
Yes |
| Surface treatment |
25% |
| Sustainability certificates |
ENERGY STAR, ErP |
| Other features |
|---|
| Plug and Play |
Yes |
| Bezel width |
1.14 cm |
| Built-in brightness sensor |
Yes |
| Power consumption (PowerSave) |
72 W |
