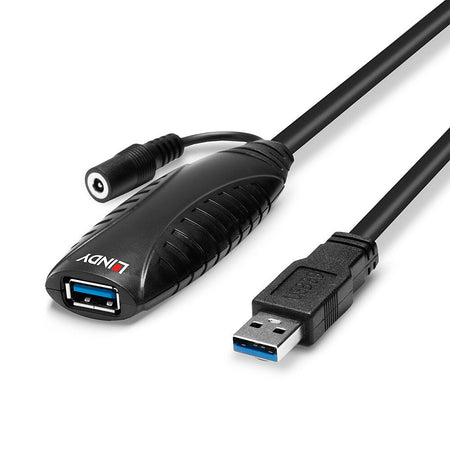

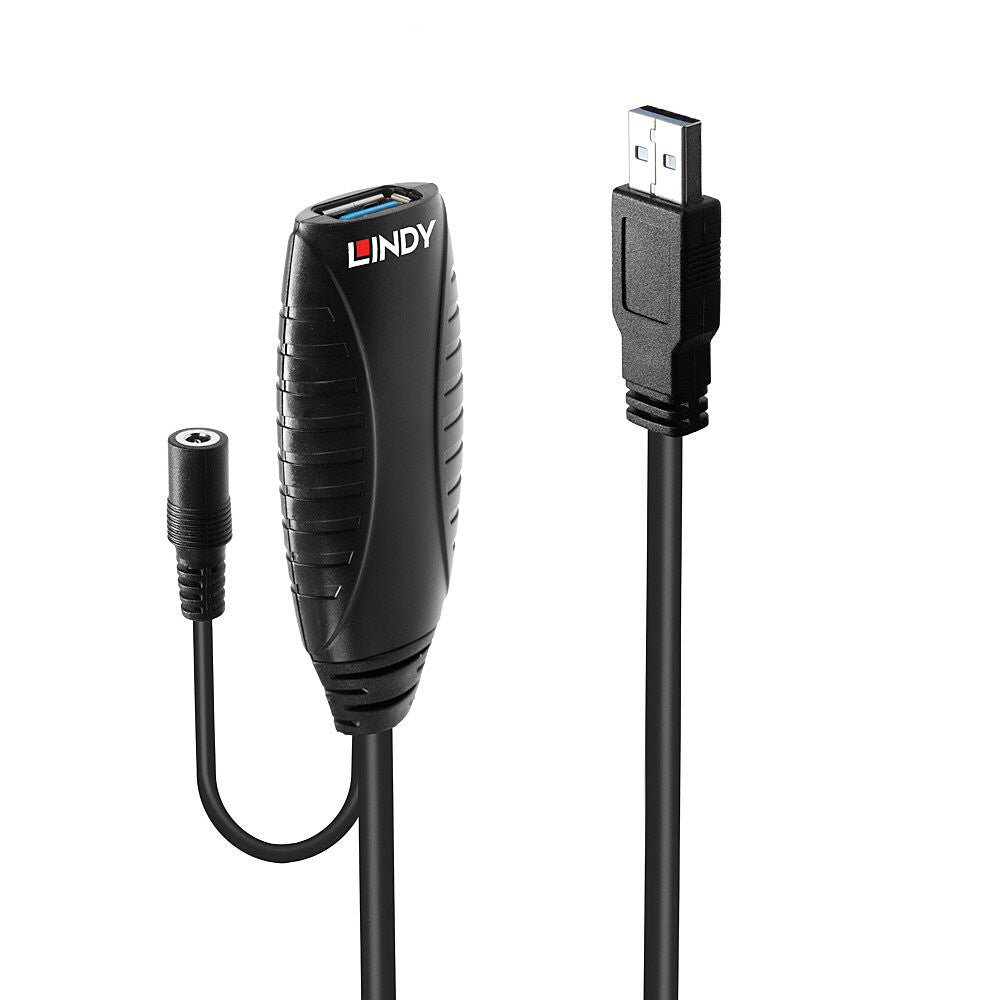

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 10m whilst continuing to support data transfer rates of up to 5Gbps.
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 20m.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.
The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Features |
Nominal attenuation |
(100 MHz, -1.5 dB)(1.25 GHz, -5.0 dB)(2.5 GHz, -7.5 dB)(7.5 GHz, -25 dB) |
Transmission medium |
Twisted pair |
Plug and Play |
Yes |
Cable type |
Round cable |
Product colour |
Black |
Maximum data transfer rate |
5 Gbit/s |
Connector housing material |
Plastic |
Connector shielding |
Yes |
Conductor material |
Tinned copper |
Connector shield material |
Aluminium |
Cable jacket material |
Polyvinyl chloride (PVC) |
Connector contacts plating |
Gold |
Contact material |
Copper |
Connector material |
Nickel |
AWG wire size |
28/28/22 |
Connector 2 form factor |
Straight |
Connector 1 form factor |
Straight |
Connector 2 gender |
Female |
Connector 1 gender |
Male |
Connector 2 |
USB A |
Connector 1 |
USB A |
USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
Power |
Power note |
3.5/1.35mm DC |
Weight & dimensions |
Connector 2 dimensions (WxDxH) |
32 x 85 x 10 mm |
Connector 1 dimensions (WxDxH) |
16 x 37 x 9.8 mm |
Bend radius (min) |
6 cm |
Weight |
515 g |
Cable diameter |
6 mm |
Cable length |
10 m |
Packaging data |
Package weight |
600 g |
Package height |
150 mm |
Package depth |
90 mm |
Package width |
140 mm |
Package type |
Box |
Packaging content |
Quantity per pack |
1 pc(s) |
Operational conditions |
Storage temperature (T-T) |
-20 - 70 °C |
Operating temperature (T-T) |
0 - 55 °C |
Certificates |
Certification |
CE, UKCA, FCC, RoHS, REACH |
Logistics data |
Harmonized System (HS) code |
84733080 |
