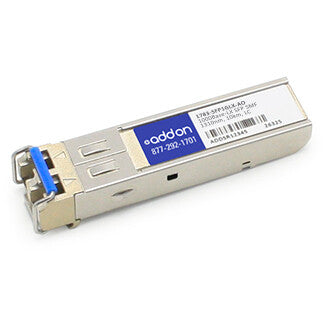

AddOn's 10052-AOK is a Extreme compatible 1GB SFP transceiver that operates at 1310nm over Single-Mode Fiber, with a maximum reach of 10km connected via a LC connector built to meet or exceed the OEM's specifications, and comply with MSA (Multi-Source Agreement) standards. All products are 100% functionally tested, and are guaranteed compatible.
AddOn transceivers (GBIC, SFP, SFP+, X2, XFP and XENPAK) are 100% compliant for all networking product lines, and are factory loaded with OEM specific configuration data required for networking compliance. These transceivers initialize and perform identically to the OEM transceivers and can be mixed and deployed with other OEM or 3rd party transceivers, for seamless network performance.
AddOn Computer has developed a complete line of OEM compatible network transceiver modules. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program, we can guarantee your product will work right the first time. AddOn products are guaranteed by the MAGNUSON-MOSS WARRANTY ACT to not affect or void OEM warranties.
| Performance |
|---|
| Auto MDI/MDI-X |
No |
| Networking standards |
IEEE 802.3z |
| Wavelength |
1310 nm |
| Maximum transfer distance |
10000 m |
| SFP transceiver standard |
LX |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Fiber optic connector |
LC |
| Single-mode fiber (SMF) supported |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Certificates |
|---|
| Certification |
FCC |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
