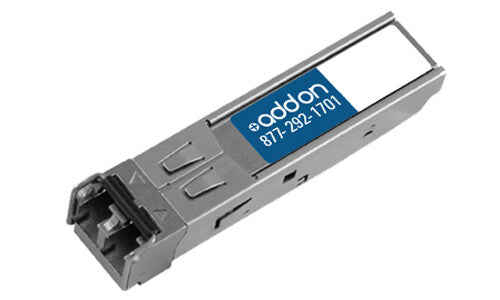

Add-On's Small Form Factor Pluggable (SFP) transceivers are designed to exceed OEM system requirements. All products are guaranteed 100% compatible and will not void OEM Service/support programs. Our SFP Transceivers utilize industry standard bi-directional serial optical data communication protocols such as Gigabit Ethernet or Fiber Channel reaching speeds up to 8Gbps.
All our SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet and Gigabit Ethernet speeds
- 100% OEM Compatible
- 100% Tested
- Conforms to IEEE 802.3z standard
- Class 1 Laser Product Compliant with the Requirements of IEC 60825-1 and IEC 60825-2
- Compliant with Multi-Source Agreement (MSA)
- RoHS Compliant
| Performance |
|---|
| Networking standards |
IEEE 802.3z |
| Cabling technology |
1000BASE-SX |
| SFP transceiver standard |
SX |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Multi-mode fiber (MMF) supported |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Hot-Plug support |
Yes |
| Certificates |
|---|
| Certification |
MSA |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 85% |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Height |
8.5 mm |
| Depth |
56.5 mm |
| Width |
13.4 mm |
