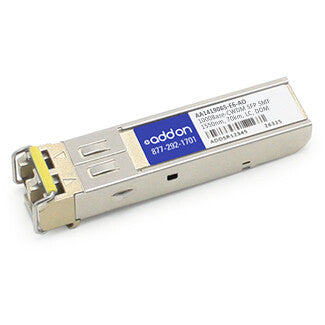

Avaya/Nortel® AA1419065, AA1419065-E5, AA1419065-E6 compatible 1000Base-CWDM SFP transceiver (SMF, 1550nm, 70km, LC, DOM). An Avaya/Nortel® SFP transceiver that operates at 1550nm over single-mode fiber, with a maximum reach of 70km connected via a LC connector. This Avaya/Nortel® compatible SFP transceiver has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. Our SFP transceiver will initialize and perform identically to Avaya/Nortel's transceiver and is built to meet or exceed Avaya/Nortel's specifications, and comply with MSA (Multi-Source Agreement) standards. The actual part shipped may have a different part number, but will be functionally identical and 100% compatible. Trade Agreements Act (TAA) versions of this part are available.
| Performance |
|---|
| Wavelength |
1550 nm |
| Maximum transfer distance |
70000 m |
| SFP transceiver standard |
CWDM |
| Fiber optic connector |
LC |
| Single-mode fiber (SMF) supported |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Weight & dimensions |
|---|
| Weight |
68 g |
| Height |
7.62 mm |
| Depth |
55.9 mm |
| Width |
12.7 mm |
| Packaging data |
|---|
| Package weight |
159 g |
| Package height |
30.5 mm |
| Package depth |
120.7 mm |
| Package width |
69.9 mm |
