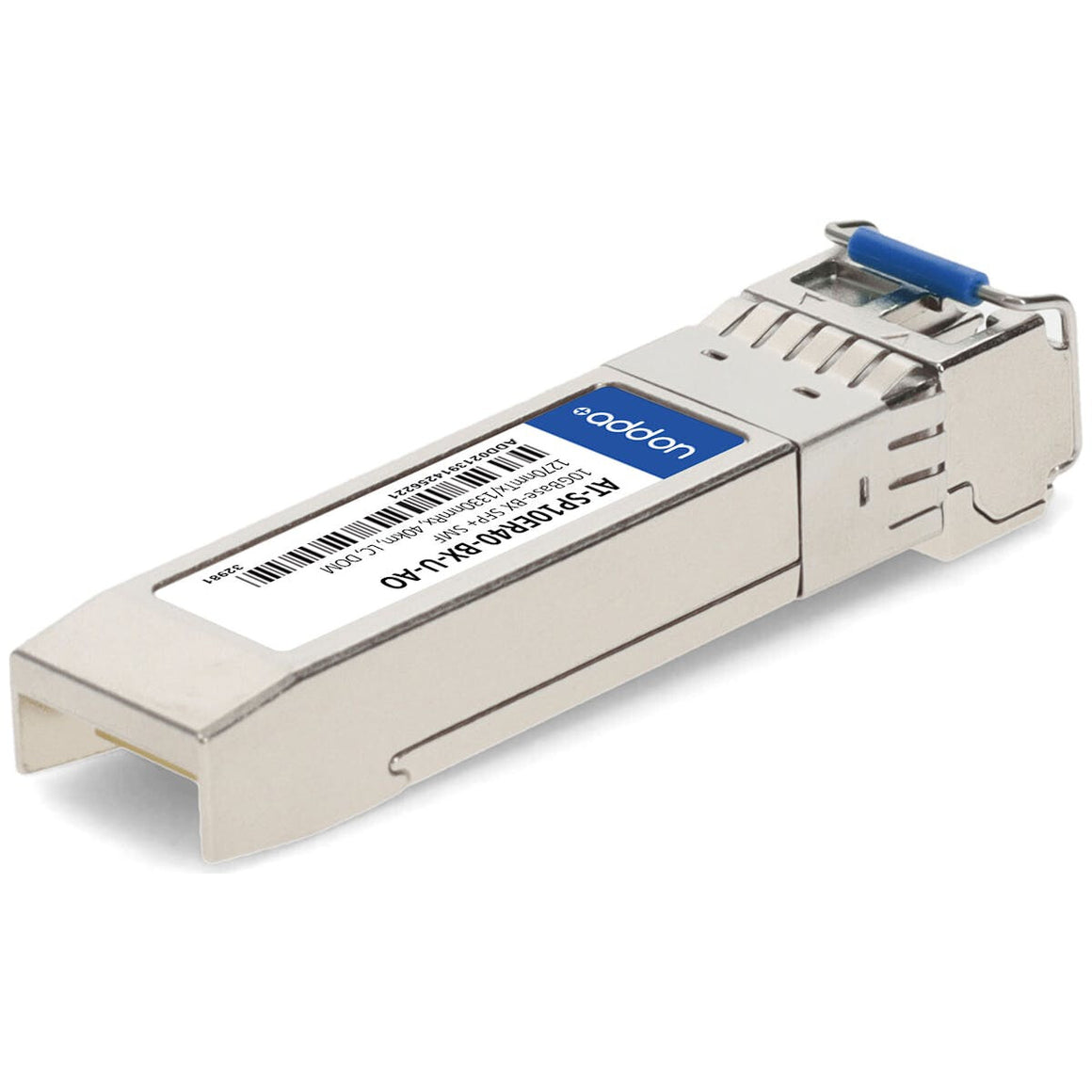

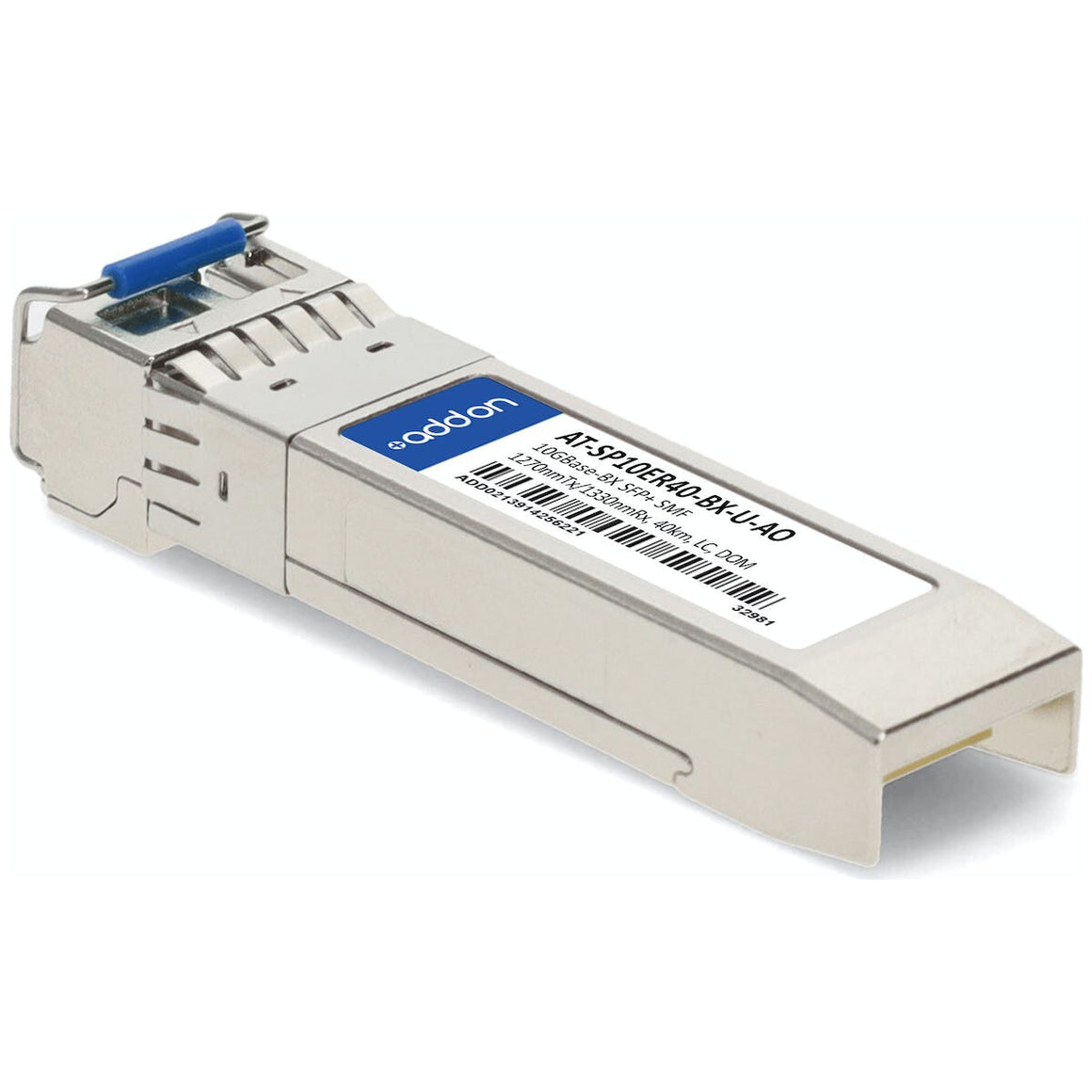

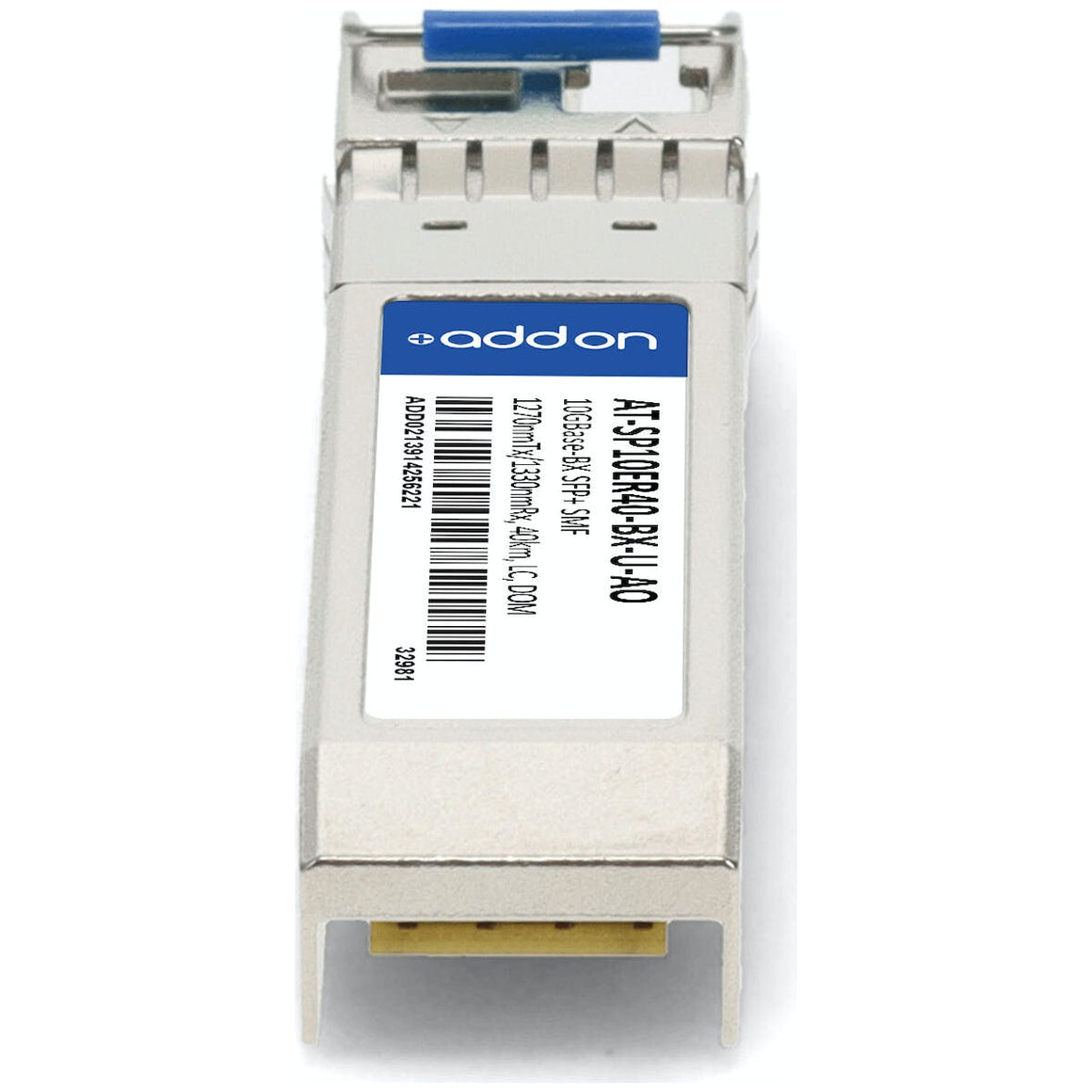

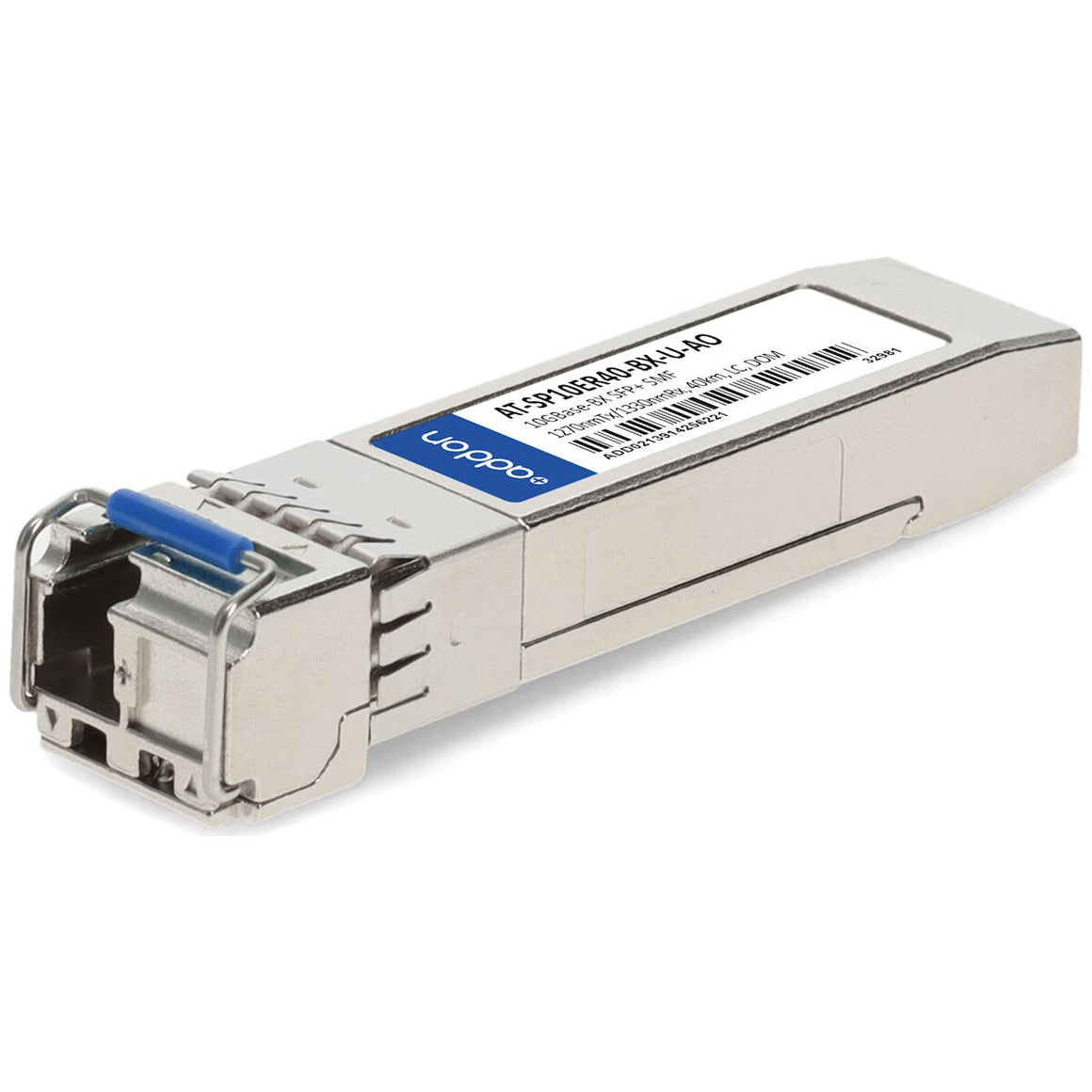

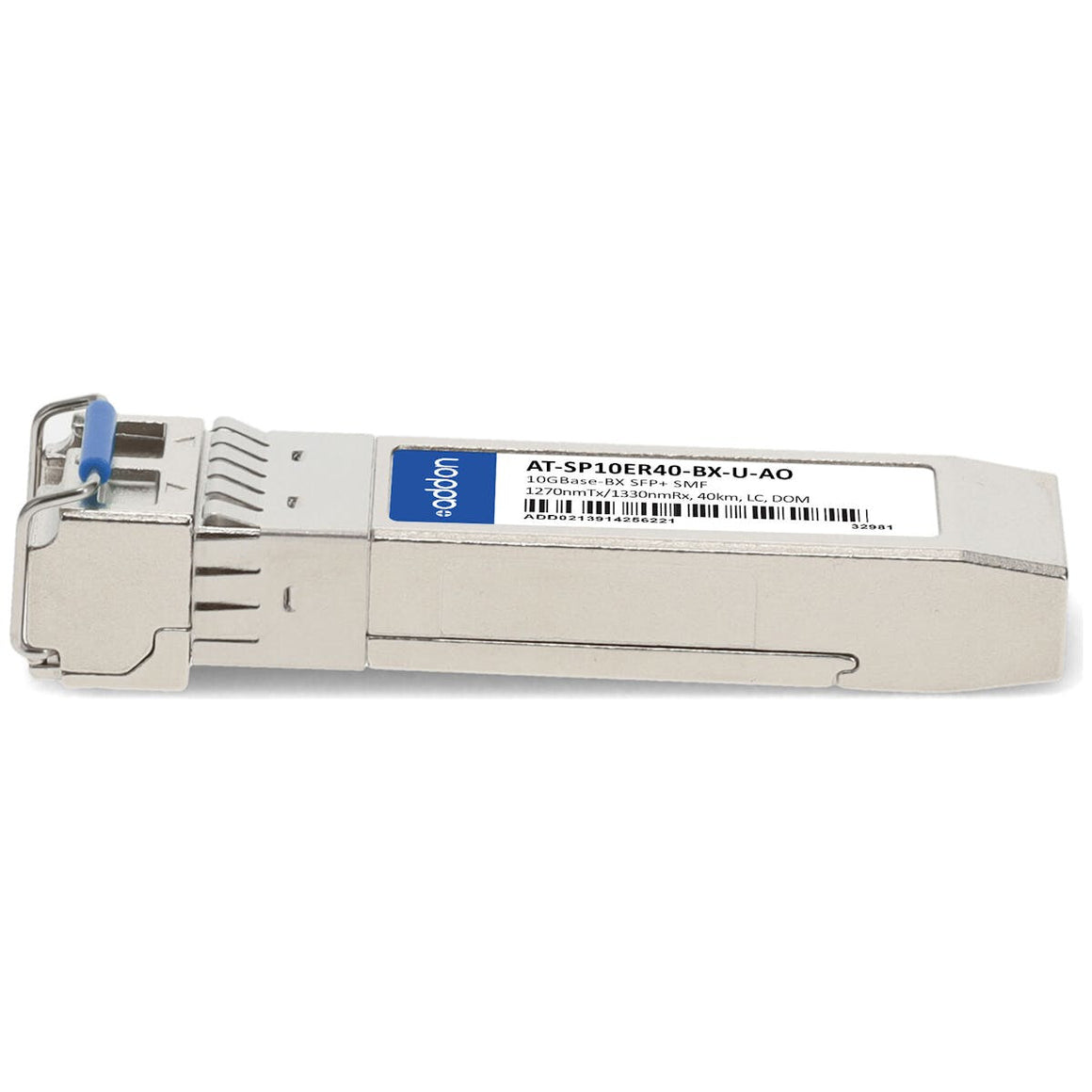

This Allied Telesis® AT-SP10ER40-BX-U compatible SFP+ transceiver provides 10GBase-BX throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1270nmTx/1330nmRx via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complementing wavelengths. It is guaranteed to be 100% compatible with the equivalent Allied Telesis® transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Performance |
| Export Control Classification Number (ECCN) |
5A991 |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Fiber ethernet cabling technology |
10GBASE |
| Ethernet interface type |
10 Gigabit Ethernet |
| Rx wavelength (max) |
1330 nm |
| Tx wavelength (max) |
1270 nm |
| Maximum transfer distance |
40000 m |
| SFP transceiver standard |
BX |
| Fiber optic connector |
LC |
| Single-mode fiber (SMF) supported |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
| Compatible products |
AT-SP10ER40-BX-U |
| Brand compatibility |
Allied Telesis |
| Easy to install |
Yes |
| Hot-swap |
Yes |
| Product colour |
Silver |
| Certificates |
| Certification |
CE, RoHS, WEEE, BBB, SixSigma, NEBS |
| Compliance certificates |
CE, RoHS, WEEE |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Maximum operating temperature |
70 °C |
| Minimum operating temperature |
0 °C |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Packaging data |
| Package weight |
181.437 g |
| Package height |
30.5 mm |
| Package depth |
120.7 mm |
| Package width |
69.8 mm |
| Logistics data |
| UNSPSC-code |
43201553 |
| Country of origin |
United States |
