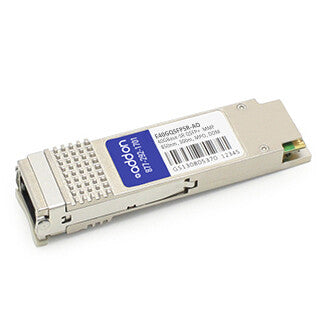

This Intel® E40GQSFPSR compatible QSFP+ transceiver provides 40GBase-SR throughput up to 300m over multi-mode fiber (MMF) at a wavelength of 850nm using a MPO connector. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. Our transceiver is guaranteed to be 100% compatible with the equivalent Intel® transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. It is built to meet or exceed the specifications of Intel®, as well as to comply with multi-source agreement (MSA) standards to ensure seamless network integration. We stand behind the quality of our products and proudly offer a limited lifetime warranty. Trade Agreements Act (TAA) versions of this part are available upon request.
| Performance |
|---|
| Wavelength |
850 nm |
| Maximum transfer distance |
300 m |
| SFP transceiver standard |
SR |
| Fiber optic connector |
MPO |
| Multi-mode fiber (MMF) supported |
Yes |
| Interface type |
QSFP+ |
| Maximum data transfer rate |
40000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Weight & dimensions |
|---|
| Height |
13.5 mm |
| Depth |
71.1 mm |
| Width |
18.8 mm |
| Packaging data |
|---|
| Package height |
30.5 mm |
| Package depth |
121 mm |
| Package width |
69.8 mm |
