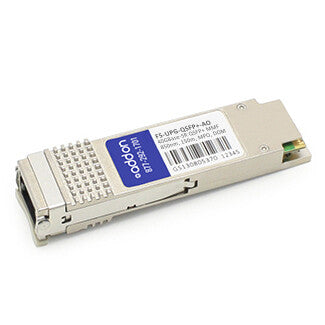

F5 Networks® F5-UPG-QSFP+ compatible 40GBase-SR QSFP+ transceiver (MMF, 850nm, 150m, MPO). A 100% F5 Networks® compatible QSFP+ transceiver that operates at 850nm over multi-mode fiber, with a maximum reach of 150m connected via a MPO connector. This F5 Networks® QSFP+ transceiver is 100% compliant with its designed networking application, and is factory programmed with F5 Networks® specific configuration data required for seamless networking integration. This QSFP+ transceiver will initialize and perform identically to F5 Networks' transceiver and is built to meet or exceed F5 Networks' specifications, and comply with MSA (Multi-Source Agreement) standards. The actual part shipped may have a different part number, but will be functionally identical and 100% compatible. Trade Agreements Act (TAA) versions of this part are available.
| Performance |
|---|
| Wavelength |
850 nm |
| Maximum transfer distance |
150 m |
| SFP transceiver standard |
SR |
| Fiber optic connector |
MPO |
| Multi-mode fiber (MMF) supported |
Yes |
| Interface type |
QSFP+ |
| Maximum data transfer rate |
40000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Hot-Plug support |
Yes |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
108.8 g |
| Height |
13.5 mm |
| Depth |
71.1 mm |
| Width |
18.8 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
199.5 g |
| Package height |
30.5 mm |
| Package depth |
120.7 mm |
| Package width |
69.8 mm |
