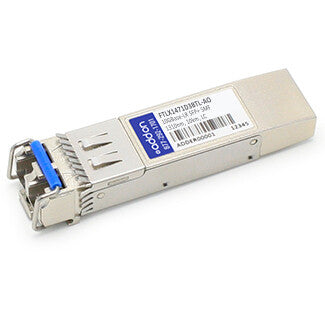

Finisar® FTLX1471D3BTL compatible 10GBase-LR SFP+ transceiver (SMF, 1310nm, 10km, LC, DOM, Industrial Temp). A 100% Finisar® compatible SFP+ transceiver that operates at 1310nm over single-mode fiber, with a maximum reach of 10km connected via a LC connector. This Finisar® SFP+ transceiver is 100% compliant with its designed networking application, and is factory programmed with Finisar® specific configuration data required for seamless networking integration. This SFP+ transceiver will initialize and perform identically to Finisar's transceiver and is built to meet or exceed Finisar's specifications, and comply with MSA (Multi-Source Agreement) standards. The actual part shipped may have a different part number, but will be functionally identical and 100% compatible. Trade Agreements Act (TAA) versions of this part are available.
| Performance |
|---|
| Networking standards |
IEEE 802.3ae |
| Wavelength |
1310 nm |
| Maximum transfer distance |
10000 m |
| SFP transceiver standard |
LR |
| Fiber optic connector |
LC |
| Single-mode fiber (SMF) supported |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Compatible products |
Finisar |
| Hot-Plug support |
Yes |
| Power |
|---|
| Input voltage |
3.3 V |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-5 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
68 g |
| Height |
7.62 mm |
| Depth |
55.9 mm |
| Width |
12.7 mm |
| Packaging data |
|---|
| Package weight |
159 g |
| Package height |
30.5 mm |
| Package depth |
121 mm |
| Package width |
69.8 mm |
