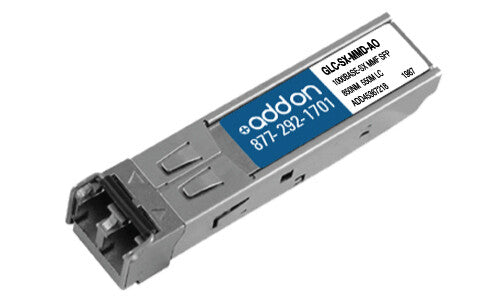

AddOn's GLC-SX-MMD-AO is a CISCO compatible SFP transceiver that operates at 850nm over Multi-Mode Fiber, with a maximum reach of 550m connected via a LC connector built to meet or exceed the OEM's specifications, and comply with MSA (Multi-Source Agreement) standards. All products are 100% functionally tested, and are guaranteed compatible.
AddOn transceivers (GBIC, SFP, SFP+, X2, XFP and XENPAK) are 100% compliant for all networking product lines, and are factory loaded with OEM specific configuration data required for networking compliance. These transceivers initialize and perform identically to the OEM transceivers and can be mixed and deployed with other OEM or 3rd party transceivers, for seamless network performance.
| Performance |
|---|
| Fiber ports quantity |
1 |
| Networking standards |
IEEE 802.3z |
| Wavelength |
850 nm |
| Maximum transfer distance |
550 m |
| SFP transceiver standard |
SX |
| Fiber cable diameters supported (core/cladding) |
62.5/125 µm |
| Fiber optic connector |
LC |
| Multi-mode fiber (MMF) supported |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Compatible products |
CISCO |
| Certificates |
|---|
| Certification |
UL, cULFCC Part 15 Class B |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Height |
18 mm |
| Depth |
56.5 mm |
| Width |
13.7 mm |
