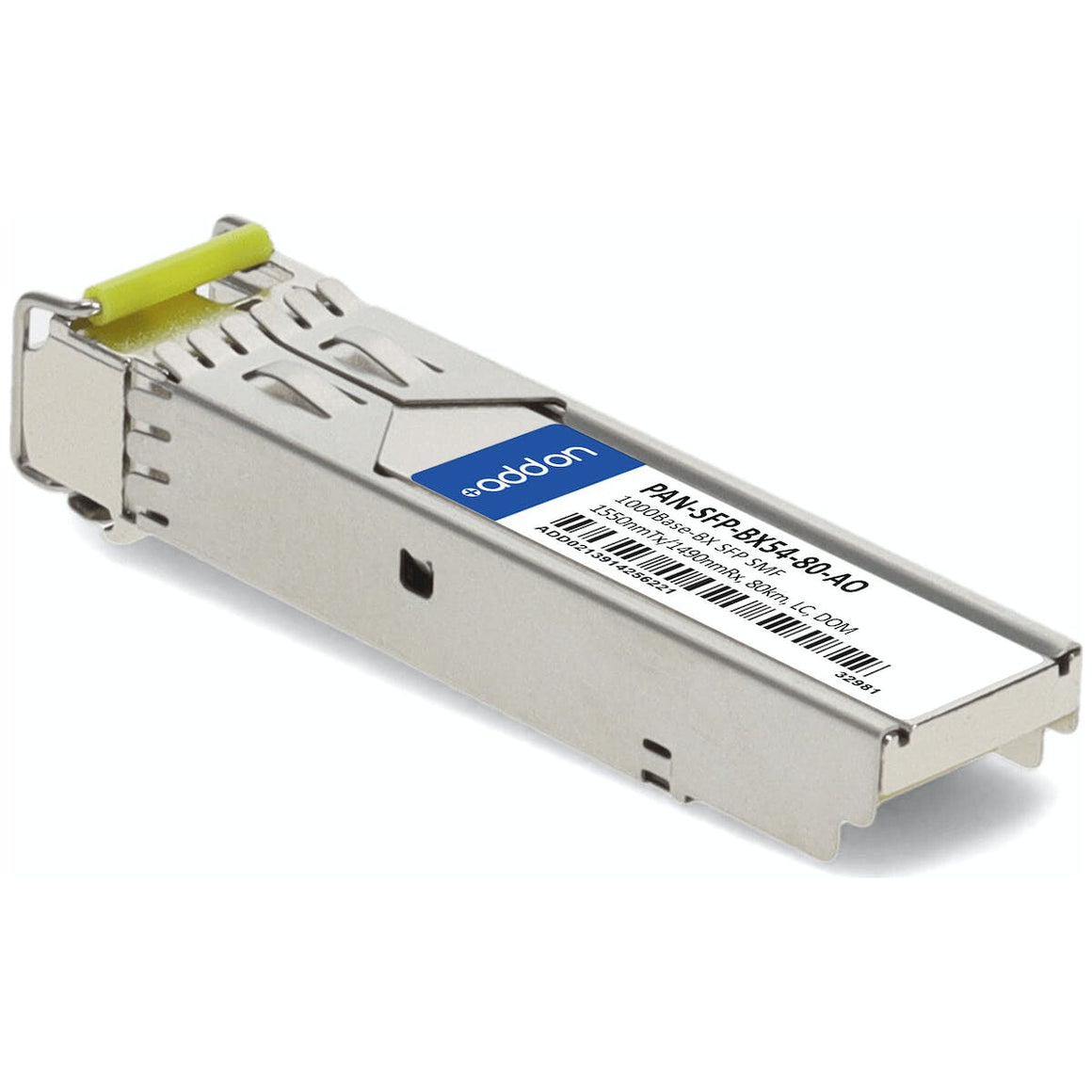

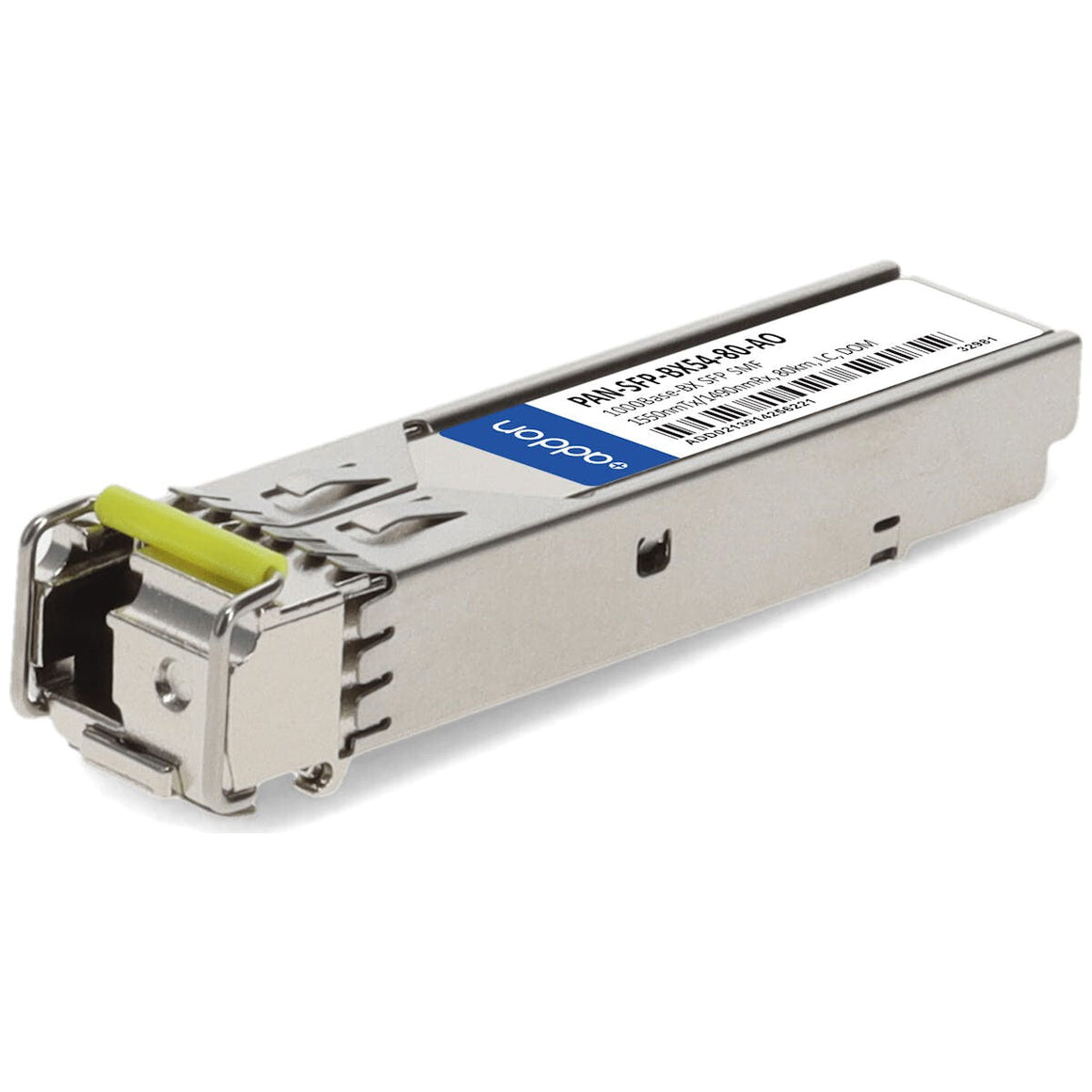

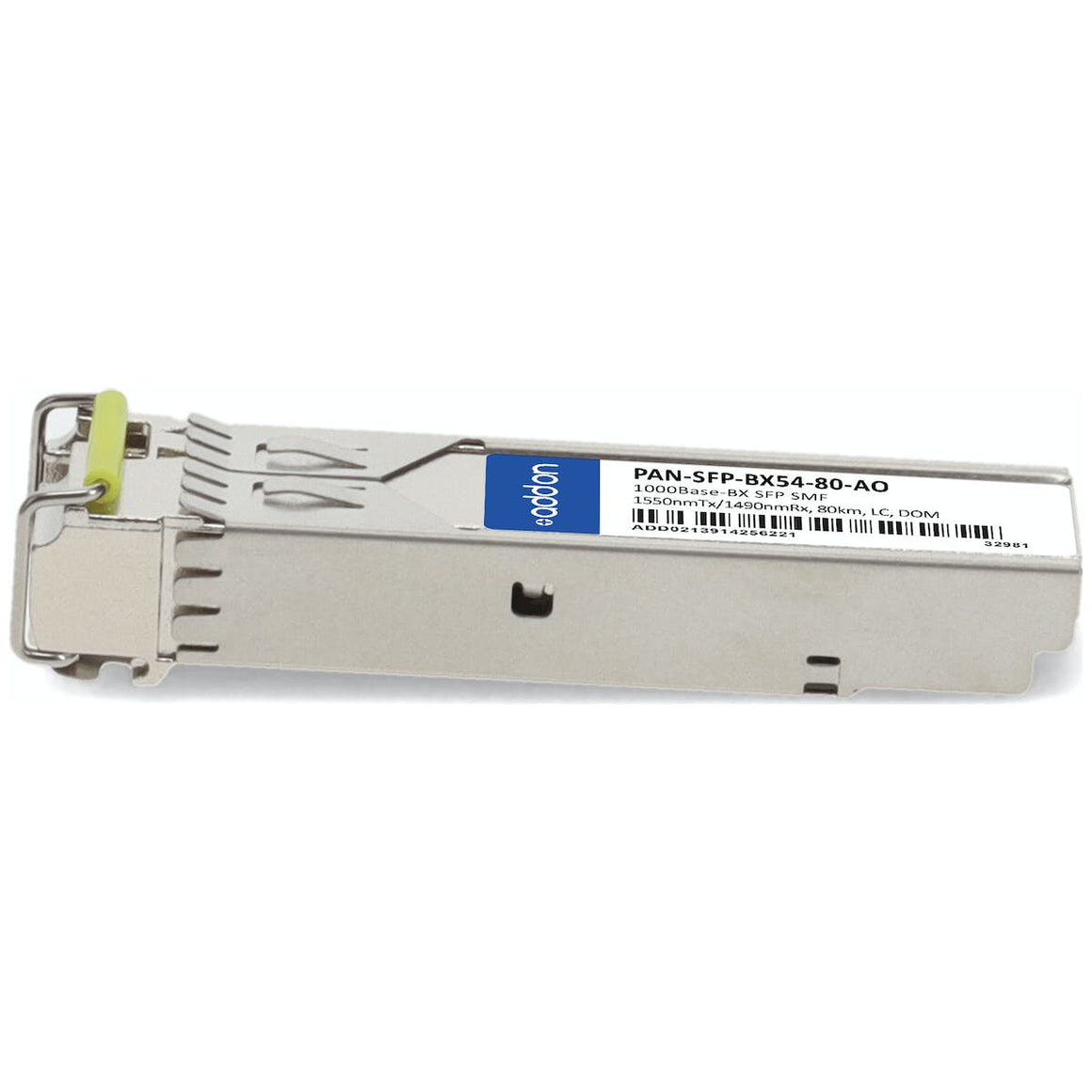

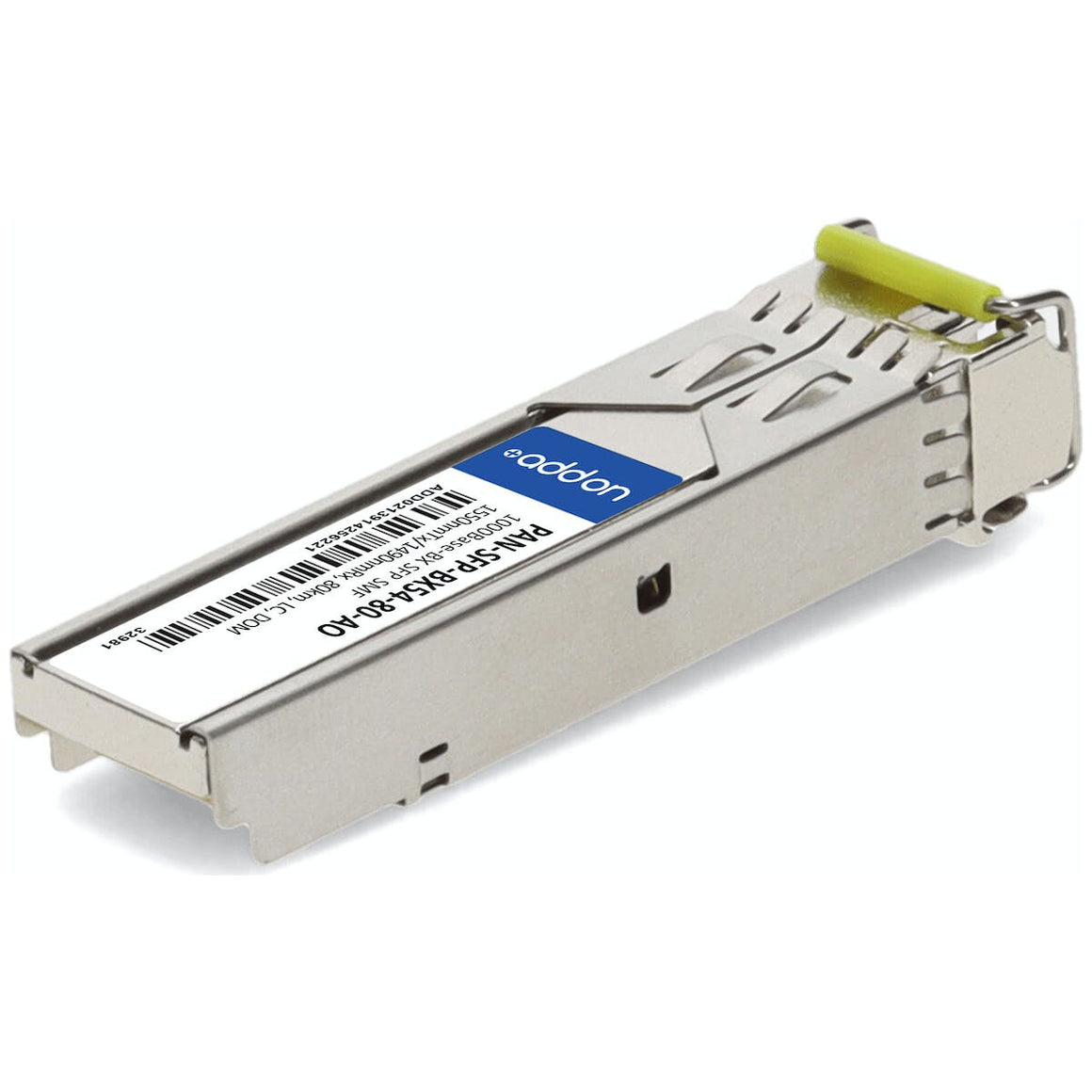

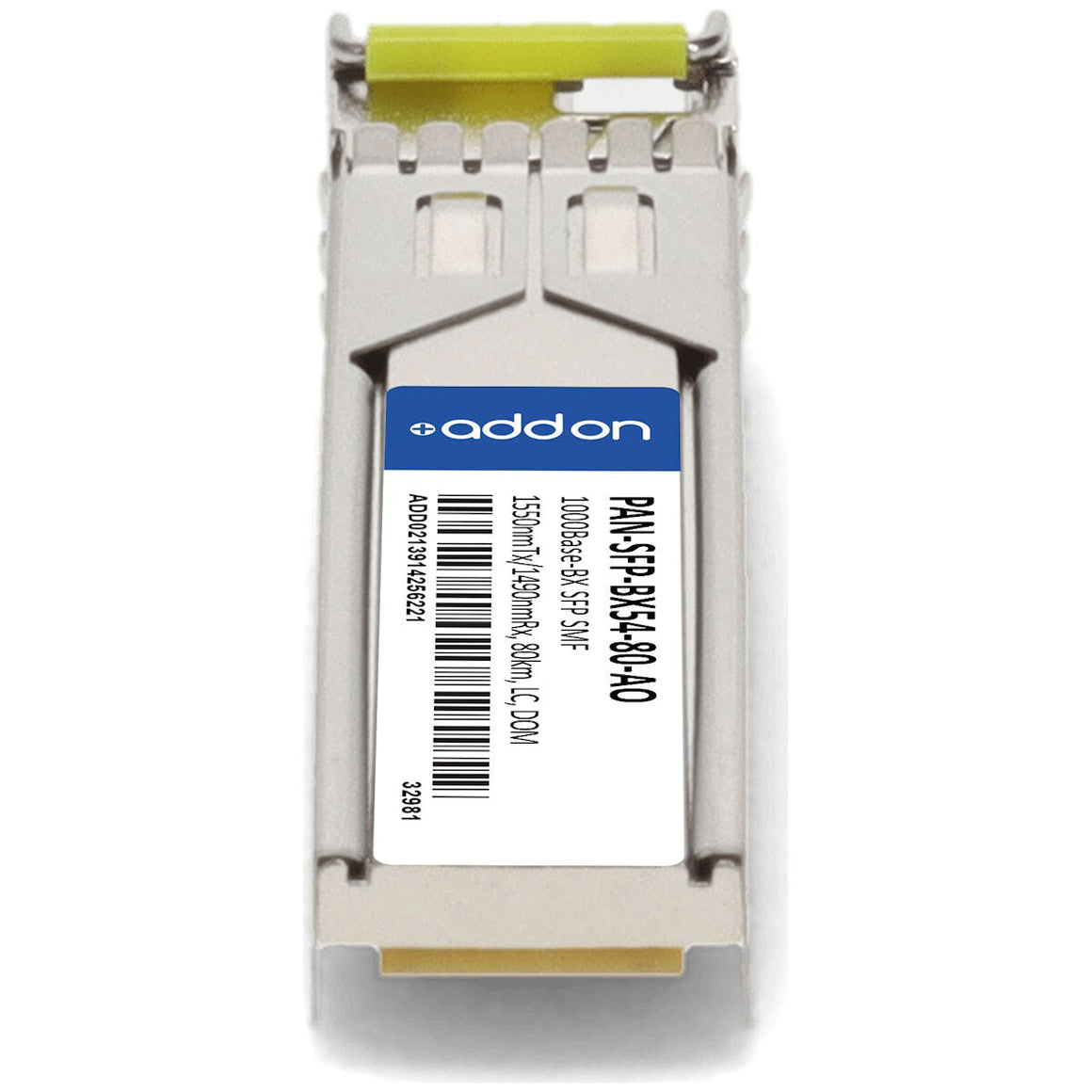

This Palo Alto Networks® PAN-SFP-BX54-80 compatible SFP transceiver provides 1000Base-BX throughput up to 80km over single-mode fiber (SMF) using a wavelength of 1550nmTx/1490nmRx via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complementing wavelengths. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Palo Alto Networks®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Performance |
|---|
| Rx wavelength (max) |
1490 nm |
| Tx wavelength (max) |
1550 nm |
| Maximum transfer distance |
80000 m |
| SFP transceiver standard |
BX |
| Fiber optic connector |
LC |
| Single-mode fiber (SMF) supported |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Easy to install |
Yes |
| Hot-swap |
Yes |
| Hot-Plug support |
Yes |
| Product colour |
Silver |
| Certificates |
|---|
| Certification |
TAA |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Doesn't contain |
Lead |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
181.4 g |
| Package height |
120.7 mm |
| Package depth |
70 mm |
| Package width |
30.5 mm |
