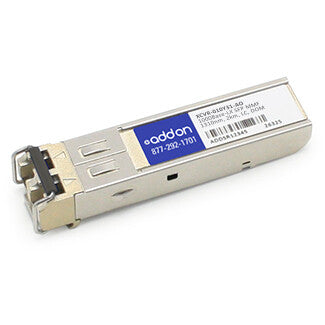

AddOn Networks SFP, 1310nm network transceiver module Fiber optic 1000 Mbit/s
      Regular price

        £54.44






  This Ciena® XCVR-010Y31 compatible SFP transceiver provides 1000Base-LX throughput up to 2km over multi-mode fiber (MMF) at a wavelength of 1310nm using a LC connector. It is guaranteed to be 100% compatible with the equivalent Ciena® transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. All of our transceivers are Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Performance | |
|---|---|
| Rx power (max) | 0 dBmW |
| Rx power (min) | 0 dBmW |
| Tx power (max) | 0 dBmW |
| Tx power (min) | 0 dBmW |
| Wavelength | 1310 nm |
| Maximum transfer distance | 2000 m |
| Fiber optic connector | LC |
| Multi-mode fiber (MMF) supported | Yes |
| Interface type | SFP |
| Maximum data transfer rate | 1000 Mbit/s |
| SFP transceiver type | Fiber optic |
| Weight & dimensions | |
|---|---|
| Weight | 181 g |
| Height | 30.5 mm |
| Depth | 121 mm |
| Width | 69.8 mm |
