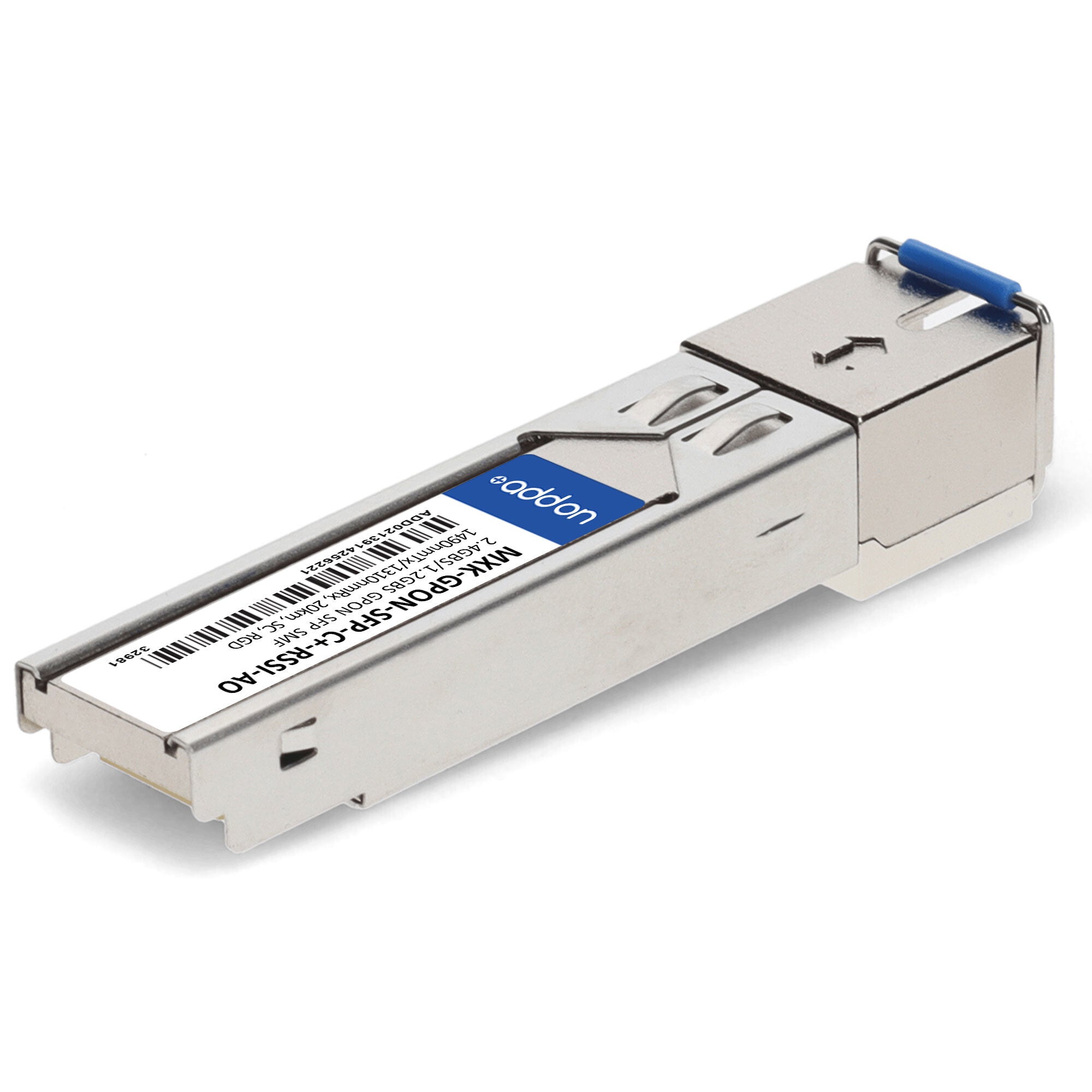

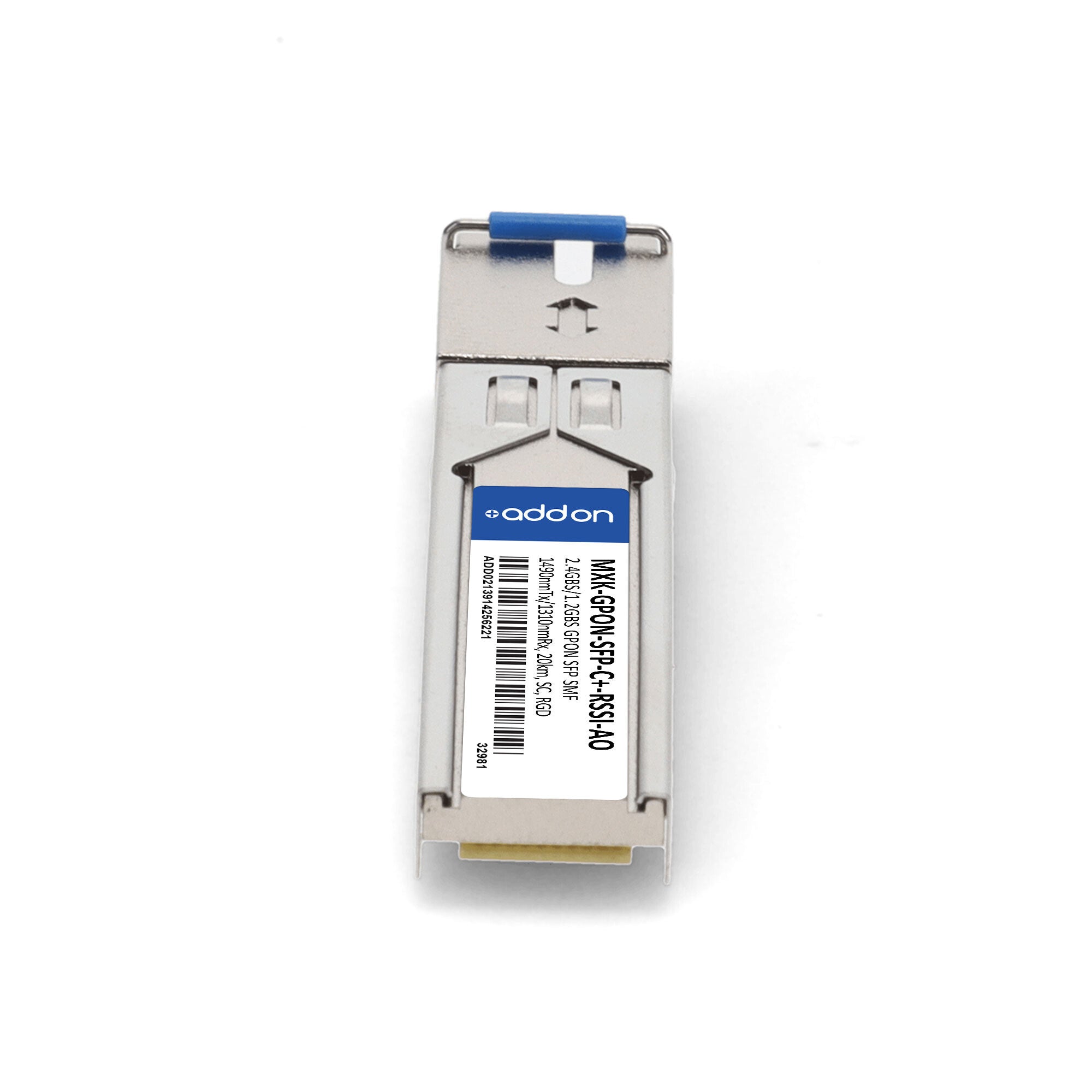

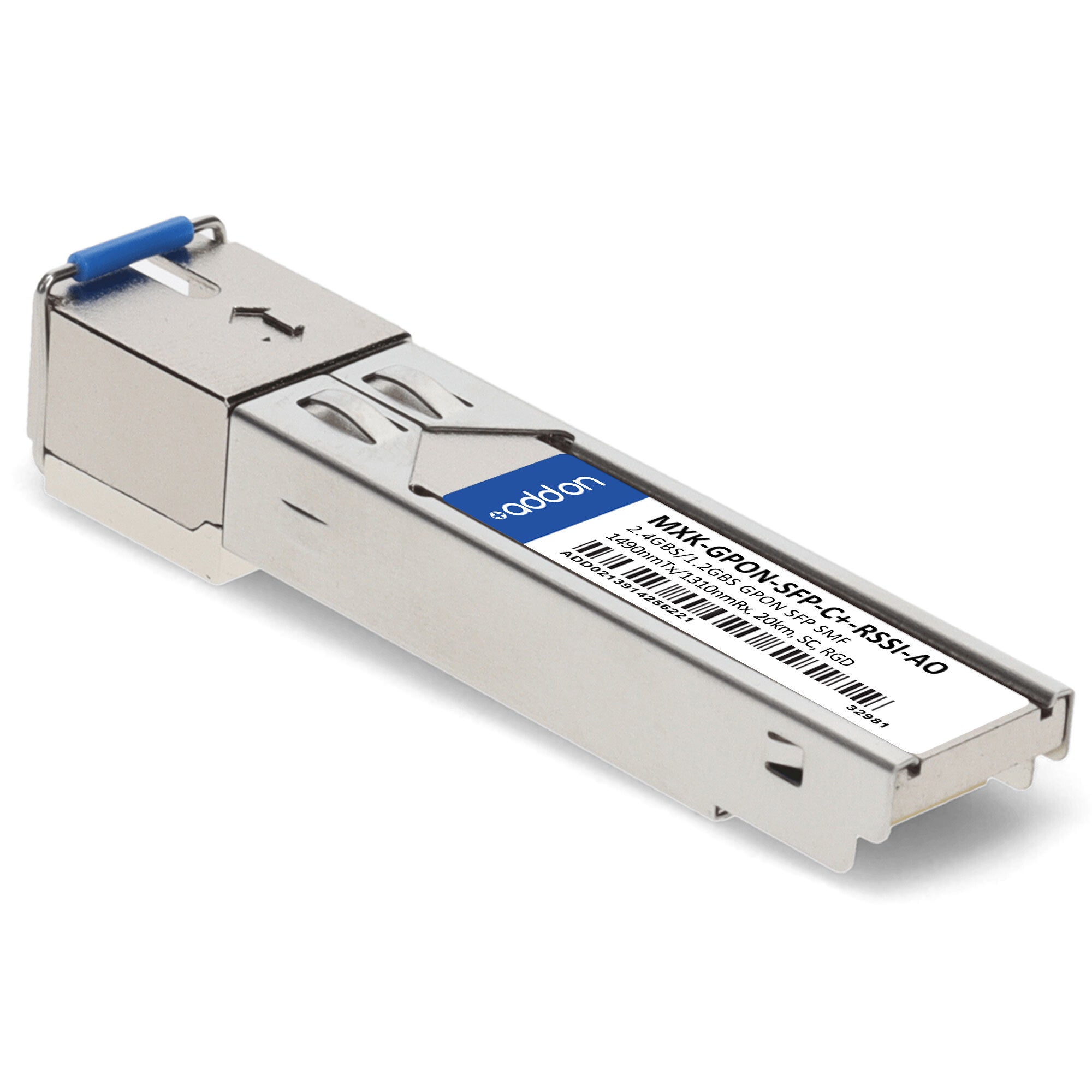

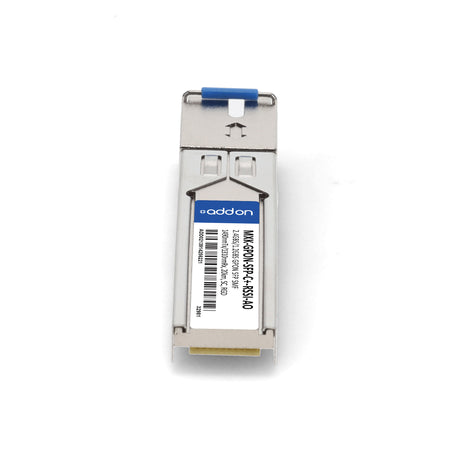

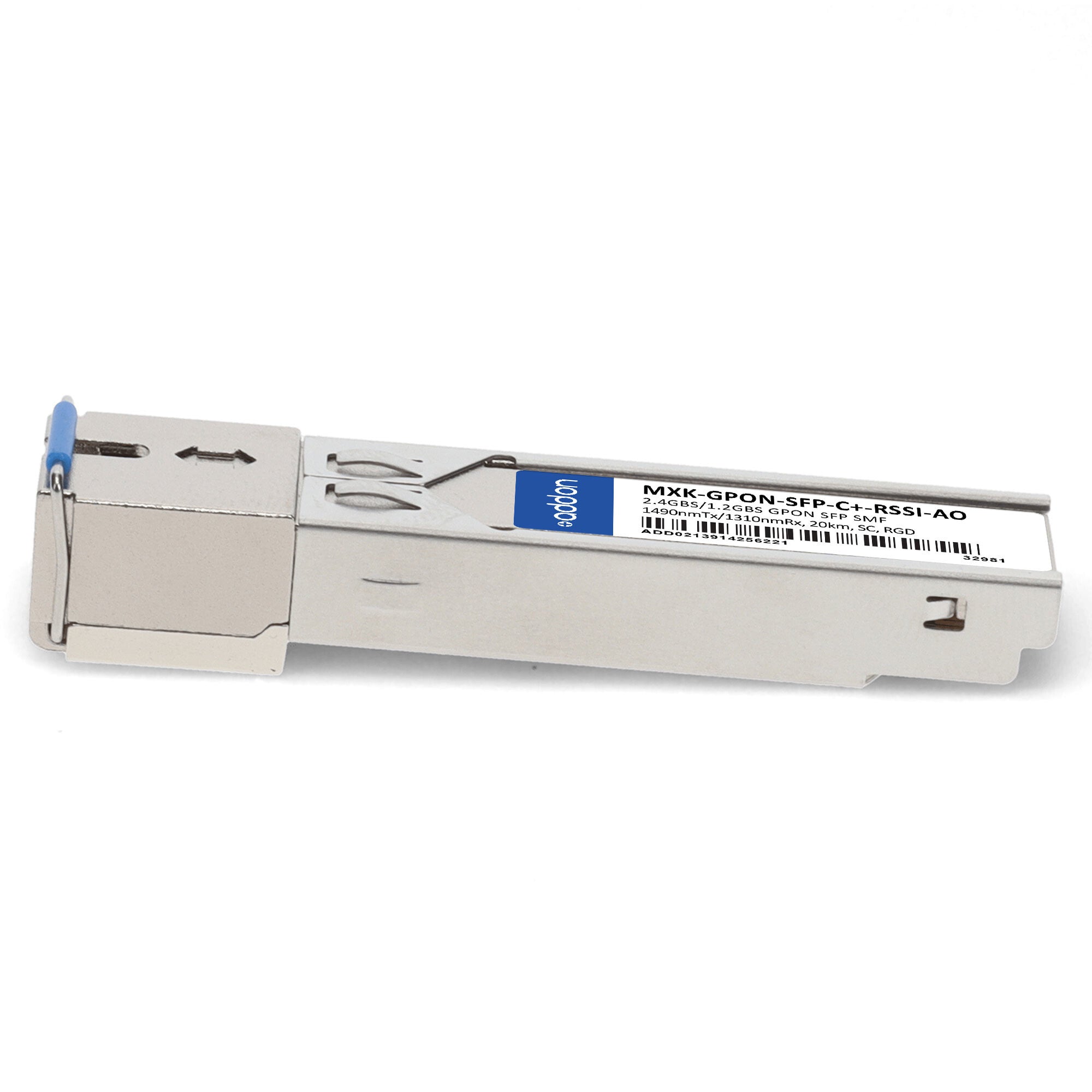

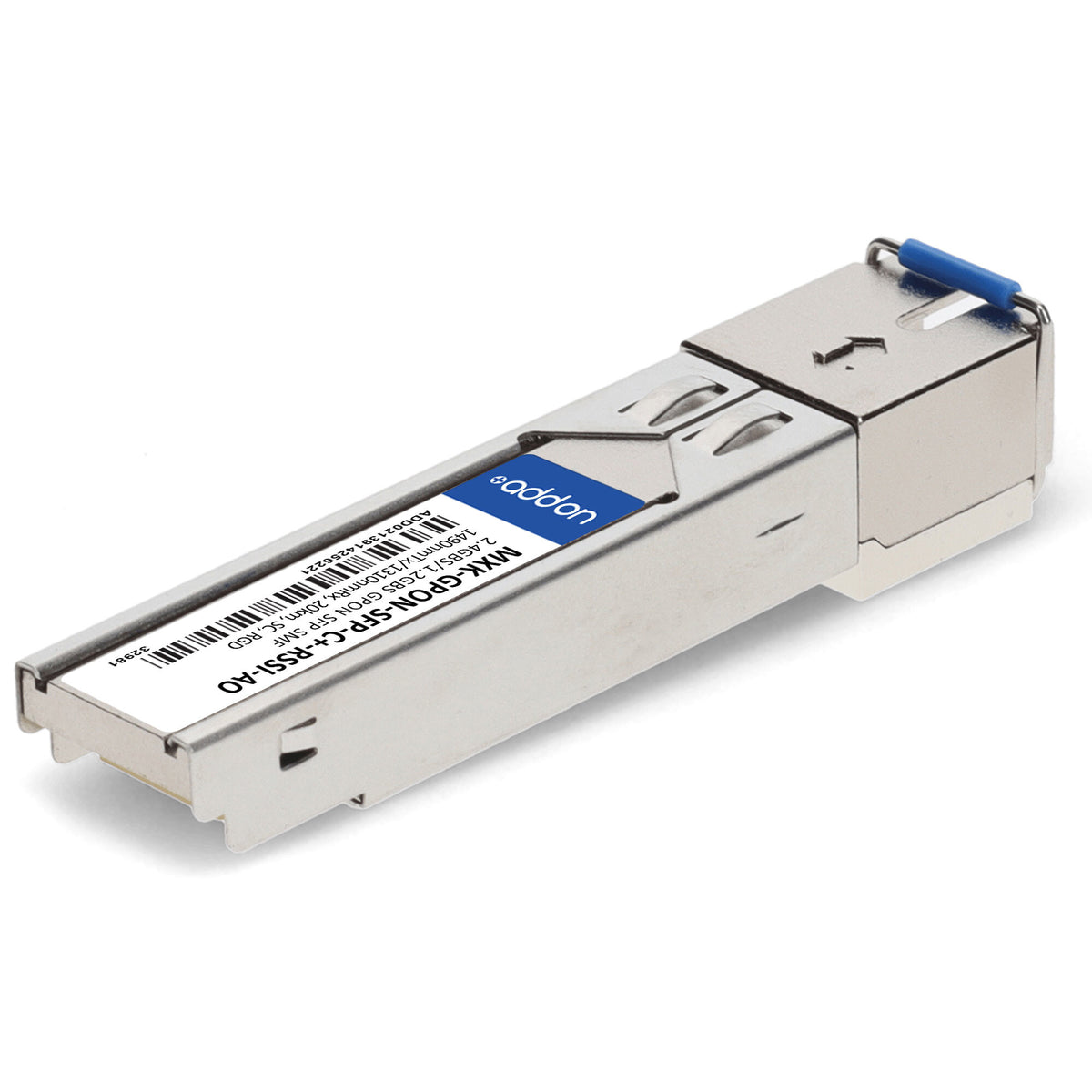

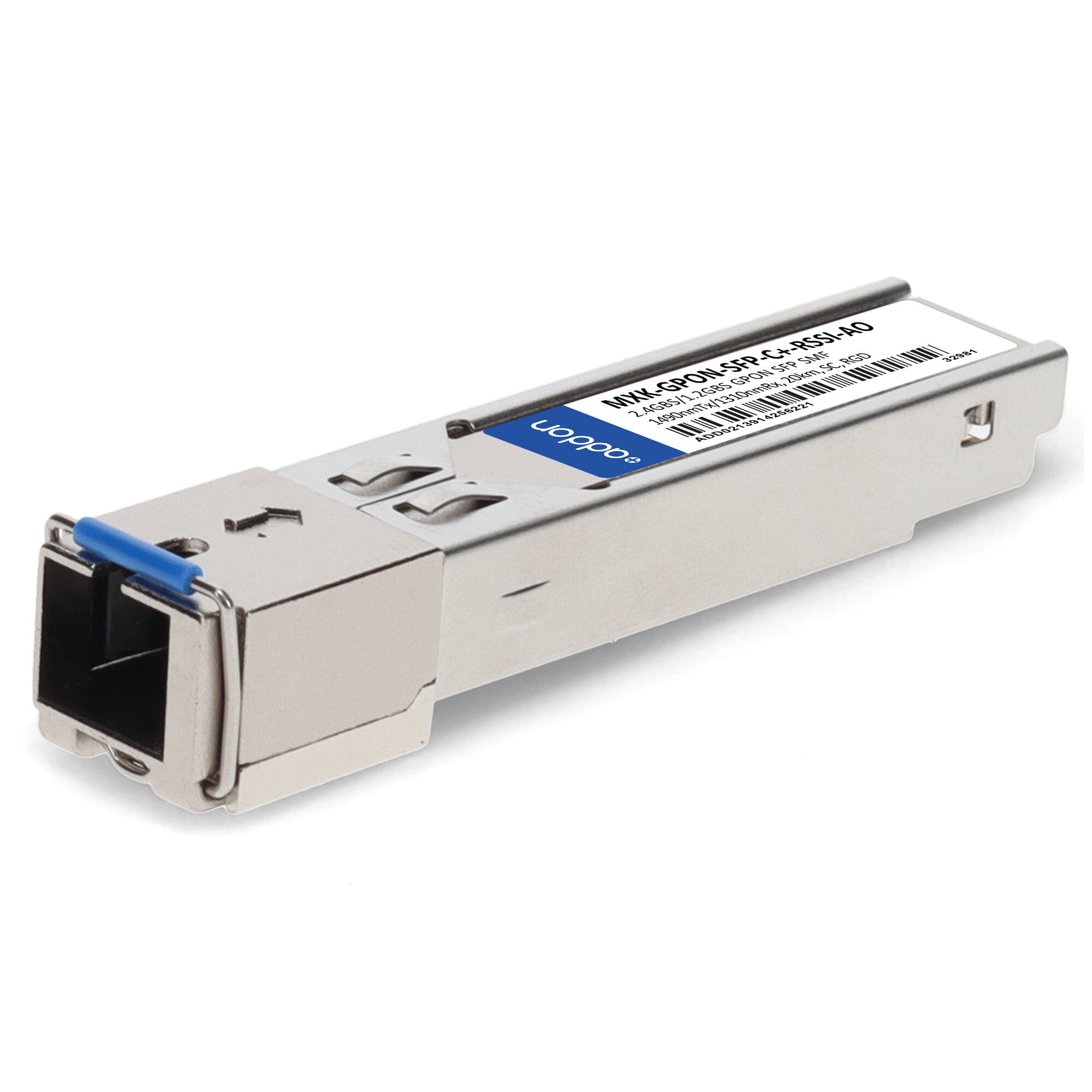

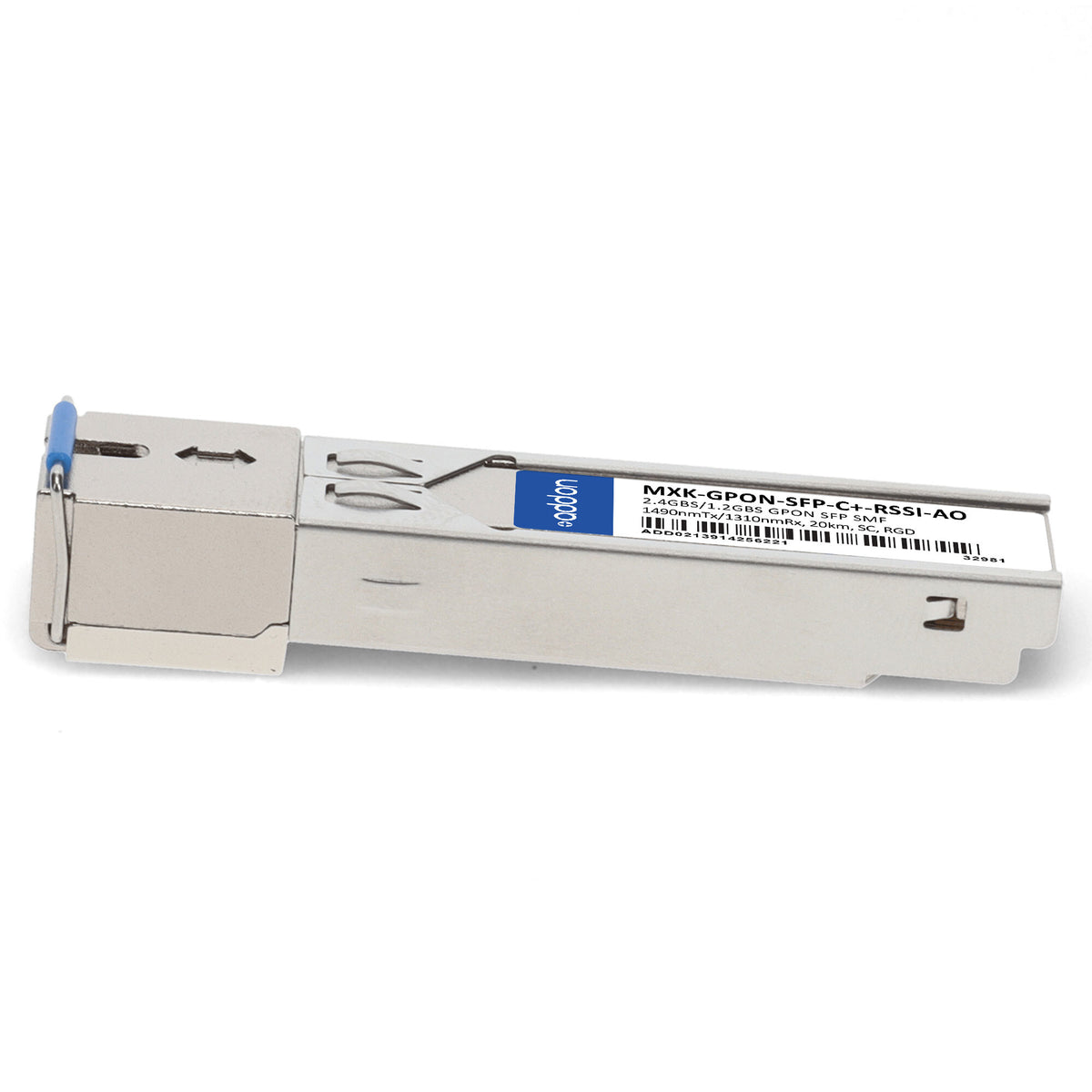

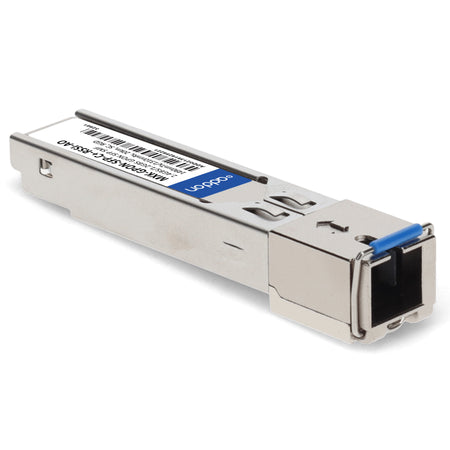

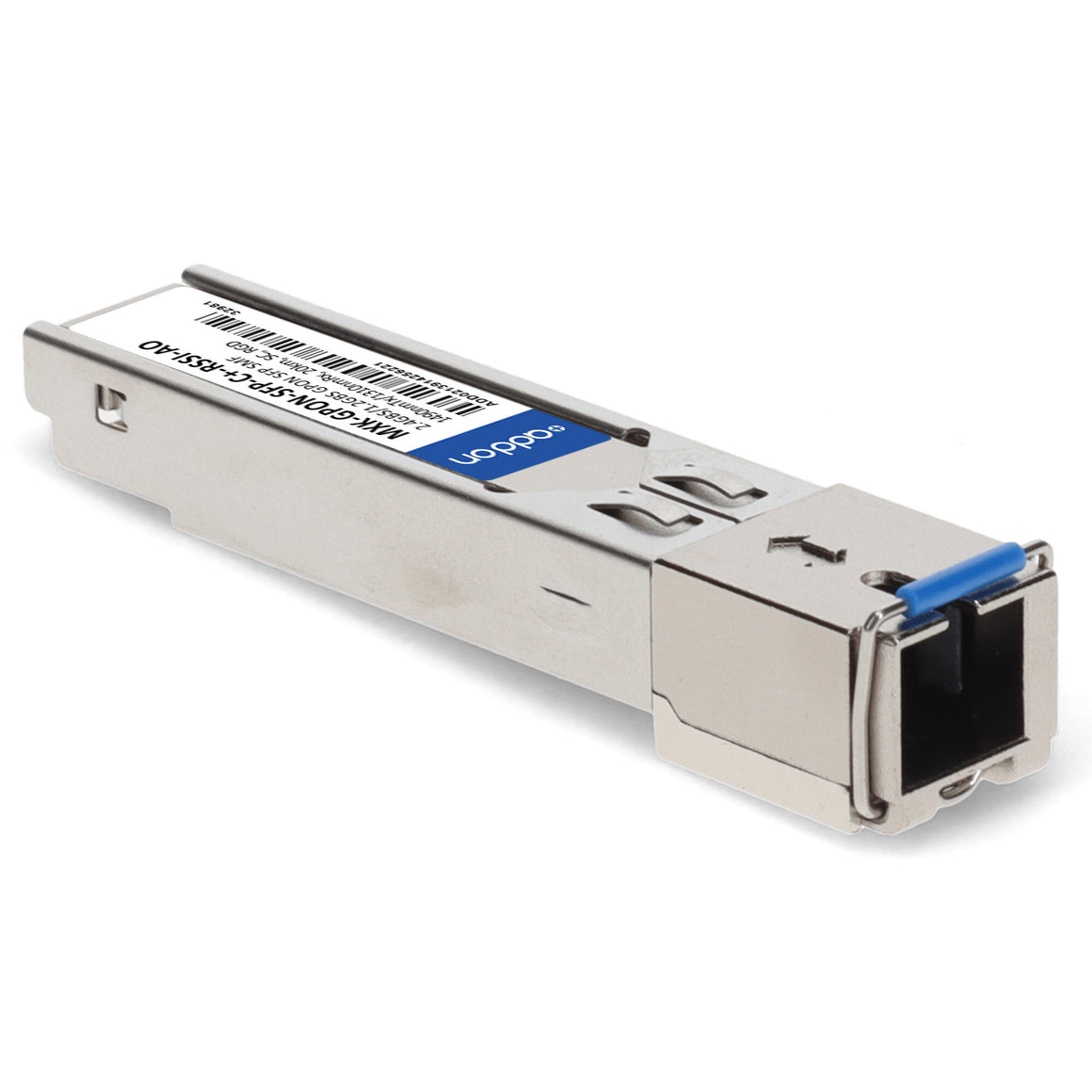

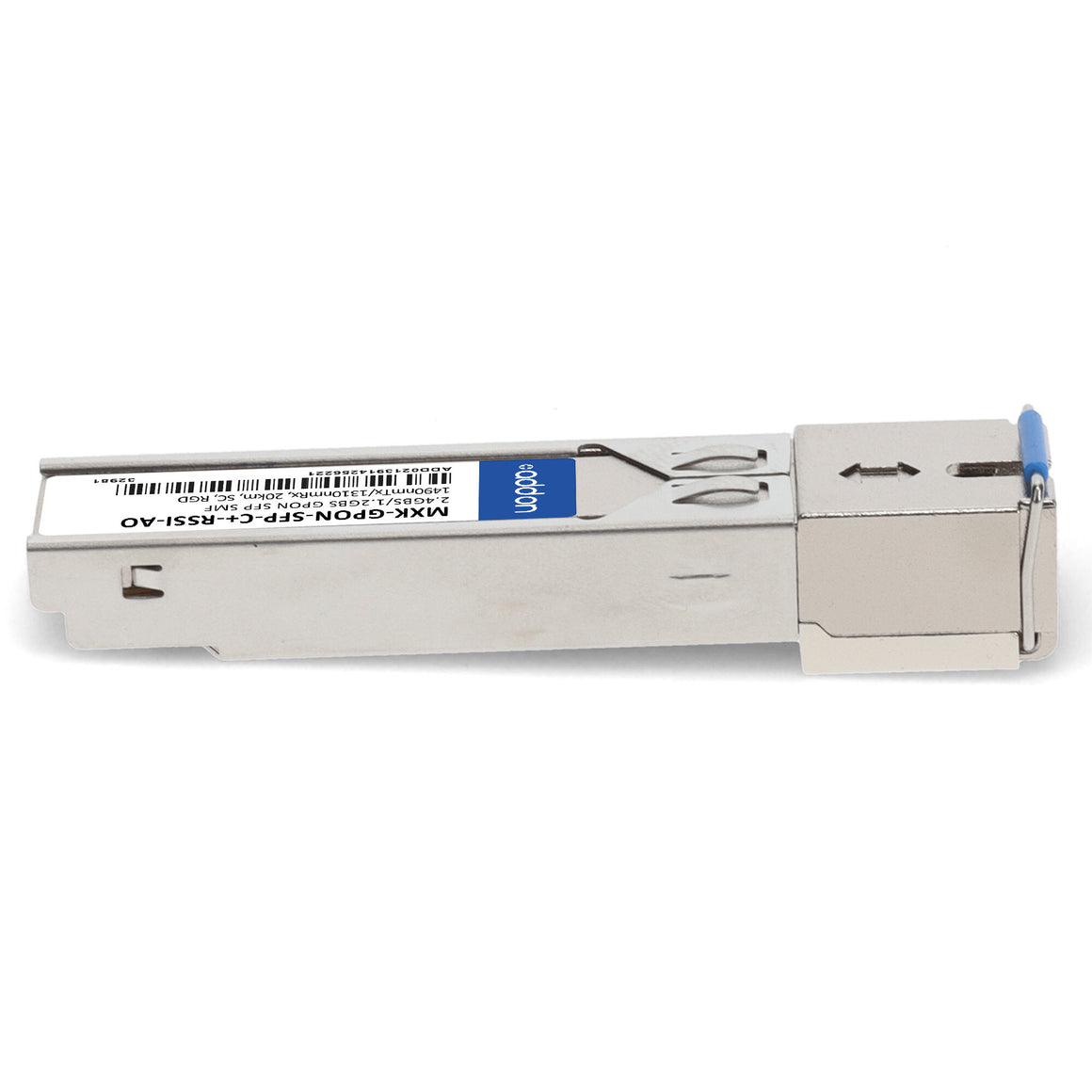

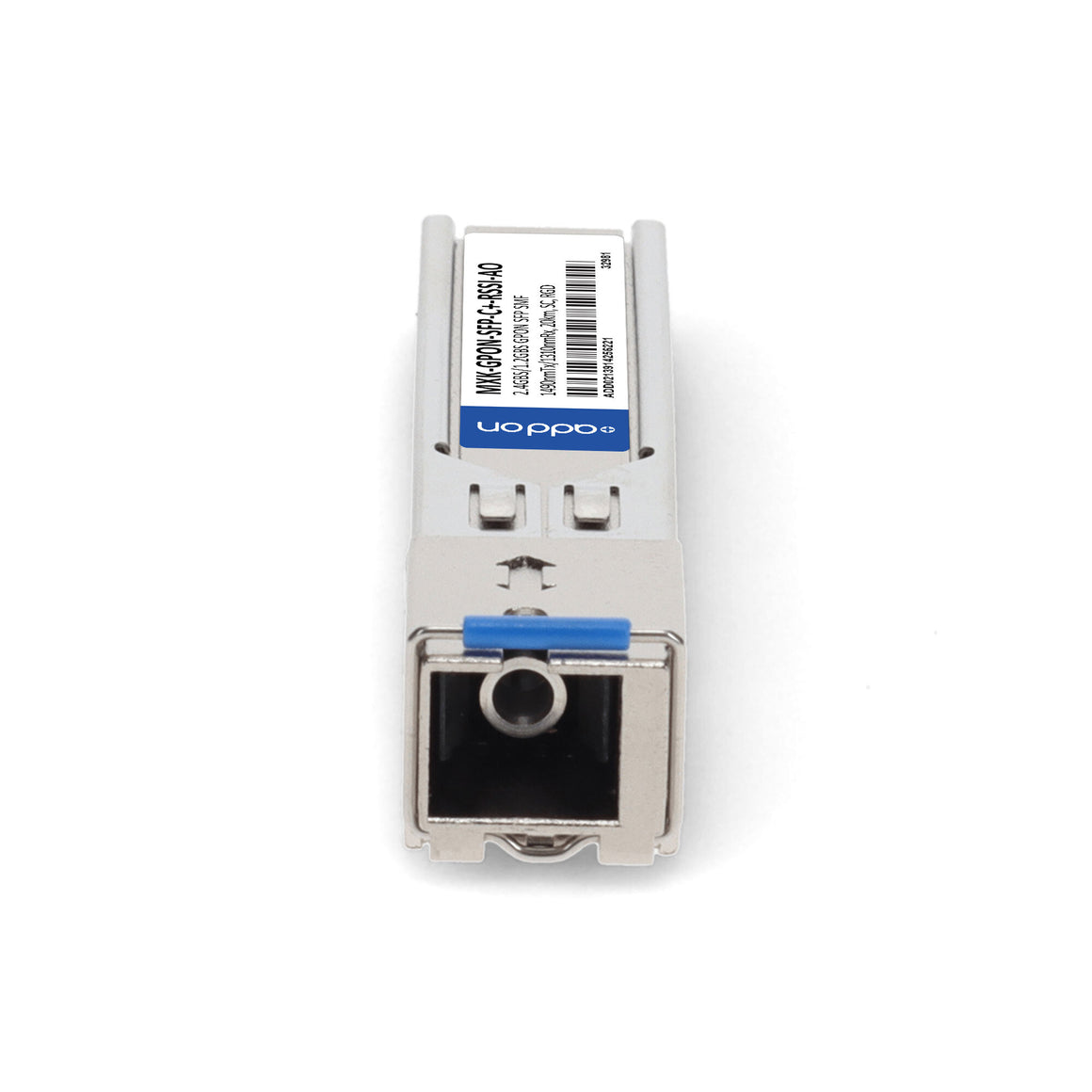

This Zhone® MXK-GPON-SFP-C+-RSSI compatible SFP transceiver provides 2.4Gbs/1.2Gbs-C+ throughput up to 20km over single-mode fiber (SMF) using a wavelength of 1490nmTx/1310nmRx via a SC connector. It is guaranteed to be 100% compatible with the equivalent Zhone® transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. It is built to meet or exceed the specifications of Zhone®, as well as to comply with MSA (Multi-Source Agreement) standards to ensure seamless network integration. This transceiver is Trade Agreements Act (TAA) compliant.
| Performance |
|---|
| Rx wavelength (max) |
1360 nm |
| Rx wavelength (min) |
1280 nm |
| Tx wavelength (max) |
1500 nm |
| Tx wavelength (min) |
1480 nm |
| Maximum transfer distance |
20000 m |
| SFP transceiver standard |
C+ |
| Fiber optic connector |
SC |
| Single-mode fiber (SMF) supported |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
2488 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Hot-Plug support |
Yes |
| Form factor |
SFP |
| Power |
|---|
| Maximum voltage |
4 V |
| Input voltage |
3.14 - 3.46 V |
| Certificates |
|---|
| Compliance certificates |
cTUVus, Trade Agreements Act (TAA), WEEE, CE, REACH, RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Doesn't contain |
Lead |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-40 - 85 °C |
| Weight & dimensions |
|---|
| Height |
12.3 mm |
| Depth |
13.7 mm |
| Width |
63.8 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
