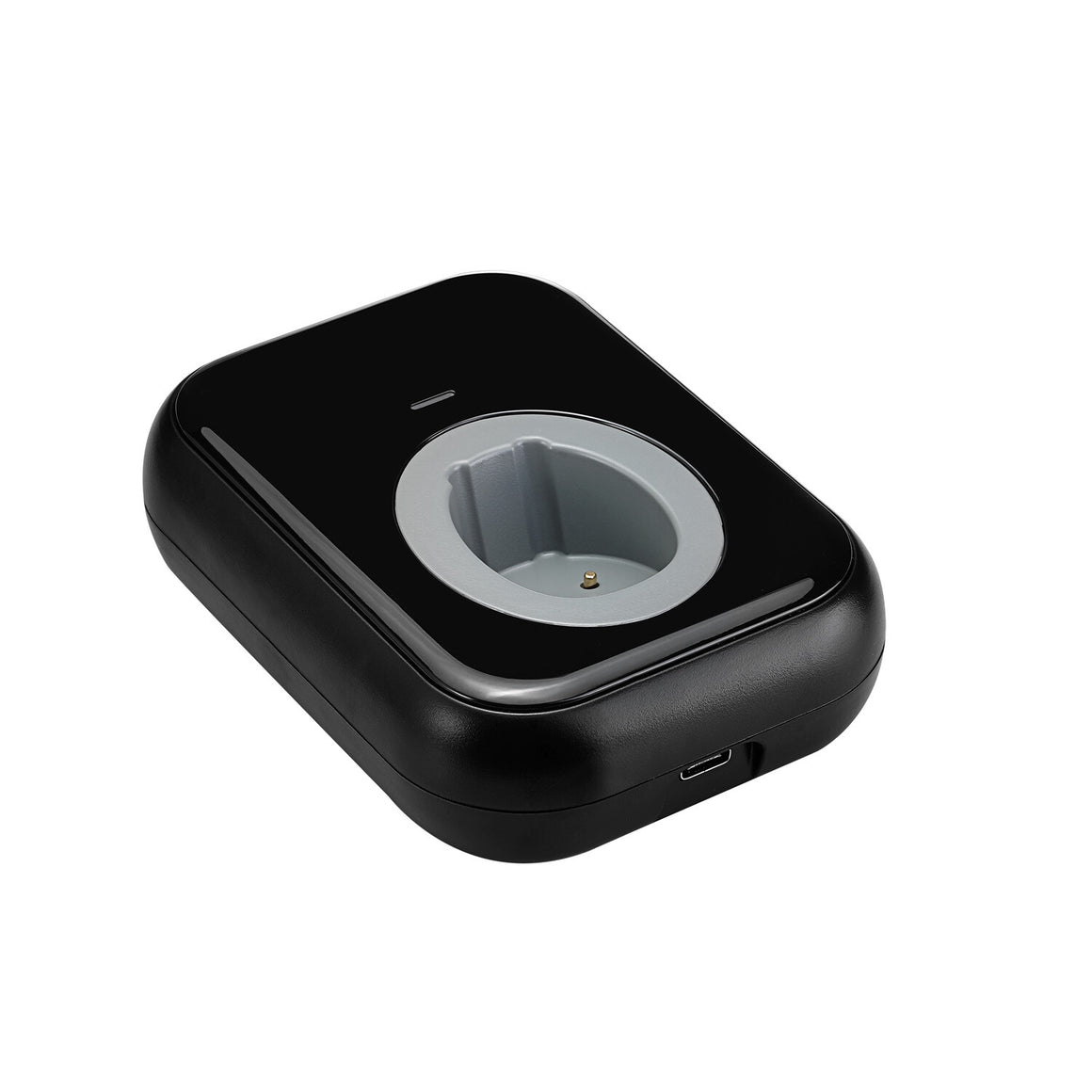

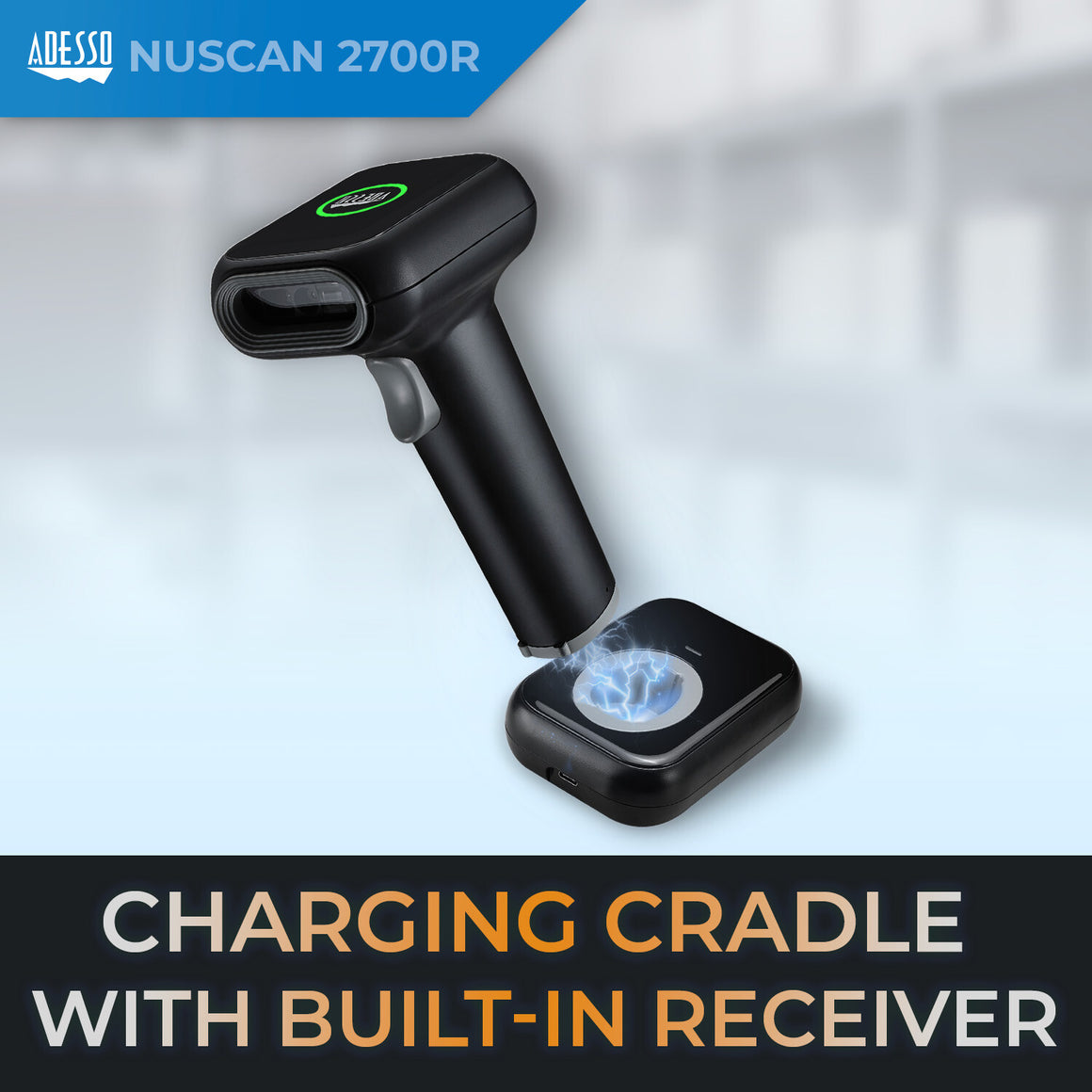

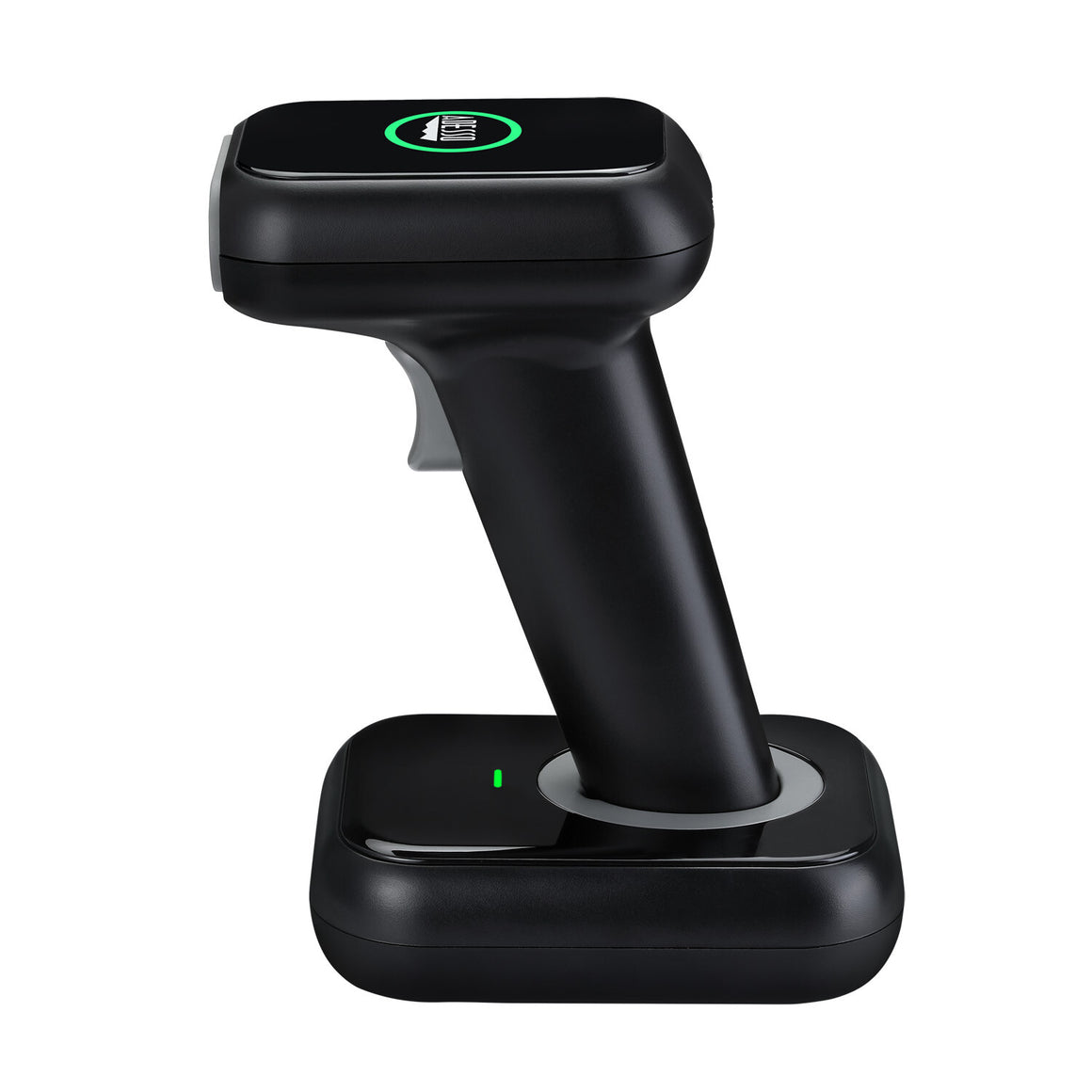

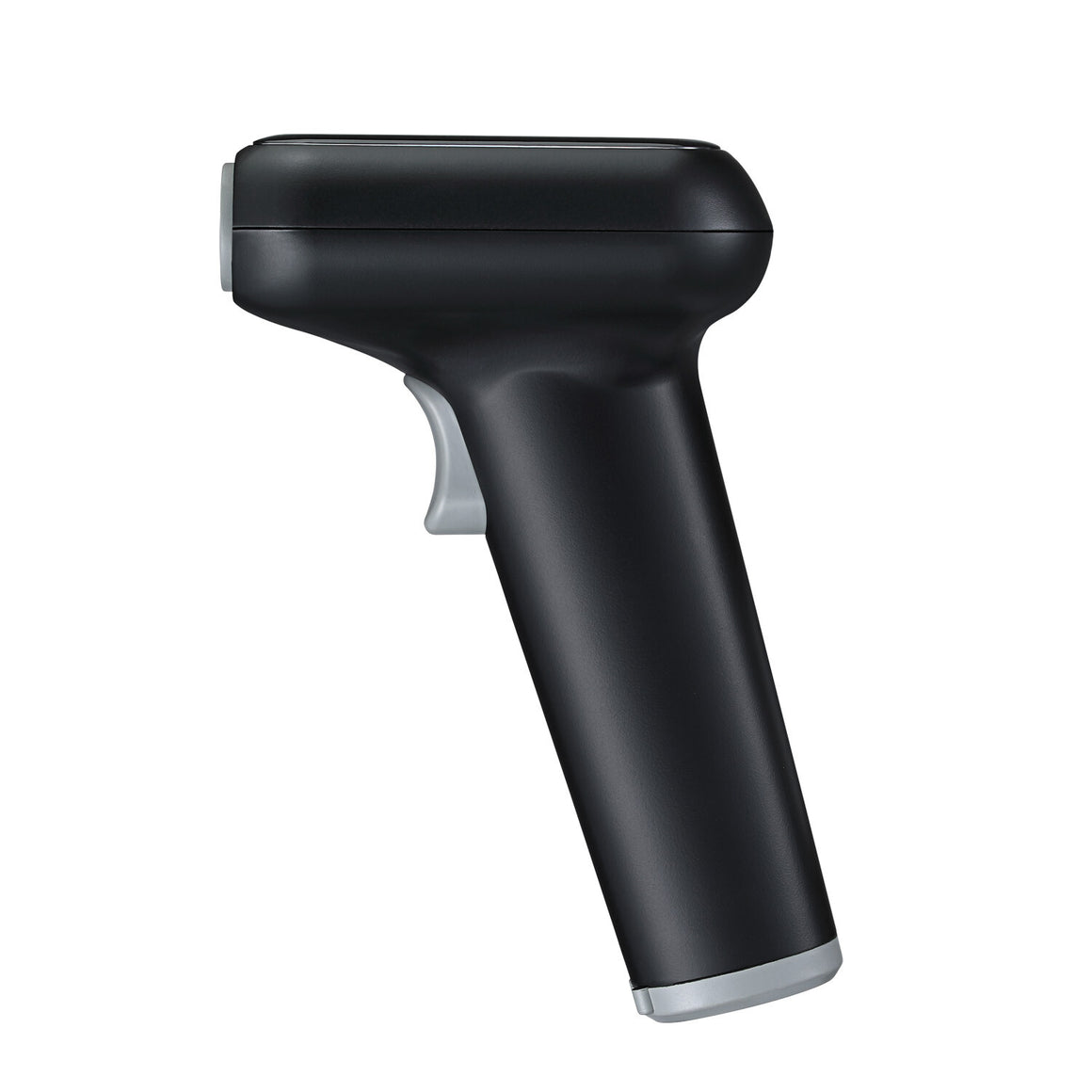

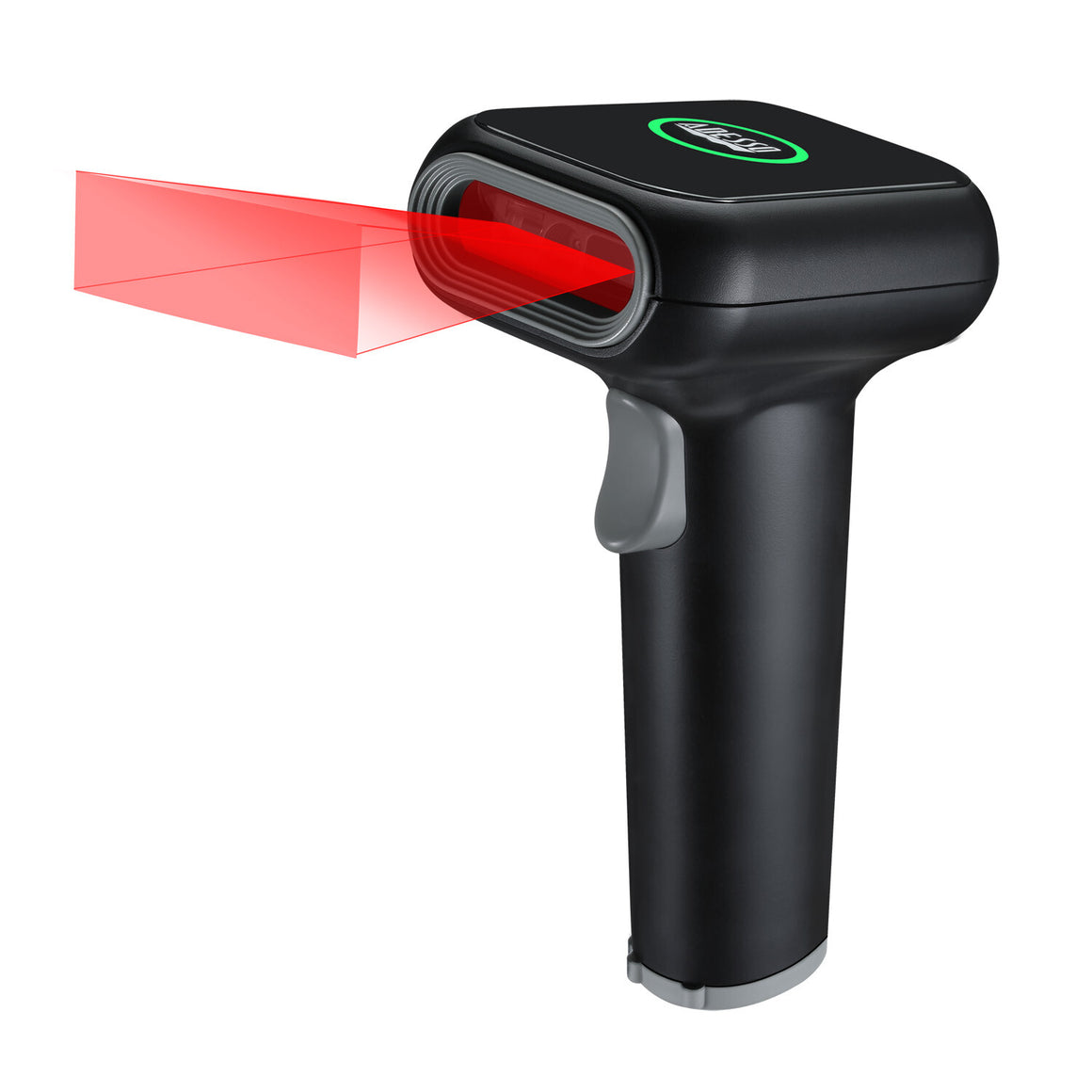

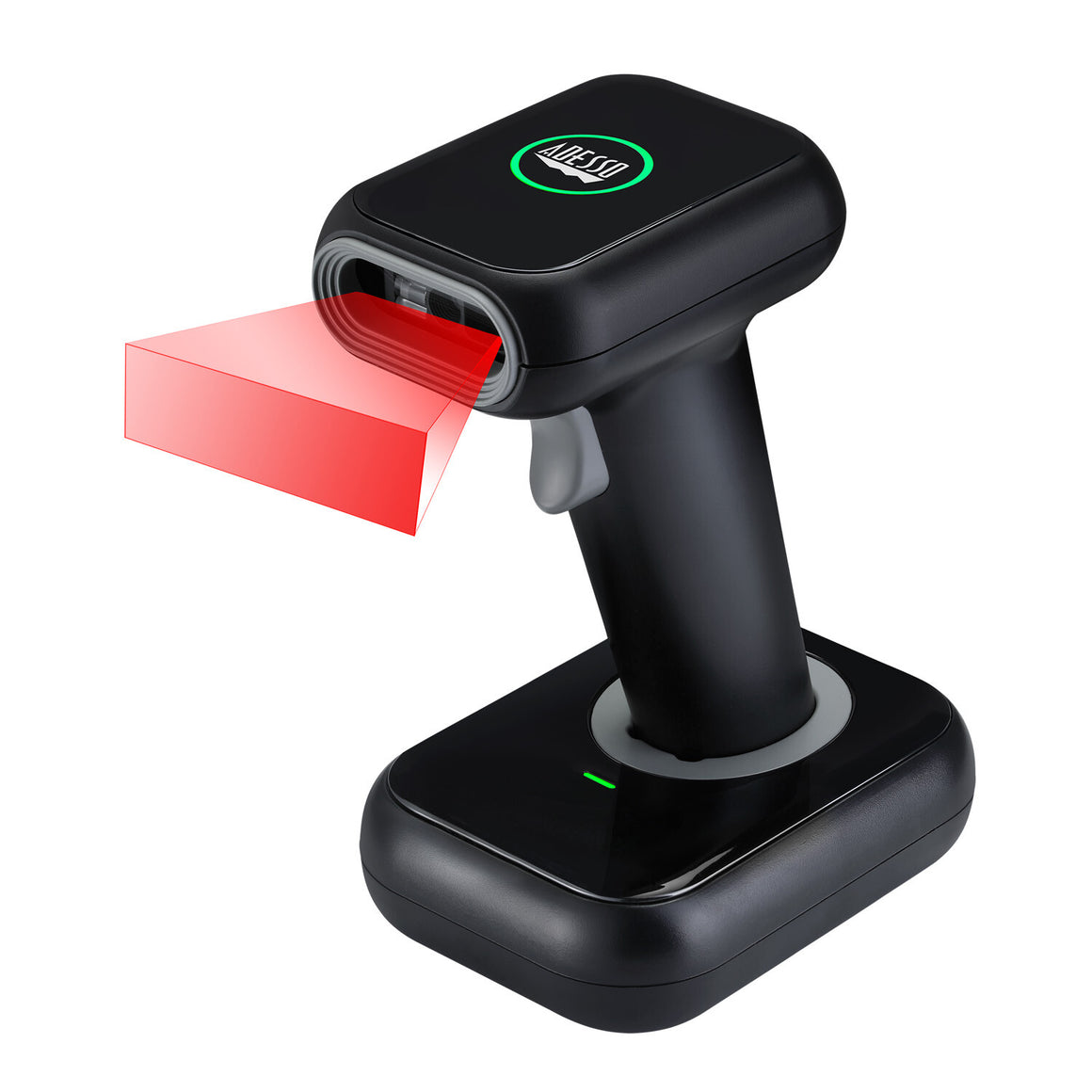

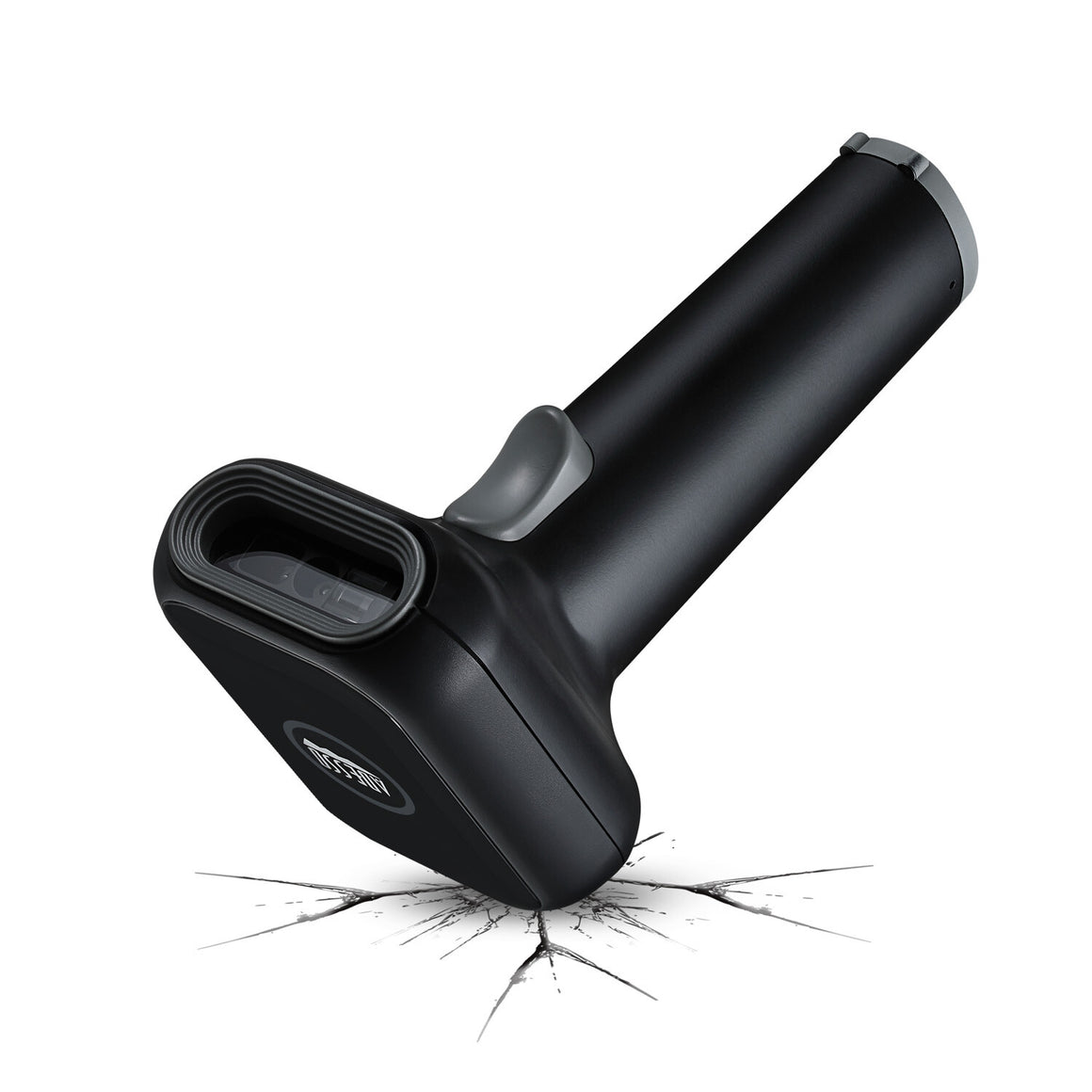

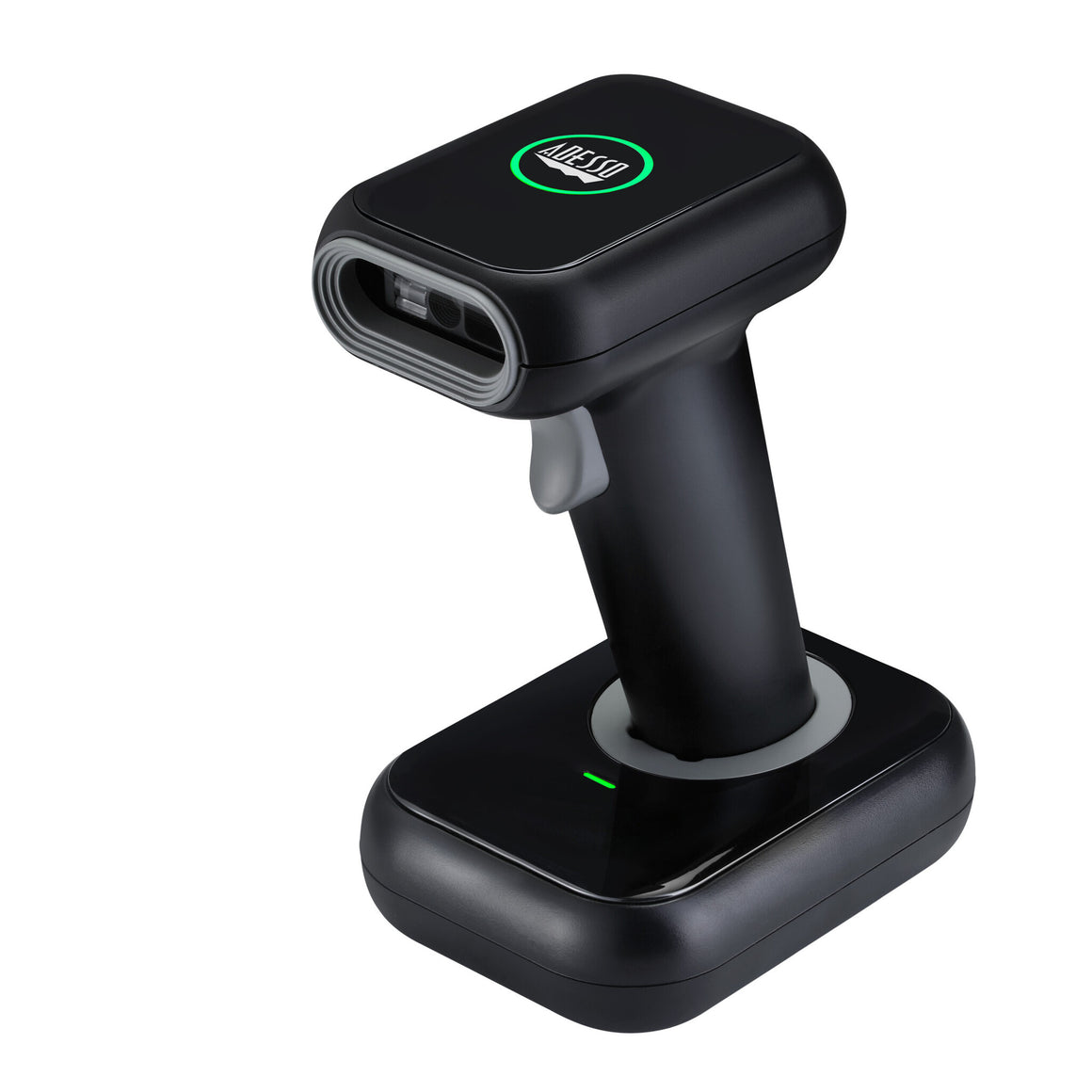

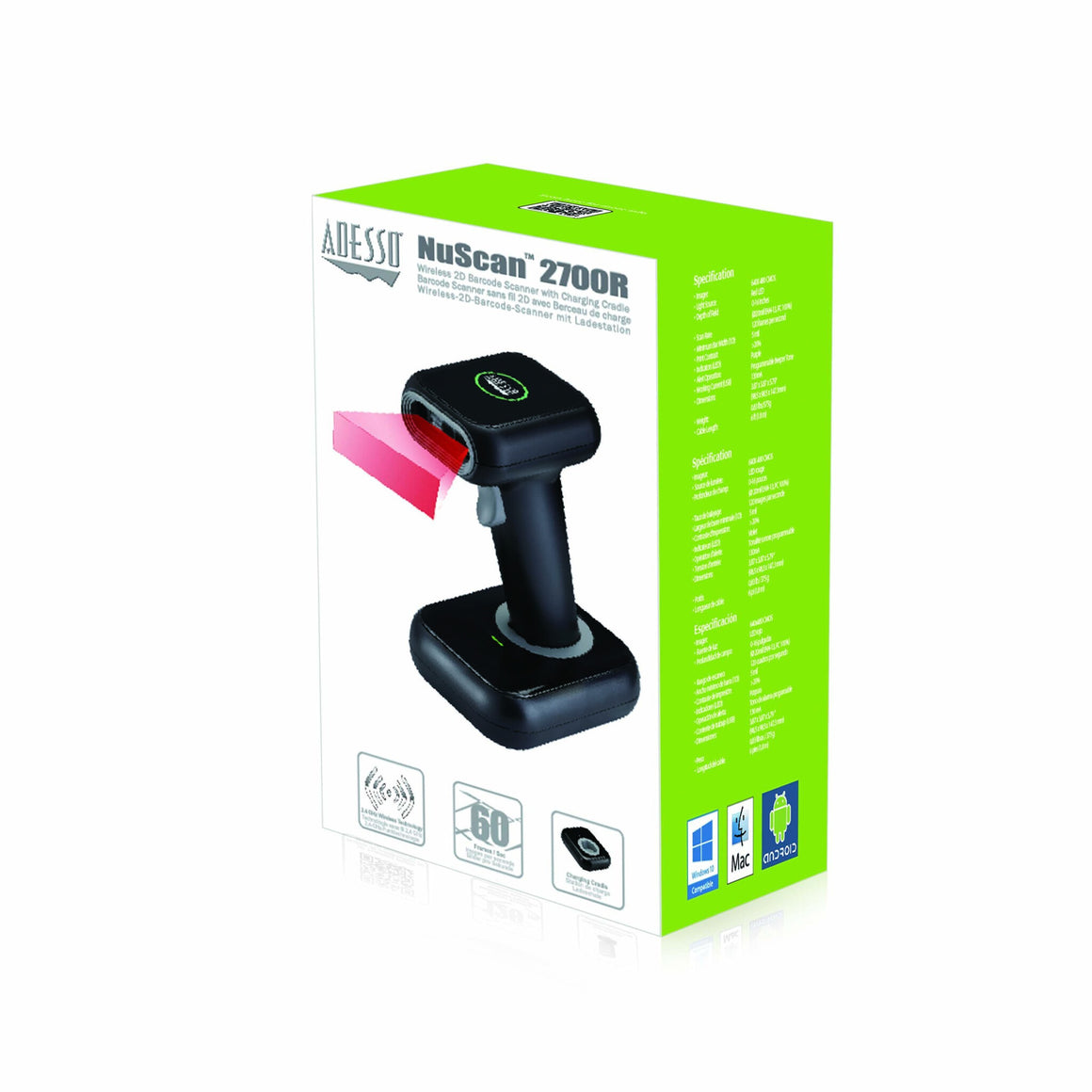

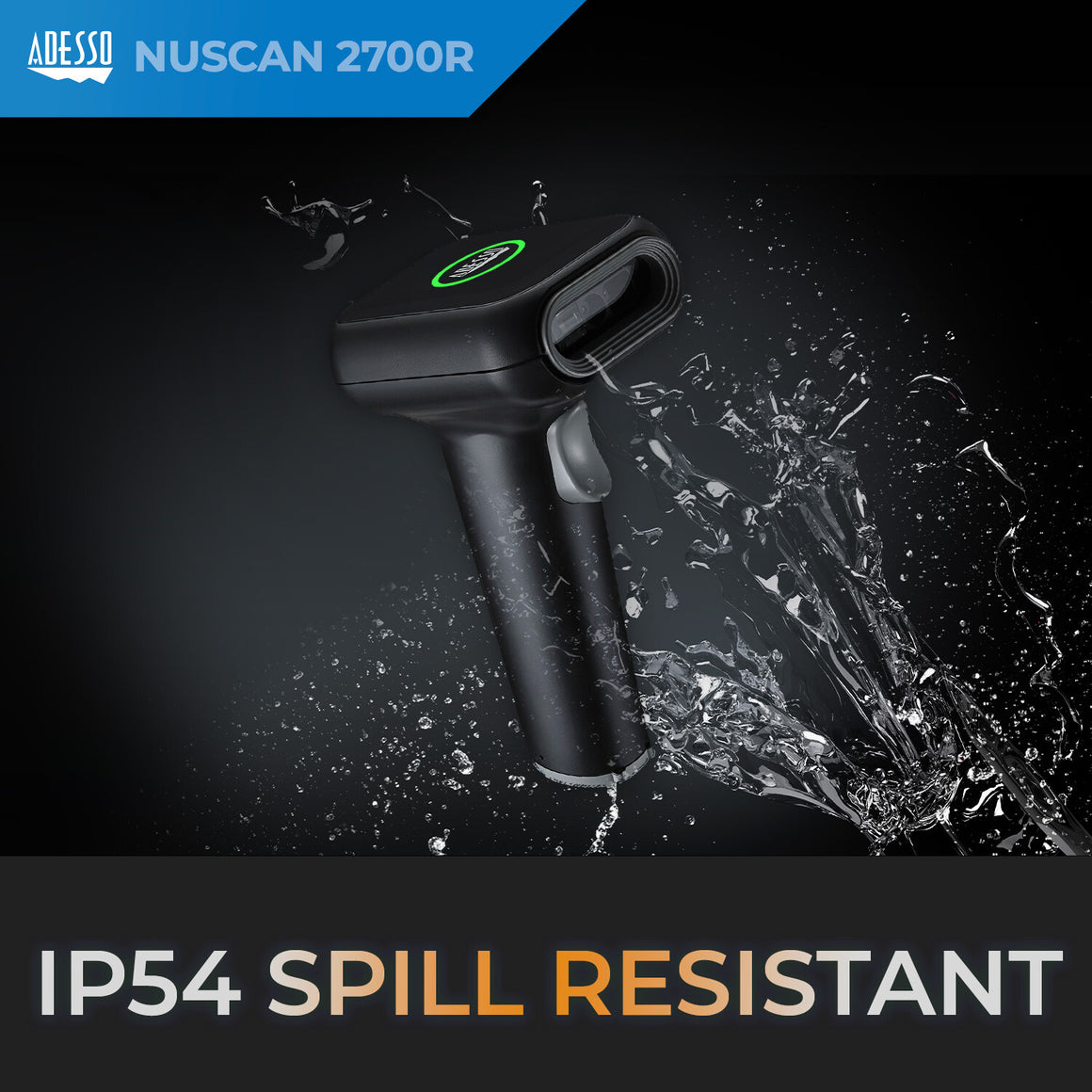

2D Wireless Barcode Scanner with Charging Cradle
The Adesso NuScan 2700R is the ultimate wireless barcode scanning solution. Its new decoding engine allows it to decode both 2D barcodes, such as QR Code, PDF417, and Data Matrix, and 1D barcodes. The scanning rate of 120 scans per second increases accuracy, therefore increasing efficiency. The 2.4 GHz RF technology provides a wireless range of up to 150 feet. Its built-in USB receiver also makes the scanner completely Plug-n-Play!
| Scanning |
|---|
| Depth of field range |
30.5 cm |
| Yaw reading angle |
0 - 40° |
| Pitch reading angle |
0 - 45° |
| Tilt reading angle |
0 - 360° |
| Wavelength |
640 nm |
| Light levels (direct sunlight) |
0 - 70000 lx |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| Sensor type |
CMOS |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), MSI, MSI-Plessey, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported |
Data Matrix, Micro QR Code, PDF417, QR Code |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Operating frequency |
2400 MHz |
| Wireless range |
45 m |
| Standard interfaces |
RF Wireless, USB |
| Connectivity technology |
Wired & Wireless |
| Performance |
|---|
| Country of origin |
China |
| Print contrast |
25% |
| Product colour |
Black |
| Power |
|---|
| Input voltage |
5 V |
| Charging time |
4 h |
| Battery capacity |
280 mAh |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
USB |
| Weight & dimensions |
|---|
| Weight |
100 g |
| Height |
62 mm |
| Depth |
168 mm |
| Width |
85 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 55 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
