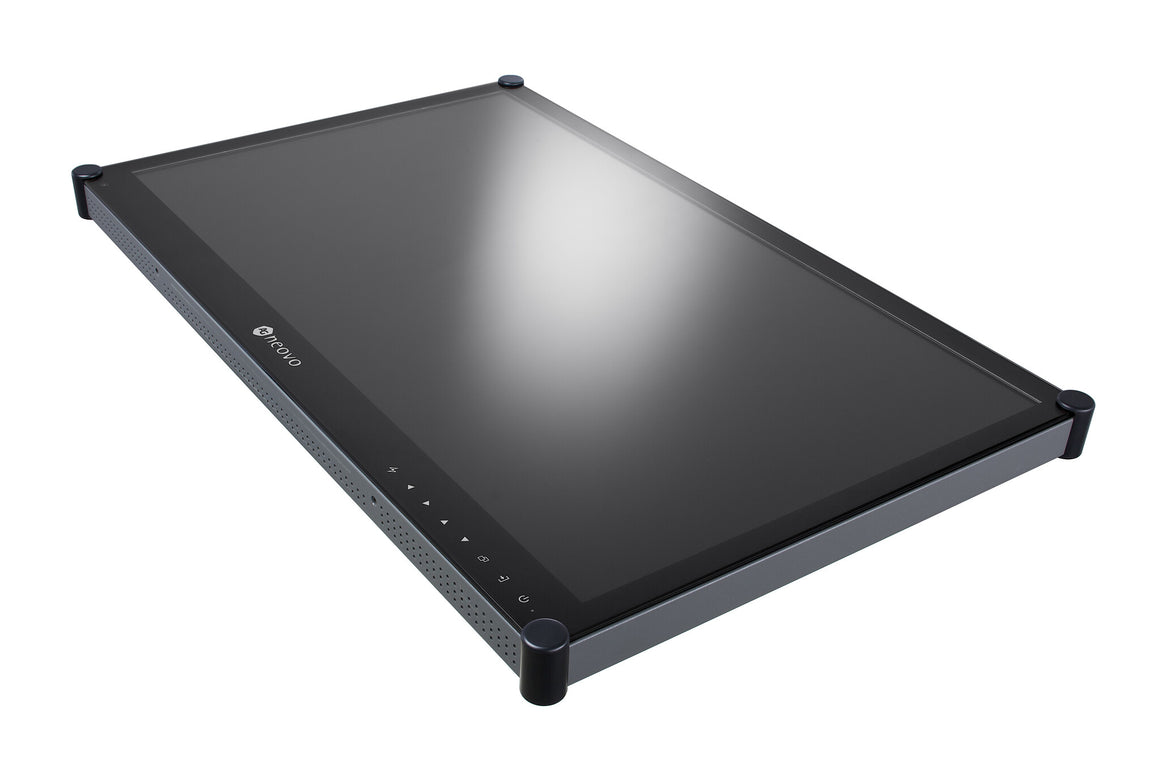

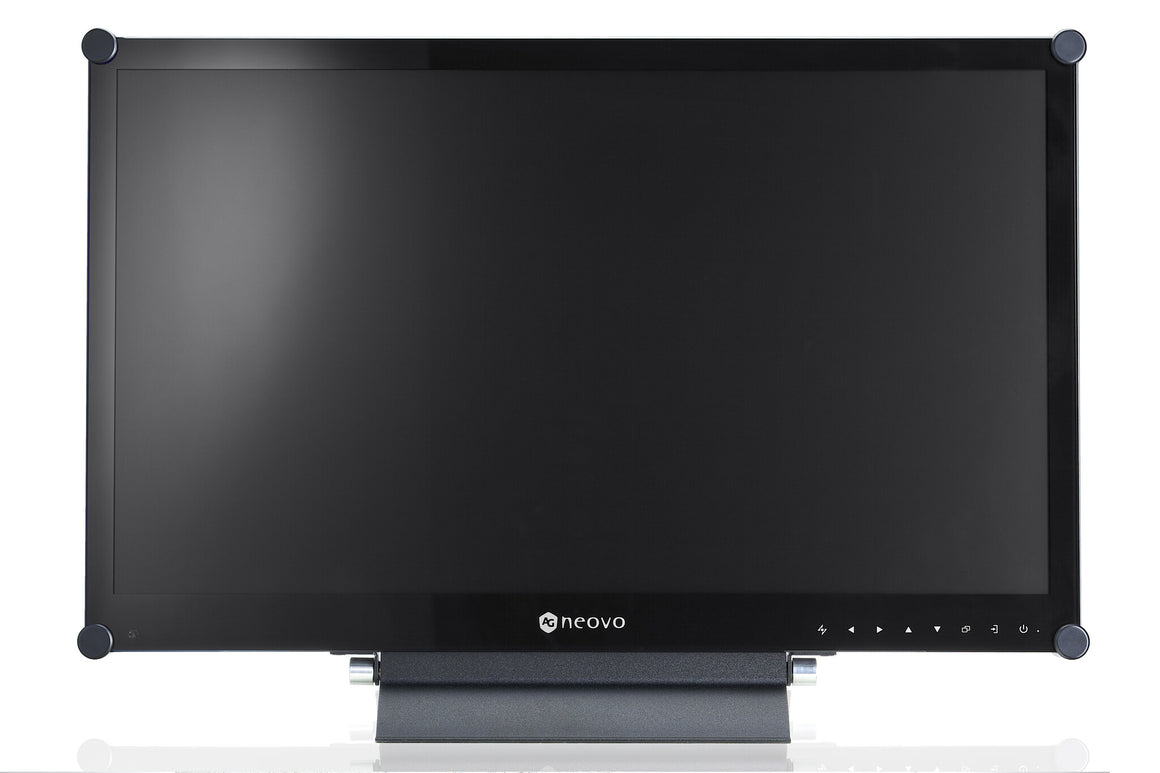

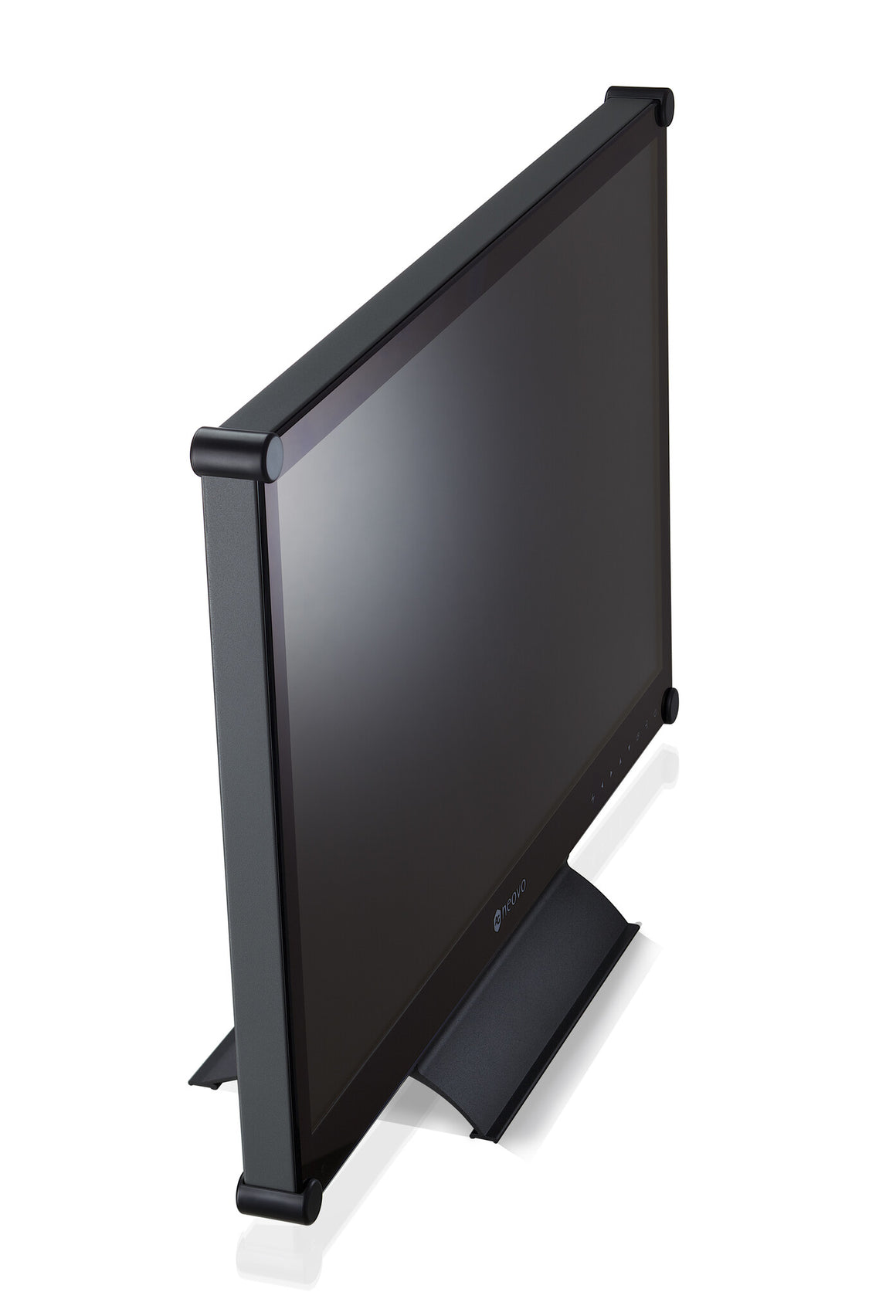

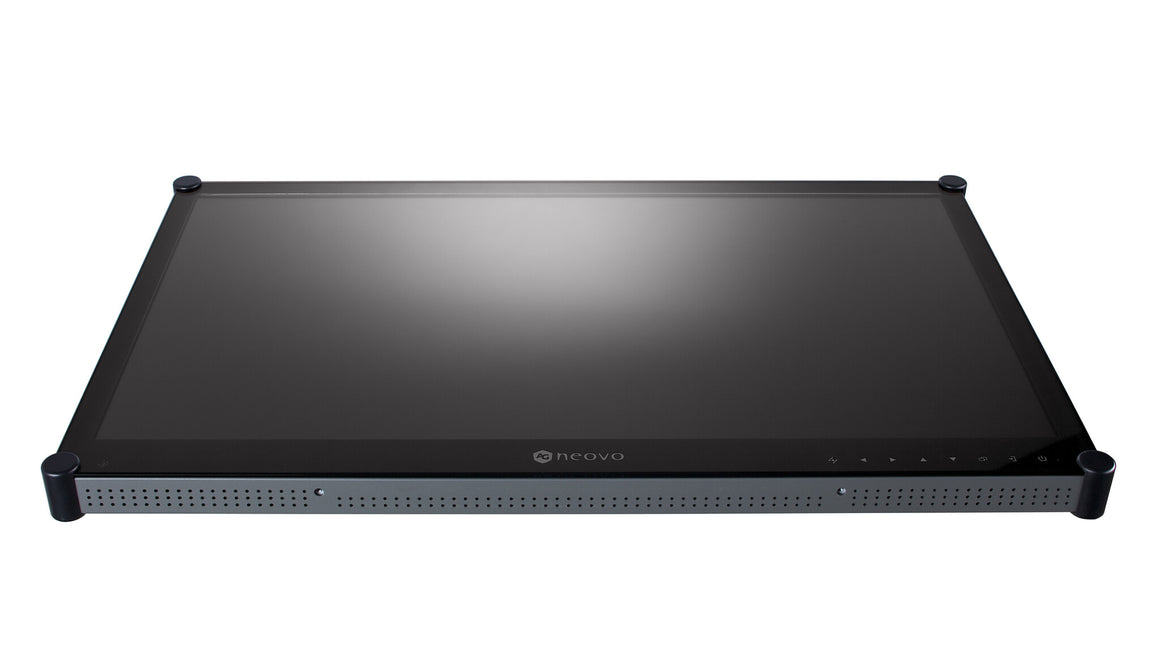

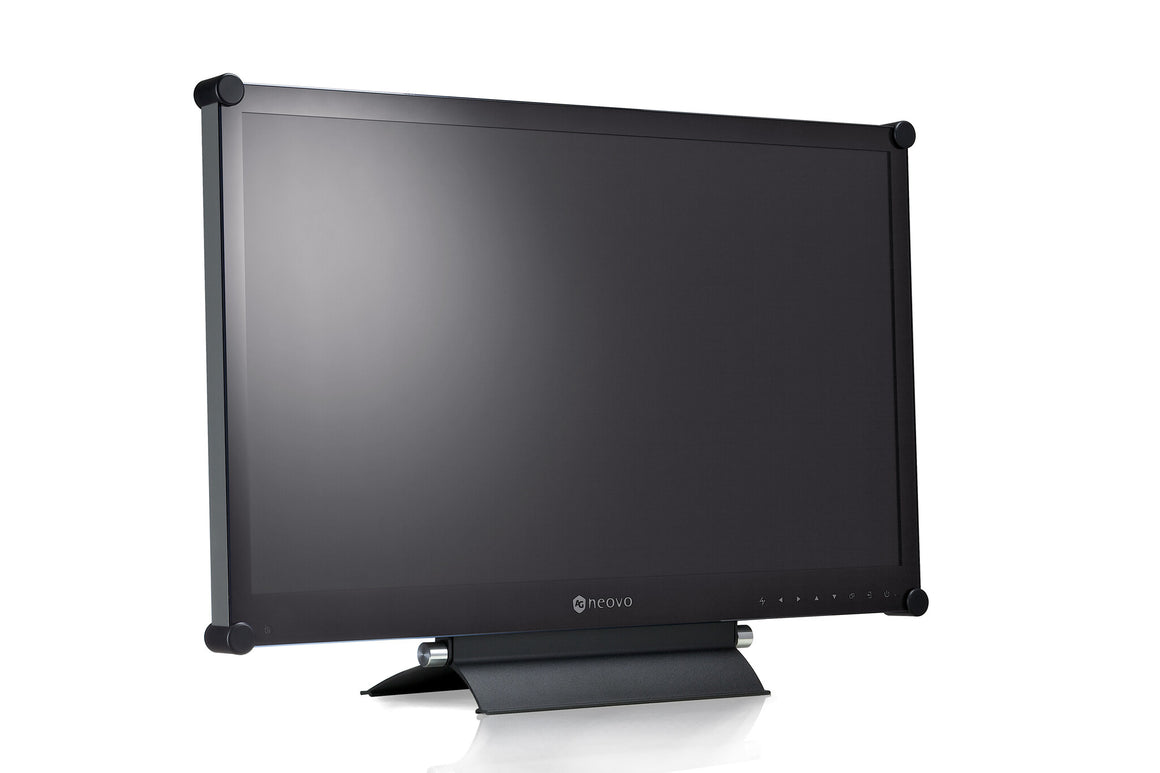

The HX-24G is a 24-inch SDI monitor to broadcast live video footage over a long distance in a surveillance environment. With SDI input and output looping functionality, the monitor allows to receive real-time 1080p images from HD-SDI or 3G-SDI cameras and transmit the uncompressed videos in the light of ultra-low latency and signal interruption to multiple SDI monitors. The HX-24G fulfils the need for high-quality image details to real-time video surveillance monitoring such as official authorities, law enforcement, banks, casinos, jewellery and luxury stores, police patrol cars, private properties.
Support HD-SDI and 3G-SDI Standards
The HX-24G 24-inch SDI monitor supports both HD-SDI and 3G-SDI standards at Full HD image quality. Users don’t need to sacrifice the video quality and image details when zooming in the cameras during live video and playback mode to focus on their specific area of interest.
Uncompressed and Ultra-low Latency Transmission via Long Distance
The HX-24G supports multiple SDI video standards, including SD, HD and 3G-SDI formats. These standards support ultra-low latency and uncompressed transmission of HDTV signals up to 300 meters for live video monitoring.
The maximum distances for SD-SDI, HD-SDI and 3G-SDI signal transmission via RG6 cables:
3G-SDI: 100M / RG6 Coaxial Cables
HD-SDI: 150M / RG6 Coaxial Cables
SD-SDI: 300M / RG6 Coaxial Cables
Easy Connection with SDI Loop Out for Multiple Monitor Setups
With HX-24G’s SDI loop-out port, CCTV installers can quickly connect the SDI A/V source to extra SDI monitors without the need for a converter. It’s an ideal solution for CCTV HD-SDI camera and broadcast monitoring.
Super Resolution
To improving the clarity of security footage in real-time, the HX-24G monitor’s super-resolution technology can upscale and enhance the images to present more detail in layered texture horizontally and vertically. It essentially makes an image with a higher resolution in a more natural way.
CCTV Mode
AG Neovo’s pre-configured CCTV mode can maximise image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don’t waste time testing and re-adjusting constantly, this product already has it all figured out!
Night Mode
While applying to critical surveillance, such as sailing in the dark seas, users have higher image clarity requirements for the monitors in low-light environments. Night Mode features dimming the backlight level in dark environments and remaining the clear viewing with high visibility for reliable navigation.
LCD Screen Burn In Prevention
AG Neovo’s patented Anti-Burn-in™ technology tackles LCD burn-in effect, prevents a ghost image on the screen. It assures an extended lifespan for the monitors and secures the user’s investment.
Robust Design for Video Surveillance
A professional video surveillance monitor is built for 24/7 use in challenging conditions. The HX-24G SDI monitor fits with NeoV Optical Glass screen and durable metal casing to prevent scratching and high-velocity impacts, also providing enhanced heat dissipation to ensure proper operation.
PID Command & Ctrl for RS232 System Integration
PID Command & Ctrl software helps integrators easily control and integrate this 24-Inch SDI monitor via RS232 connections. Users can quickly find command codes for programming into external control systems for remote management, OSD-related settings, and easy control on deployed displays on its simple and intuitive interface.
| Design |
|---|
| Tilt angle range |
3 - 21° |
| Tilt adjustment |
Yes |
| Product colour |
Black |
| Mounting type |
Freestanding/Wall-mounted |
| Product type |
CCTV monitor |
| Display |
|---|
| Transmission rate |
97 |
| Display surface reflectivity (typical) |
1% |
| Glass thickness |
3 mm |
| Digital horizontal frequency |
24 - 84 kHz |
| Digital vertical frequency |
50 - 75 Hz |
| Anti-glare screen |
Yes |
| Surface hardness |
3H |
| RGB colour space |
NTSC |
| NTSC coverage (typical) |
72% |
| Haze rate |
40% |
| Response time |
5 ms |
| Contrast ratio (typical) |
20000000:1 |
| Pixel pitch |
0.274 x 0.274 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Display brightness |
250 cd/m² |
| Panel type |
VA |
| Display type |
LED |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Performance |
|---|
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| VESA mounting |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| SDI inputs |
1 |
| SDI outputs |
1 |
| RS-232 ports |
1 |
| Audio RCA inputs |
1 |
| 3.5 mm (1/8-inch) in |
Yes |
| Composite video out |
1 |
| Composite video in |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| DVI-D ports quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| Power |
|---|
| Energy consumption (SDR) per 1000 hours |
21 kWh |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
F |
| AC adapter output current |
2.75 A |
| AC adapter output voltage |
12 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
21 W |
| Power supply type |
External |
| Power source type |
DC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, Low Voltage Directive (LVD), REACH, RoHS |
| Weight & dimensions |
|---|
| Package weight |
11.2 kg |
| Package height |
517 mm |
| Package depth |
249 mm |
| Package width |
672 mm |
| Weight (with stand) |
8.1 kg |
| Height (with stand) |
392.8 mm |
| Depth (with stand) |
196 mm |
| Width (with stand) |
562.4 mm |
| Width |
562.4 mm |
| Depth |
56.2 mm |
| Height |
352.6 mm |
| Weight |
7.3 kg |
| Packaging content |
|---|
| Warranty card |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC, Audio, VGA |
| AC adapter included |
Yes |
