The QX-32 32-Inch 4K surveillance display is designed for high-resolution security systems. Multi-screen viewing enables the simultaneous display of multiple signals with up to 4 split screens. In addition to simplifying hardware setup by enabling the use of one display in place of four 1080p monitors, the QX-32 provides the gain in clarity required for real-time and up-close monitoring in traffic management centres, casinos, emergency operations centres and other public installations.
EXPERIENCE THE 4K DIFFERENCE
Don’t miss a single detail with this powerful 4K security & surveillance display. View smooth 4K video and graphics with a new level of detail and clarity. Offering 8.3 million pixels, the QX-32 32-Inch 4K surveillance display provides sufficient resolution for even the most demanding surveillance and digital signage applications.
EASY CONTROL AND INTEGRATION
Its built-in RS-232 and Ethernet control capabilities make the QX-Series easy to control and integration a breeze. Whether it is a local serial management connection or a remote network installation, the QX-Series can be managed in multiple scenarios and applications.

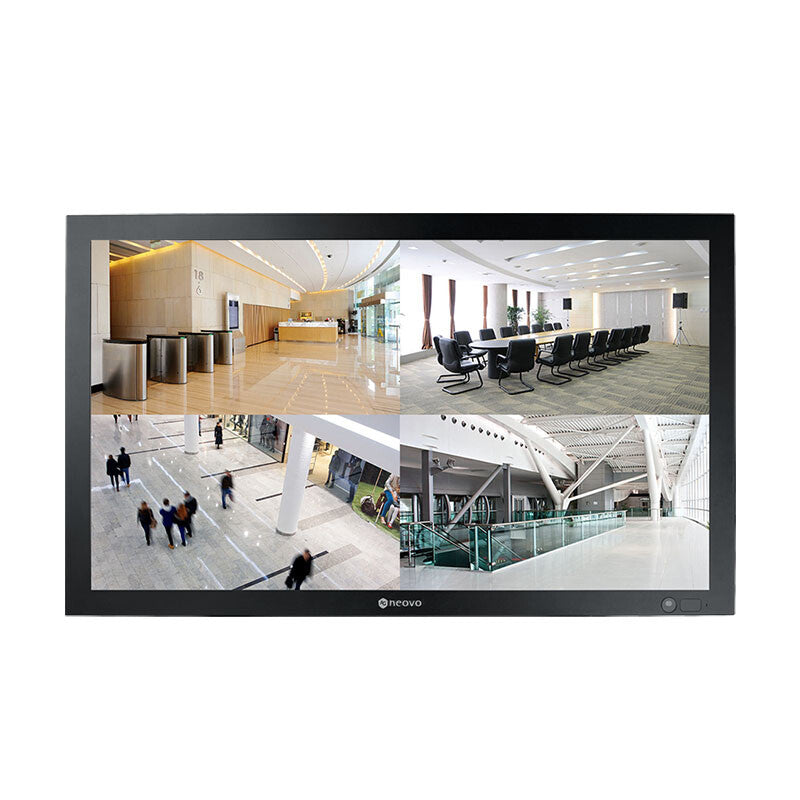

MULTI-SCREEN VIEWER; ONE DISPLAY, FOUR SCREENS
Beyond the traditional two-input Picture-by-Picture (PIP) feature, the QX-Series’multi-screen viewer can display up to four full HD screens simultaneously from four different input sources. This advanced feature allows it to replace a typical four monitor setup and delivers four-quadrant viewing at crisp and true Full HD content.
INDUSTRY-LEADING RELIABILITY
Designed for 24/7 operation, these durable metal-housed displays protected with NeoV™ Optical Glass screen take advantage of superior components to ensure a long product lifetime. Its integrated HeatControl sensors automatically activate the internal cooling fans, which is crucial when the temperature rises in mission-critical installations.
PID COMMAND & CTRL SOFTWARE
PID Command & Ctrl is a software that allows users to control this 32-Inch 4K surveillance display via LAN or RS232 connections. It provides a simple and intuitive interface for remote management, OSD-related settings, and easy control on deployed displays. It also can be used to create video walls within minutes and assist system integrators with setting up displays.
| Design |
|---|
| Product colour |
Black |
| Mounting type |
Freestanding/Wall-mounted |
| Display |
|---|
| Response time |
5 ms |
| Contrast ratio (typical) |
1000:1 |
| Vertical scan range |
48 - 85 Hz |
| Horizontal scan range |
31 - 92 kHz |
| Pixel pitch |
0.185 x 0.185 mm |
| Display number of colours |
1.073 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Display brightness |
350 cd/m² |
| Panel type |
VA |
| Display type |
LED |
| Display resolution |
3840 x 2160 pixels |
| Display diagonal |
81.3 cm (32") |
| Performance |
|---|
| VESA mounting |
Yes |
| Panel mounting interface |
200 x 200,400 x 200 mm |
| Speaker power |
10 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
|---|
| 3.5 mm (1/8-inch) in |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| RJ-45 ports quantity |
1 |
| Ethernet LAN |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| DVI-D ports quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| Power |
|---|
| Energy consumption (SDR) per 1000 hours |
50 kWh |
| Energy efficiency class (SDR) |
G |
| AC adapter output voltage |
100-240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
50.1 W |
| Power source type |
AC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, WEEE |
| Weight & dimensions |
|---|
| Package weight |
19 kg |
| Package height |
555 mm |
| Package depth |
145 mm |
| Package width |
860 mm |
| Width |
771 mm |
| Depth |
77 mm |
| Height |
461 mm |
| Weight |
15.7 kg |
| Packaging content |
|---|
| Batteries included |
Yes |
