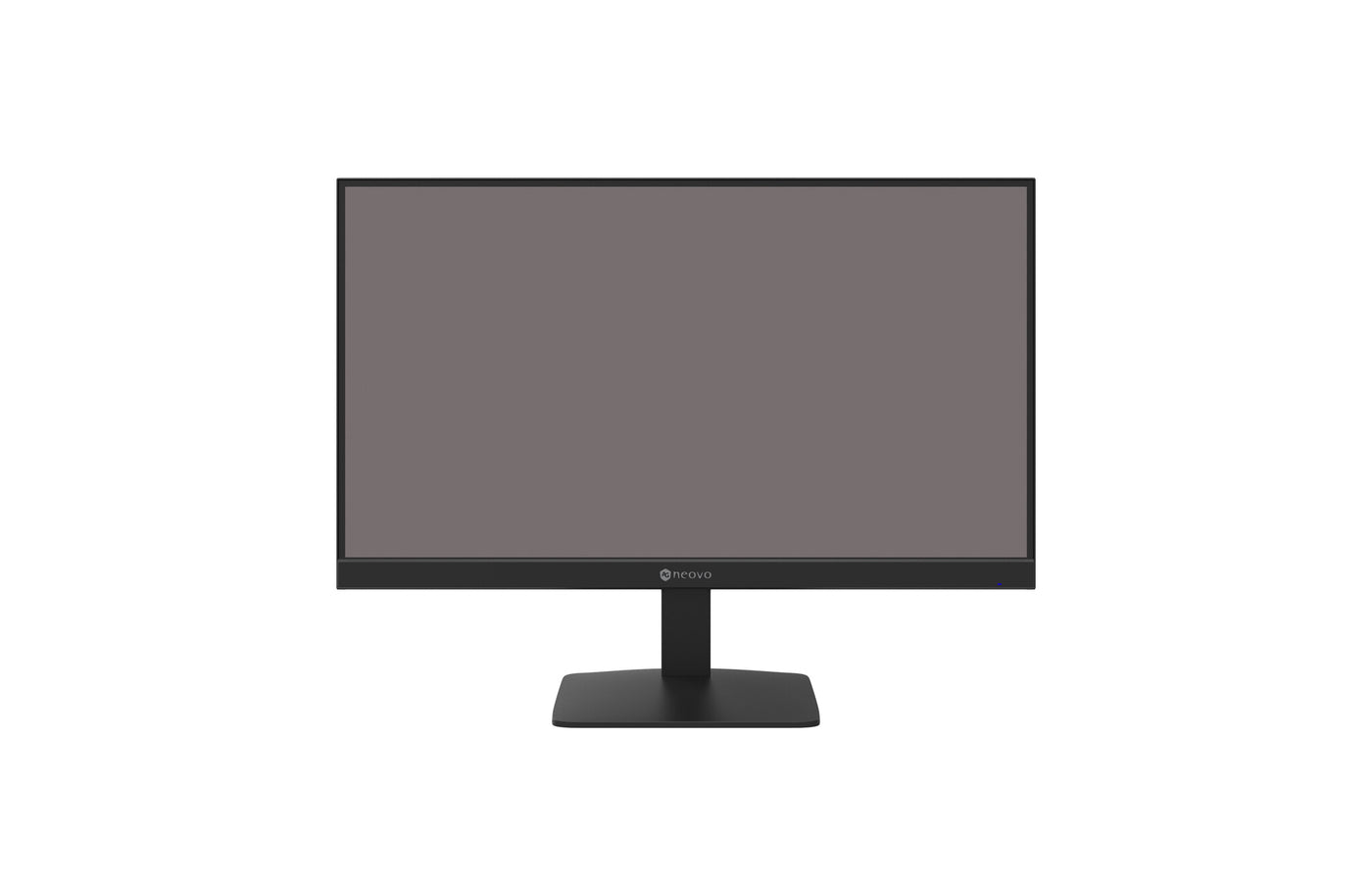

22'' Full HD LCD Display for Video Surveillance
Essential LCD Display for Video Surveillance
The SC-2203 is a 22-inch surveillance monitor designed for high-demand security environments, supporting continuous 24/7 operation. Equipped with a Full HD VA panel and offering a 178°/178° viewing angle, this monitor delivers consistent color and clarity from any perspective. With a brightness of 280 cd/m² and a dynamic contrast ratio of 20,000,000:1, it provides superior clarity and detail display. The three-sided frameless design not only modernizes setups but also facilitates seamless multi-monitor configurations, making it ideal for comprehensive surveillance systems. This monitor supports a variety of connectivity options, including HDMI, VGA, and BNC, accommodating both modern digital and traditional analog systems.
Higher Cost Performance
Designed with long-hour monitoring in mind, you can expect a reduction in system maintenance efforts and consequentially higher cost performance. The SC-2203 is commercial grade and meant to work 24/7, 365 days a year. Static images that would otherwise cause screen burn-in are gone with AG Neovo’s patented Anti-Burn-in technology. Expect prolonged life for LCD screens.
Versatile Connectivity With Bnc And Hdmi Inputs
This 22-inch surveillance monitor with BNC Connector supports both analogue and digital video inputs. Easily connect to various video surveillance equipment with HDMI, VGA and BNC in/out ports. BNC port allows connecting CCTV cameras directly to the monitor. With this bezel less security monitor, there is no need for a DVR/converter to get straight to instant monitoring.
Perfect Match To CCTV Images
There is a special pre-configured CCTV Mode that maximises image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don’t waste time testing and re-adjusting constantly, this product already has it all figured out!
Enhanced Gamma Selection
Offering an enhanced gamma selection makes for amazing visual optimization. Improve the light, shadow, and colour balance quality of your videos with ease.
Missing Details In Dark Scenes Is A Thing Of The Past
More detail from black-level adjustment means improved visibility of dark images.
Multiple Monitor Setups Made Easy
With VESA 100 x 100mm, the SC-2203 is compatible with AG Neovo’s mounting portfolio of desk and wall mounts. Whether you’re looking for a dual, quad, or more monitor set-up, AG Neovo is a one-stop-shop for creating ergonomic workstations in a control room.
Enhanced Viewing
Broad 178° horizontal and vertical viewing angles maintain superior visibility across multi-monitor setups.
| Display |
|---|
| Digital vertical frequency |
48 - 75 Hz |
| Digital horizontal frequency |
30 - 85 kHz |
| Pixel pitch |
0.248 x 0.248 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
20000000:1 |
| Screen shape |
Flat |
| Response time |
5 ms |
| Display brightness (typical) |
280 cd/m² |
| Panel type |
TN |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.5 cm (21.4") |
| Multimedia |
|---|
| Built-in camera |
No |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
|---|
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| Built-in USB hub |
No |
| Ergonomics |
|---|
| Tilt angle range |
-5 - 15° |
| Tilt adjustment |
Yes |
| Height adjustment |
No |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC adapter output voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
16 W |
| Energy consumption (SDR) per 1000 hours |
16 kWh |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
E |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
20 - 85% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
|---|
| Weight (without stand) |
2.3 kg |
| Height (without stand) |
289.5 mm |
| Depth (without stand) |
44.9 mm |
| Width (without stand) |
491.8 mm |
| Weight (with stand) |
2.6 kg |
| Height (with stand) |
373.8 mm |
| Depth (with stand) |
167.4 mm |
| Width (with stand) |
491.8 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
3.6 kg |
| Package height |
373 mm |
| Package depth |
110 mm |
| Package width |
555 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, Audio (3.5mm), VGA |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Other features |
|---|
| Compliance certificates |
CE, EAC, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
