PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) Support

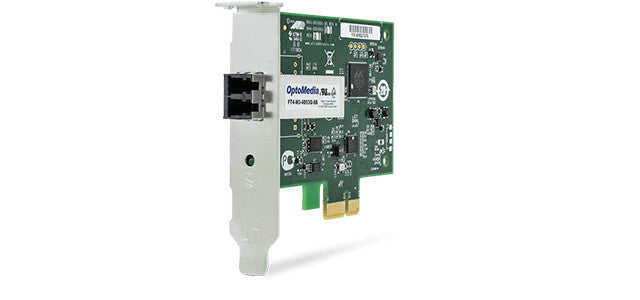

The Allied Telesis 2914SX/LC is a gigabit PCIe x1 network adapter with a fixed LC connector. It supports Wake-on-LAN without the use of an external power supply.
| Ports & interfaces |
|---|
| Fiber ports quantity |
2 |
| Fiber optic connector |
LC |
| Interface |
Fiber |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Network |
|---|
| Load balancing system |
Yes |
| Quality of Service (QoS) support |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9600 |
| Auto-negotiation |
Yes |
| Wake-on-LAN ready |
Yes |
| Security algorithms |
SNMP |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z |
| Maximum data transfer rate |
1000 Mbit/s |
| Design |
|---|
| Certification |
UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI |
| LED indicators |
Yes |
| Internal |
Yes |
| Power |
|---|
| Power consumption (typical) |
1.5 W |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2016, Windows Server 2019 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
68 g |
| Height |
69 mm |
| Width |
88 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Flow control support |
Yes |
