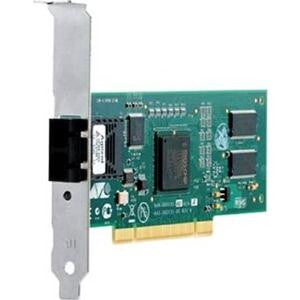

Allied Telesis AT-2911 Series Network Interface Cards feature a PCI Express (PCIe x1) design, providing the maximum possible bandwidth and bus efficiency while providing the benefits of low power consumption.
High Reliability
The AT-2911 Series Gigabit interface comes with a comprehensive Microsoft Windows utility which performs detailed tests, diagnostics and analysis.
Advanced Manageability
The priority queuing offered by the AT-2911 Series can help users set up the network based on their own needs. The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the interface card and check specific data.
| Ports & interfaces |
|---|
| Fiber ports quantity |
1 |
| Fiber optic connector |
LC |
| Interface |
Fiber |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Network |
|---|
| Jumbo frames support |
Yes |
| Fiber ethernet cabling technology |
1000BASE‑SX |
| Networking standards |
IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Maximum data transfer rate |
1000 Mbit/s |
| Design |
|---|
| Certification |
ULFCC/EN55022 ATUVEN55024CEC-TICKVCCI |
| LED indicators |
Yes |
| Internal |
Yes |
| Power |
|---|
| Power consumption (typical) |
9.2 W |
| Output voltage |
3.3 V |
| System requirements |
|---|
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
700 g |
| Height |
56 mm |
| Width |
87 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Link/Act LED |
Yes |
| Management protocols |
SNMP |
| Flow control support |
Yes |
