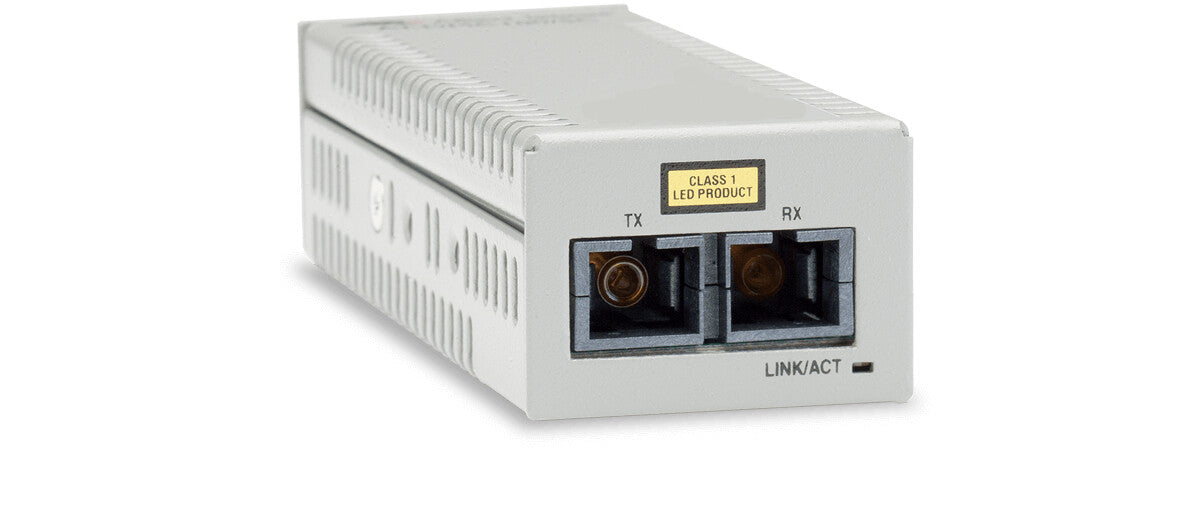

Allied Telesis AT-DMC100/SC-30 network media converter 100 Mbit/s 1310 nm Multi-mode Grey

SKU: AT-DMC100/SC-30

£118.49 inc. VAT

Wired
100 Mbit/s 2000 m 1310 nm
Multi-mode SC 50/125,62.5/125 µm
Grey

Fast Ethernet to Fiber Desktop Media Converter with USB power
This desktop media converter features 100TX to 100FX conversion with multi-mode SC fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.

Network
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
VLAN support	Yes
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Data transfer rate	100 Mbit/s
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1Q
Converter output interface	100Base-FX
Converter input interface	100Base-TX
Maximum data transfer rate	100 Mbit/s

Performance
Rx power (max)	-34 dBmW
Rx power (min)	-32 dBmW
Tx power (max)	-14 dBmW
Tx power (min)	-22.5 dBmW
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Fiber mode structure	Multi-mode
Wavelength	1310 nm
Maximum transfer distance	2000 m

Features
LED indicators	Yes
Product colour	Grey
Internal	No

Ports & interfaces
Fiber optic connector	SC
Connectivity technology	Wired

Power
Power consumption (typical)	1.5 W

Weight & dimensions
Weight	113 g
Height	21.6 mm
Depth	91.4 mm
Width	31.8 mm

Operational conditions
Operating altitude	0 - 3048 m
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-15 - 65 °C
Operating temperature (T-T)	0 - 40 °C
