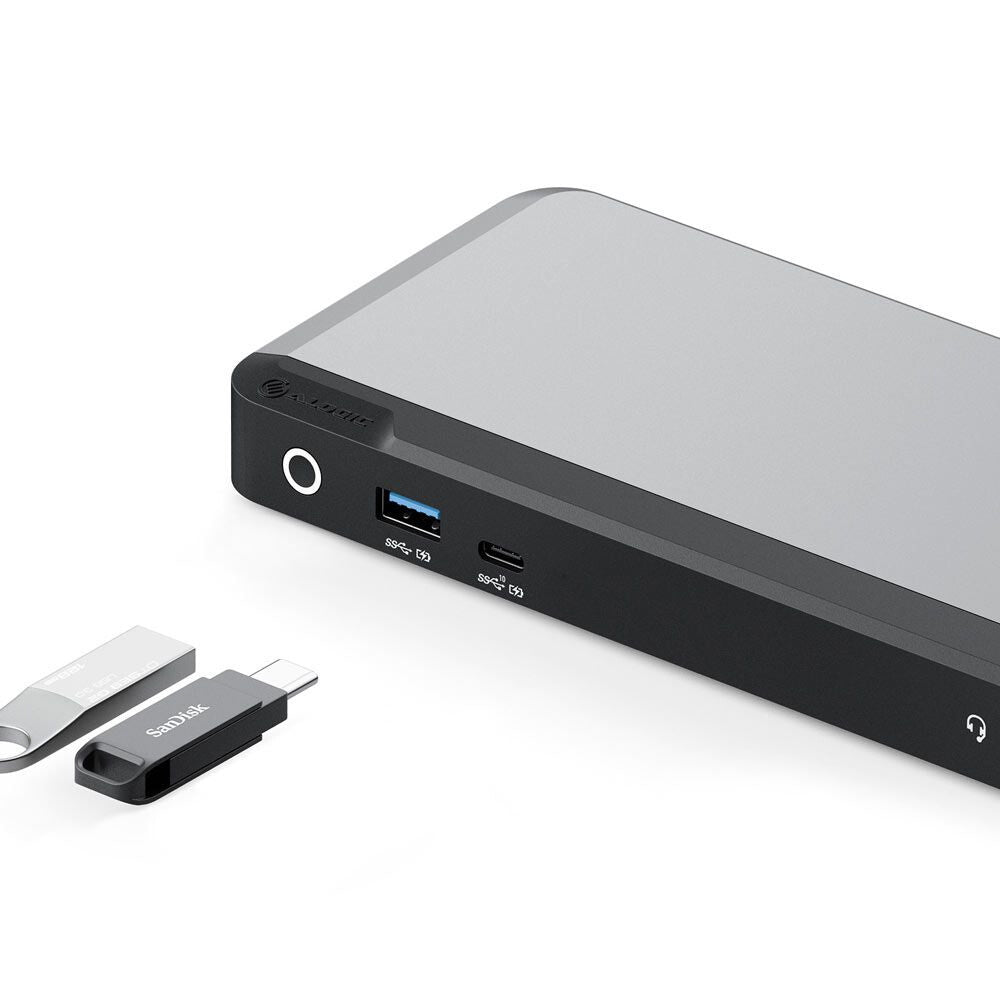

Designed to expand the capabilities of any laptop. Engineered for compatibility across all Windows, MacOS and ChromeOS laptops, the DX2 dock provides access to all of the ports required in a home office, education, or corporate environment.
Immersive Dual 4K
Sometimes you need more screen real estate. The DX2 can connect up to two external displays at up to 4K resolutions via its twin DisplayPort outputs.
Whether you need to view big spreadsheets on multiple screens, compare designs, enter data or more, the DX2 is the perfect way to see more work on your screen, and do more work on your screen.

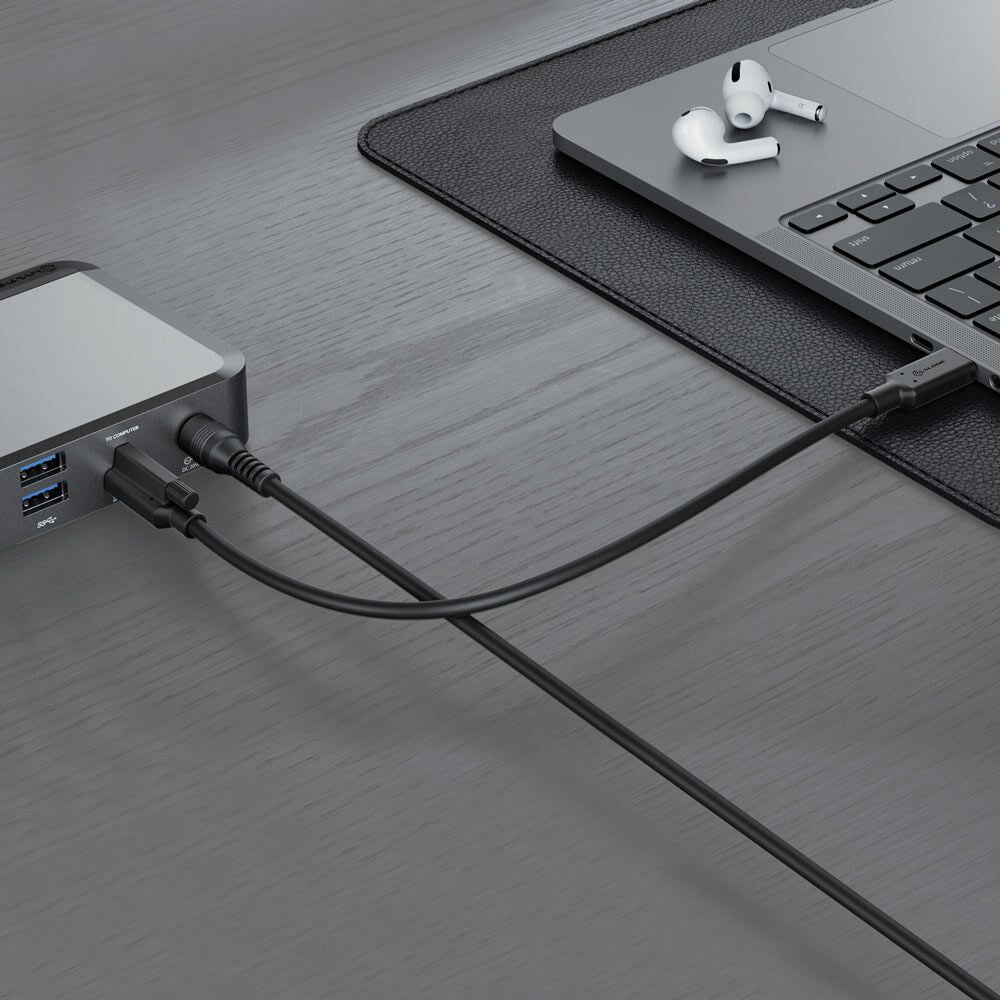

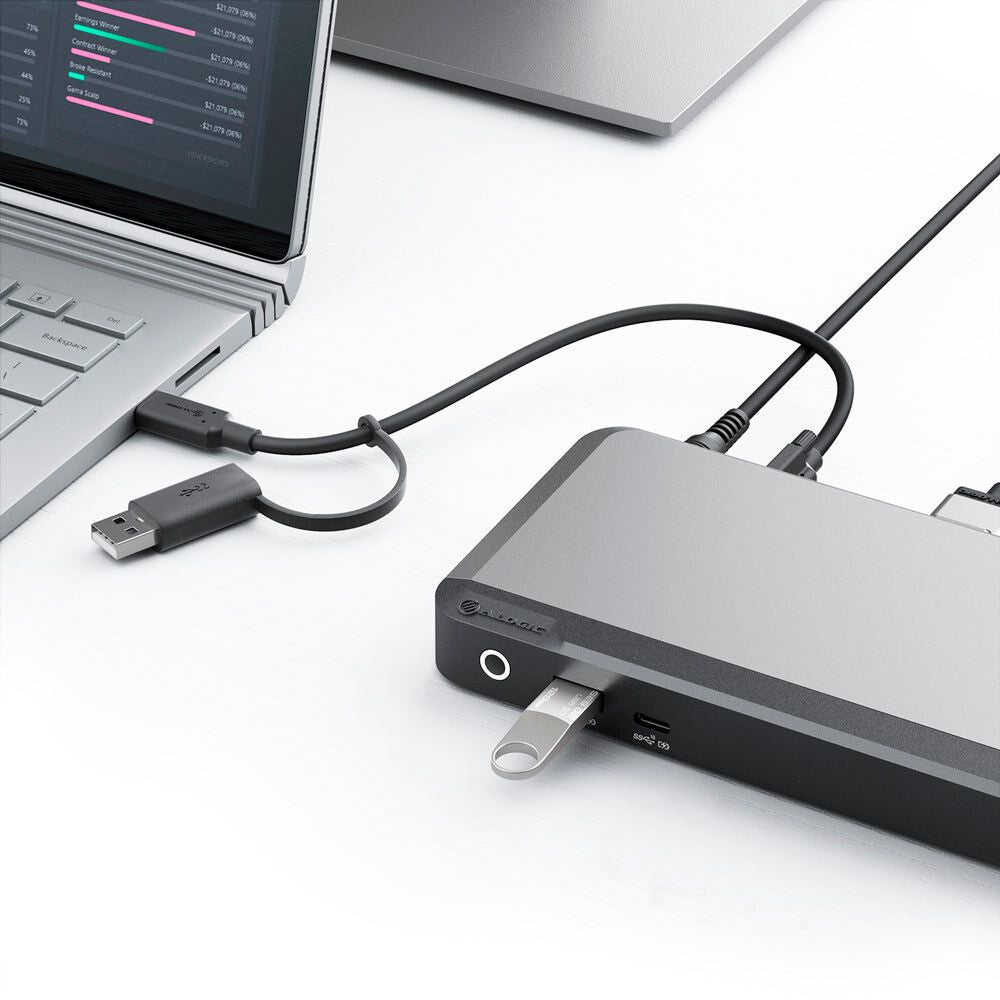

USB-C & USB-A LAPTOP COMPATIBLE
IT decision-makers and organisations have more options with the DX3. It supports USB-C and USB-A laptop deployment.
LED Power Light

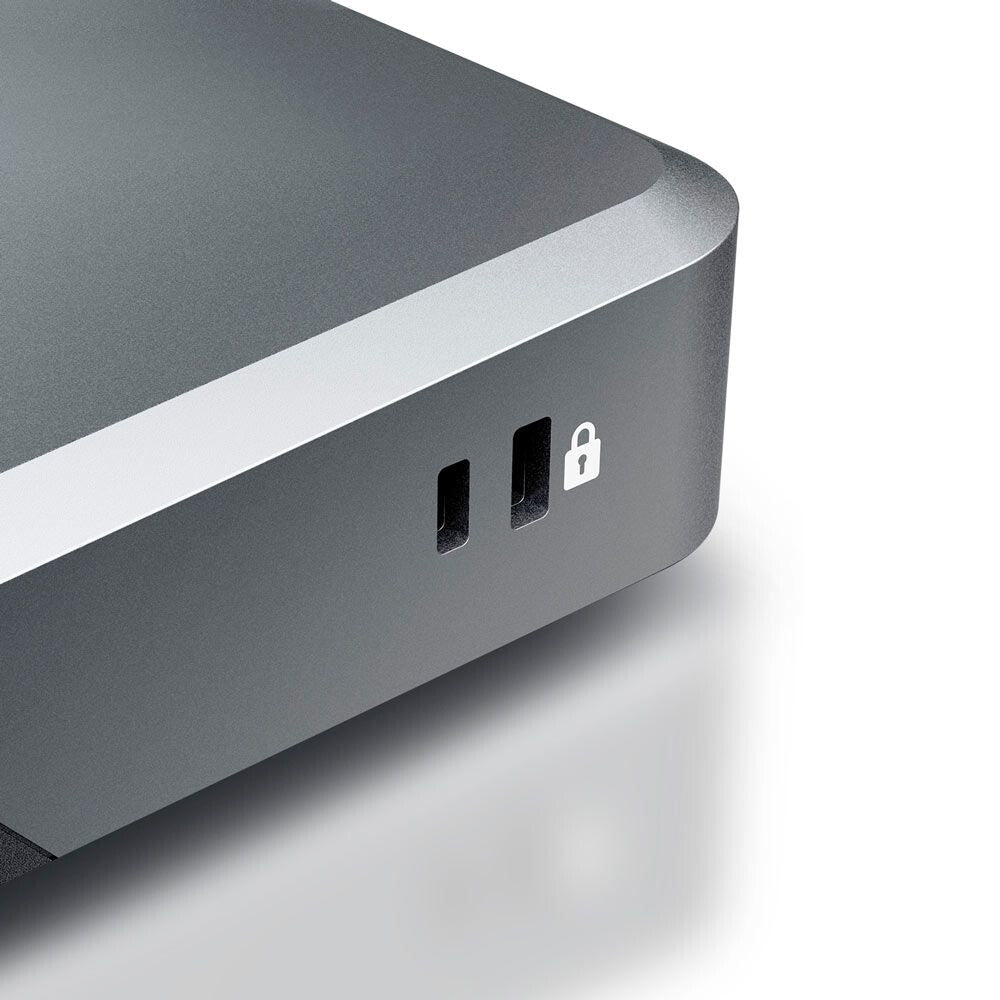

Lock Slot

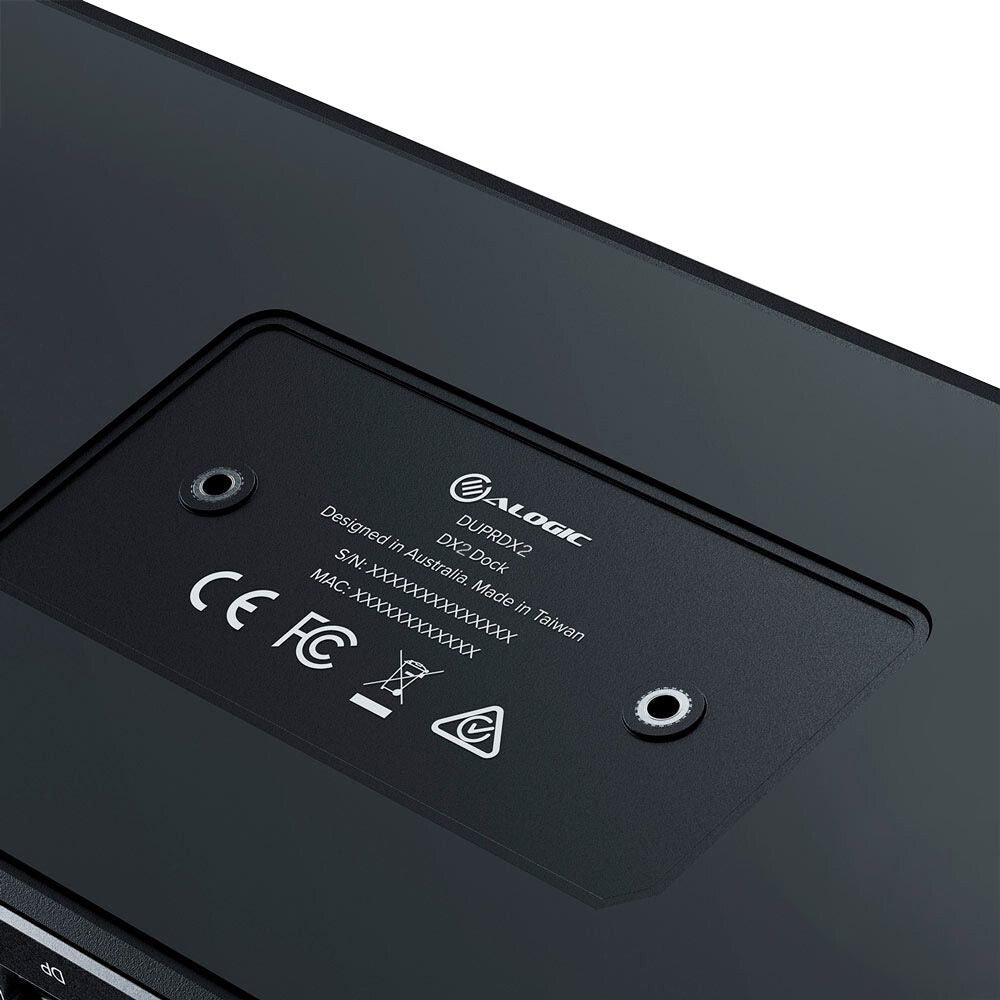

VESA Mount

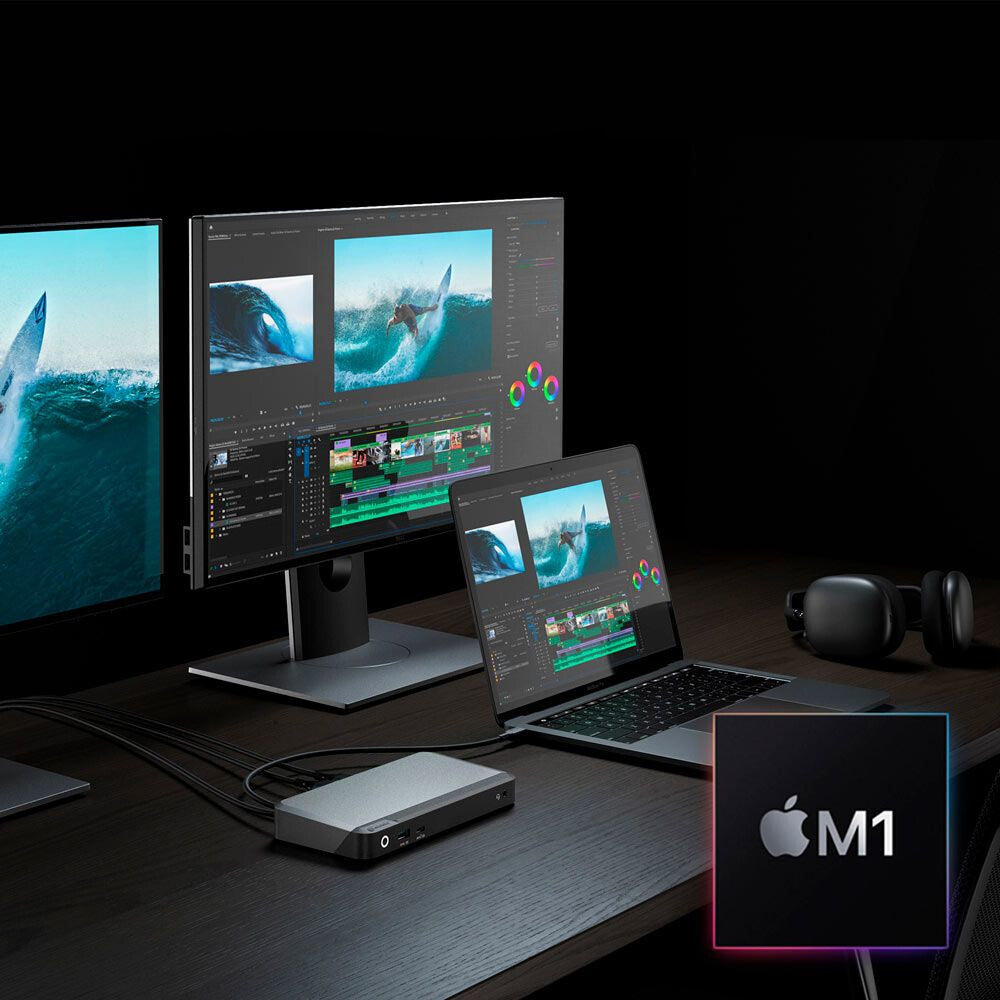

DUAL DISPLAY ON M1 MAC
M1 Mac users can work on up to two screens when they plug into the DX2.
MADE WITH DISPLAYLINK
The DX2’s DisplayLink technology boosts your connectivity, power and productivity at work.

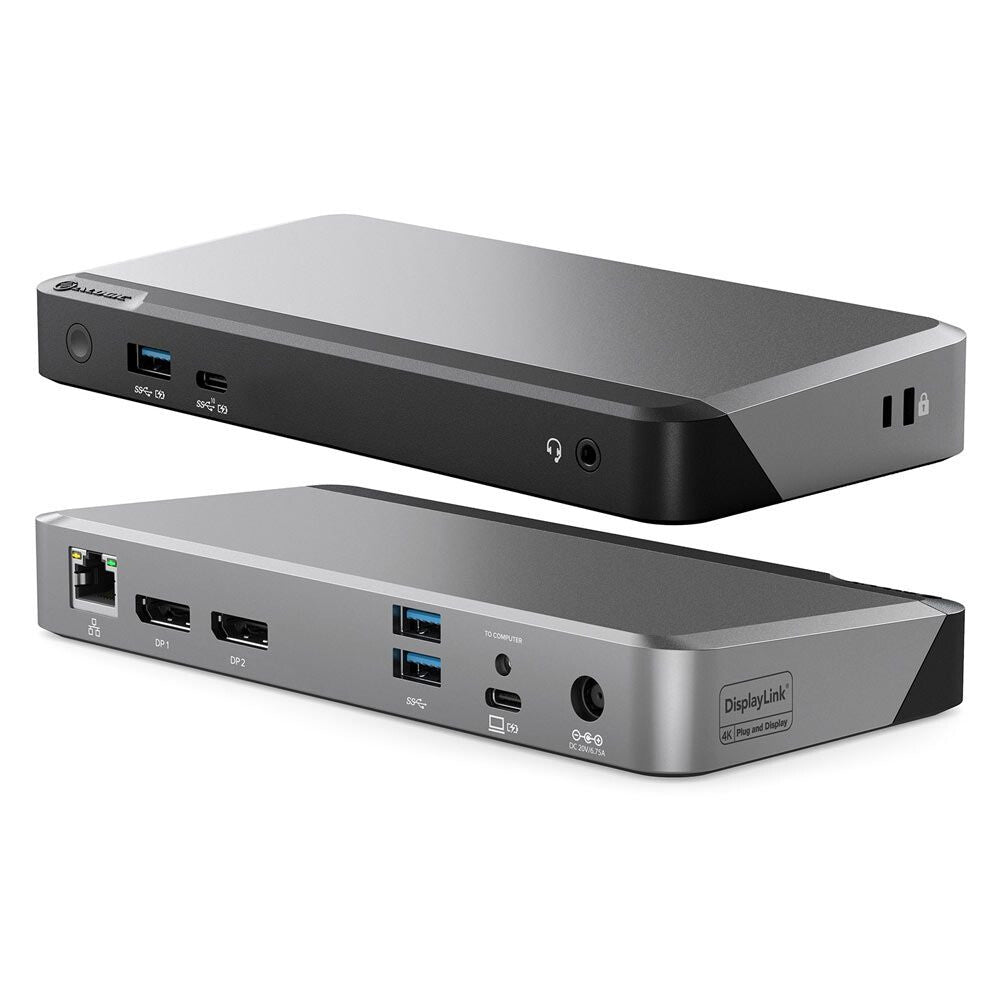

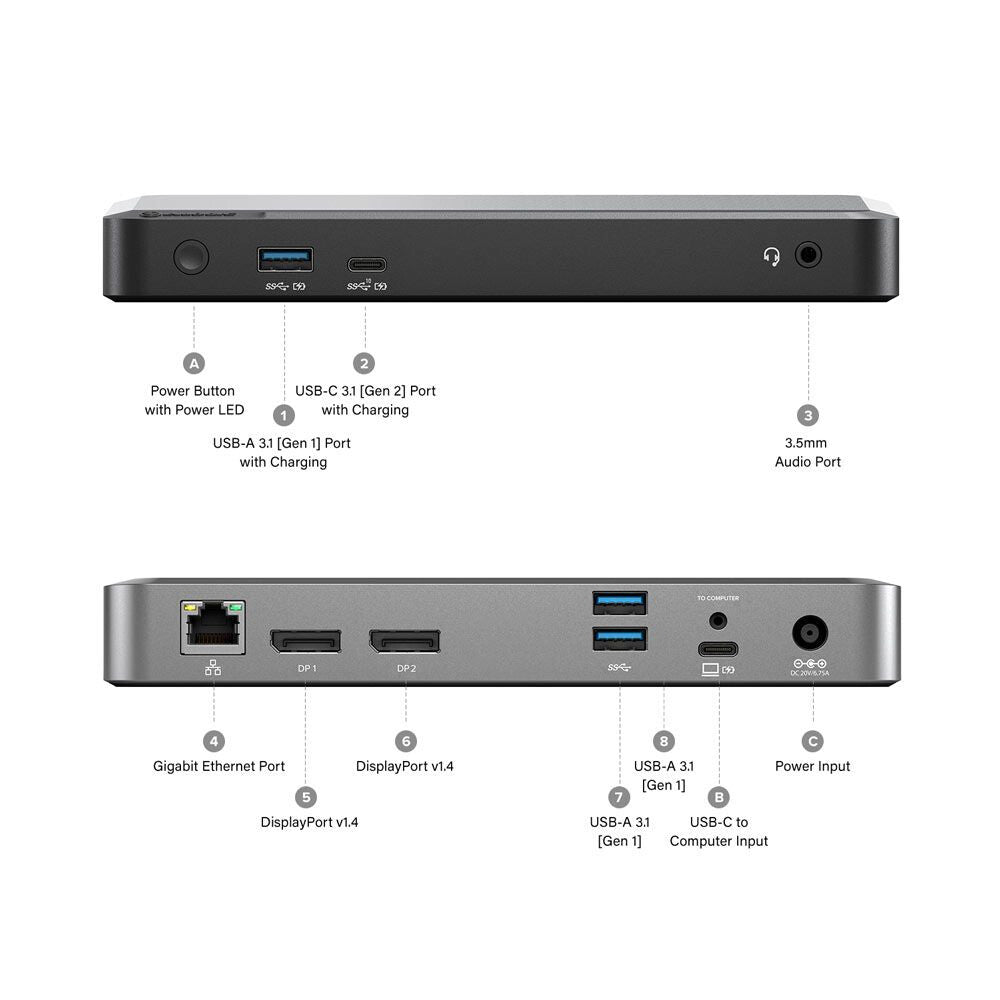

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB Sleep-and-Charge |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Combo headphone/mic port |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| USB Power Delivery up to |
65 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |

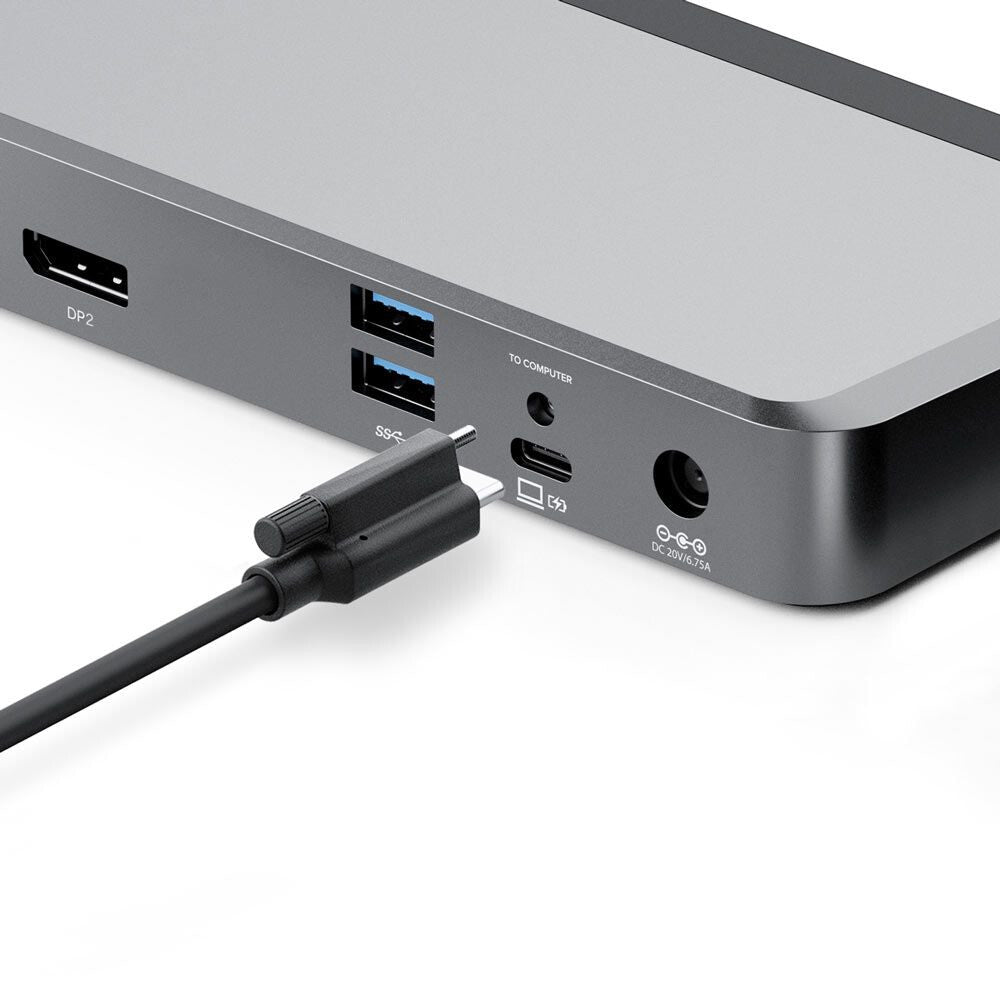

| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
FCC |
| Brand compatibility |
Universal |
| Charging function |
Yes |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |

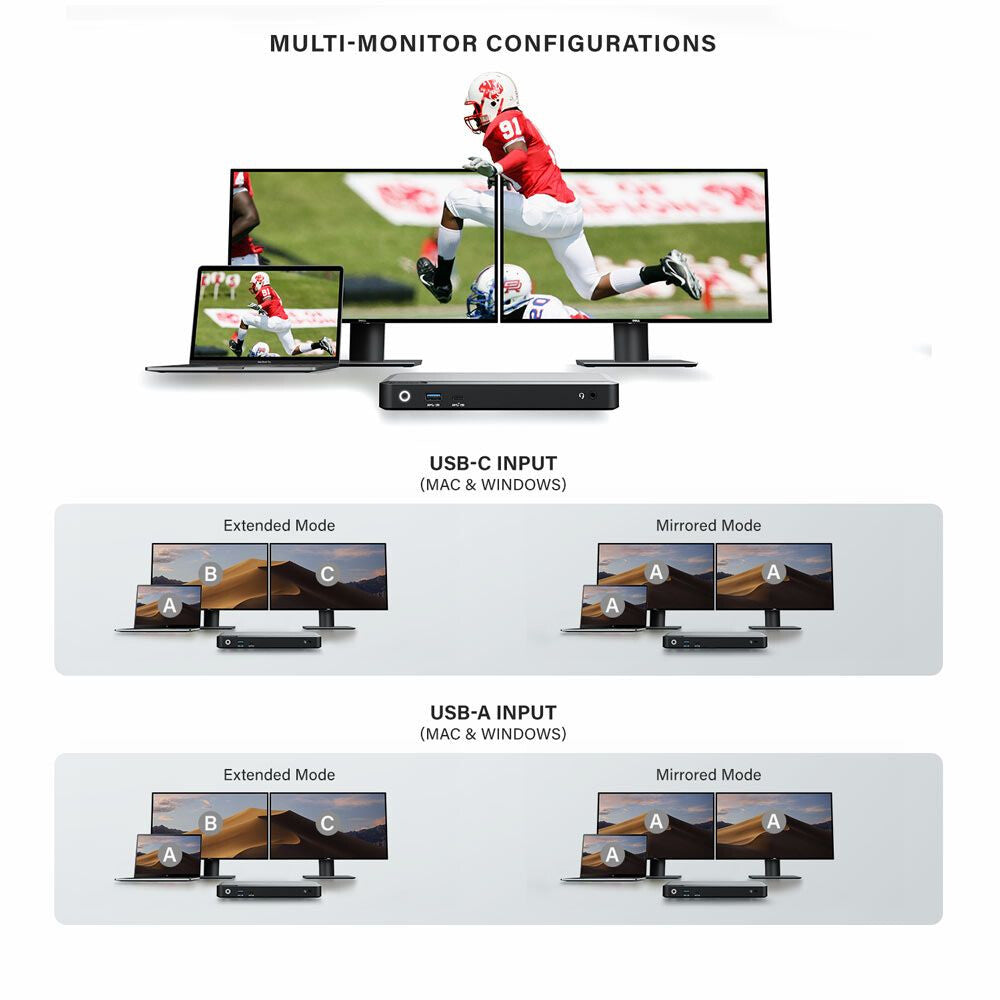

| Display modes |
Extended, Mirror |
| On/off switch |
Yes |
| Cable lock slot |
Yes |
| Number of displays supported |
2 |
| Maximum digital resolution |
5120 x 2880 pixels |
| Card reader integrated |
No |
| Product colour |
Black, Grey |
| Power |
|---|
| Compatible power plug types |
AU, EU, UK, US |
| Power supply |
100 W |
| Power source type |
AC |
| Software |
|---|
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Weight |
535 g |
| Height |
6.5 mm |
| Depth |
90 mm |
| Width |
190 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |

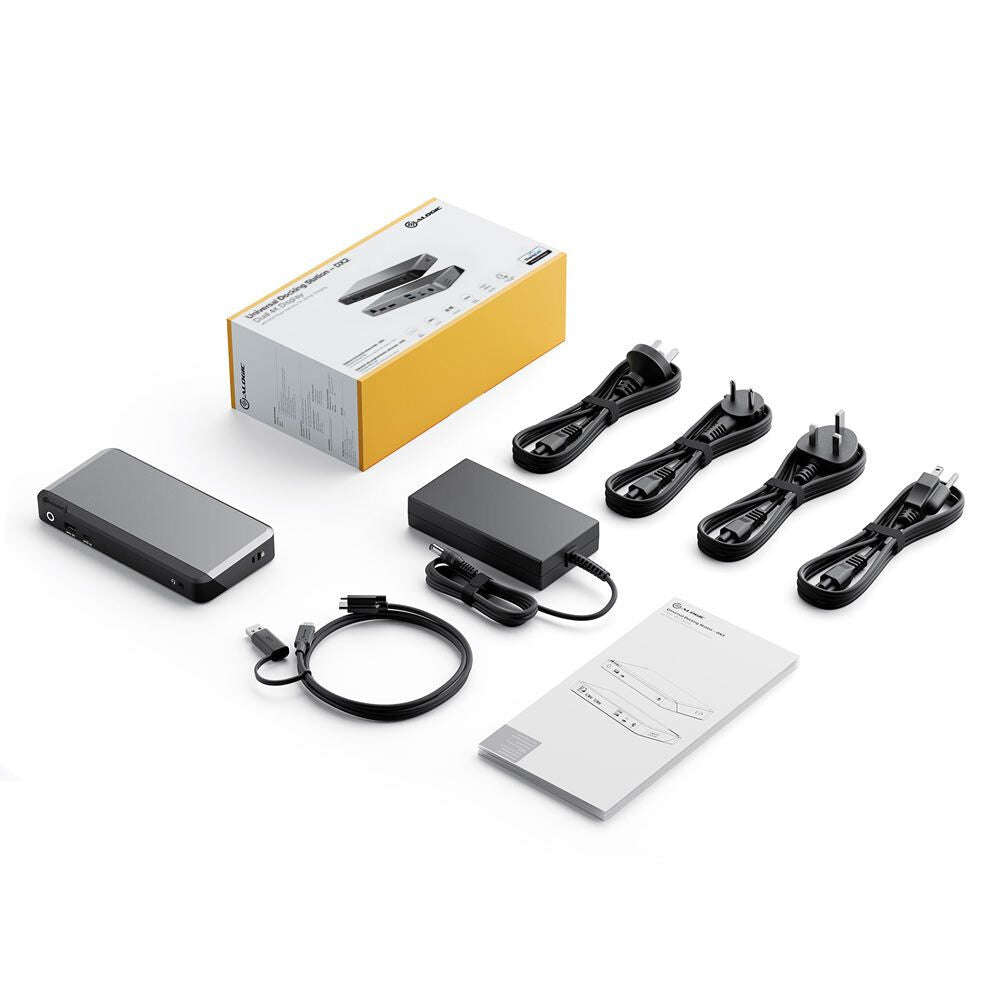

| Packaging content |
|---|
| Cables included |
AC, USB Type-C |
| AC adapter included |
Yes |
| Manual |
Yes |
| Interface adapters included |
USB Type-C male - USB Type-A female |
| Technical details |
|---|
| Compliance certificates |
RoHS, CE |
