Triple Display
The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.
*Refer to the resolution support table for details on different resolutions supported with the dock.
Comprehensive Connectivity

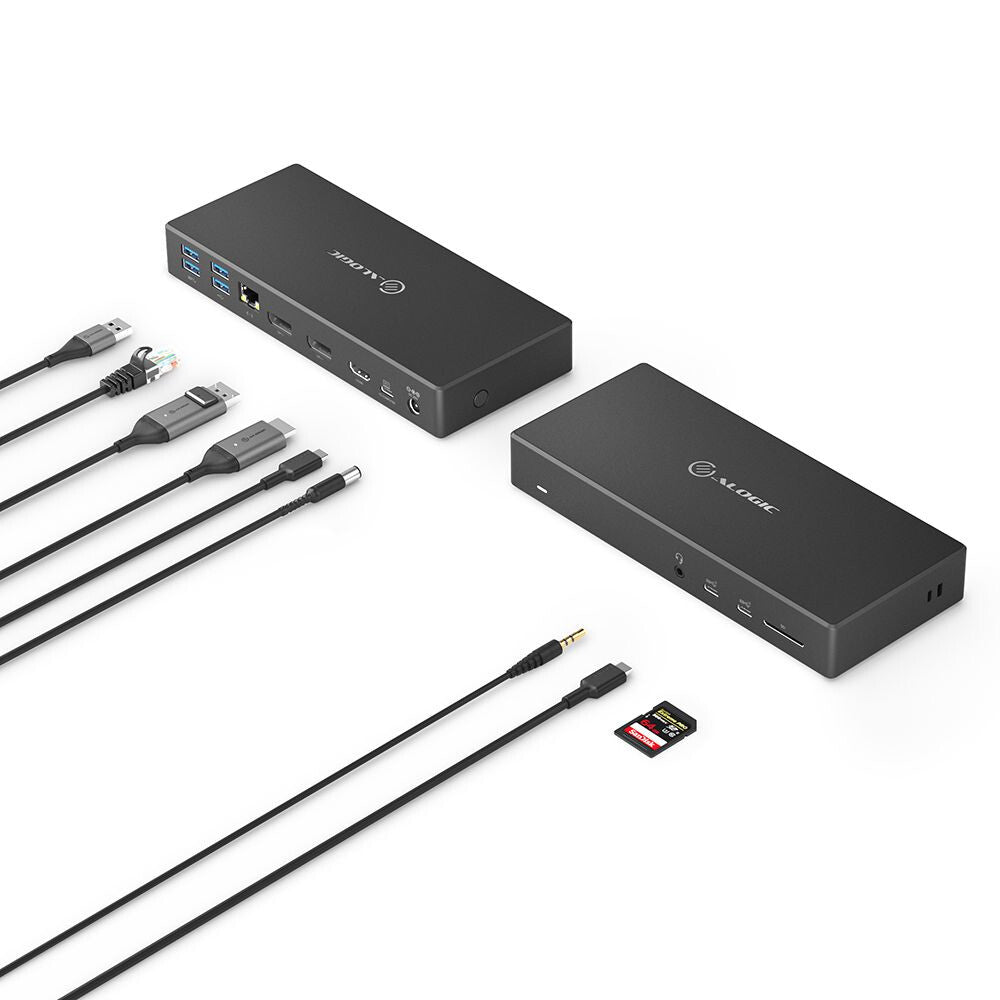

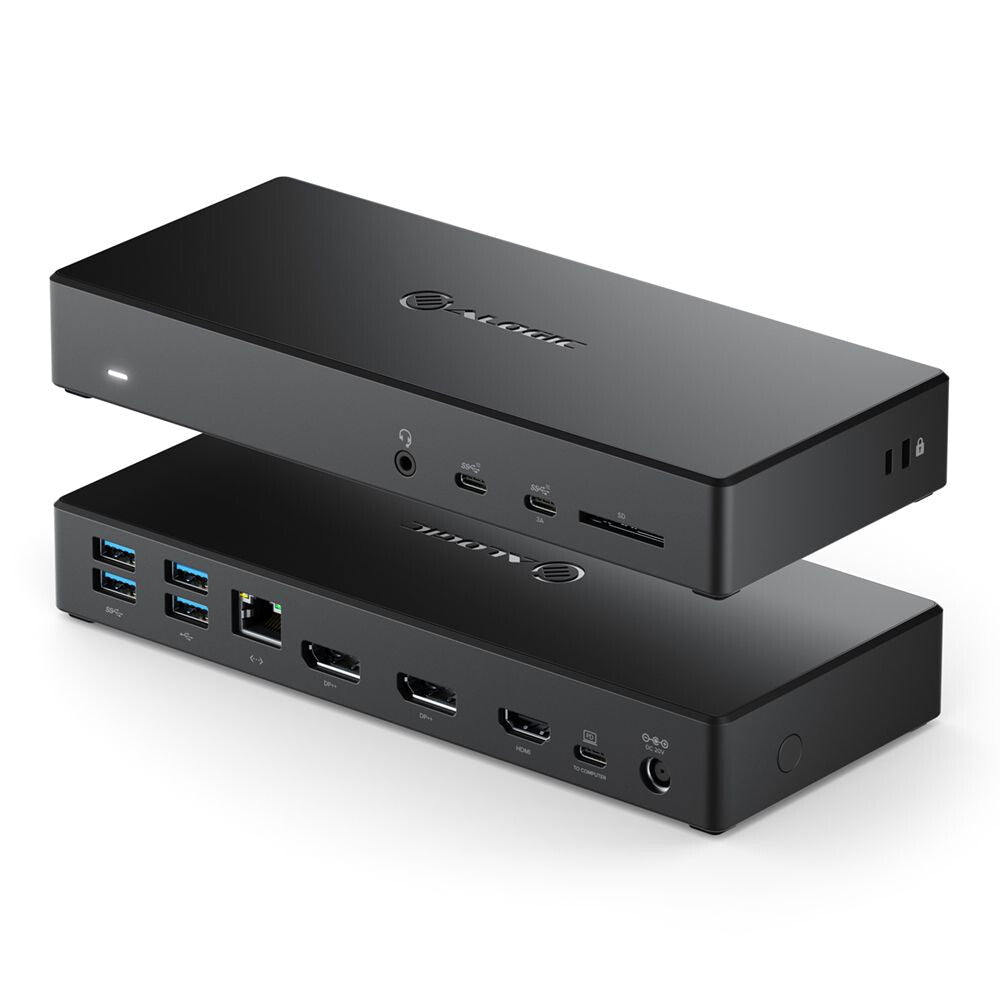

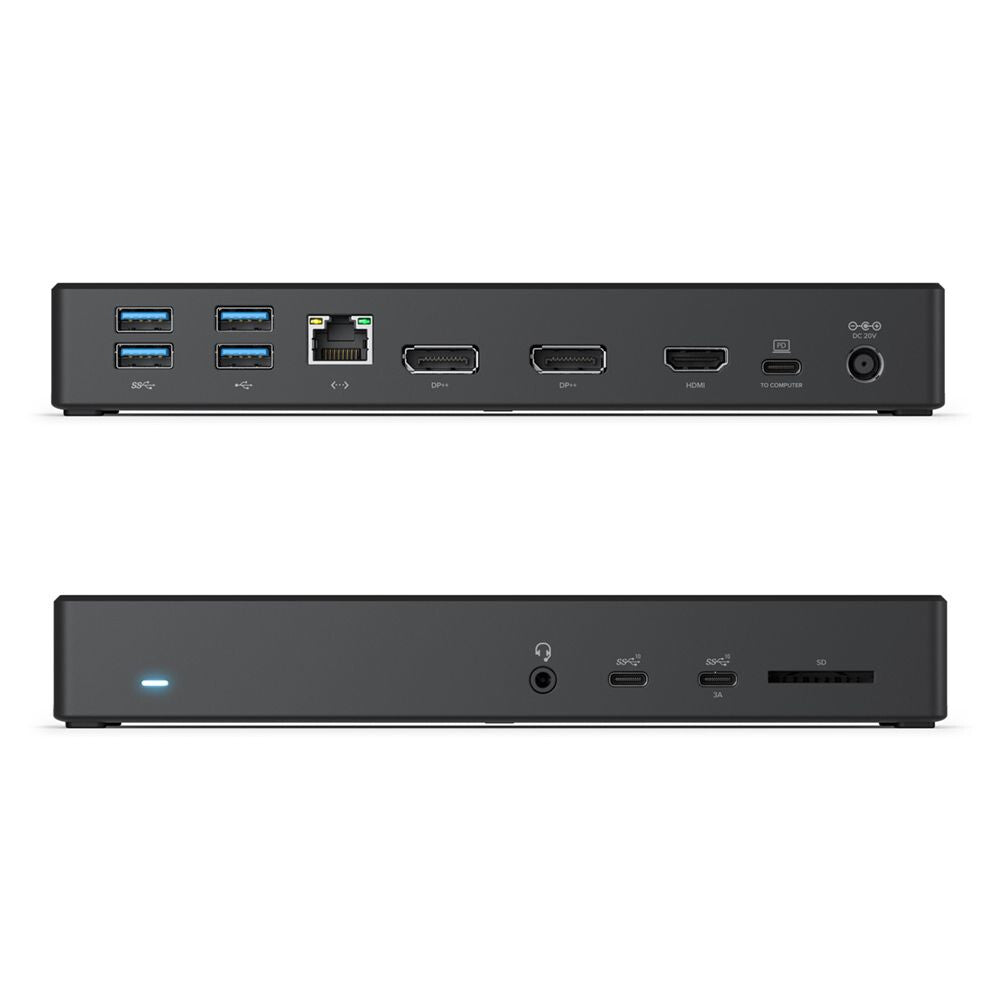

The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card
The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.
*Refer to the resolution support table for details on different resolutions supported with the dock.
100W Laptop Charging/Power Delivery

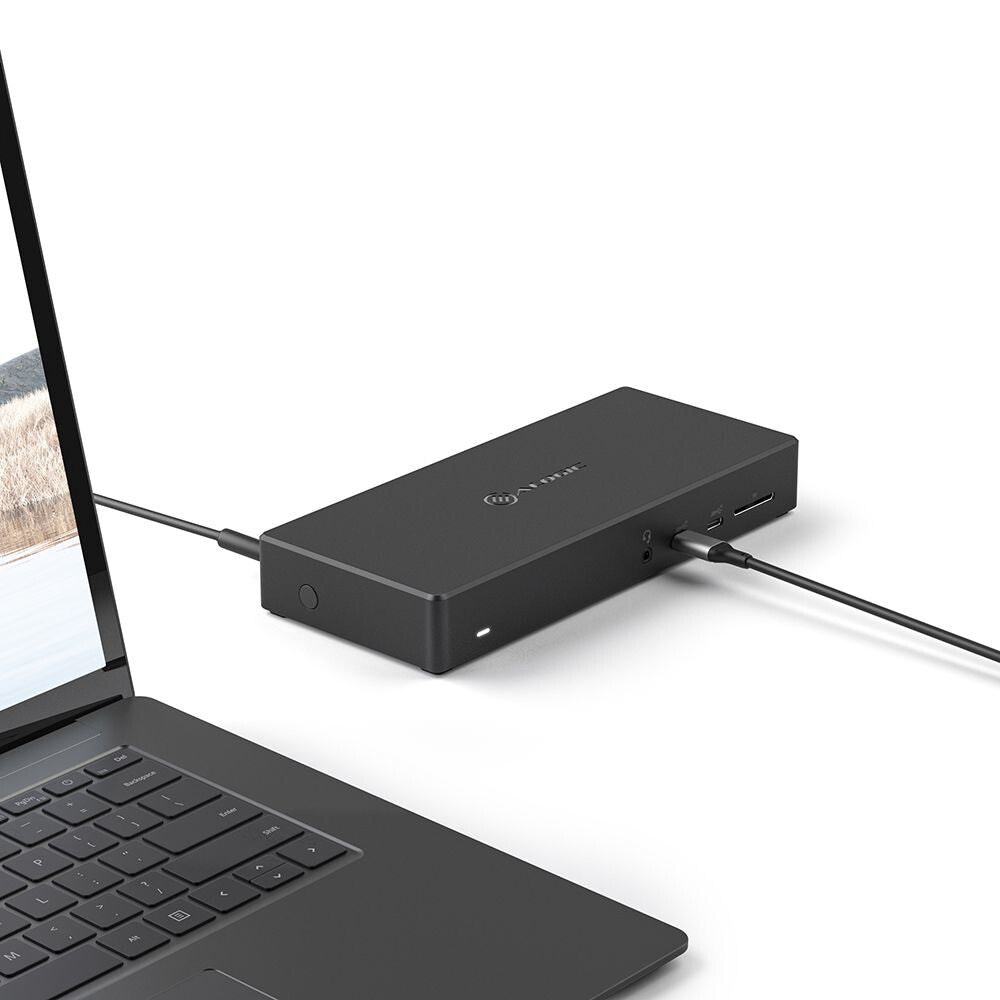

The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.
Plug and Play: Driverless
With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Combo headphone/mic port |
Yes |
| Microphone in |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
1 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
FCC, CE |
| LED indicators |
Yes |
| Cable lock slot |
Yes |
| Number of displays supported |
3 |
| Maximum digital resolution |
5120 x 2880 pixels |
| HD type |
4K Ultra HD |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Product colour |
Black |
| Power |
|---|
| Power supply |
170 W |
| Power source type |
DC |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Weight & dimensions |
|---|
| Weight |
360 g |
| Height |
290 mm |
| Depth |
2100 mm |
| Width |
880 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Cables included |
AC |
| AC adapter included |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
