Amer Mounts HYDRA1B monitor mount / stand 81.3 cm (32") Desk Black

SKU: HYDRA1B

£68.29 inc. VAT

Installs from Top Side: installs entirely from above the desk surface
Smooth Arm Insertion: ensures easy installation
Built-in Spring Tension Gauge: for perfect weight adjustments

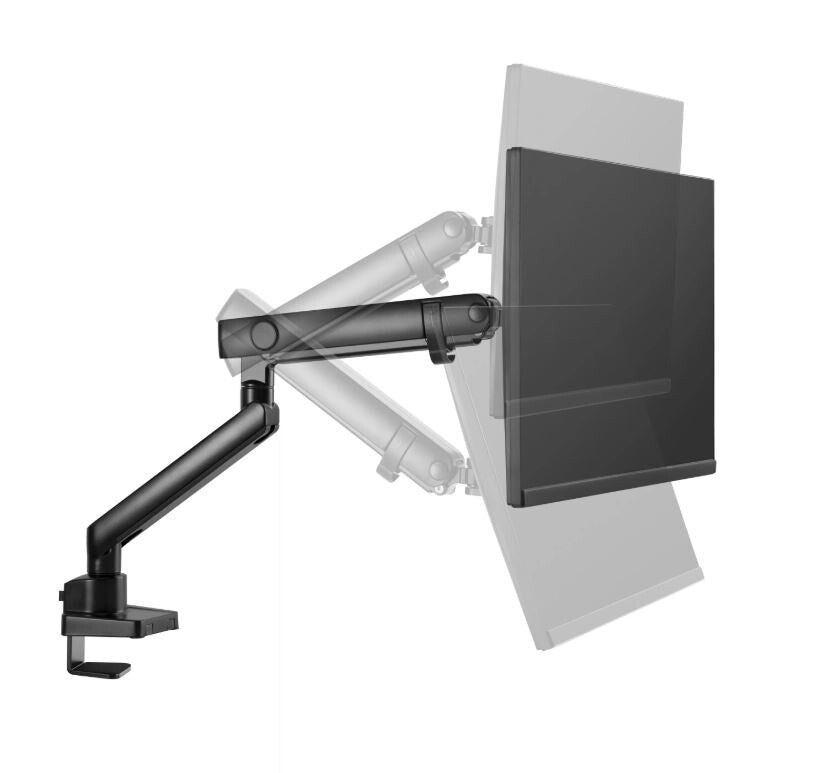

Spring-Assisted Mechanism: allows the workstation to easily move up and down

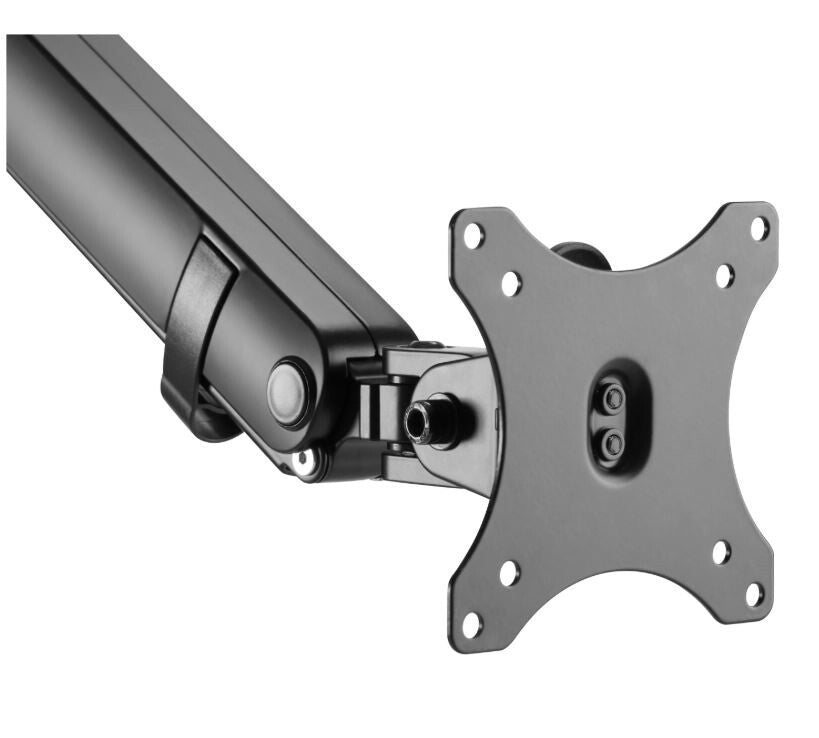

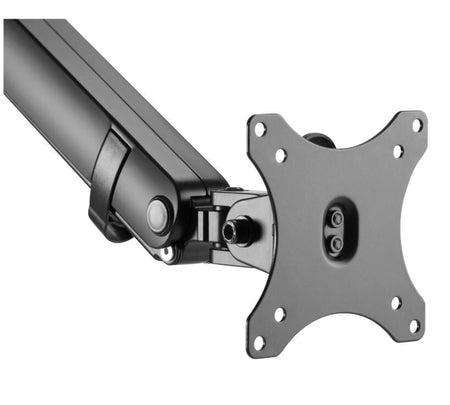

Quick-Release VESA Plate: for easy installation
Two Mounting Options: both desk clamp and grommet are included

Single Monitor Mount With Articulating Arm | 15″ to 32″ monitor support | VESA mounts 75×75/100×100 | Clamp and grommet mounting | Amer Mounts HYDRA1B Amer Mount’s HYDRA1B Single Monitors Aluminum Slim Mechanical Spring Monitor Articulating Arm comes with Top Fix fitting, which means this type of arm is perfect for limited space underside of the desktop. Its optimizing elbow spring gauge offers the performance and quality needed for weight adjustment. Quick-release VESA plate and detachable joints make it an ideal support for longer life and easy installation.

Mounting
Desk thickness (max)	5 cm
Desk thickness (min)	1 cm
Extension arm (max)	46.7 cm
Number of displays supported	1
Panel mounting interface	75 x 75,100 x 100 mm
Maximum VESA mount	100 x 100 mm
Minimum VESA mount	75 x 75 mm
Mounting	Clamp
Mounting type	Desk
Maximum screen size	81.3 cm (32")
Minimum screen size	38.1 cm (15")
Maximum weight capacity	8 kg

Ergonomics
Cable management	Yes
Angle of rotation	360°
Swivel angle range	-90 - 90°
Tilt angle range	-90 - 90°
Height adjustment	Yes

Design
Housing material	Aluminium, Plastic, Steel
Product colour	Black

Weight & dimensions
Height	520 mm
Depth	115 mm
Width	561 mm

Packaging data
Package weight	3.44 kg
Package height	238 mm
Package depth	134 mm
Package width	438 mm

leaflet

Amer Mounts HYDRA1B - Single Monitor Mount With Articulating Arm | 15″ to 32″ monitor support
