Unique Design & Powerful Heat Dissipation
AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.
Slanted Bar Air Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.

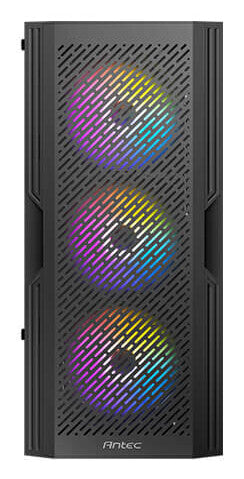

High-Airflow Front Panel
Massive air intake at the front, top, and bottom. Creating multiple airflow paths.
| Design |
|---|
| Maximum PSU length |
17 cm |
| Maximum graphics card length |
27 cm |
| Maximum CPU cooler height |
15.5 cm |
| On/off button |
Yes |
| Reset button |
Yes |
| Anti-dust filter |
Yes |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5" bays |
3 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, ITX, micro ATX |
| Product colour |
Black |
| Material |
Plastic, Steel, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
|---|
| Power supply included |
No |
| Ports & interfaces |
|---|
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Cooling |
|---|
| Front radiator sizes supported |
120,140,240,280 mm |
| Top fans diameters supported |
120 mm |
| Number of top fans supported (max) |
2 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Weight & dimensions |
|---|
| Weight |
4 kg |
| Height |
451 mm |
| Depth |
358 mm |
| Width |
207 mm |
| Packaging data |
|---|
| Package weight |
4.71 kg |
