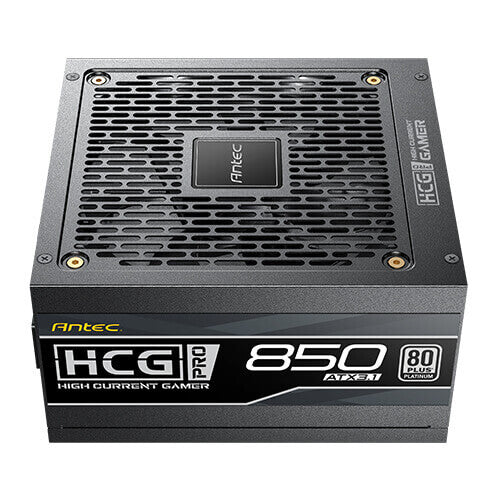

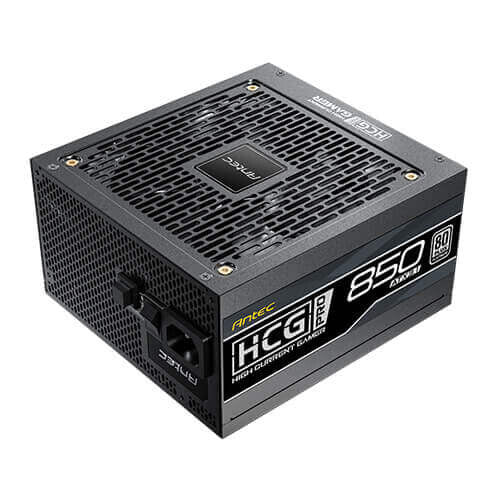

Presenting our High Current Gamer PRO Platinum ATX3.1 power supplies, designed with the ultimate quality and stability in mind for gamers and enthusiasts. With the ground-breaking features like ATX 3.1, PCIe 5.1, 100% high-quality JP capacitors, 80 PLUS® Platinum-certified efficiencies and other more, you can expect second-to-none performance from your system. The PhaseWave™ Design ensures steady power output, while the 135mm FDB Silence Fan offers quiet cooling. The power supply is also 100% Modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ full suite of industrial-grade protections provides safe and reliable power delivery under any circumstances. HCG850 PRO Platinum ATX3.1 is the perfect choice for your cutting-edge PC system.
ATX 3.1 & PCIe 5.1 Compatible
Our new HCG PRO Platinum ATX3.1 power supplies are formally certified for ATX 3.1 compliance, meeting the high standards for reliability and power efficiency, and ensuring the utmost level of quality and performance.
The included PCIe 5.1 12VHPWR GPU cable enables seamless compatibility with the latest graphics cards, such as the NVIDIA® GeForce RTX™ 40 Series.
100% High-Quality JP Capacitors
Equipped with 100% high-quality JP capacitors, HCG PRO Platinum ATX3.1 achieves unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system's performance.
PhaseWave TM Design
Introducing our PhaseWave™ Design, with server-class full-bridge LLC design featuring synchronous rectification based on a DC-DC topology, ensuring unparalleled power delivery efficiency and stability for your gigs.
CircuitShieldTM
The full suite of industrial-grade protections includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO, providing the best dependability for your power supply in any situation.
10-Year Warranty
Pushing the standard for excellence with the full-suite industrial protections, backed by a 10-year warranty duly committed by Antec.
Zero RPM Manager
The thermal sensors activate the fan only when necessary, providing optimal cooling while minimizing noise levels. With the Zero RPM fan mode, our PSU comes with a longer lifespan and quieter

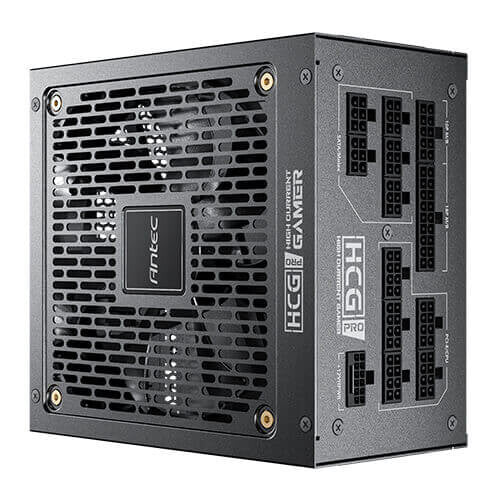

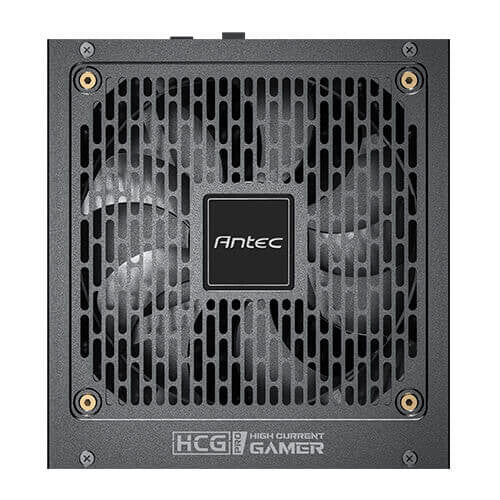

135mm FDB Silent Fan
The whisper-quiet 135mm fluid-dynamic bearing (FDB) fan delivers high airflow with the durability and longevity that is a signature of Antec quality.

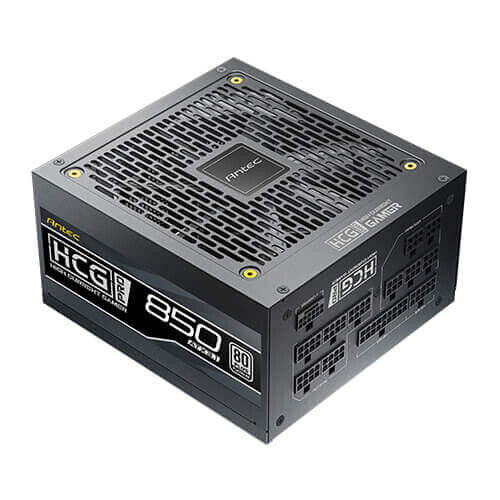

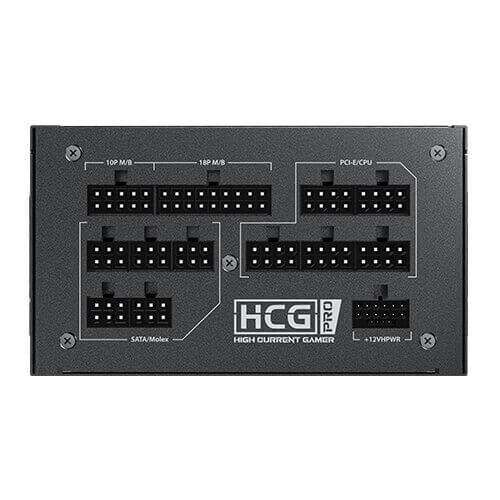

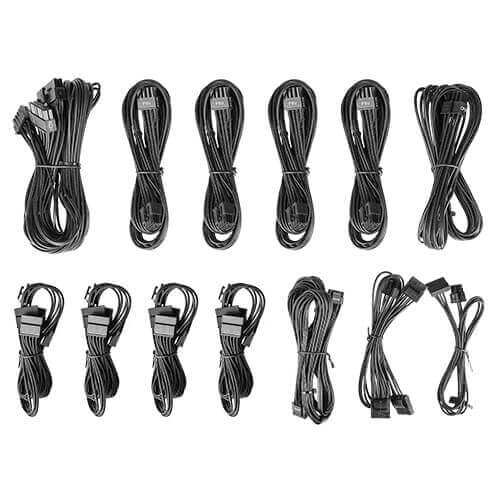

Full Modular
Cable Management
Allowing users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow, also provide a much cleaner look inside the PC case.
Compact Size
Compared to typical high-end power supplies on the market, HCG PRO Platinum ATX3.1 is smaller in length so can be paired with a wider range of PC cases.
| Power |
|---|
| Power protection features |
No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
70 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
100 W |
| Combined power (+12V) |
840 W |
| Combined power (+3.3V) |
100 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
11 - 5.5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
850 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| ATX power connector (20+4 pin) |
Yes |
| CPU power cable length |
70 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power connectors (12+4 pin) cable length |
750 mm |
| PCI Express power connectors (12+4 pin) |
1 |
| PCI Express power connectors (6+2 pin) |
3 |
| Peripheral (Molex) power cable length |
100,450 mm |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| SATA power cable length |
150,400,500 mm |
| Number of SATA power connectors |
14 |
| Motherboard power cable length |
61 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Silent mode |
Yes |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
13.5 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| General |
|---|
| Product family |
HIGH CURRENT GAMER |
| Certificates |
|---|
| Certification |
cTUVus/TUV/CB/RCM/CE/FCC/BIS/BSMI/KC/UKCA/ICES/CCC |
| Weight & dimensions |
|---|
| Weight |
3.3 kg |
| Height |
86 mm |
| Depth |
160 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
3.91 kg |
| Package height |
133 mm |
| Package depth |
336 mm |
| Package width |
198 mm |
