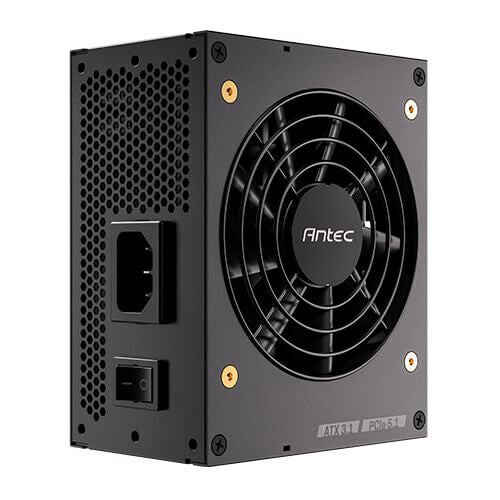

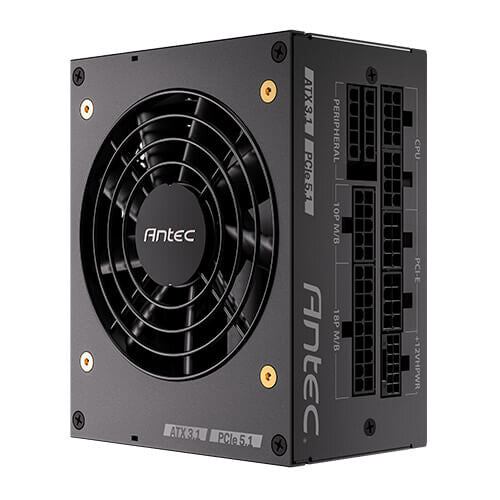

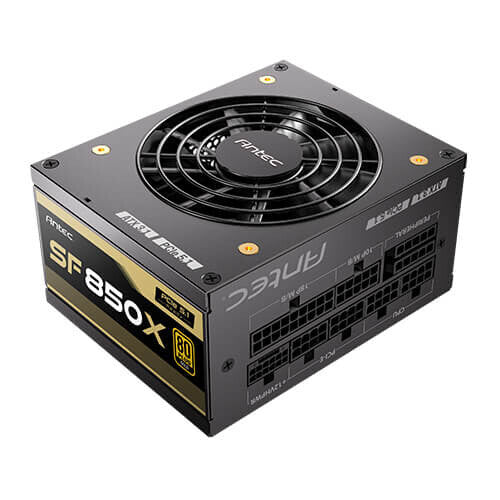

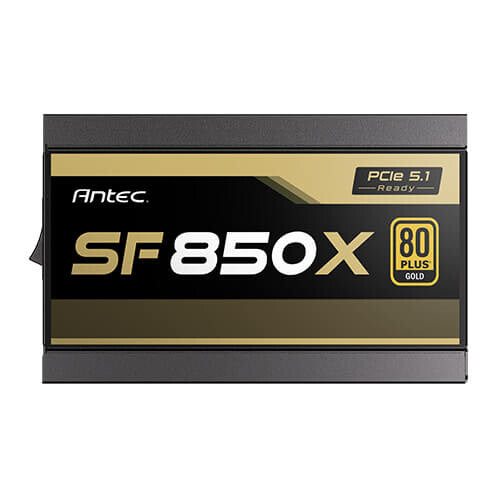

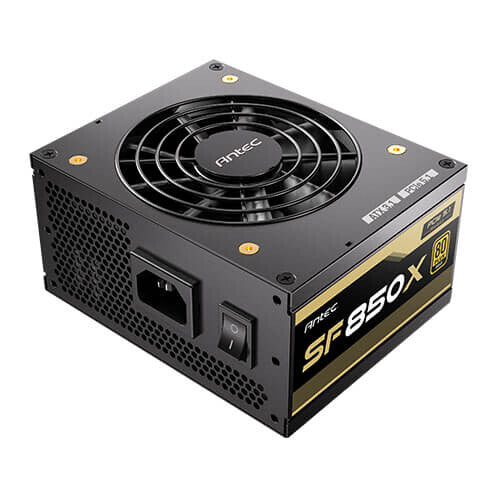

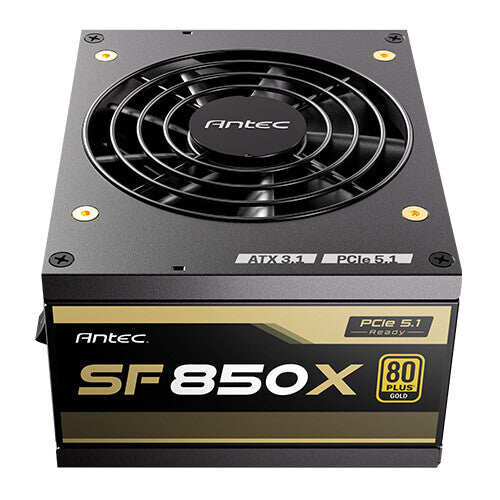

Introducing our SF850X 80PLUS GOLD power supply, compatible with SFX 4.1 standard while designed with the ultimate quality and stability in mind for gamers caring the space utilization. With advanced features like ATX 3.1, PCIe 5.1, high-quality JP capacitors, 80 PLUS® Gold-certified efficiencies, you can expect excellent performance for this power supply. The active clamp design with DC-DC module ensures steady power output, while the cabling is 100% modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ full suite of industrial-grade protections provides safe and reliable power delivery under any circumstances. SF850X 80PLUS GOLD provides the best for your small gaming PC system.
ATX 3.1 & PCIe 5.1 Compatible
Our new SF850X 80PLUS GOLD power supply is formally certified for ATX 3.1 compliance, meeting the high standards for reliability and power efficiency, and ensuring the utmost level of quality and performance. The included PCIe 5.1 12VHPWR GPU cable enables seamless compatibility with the latest graphics cards, such as the NVIDIA® GeForce RTX™ 40 Series.
High-Quality JP Capacitors
Equipped with high-quality JP capacitors, SF850X 80PLUS GOLD achieves unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system's performance.
Compact Size
Compact yet powerful, SF850X 80PLUS GOLD is ideal for your ITX build with an intricated combination of quality, efficiency, and size.

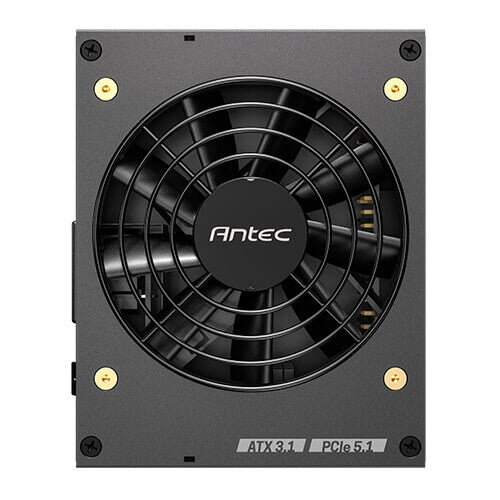

Zero RPM Manager
The thermal sensors activate the fan only when necessary, providing optimal cooling while minimizing noise levels. With the Zero RPM fan mode, this PSU comes with a longer lifespan and quieter operations.

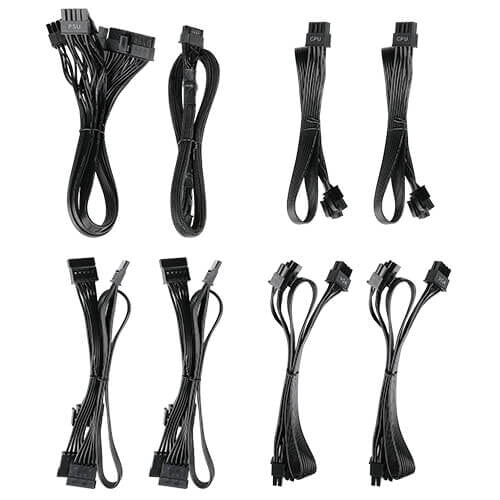

Full Modular
Cable Management
Allowing users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow, also provide a much cleaner look inside the PC case.
CircuitShieldTM
The full suite of industrial-grade protections includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO, providing the best dependability for your power supply in any situation.
7-Year Warranty
The new PSU line from Antec pushes the standard for excellence with CircuitShield™ suite of industrial protections backed by a 7-year warranty.

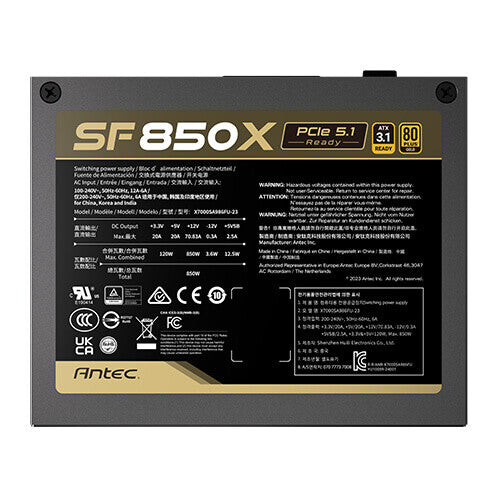

| Power |
|---|
| Power protection features |
No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Max output current (+5Vsb) |
2.5 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
70.83 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
12.5 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
850 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
12 - 6 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
850 W |

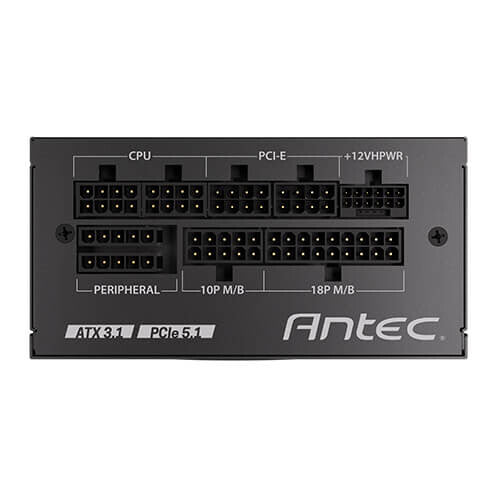

| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| ATX power connector (20+4 pin) |
Yes |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power connectors (12+4 pin) cable length |
500 mm |
| PCI Express power connectors (12+4 pin) |
1 |
| PCI Express power connectors (6+2 pin) |
4 |
| Peripheral (Molex) power cable length |
330,155 mm |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| SATA power cable length |
450 mm |
| Number of SATA power connectors |
6 |
| Motherboard power cable length |
35 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Silent mode |
Yes |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|

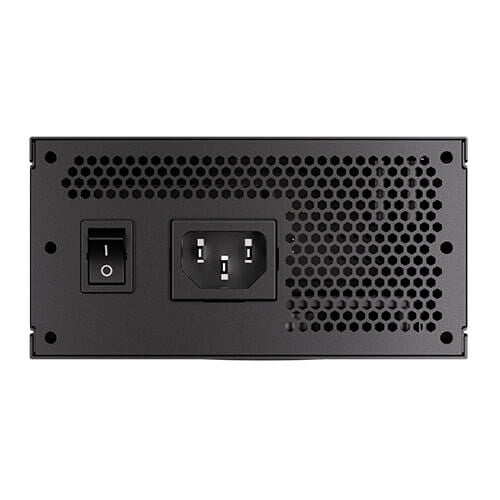

| On/off switch |
Yes |
| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
9.2 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
cTUVus / TUV / CB / RCM / CE / FCCBIS / BSMI / KC / UKCA / ICES / CCC |
| Weight & dimensions |
|---|
| Weight |
1.78 kg |
| Height |
63.5 mm |
| Depth |
100 mm |
| Width |
125 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.12 kg |
| Package height |
106 mm |
| Package depth |
236 mm |
| Package width |
184 mm |
