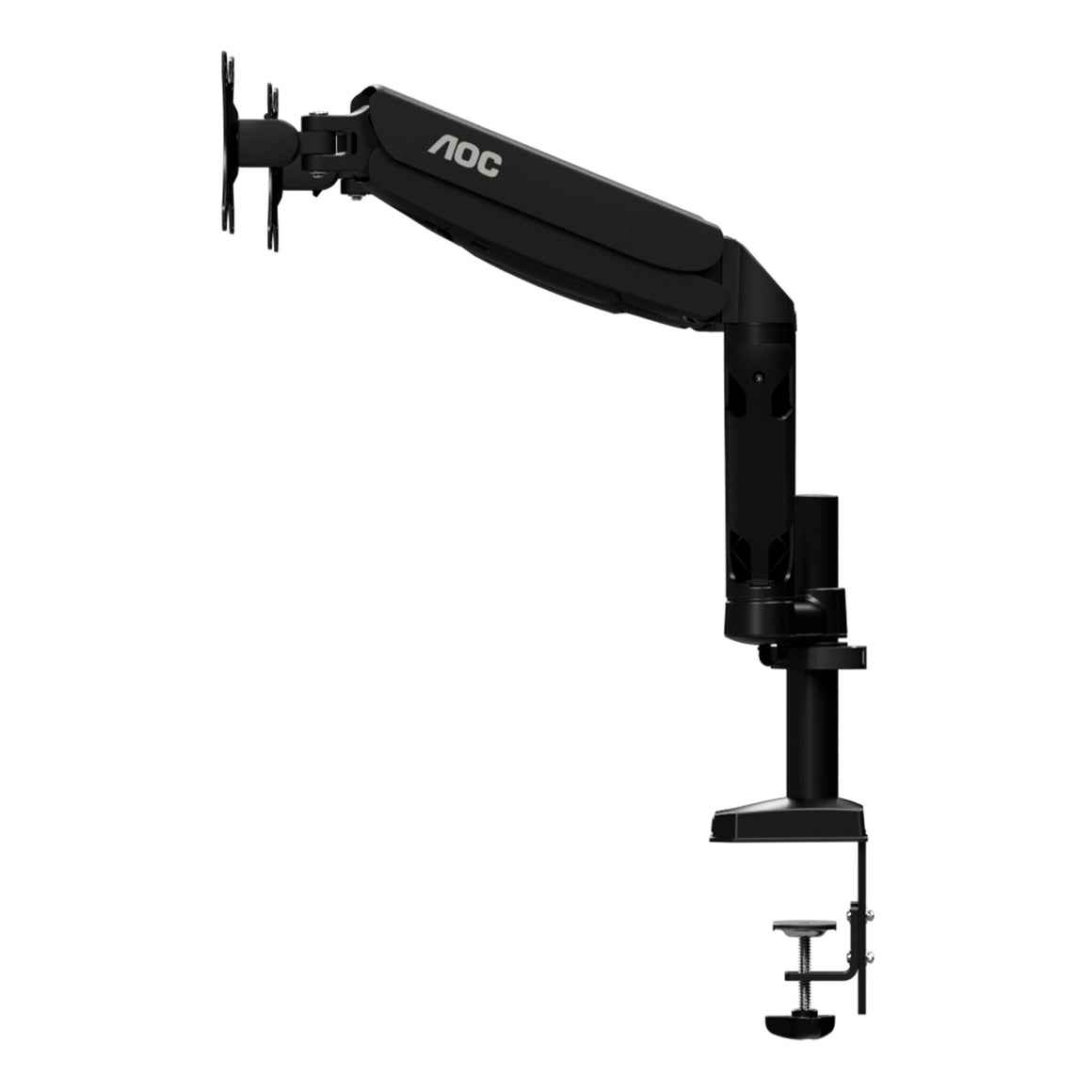

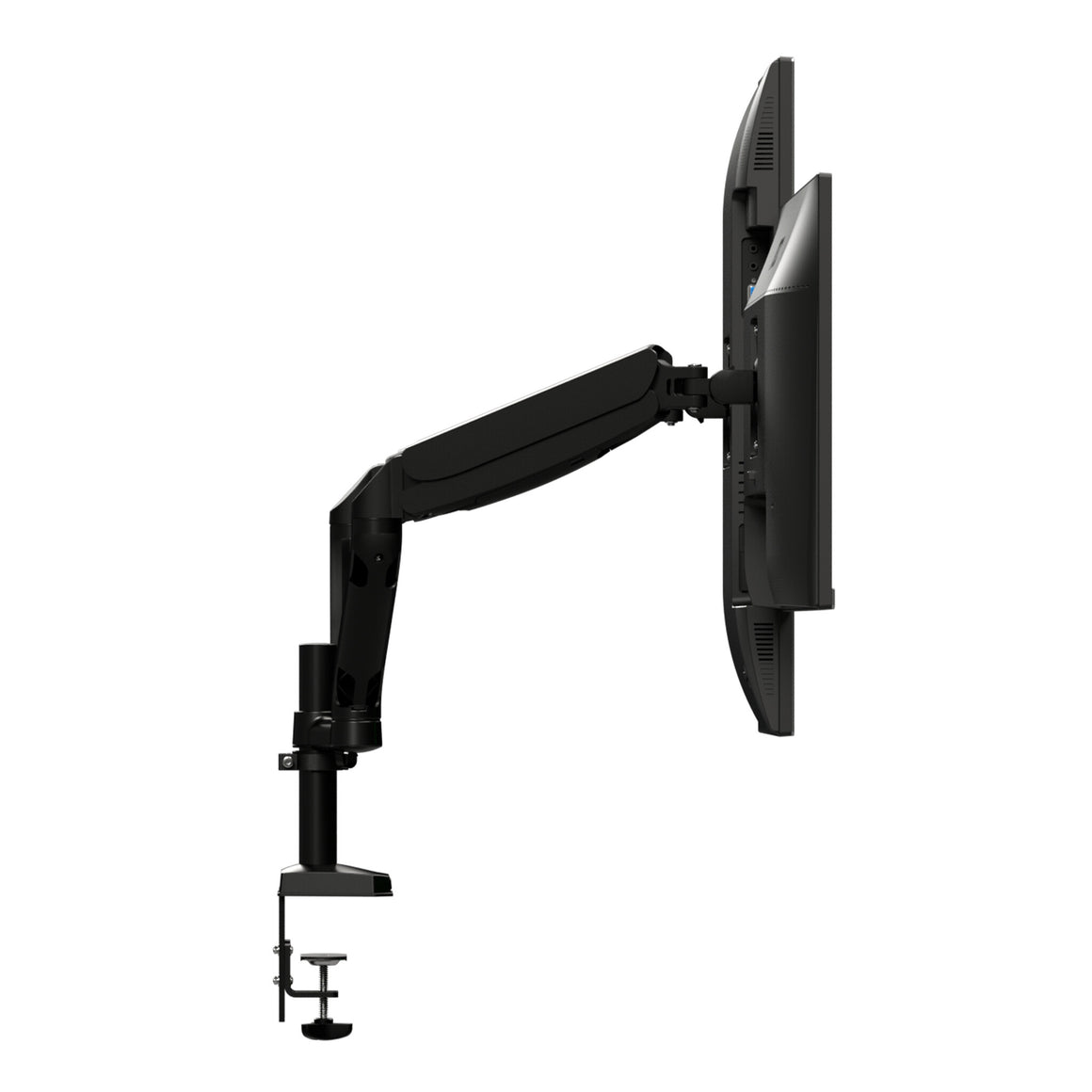

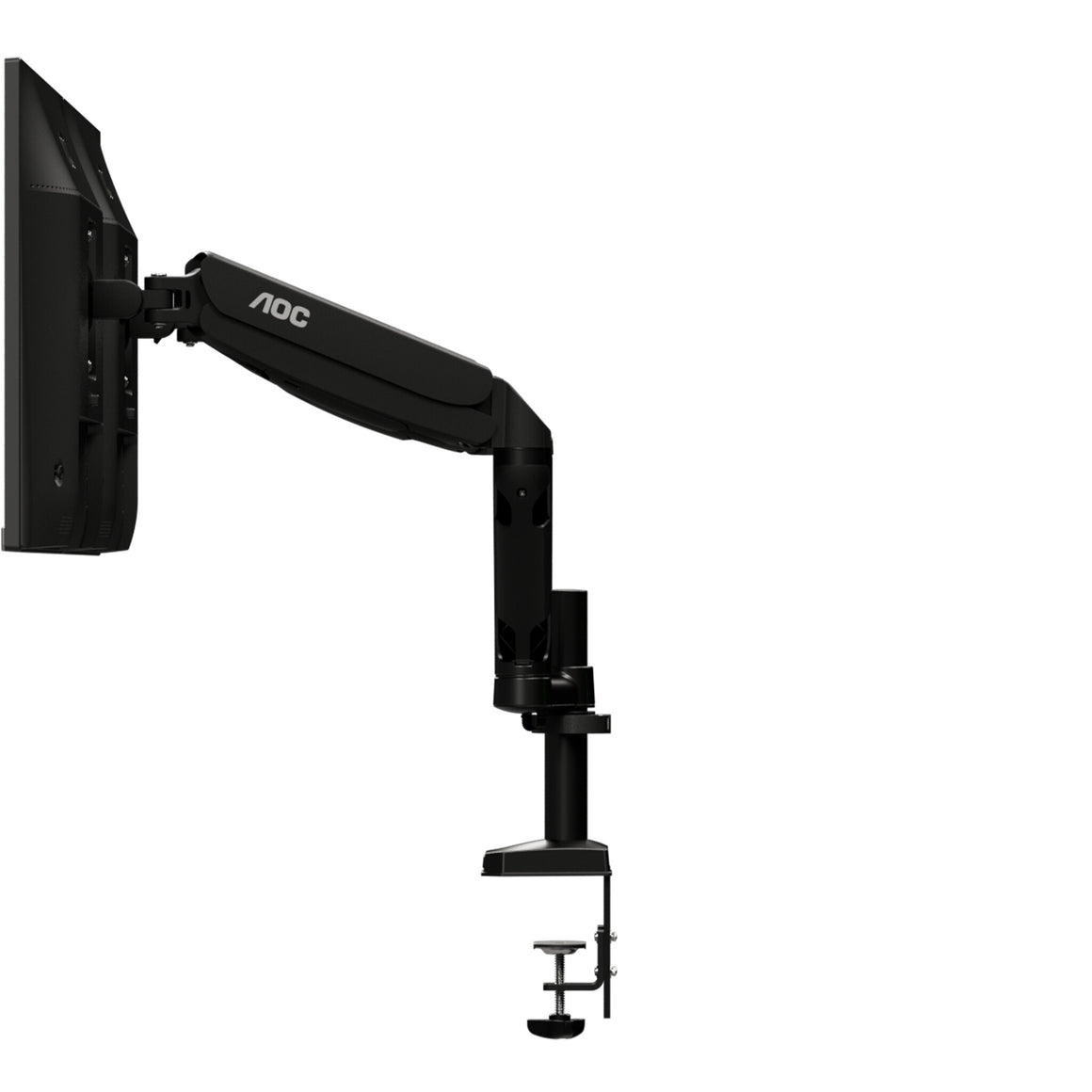

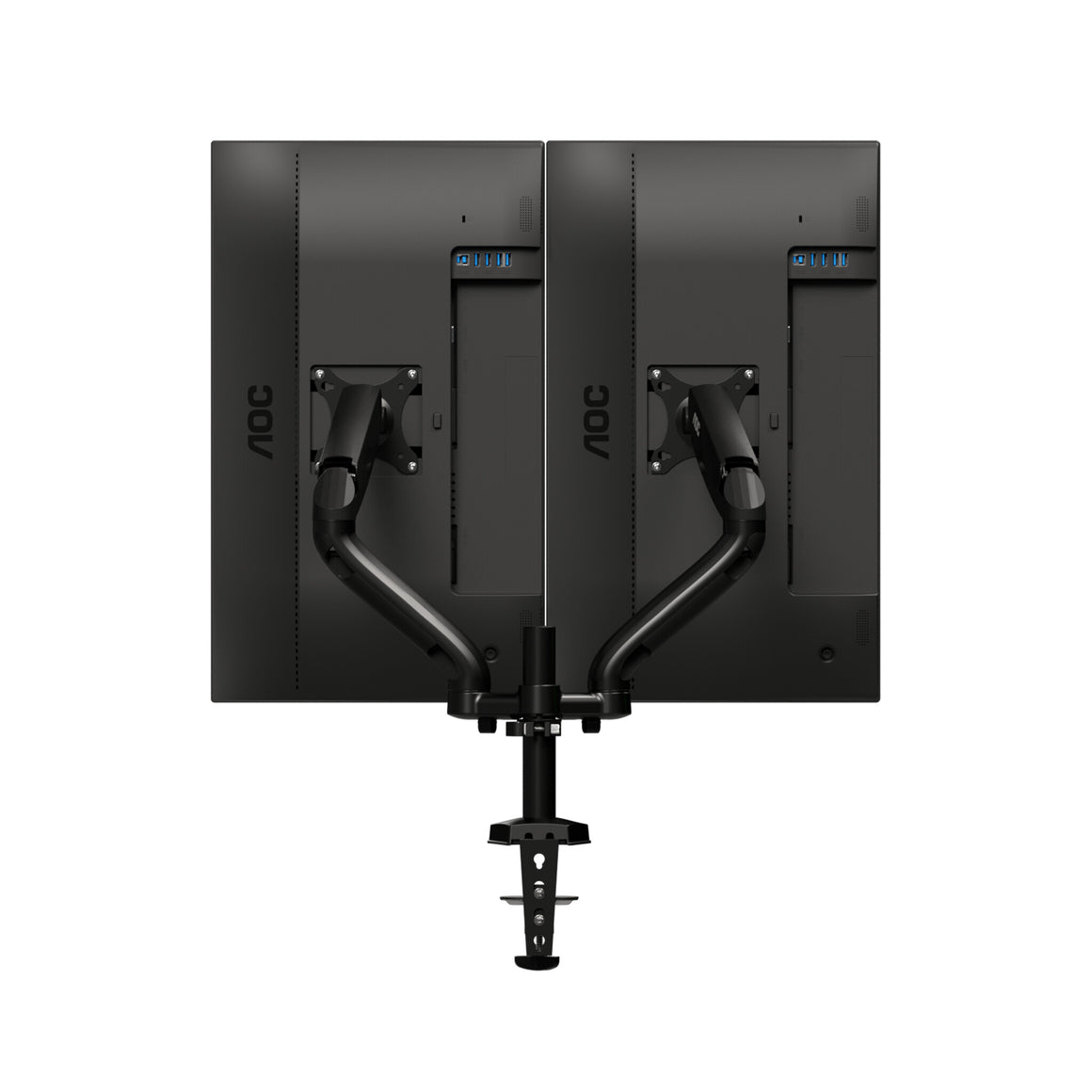

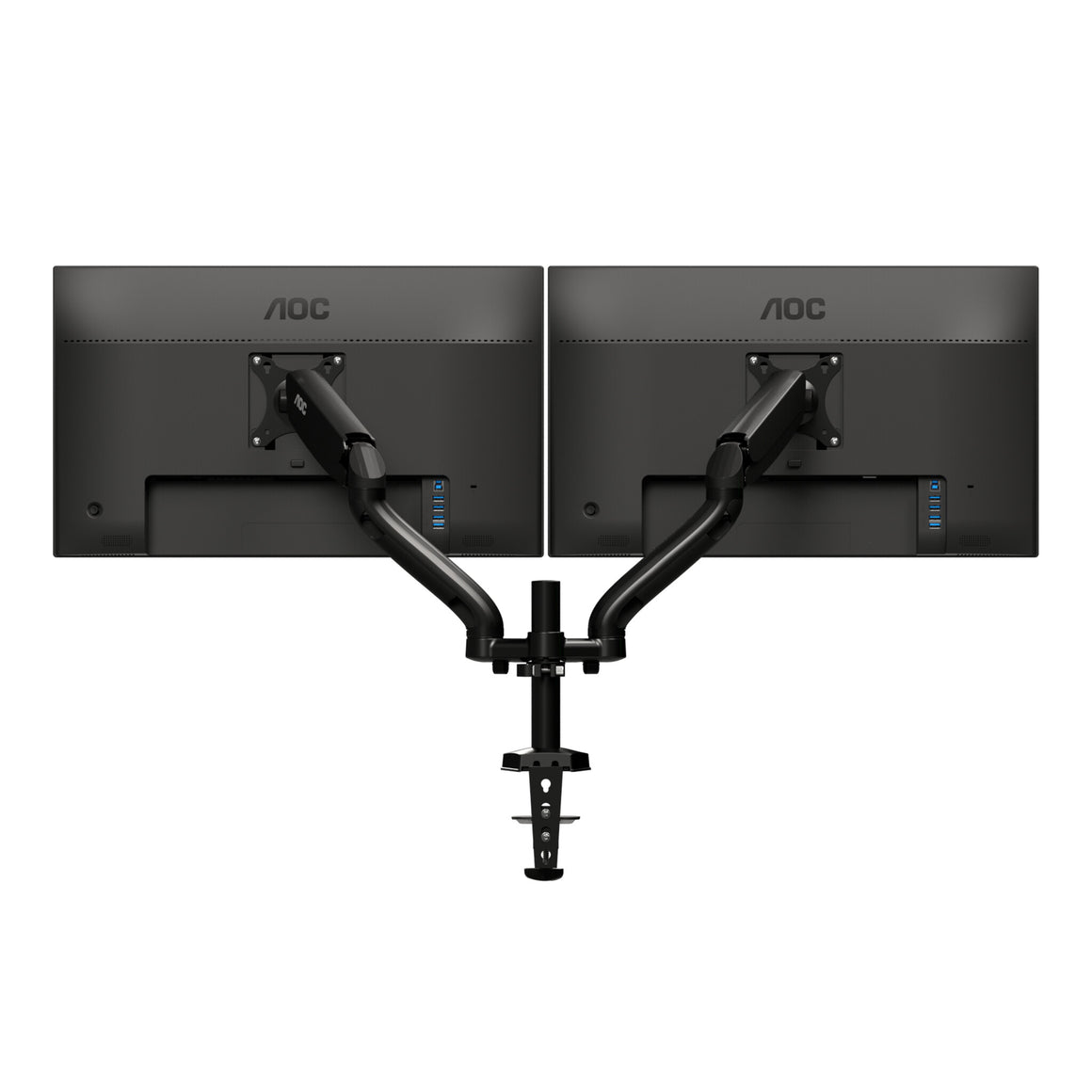

Dual monitor arm for up to 32“ displays
The gas-spring loaded, sleek AD100 dual monitor arm can be clamped to desks, holds two displays up to 32“ size. 360° pivot range, wide tilt range, 320 mm height range delivers huge flexibility.
| Mounting |
|---|
| Mounting hole range |
7 - 87 mm |
| Grommet mount desk thickness (max) |
8.3 cm |
| Clamp mount desk thickness (max) |
10.5 cm |
| Number of displays supported |
2 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp/Bolt-through |
| Mounting type |
Desk |
| Maximum screen size |
81.3 cm (32") |
| Minimum screen size |
33 cm (13") |
| Maximum weight capacity |
9 kg |
| Ergonomics |
|---|
| Cable management |
Yes |
| Pivot angle |
0 - 360° |
| Swivel angle range |
-90 - 90° |
| Swivel angle |
360° |
| Tilt angle range |
-45 - 60° |
| Depth adjustment range |
0 - 460 mm |
| Adjustable depth |
Yes |
| Height adjustment type |
Gas spring |
| Height adjustment |
Yes |
| Design |
|---|
| Housing material |
Aluminium |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
5.11 kg |
| Height |
24.5 mm |
| Depth |
12.5 mm |
| Width |
69 mm |
| Packaging data |
|---|
| Package weight |
5.1 kg |
| Package height |
245 mm |
| Package depth |
690 mm |
| Package width |
125 mm |
| Packaging content |
|---|
| Packaging content |
User Manual, Monitor Arm, Clamp mount, Grommet mount, Installation materials |
| Other features |
|---|
| Height (max) |
58 cm |
| Technical details |
|---|
| Height adjustment |
32 cm |
| Weight (with stand) |
5.7 kg |
| Adjustment type |
Gas spring |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
