Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
| Design |
|---|
| Product colour |
Black |
| Mounting |
Horizontal/Vertical |
| Rack capacity |
0U/1U |
| Type |
Single-phase |
| PDU types |
Basic |
| Ports & interfaces |
|---|

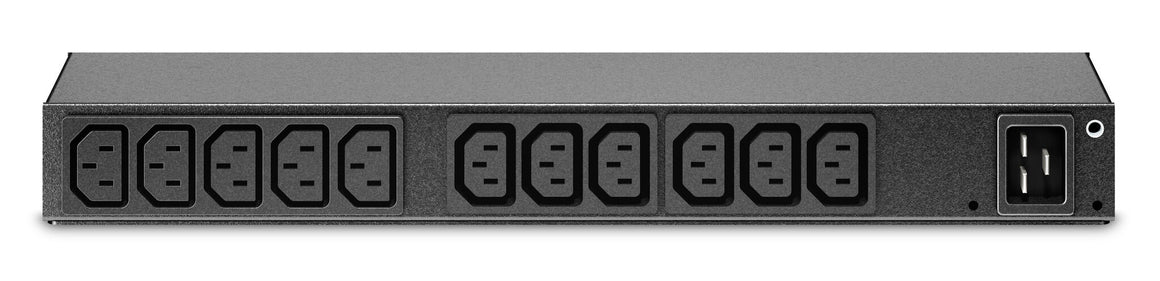

| Output connections |
IEC 320 C13 |
| AC outlet types |
C13 coupler |
| Power plug |
C20 coupler |
| AC outlets quantity |
13 AC outlet(s) |
| Power |
|---|
| Maximum power |
3680 W |
| Maximum total current draw per phase |
16 A |
| Maximum input current per phase |
16 A |
| Load capacity |
3680 VA |
| Maximum current |
20 A |
| AC input frequency |
50 - 60 Hz |
| Nominal input voltage |
100-240 V |
| Certificates |
|---|
| Certification |
cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating altitude |
0 - 3048 m |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-15 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
1.5 kg |
| Height |
388 mm |
| Depth |
93 mm |
| Width |
44 mm |
| Packaging data |
|---|
| Package height |
436 mm |
| Package depth |
76 mm |
| Package width |
210 mm |
| Package weight |
2.02 kg |
| Logistics data |
|---|
| Total carbon footprint (kg of CO2e) |
38.04 |
