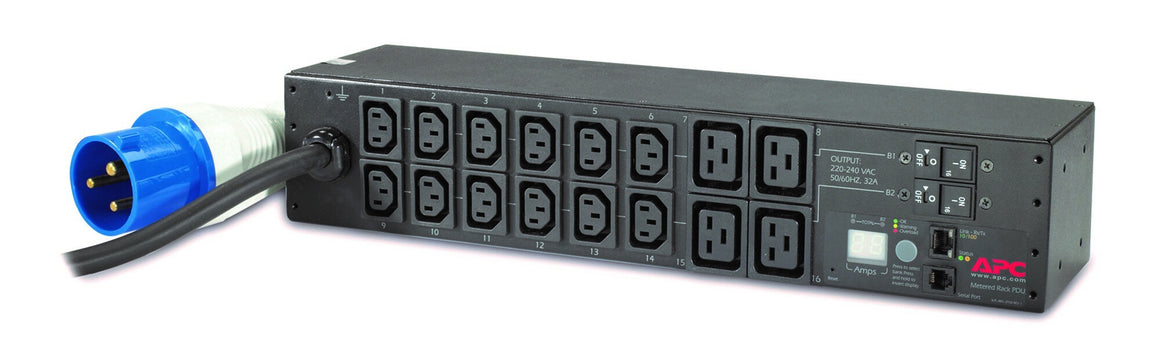

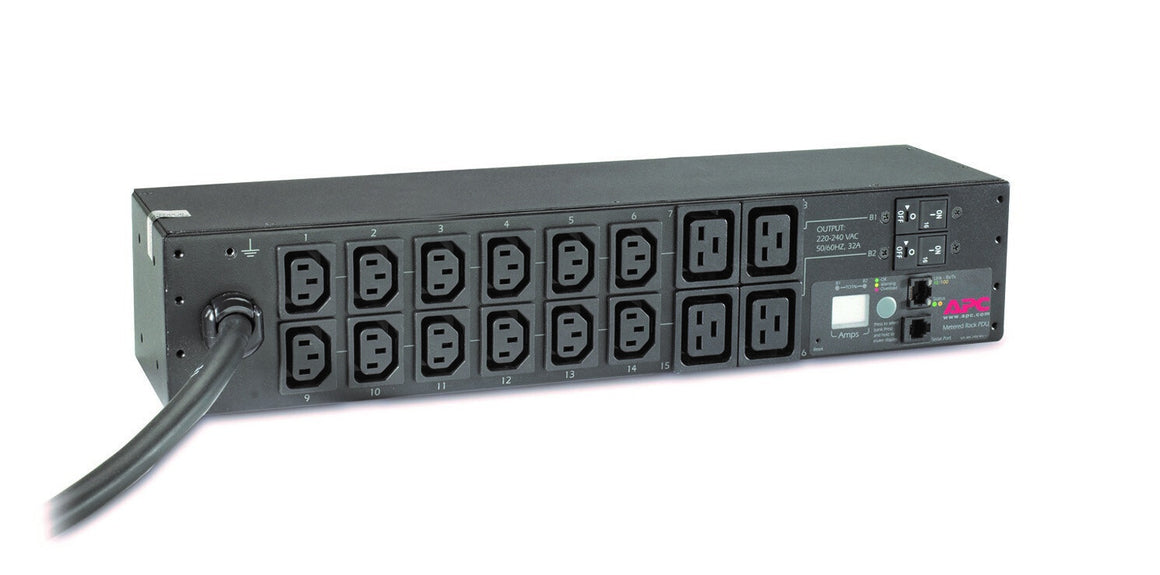

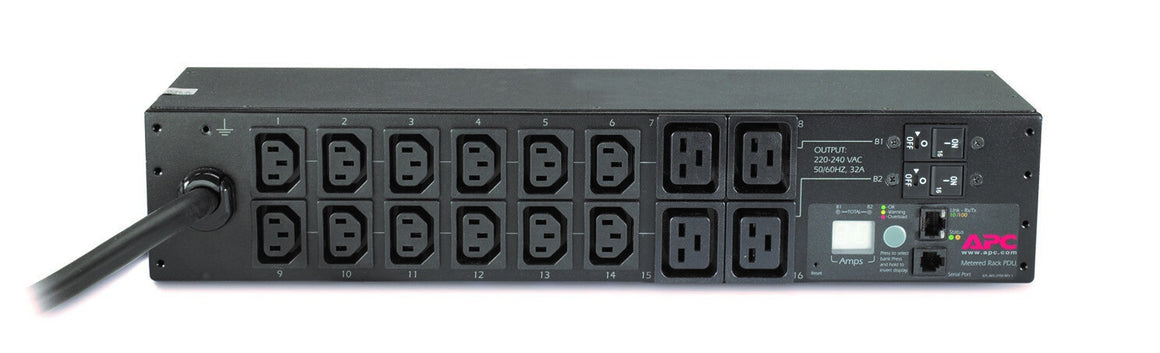

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
| Design |
|---|
| On/off switch |
Yes |
| Product colour |
Black |
| Mounting |
Horizontal/Vertical |
| Rack capacity |
2U |
| Type |
Single-phase |
| PDU types |
Metered |
| Ports & interfaces |
|---|
| Output connections |
12 x C134 x C19 |
| Input connection type |
IEC 309 32A 2P+E |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
IEC309 |
| AC outlets quantity |
16 AC outlet(s) |
| Features |
|---|
| Cable length |
3.66 m |
| LED indicators |
Yes |
| Management features |
|---|
| Monitoring |
Current, Power, Voltage |
| Power |
|---|
| Maximum power |
7680 W |
| Power protection features |
Overload |
| Maximum total current draw per phase |
32 A |
| Maximum input current per phase |
32 A |
| Load capacity |
7680 VA |
| Maximum current |
32 A |
| AC input frequency |
50 - 60 Hz |
| Nominal input voltage |
208-230 V |
| Certificates |
|---|
| Certification |
C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-25 - 65 °C |
| Operating temperature (T-T) |
-5 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
3.36 kg |
| Height |
88 mm |
| Depth |
112 mm |
| Width |
444 mm |
| Packaging data |
|---|
| Package height |
140 mm |
| Package depth |
368 mm |
| Package width |
508 mm |
| Package weight |
5.41 kg |
| Logistics data |
|---|
| Total carbon footprint (kg of CO2e) |
8952.07 |
