Access monitoring
Detect access by unauthorized personnel via door switch.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Cold-start capable
Provides temporary battery power when the utility power is out.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Audible alarms
Provides notification of changing utility power and UPS power conditions
| Features |
|---|
| Audible alarm modes |
Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm |
| Audible alarm(s) |
Yes |
| Surge protection |
Yes |
| Noise level |
40 dB |
| Input power factor |
0.51 |
| Response time |
6 ms |
| Surge energy rating |
273 J |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output voltage regulation |
10% |
| Output frequency regulation |
0.5 Hz |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
230 V |
| Output operation voltage (min) |
230 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
280 V |
| Input operation voltage (min) |
170 V |
| Waveform |
Sine |
| Output power |
360 W |
| Output power capacity |
0.7 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
|---|

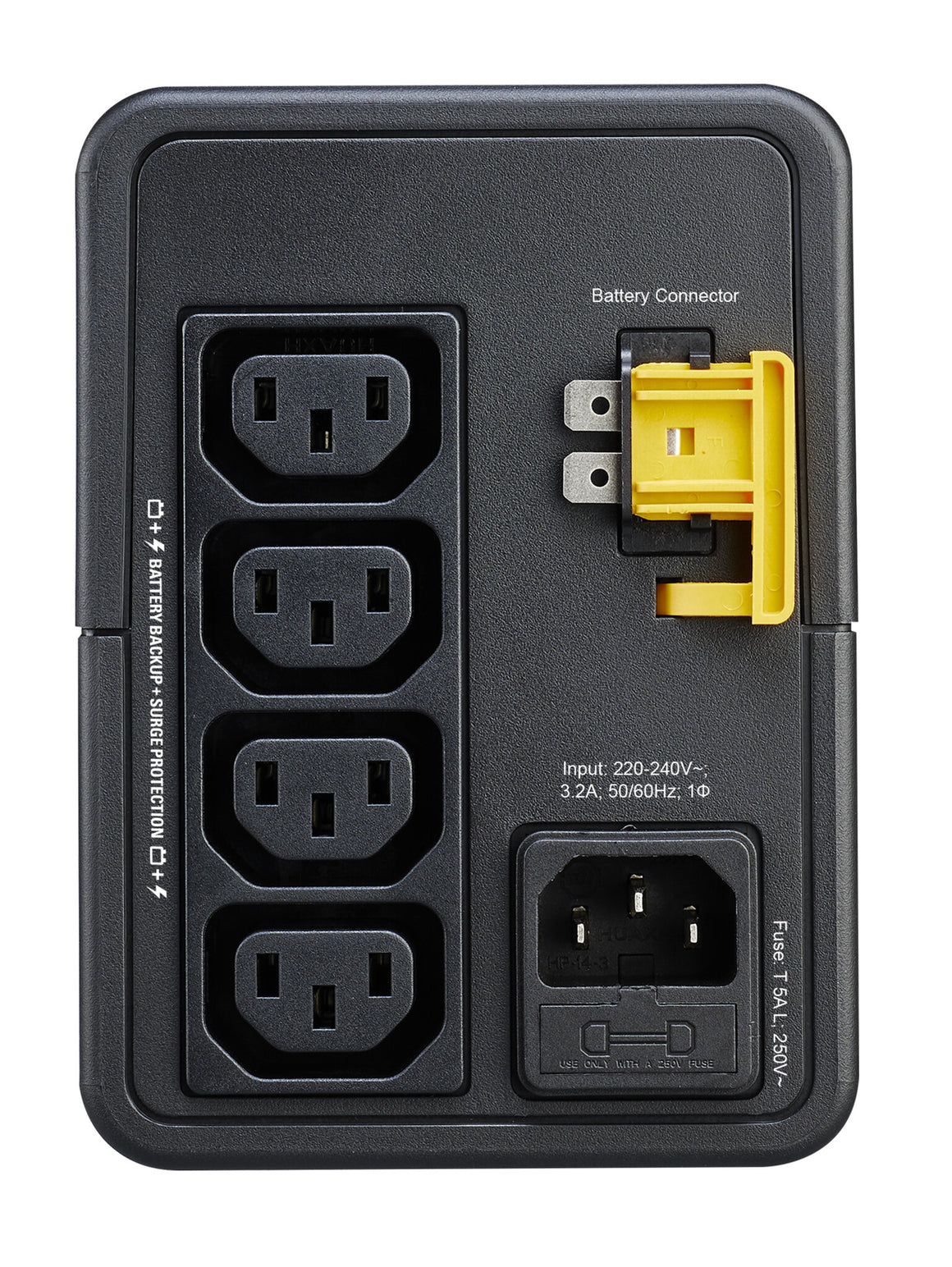

| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
|---|
| Battery recharge time |
8 h |
| Battery life (max) |
2 year(s) |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
Compact |
| Operational conditions |
|---|
| Non-operating altitude |
0 - 3000 m |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging content |
|---|
| Cables included |
Input power cable |
| Certificates |
|---|
| Certification |
CB, CE, EN/IEC 62040-1, EN/IEC 62040-2 |
