SKU: EPDU1016B

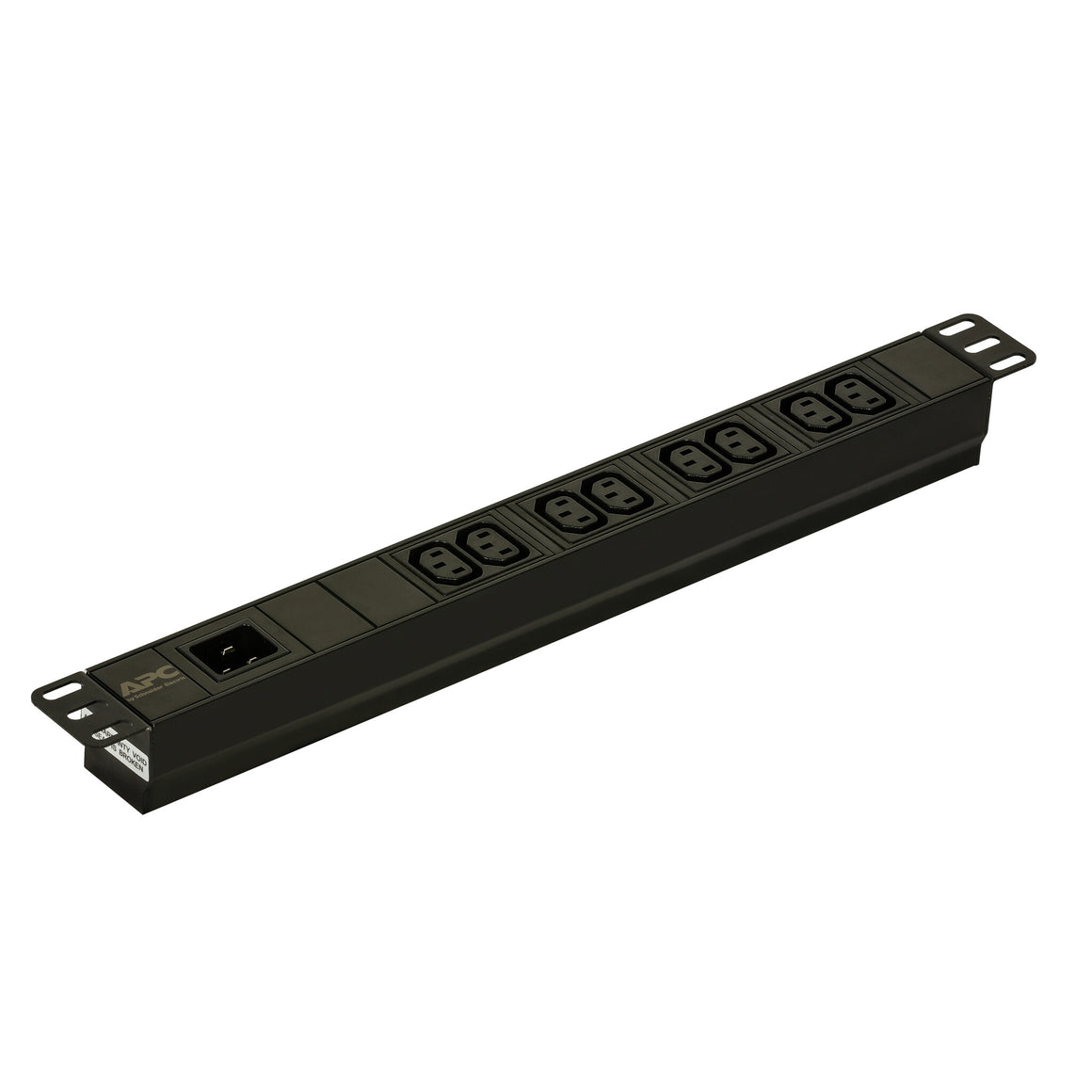

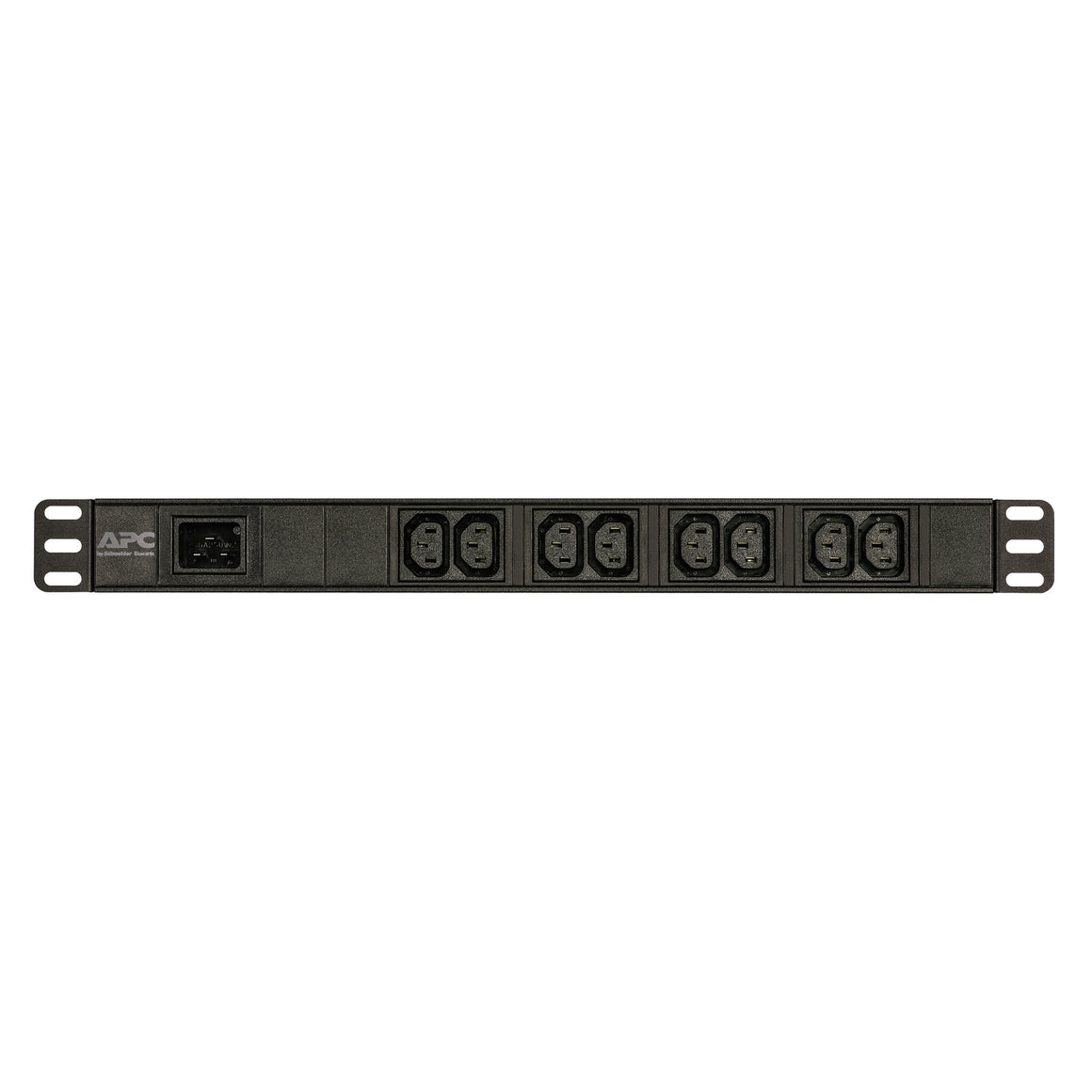

APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet

APC
£97.52
iFrame
  • Single-phase Basic 1U Black
  • 8 AC outlet(s) C13 coupler
  • 3680 W

APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.

Design
On/off switch No
Product colour Black
Housing material Aluminium
Mounting Horizontal
Rack capacity 1U
Type Single-phase
PDU types Basic
Ports & interfaces
AC outlet types C13 coupler
Power plug C20 coupler
AC outlets quantity 8 AC outlet(s)
Features
Cable length 2.5 m
Daisy chain No
Power
Maximum power 3680 W
Maximum input current per phase 16 A
Load capacity 3680 VA
Nominal output voltage 208/230 V
Maximum current 16 A
AC input frequency 50 - 60 Hz
Nominal input voltage 200/208/230 V
Certificates
Certification CE, TUV
Compliance certificates RoHS
Operational conditions
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -25 - 65 °C
Operating temperature (T-T) -5 - 45 °C
Weight & dimensions
Weight 580 g
Height 44 mm
Depth 44 mm
Width 482 mm
Packaging content
Manual Yes
Packaging data
Package height 150 mm
Package depth 80 mm
Package width 560 mm
Package weight 1.18 kg
