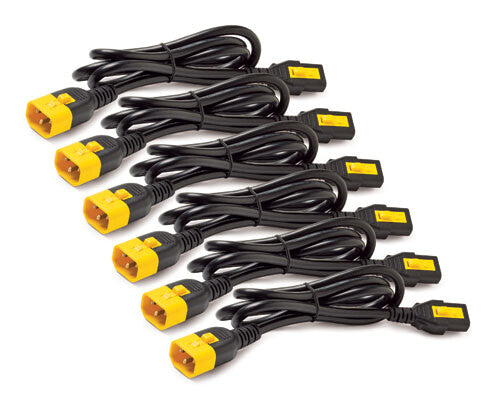

This Series of Rack Power Distribution Units (PDU) comes with Locking IEC Receptacles. The output and input connections are C13 to C14. The cord length is 1.2m. Locking IEC system allows the use of optional locking IEC power cords for added power cord security and enhanced reliability. No tools are required to disengage the locking feature and remove the plug from the locking receptacle.
| Features |
|---|
| Connector 2 |
C14 coupler |
| Connector 1 |
C13 coupler |
| Cable length |
1.2 m |
| Connector 1 gender |
Female |
| Connector 2 gender |
Male |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
20 - 80% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-25 - 75 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
1.01 kg |
| Height |
240 mm |
| Depth |
45 mm |
| Width |
70 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Total carbon footprint (kg of CO2e) |
317.74 |
