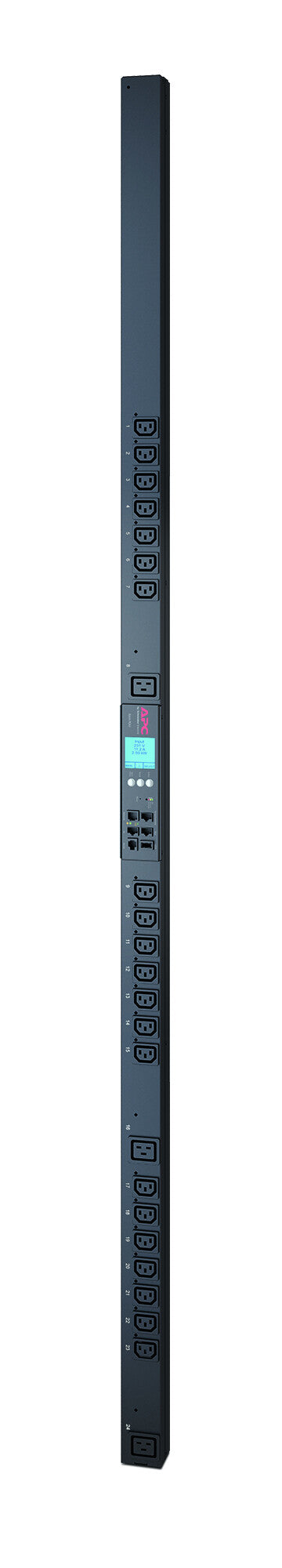

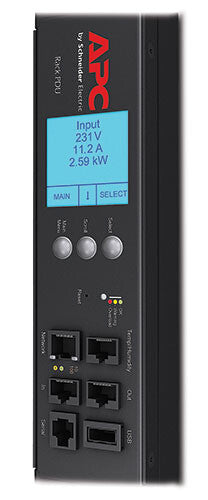

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
| Design |
|---|
| Product colour |
Black |
| Mounting |
Vertical |
| Rack capacity |
0U |
| PDU types |
Metered, Metered-by-outlet, Switched |
| Ports & interfaces |
|---|
| AC outlet types |
C13 coupler, C19 coupler |
| AC outlets quantity |
24 AC outlet(s) |
| Management features |
|---|
| Outlet control |
Lock-out, Recycle, Turn off, Turn on |
| Monitoring |
Current, Power, Voltage |
| Power |
|---|
| Maximum power |
3680 W |
| Maximum total current draw per phase |
16 A |
| Maximum input current per phase |
16 A |
| Load capacity |
3680 VA |
| Nominal output voltage |
200-230 V |
| Maximum current |
16 A |
| AC input frequency |
50 - 60 Hz |
| Nominal input voltage |
200-230 V |
| Certificates |
|---|
| Certification |
EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-25 - 65 °C |
| Operating temperature (T-T) |
-5 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
6.09 kg |
| Height |
1829 mm |
| Depth |
51 mm |
| Width |
56 mm |
| Packaging data |
|---|
| Package height |
2038 mm |
| Package depth |
117 mm |
| Package width |
162 mm |
| Package weight |
8.36 kg |
| Logistics data |
|---|
| Total carbon footprint (kg of CO2e) |
537.26 |
