SKU: AP8958

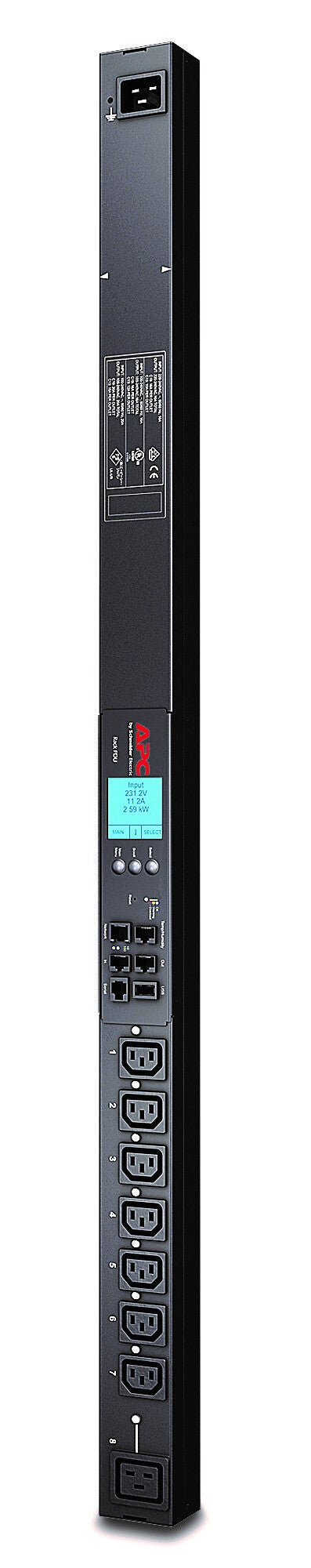

APC Rack PDU 2G, Switched, ZeroU, 20A/208V, 16A/230V, (7) C13 & (1) C19

APC
£1,140.58
iFrame
  • Metered, Switched 0U
  • 8 AC outlet(s) C13 coupler, C19 coupler
  • 3680 W

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Design
Mounting Vertical
Rack capacity 0U
PDU types Metered, Switched
Ports & interfaces
AC outlet types C13 coupler, C19 coupler
AC outlets quantity 8 AC outlet(s)
Management features
Outlet control Lock-out, Recycle, Turn off, Turn on
Monitoring Current, Power, Voltage
Power
Maximum power 3680 W
Maximum total current draw per phase 16 A
Maximum input current per phase 16 A
Load capacity 3680 VA
Maximum current 16 A
Nominal input voltage 230 V
Weight & dimensions
Weight 3.23 kg
Height 988 mm
Depth 46 mm
Width 56 mm
Logistics data
Total carbon footprint (kg of CO2e) 1302.31
