SKU: AP7553

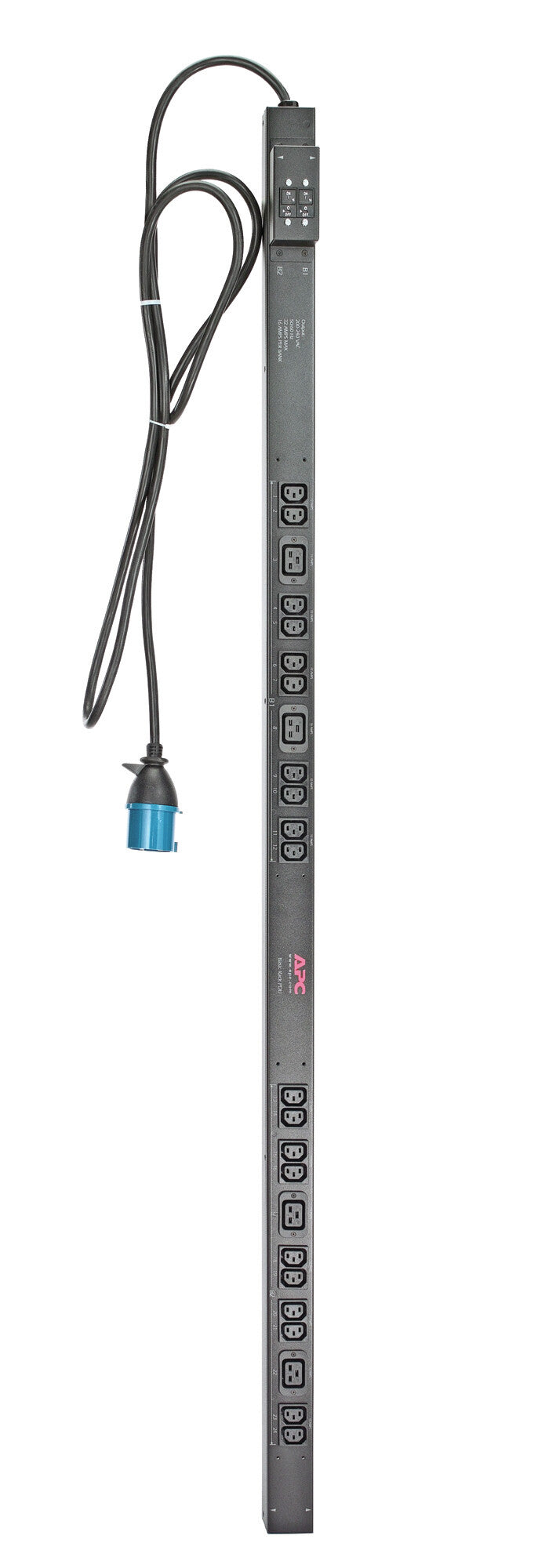

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power distribution unit (PDU) 24 AC outlet(s) 0U Black

APC
£377.29
iFrame
  • Single-phase Basic 0U Black
  • 24 AC outlet(s) C13 coupler, C19 coupler
  • 7680 W

Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities

Design
Product colour Black
Mounting Vertical
Rack capacity 0U
Type Single-phase
PDU types Basic
Ports & interfaces
I/O ports (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A
Output connections (20) IEC 320 C13 (4) IEC 320 C19
Input connection type IEC 309 32A
AC outlet types C13 coupler, C19 coupler
Power plug IEC 60309
AC outlets quantity 24 AC outlet(s)
Features
Cable length 3050 m
Power
Maximum power 7680 W
Maximum total current draw per phase 32 A
Maximum input current per phase 32 A
Load capacity 7680 VA
Output voltage 230 V
Nominal output voltage 230 V
Nominal input voltage 230 V
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) 0 - 45 °C
Operating temperature (T-T) -25 - 65 °C
Weight & dimensions
Weight 5.57 kg
Height 1619 mm
Depth 44 mm
Width 56 mm
Packaging data
Package height 2134 mm
Package depth 127 mm
Package width 152 mm
Package weight 6.48 kg
