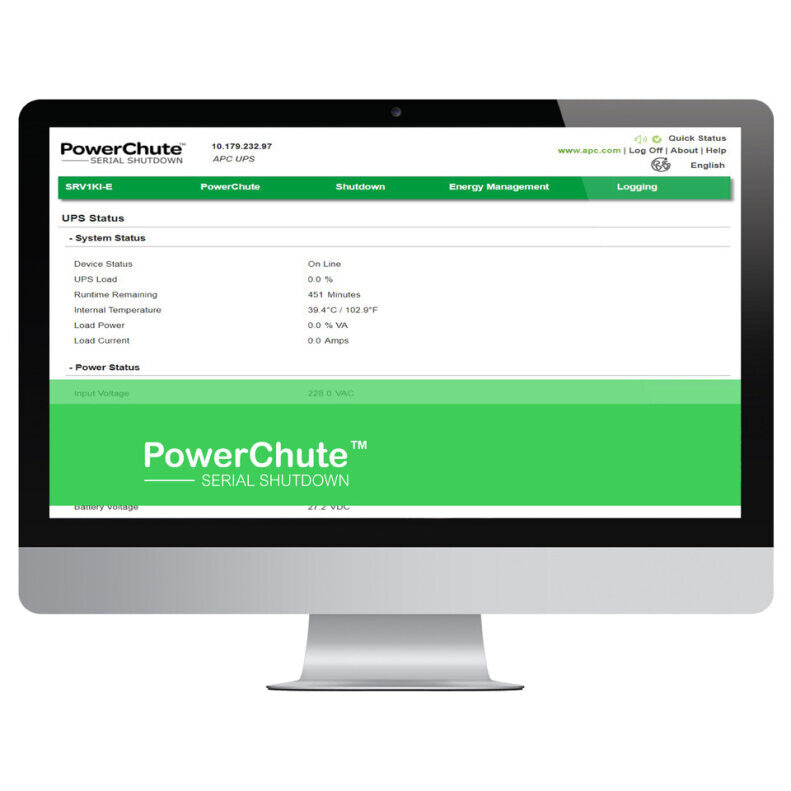

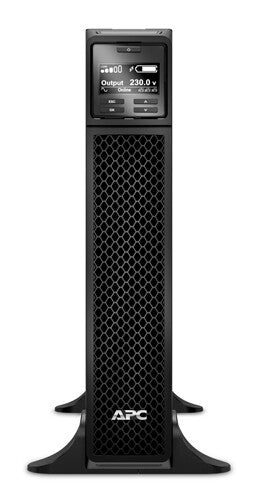

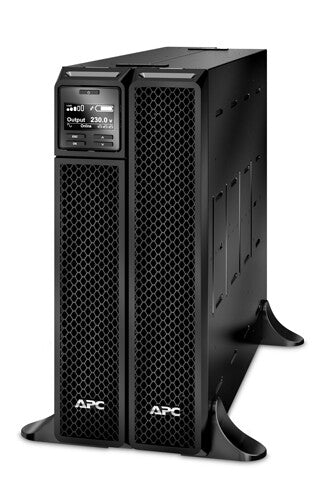

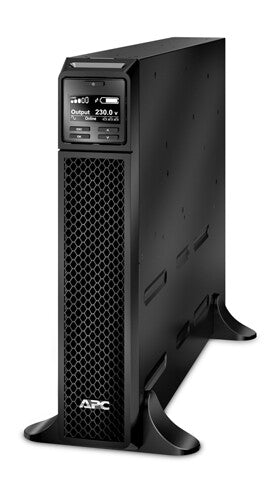

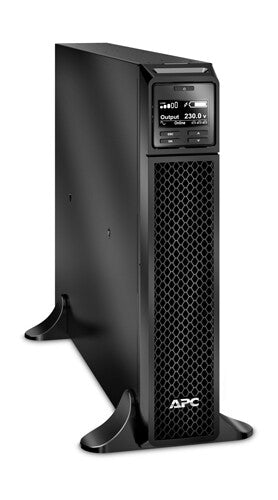

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Features |
|---|
| Auto-restart |
Yes |
| Web-based management |
Yes |
| Audible alarm(s) |
Yes |
| Surge protection |
Yes |
| Noise level |
55 dB |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Efficiency |
92.2% |
| Surge energy rating |
340 J |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
275 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
1980 W |
| Output power capacity |
2.2 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Number of output IEC jumpers |
2 |
| Power plug |
C20 coupler |

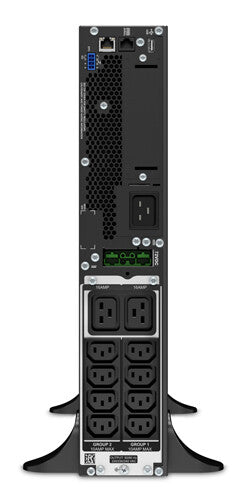

| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
|---|
| Automatic battery test |
Yes |
| Battery recharge time |
3 h |
| Battery life (max) |
5 year(s) |

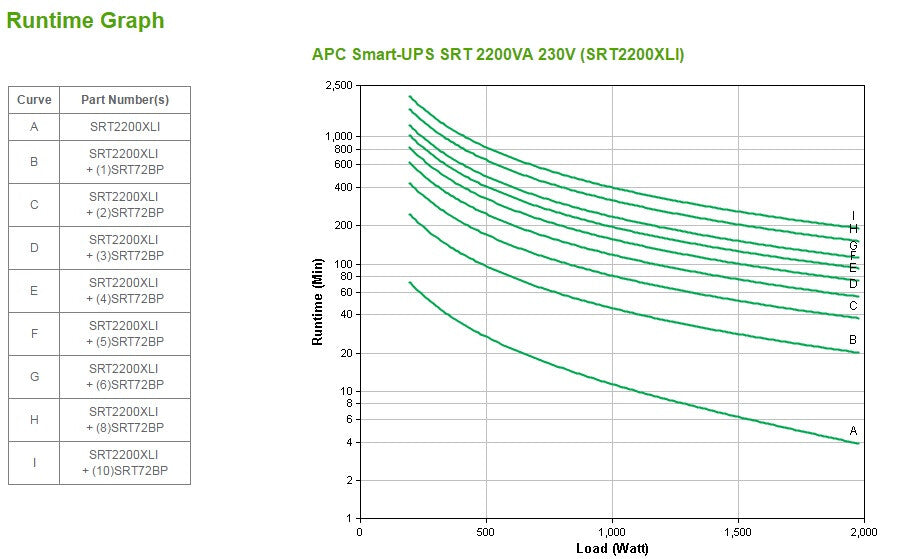

| Typical backup time at half load |
11.6 min |
| Battery capacity |
367 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| LED indicators |
Yes |

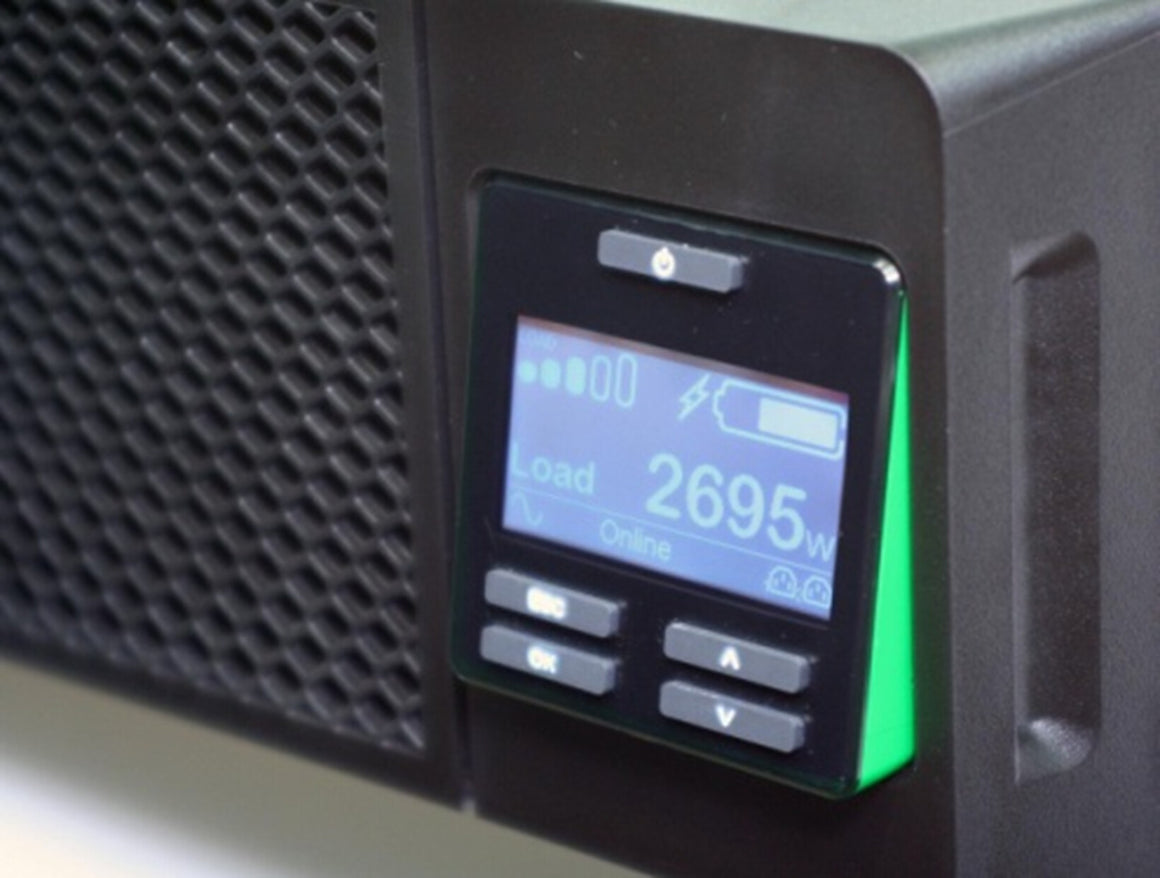

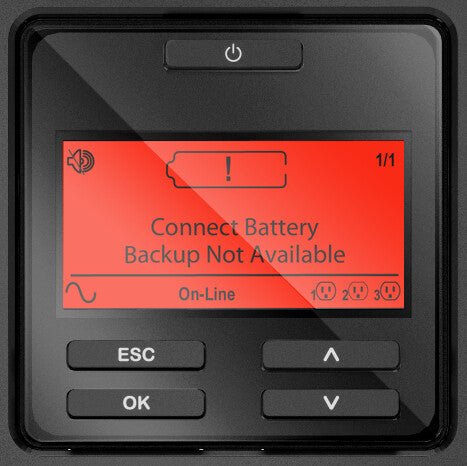

| Display type |

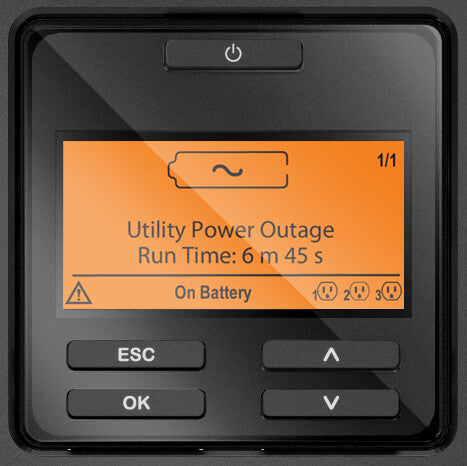

LCD |
| Cable length |
2.44 m |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
|---|
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging content |
|---|
| Cables included |
USB cable |
| Certificates |
|---|
| Certification |
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, Green Premium |
| Packaging data |
|---|
| Warranty card |
Yes |
| Software CD |
Yes |
| Other features |
|---|
| Packaging content |
Power cordRemovable support feet |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Interface |
SmartSlot |
