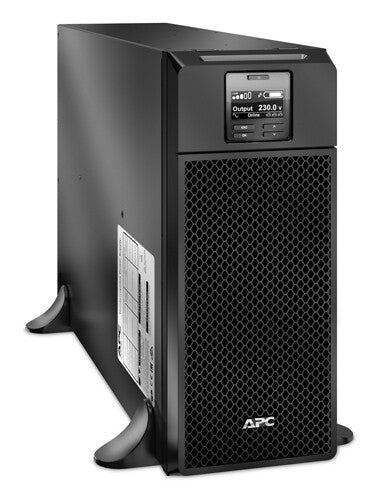

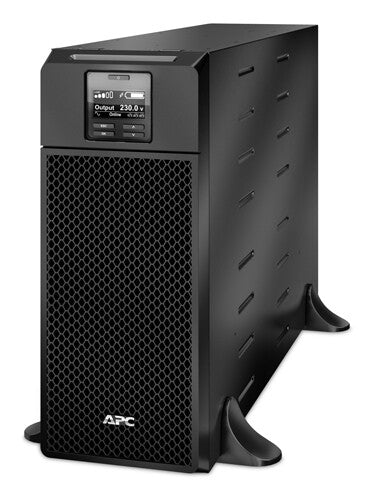

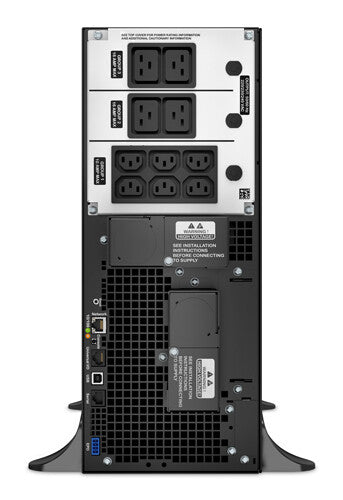

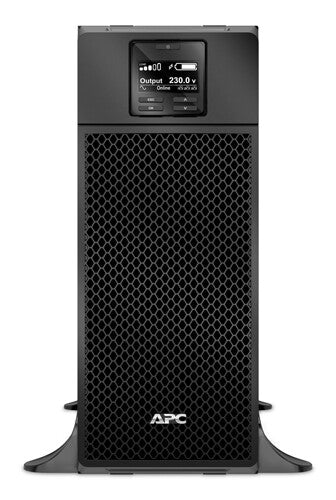

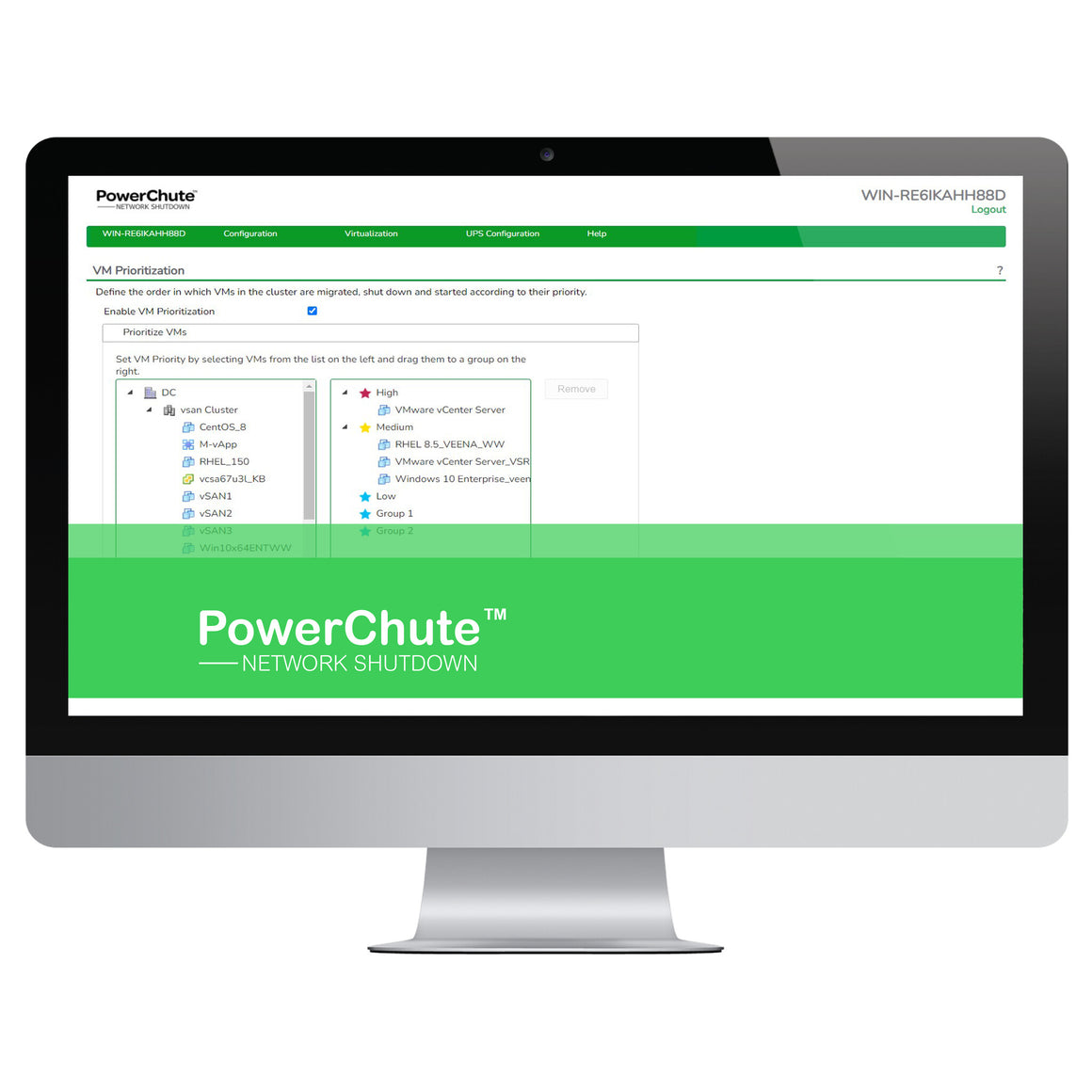

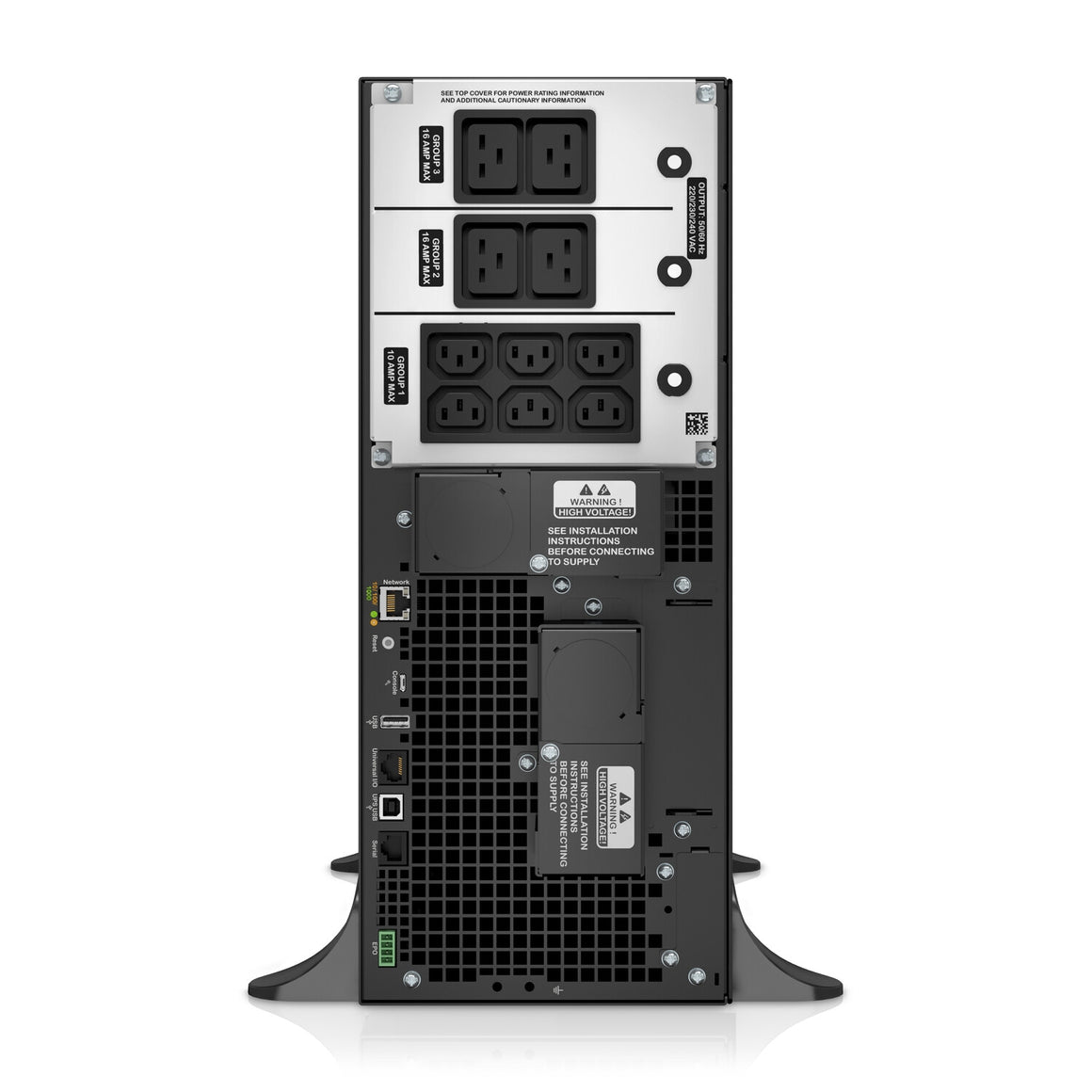

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Features |
|---|
| Auto-restart |
Yes |
| Audible alarm(s) |
Yes |
| Surge protection |
Yes |
| Noise level |
55 dB |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Efficiency |
94.4% |
| Number of output phases |
1 |
| Surge energy rating |
480 J |
| Output frequency regulation |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40 - 70 Hz |
| Input operation voltage (max) |
275 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
6000 W |
| Output power capacity |
6 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Number of output IEC jumpers |
2 |
| Power plug |
Hardwire |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
|---|
| Automatic battery test |
Yes |
| Battery recharge time |
1.5 h |
| Battery life (max) |
5 year(s) |

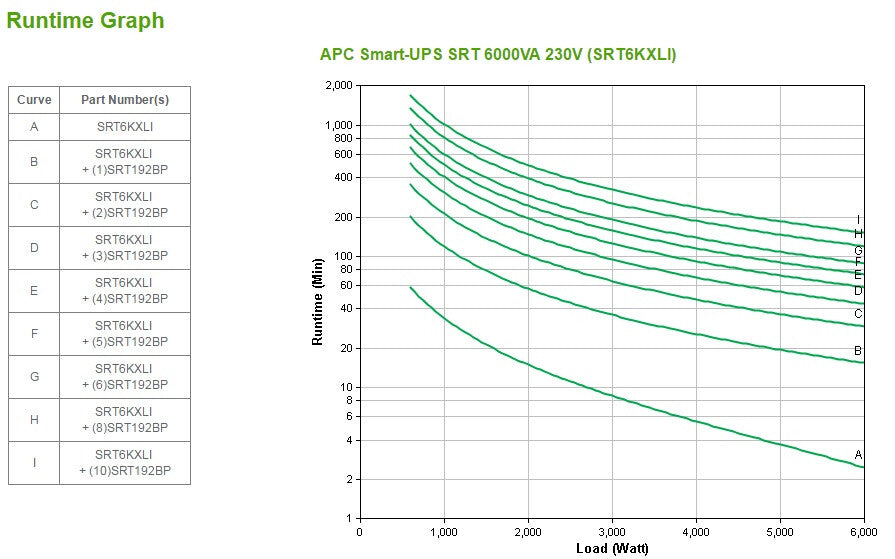

| Typical backup time at half load |
8.7 min |
| Battery capacity |
902 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| LED indicators |
Status |
| Display type |
LCD |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
|---|
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging content |
|---|
| Cables included |
USB cable |
| Certificates |
|---|
| Certification |
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Packaging data |
|---|
| Warranty card |
Yes |
| Software CD |
Yes |
| Other features |
|---|
| Packaging content |
Removable support feetWeb/SNMP Management Card |
