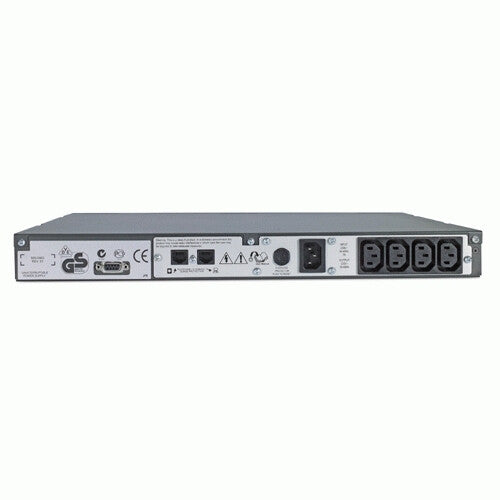

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 383mm (depth) x 44mm (height) x 432mm (width) and weighs 10.18kg. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.
| Features |
|---|
| Auto-restart |
Yes |
| Audible alarm modes |
Low battery alarm, Overload alarm |
| Audible alarm(s) |
Yes |
| Surge protection features |
Digital Subscriber Line (DSL), Fax, Modem, Network |
| Surge protection |
Yes |
| Noise level |
38 dB |
| Hold time (min) |
4 ms |
| Hold time (max) |
8 ms |
| Surge energy rating |
320 J |
| Automatic Voltage Regulation (AVR) |
Yes |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
302 V |
| Input operation voltage (min) |
151 V |
| Waveform |
Sine |
| Output power |
280 W |
| Output power capacity |
0.45 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
|---|
| Number of output IEC jumpers |
2 |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
|---|
| Automatic battery test |
Yes |
| Battery recharge time |
5 h |
| Battery life (max) |
5 year(s) |

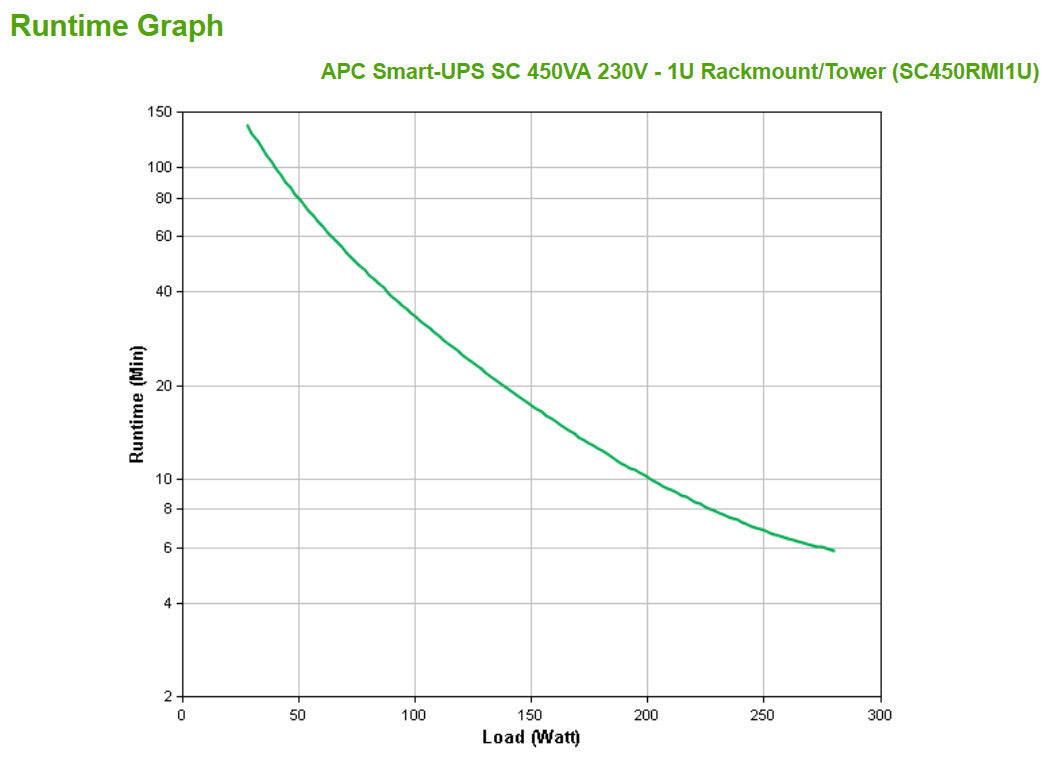

| Typical backup time at half load |
19.4 min |
| Battery capacity |
108 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
|---|
| LED indicators |
Battery replacement |
| Rack capacity |
1U |
| Product colour |
Grey |
| Form factor |
Rackmount/Tower |
| Operational conditions |
|---|
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging content |
|---|
| Cables included |
RS-232 |
| Certificates |
|---|
| Certification |
C-tick, CE, GOST, VDE, PEP, EOLI |
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Software CD |
Yes |
| Other features |
|---|
| Nominal output voltage |
230 V |
