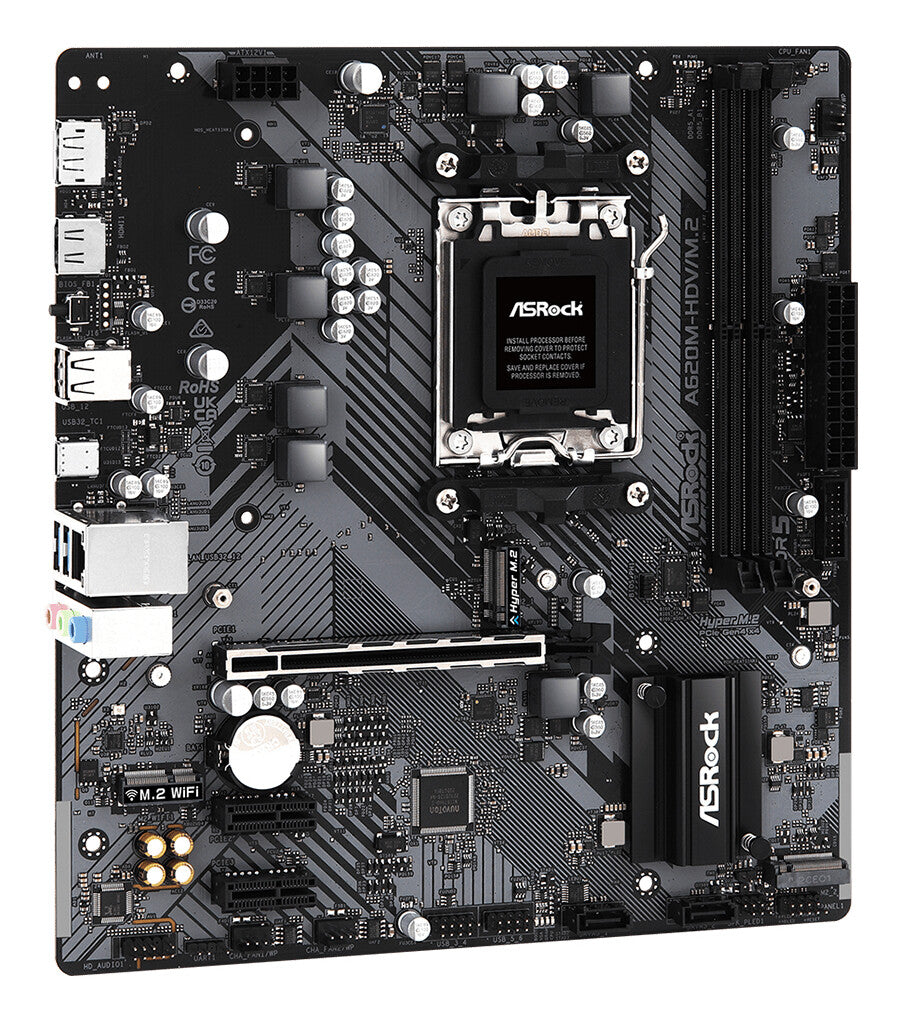

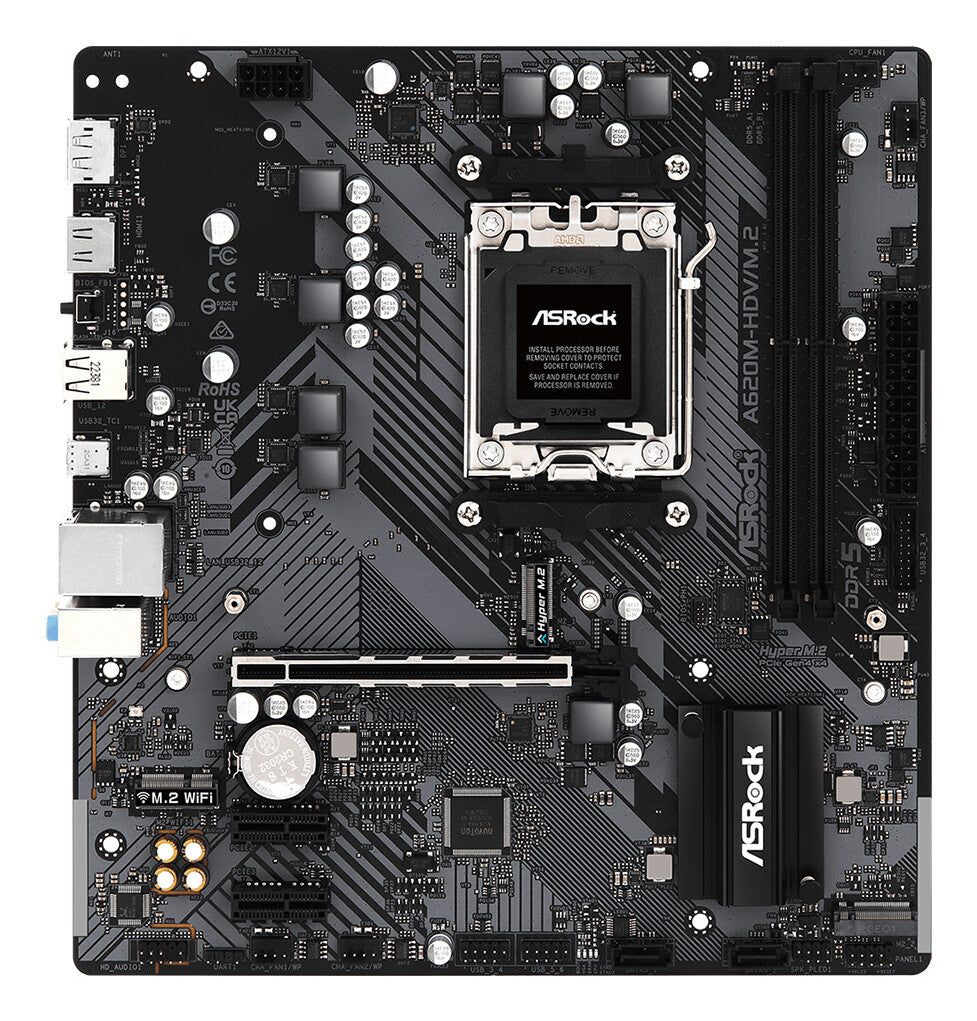

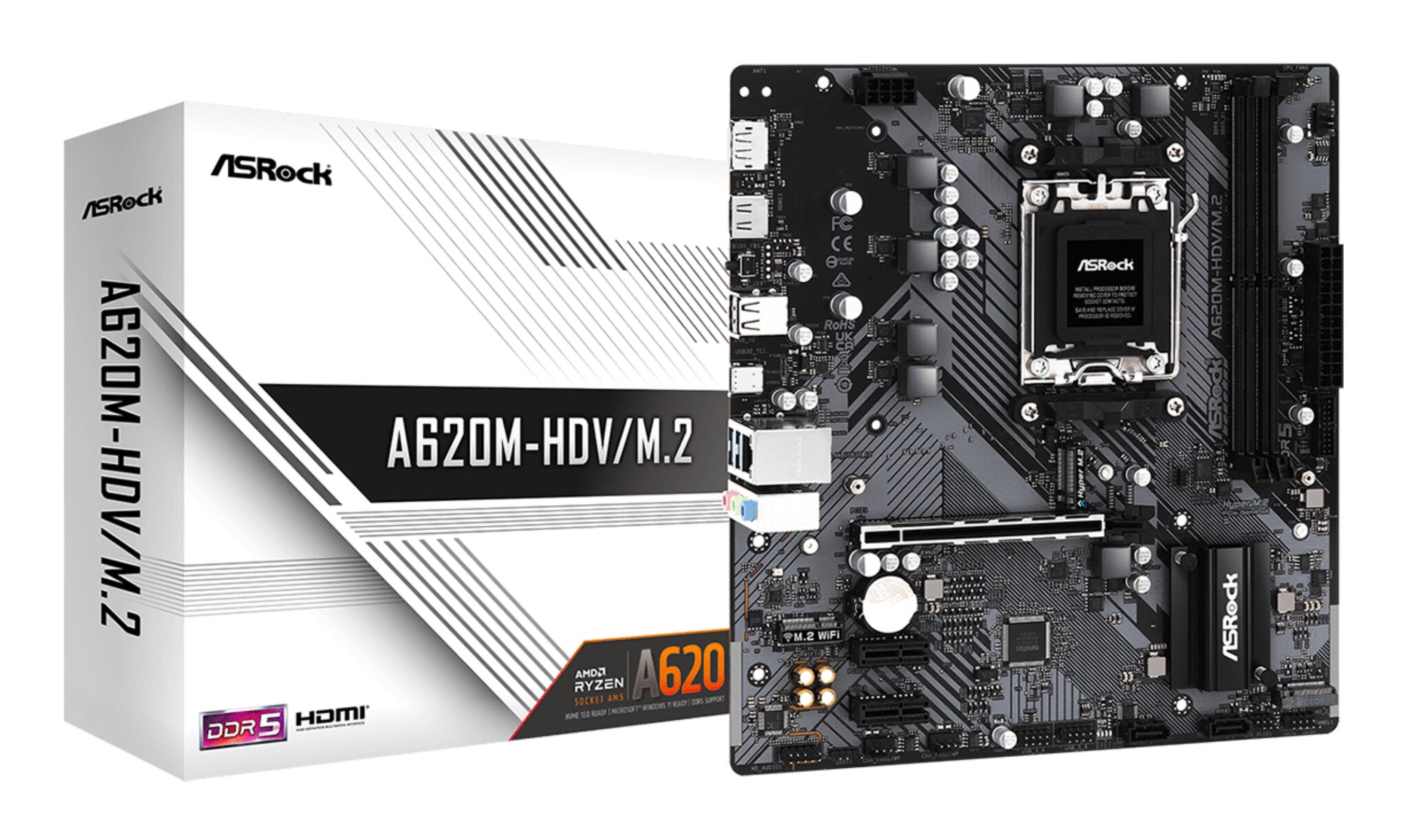

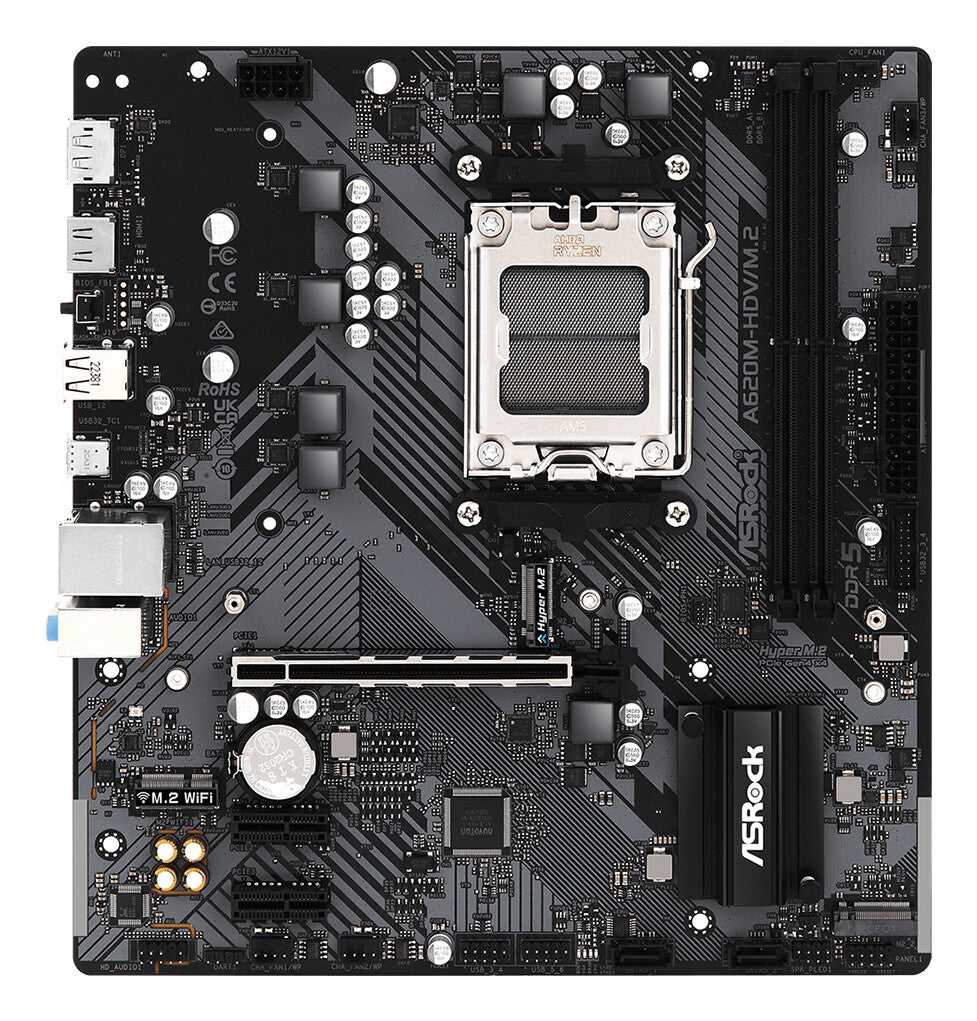

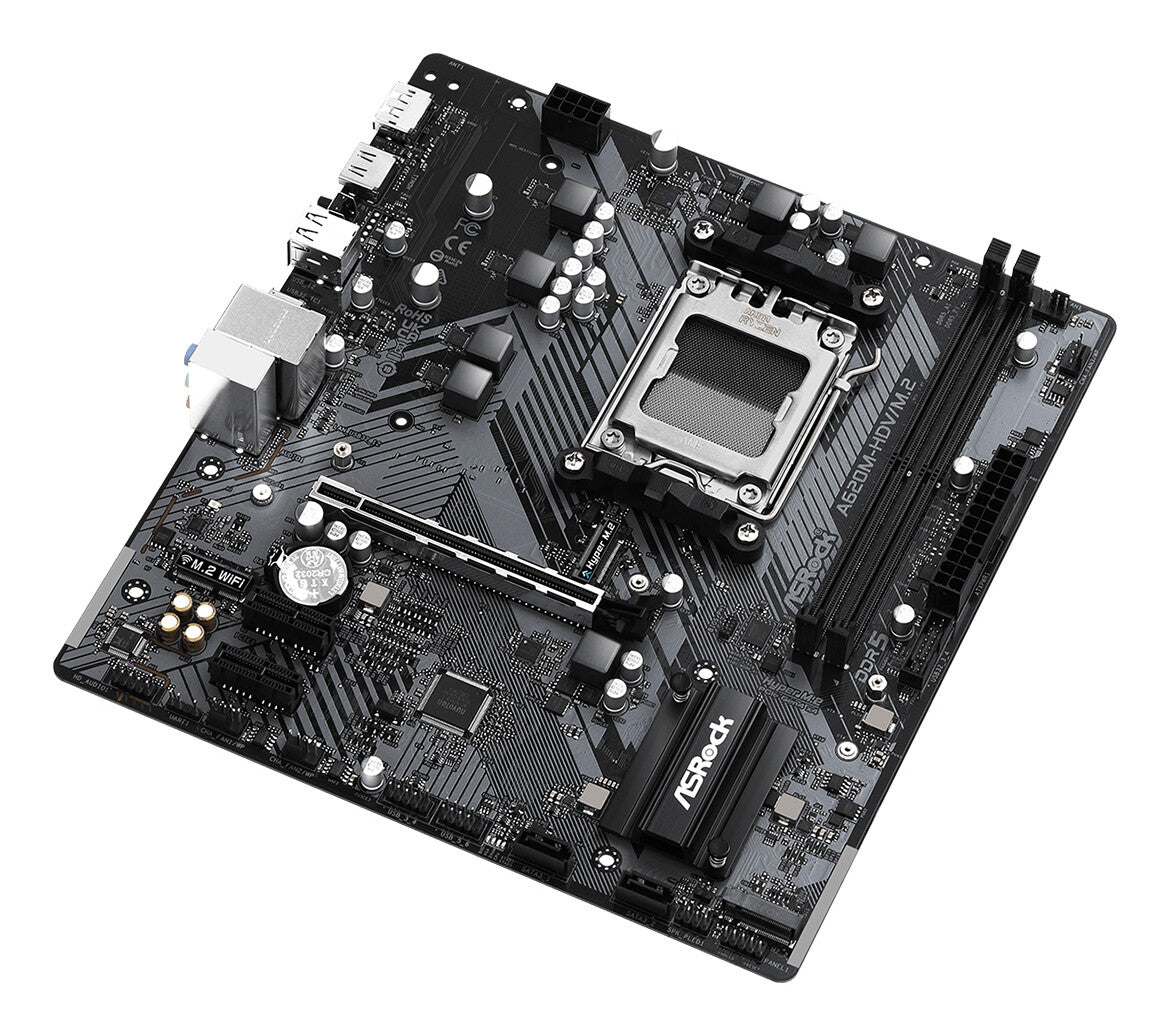

Asrock A620M-HDV/M.2 AMD A620 Socket AM5 micro ATX

SKU: 90-MXBLL0-A0UAYZ

£82.22 inc. VAT

AMD Socket AM5 AMD Ryzen 7000 Series
PC micro ATX AMD A620 Realtek ALC897 7.1 channels
DDR5-SDRAM 2 DIMM Maximum internal memory: 96 GB
HDD & SSD M.2, SATA III RAID support
BIOS type: EFI AMI 256 Mbit
Gigabit Ethernet

Processor
Maximum number of SMP processors	1
Compatible processor series	AMD Ryzen 7000 Series
Processor socket	Socket AM5
Processor manufacturer	AMD

Memory
Maximum internal memory	96 GB
ECC сompatibility	Non-ECC
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM

Storage controllers
RAID levels	0, 1, 10
RAID support	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD

Graphics
Parallel processing technology support	Not supported

Internal I/O
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel audio connector	Yes
Number of SATA II connectors	2
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 connectors	2

Rear panel I/O ports
Microphone in	Yes
Line-in	Yes
DisplayPort version	1.4
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	2

Network
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes

Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Motherboard chipset	AMD A620
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Component for	PC

Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x1 (Gen 3.x) slots	2

BIOS
BIOS memory size	256 Mbit
BIOS type	EFI AMI

Weight & dimensions
Depth	226 mm
Width	244 mm
