SKU: B650D4U

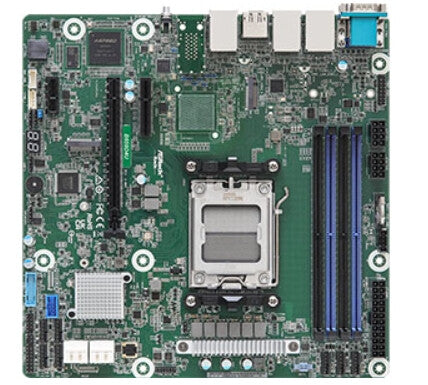

Asrock B650D4U motherboard AMD B650 Express Socket AM5 micro ATX

Asrock
£373.86
iFrame
  • Micro-ATX (9.6"x 9.6")
  • Support AMD Ryzen 7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 4 SATA 6Gb/s
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)
Processor
Maximum number of SMP processors 1
Compatible processor series AMD Ryzen™ 3, AMD Ryzen™ 5
Processor socket Socket AM5
Processor manufacturer AMD
Memory
Maximum internal memory 32 GB
Supported memory clock speed (max) 5200 MHz
Supported memory clock speeds 3600,5200 MHz
ECC сompatibility ECC & Non-ECC
Memory voltage 1.1 V
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID levels 0, 1, 10
RAID support Yes
Supported storage drive interfaces M.2, SATA III
Graphics
On-board graphics card model Aspeed AST2600
Internal I/O
TPM connector Yes
Number of COM connectors 1
EPS power connector (8-pin) Yes
ATX Power connector (24-pin) Yes
Number of SATA III connectors 4

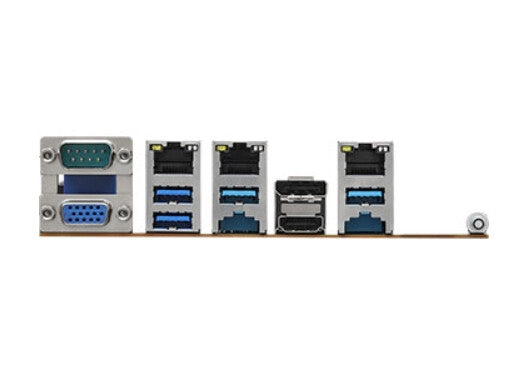

Rear panel I/O ports
Serial ports quantity 1
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1
IPMI LAN (RJ-45) port Yes
Ethernet LAN (RJ-45) ports 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Network
Wi-Fi No
Ethernet LAN Yes
Features
PC health monitoring CPU, Fan, Voltage
Motherboard chipset AMD B650 Express
Motherboard chipset family AMD
Motherboard form factor micro ATX
Component for Server
Expansion slots
PCI Express x4 (Gen 4.x) slots 1
BIOS
System Management BIOS (SMBIOS) version 3.5
ACPI version 6.4
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Operational conditions
Operating relative humidity (H-H) 20 - 90%
Operating temperature (T-T) 10 - 35 °C
Storage temperature (T-T) -40 - 70 °C
Weight & dimensions
Depth 243.8 mm
Width 243.8 mm
