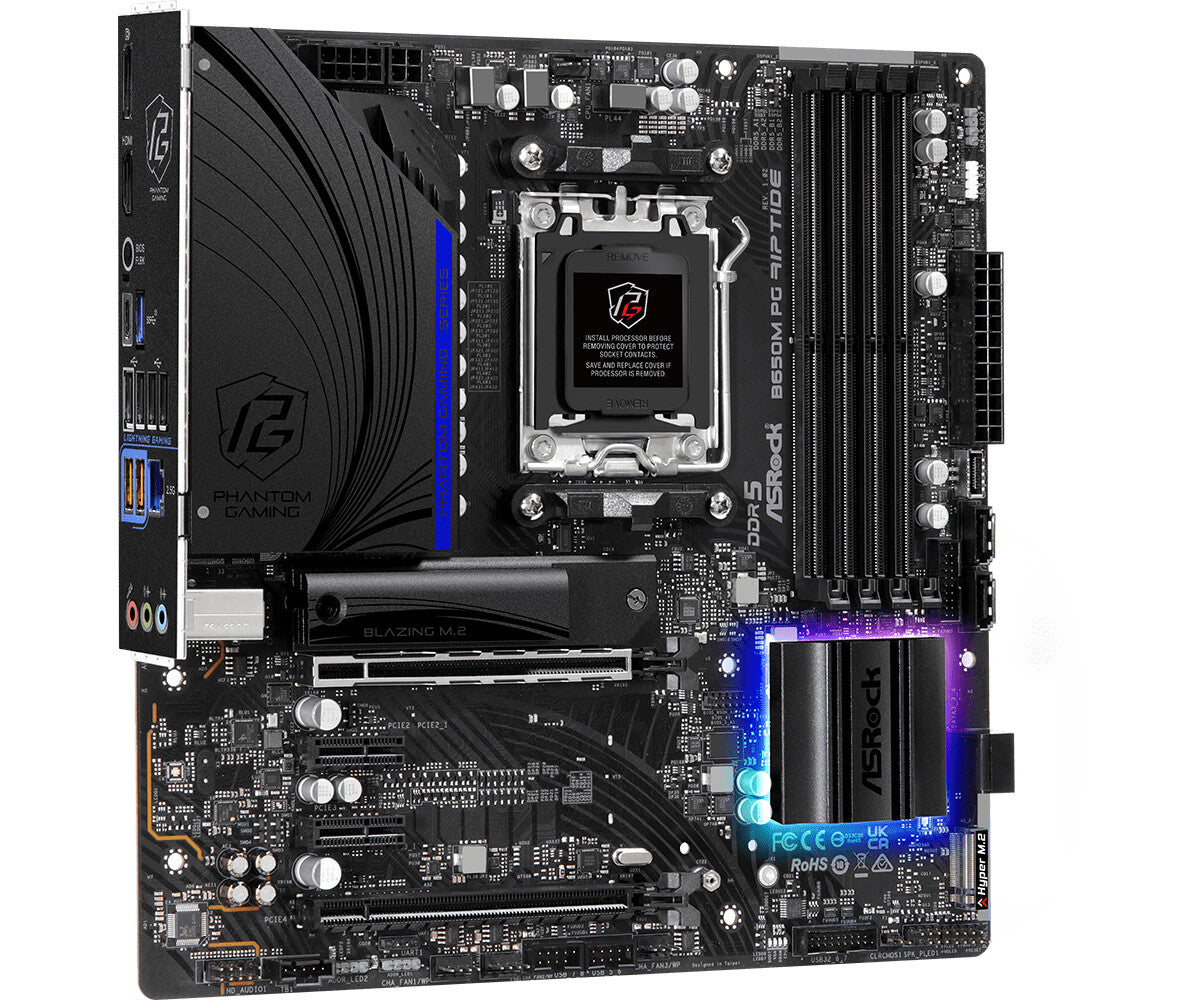

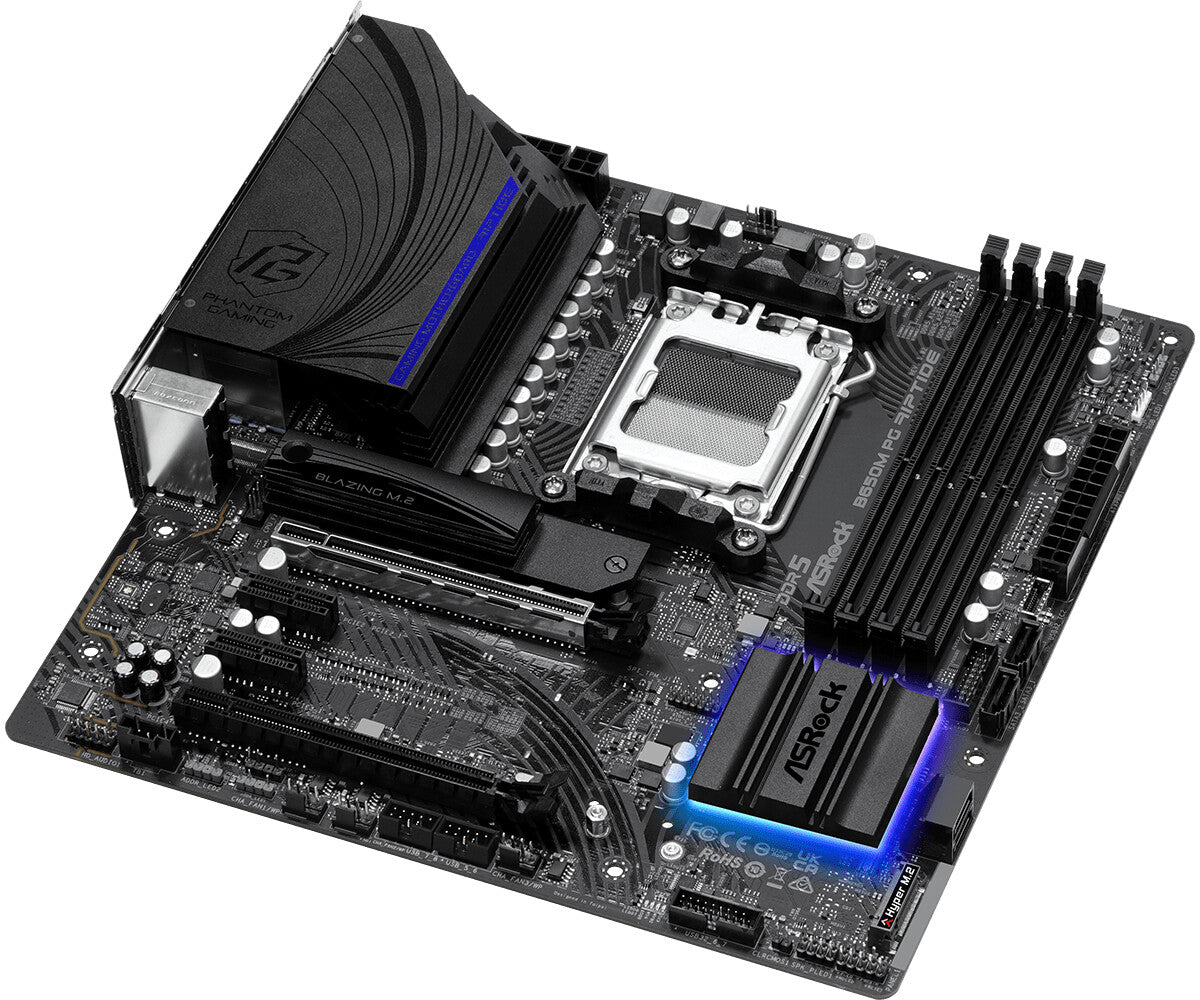

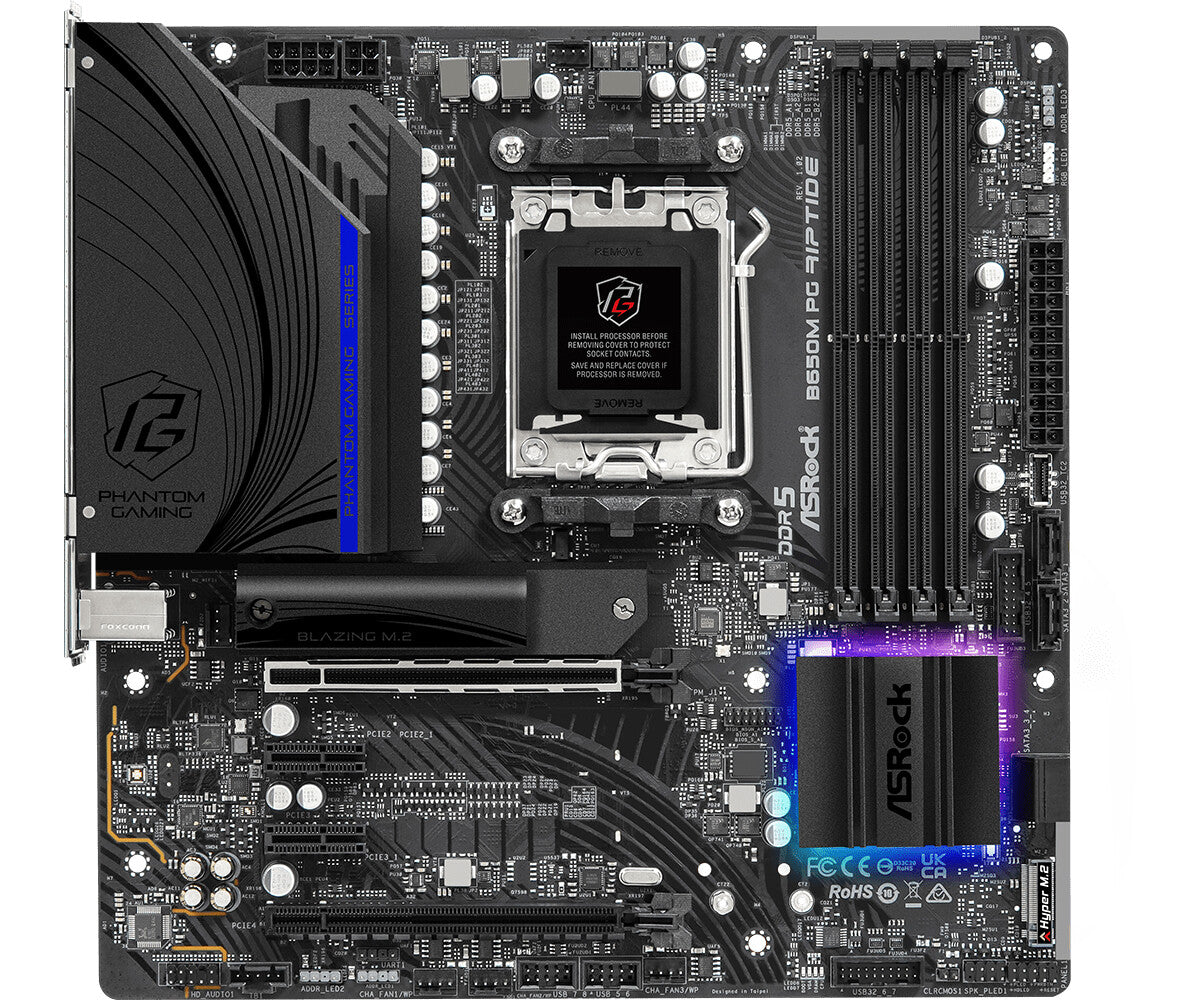

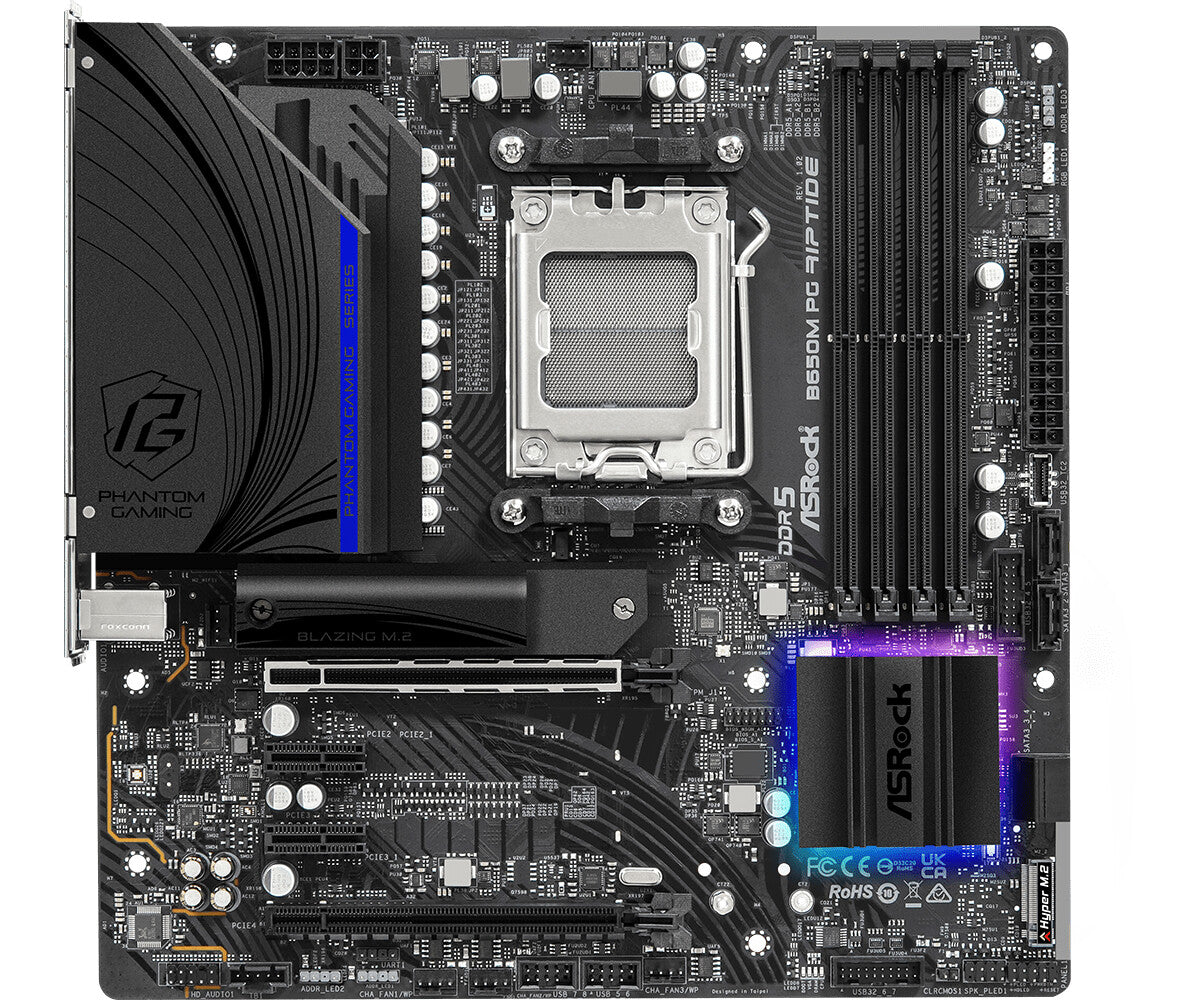

Asrock B650M PG Riptide AMD B650 Socket AM5 micro ATX
Regular price
£144.01
inc. VAT
- Supports AMD Ryzen™ 7000 Series Processors
- 12+2+1 Phase Power Design, Dr.MOS
- 4 x DDR5 DIMMs, supports up to 6200+(OC)
- 1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 4 SATA3
- 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
Couldn't load pickup availability
| Processor | |
|---|---|
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Graphics | |
|---|---|
| HDCP | Yes |
| Graphics card family | AMD |
| On-board graphics card | Yes |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 2.0 connectors | 2 |

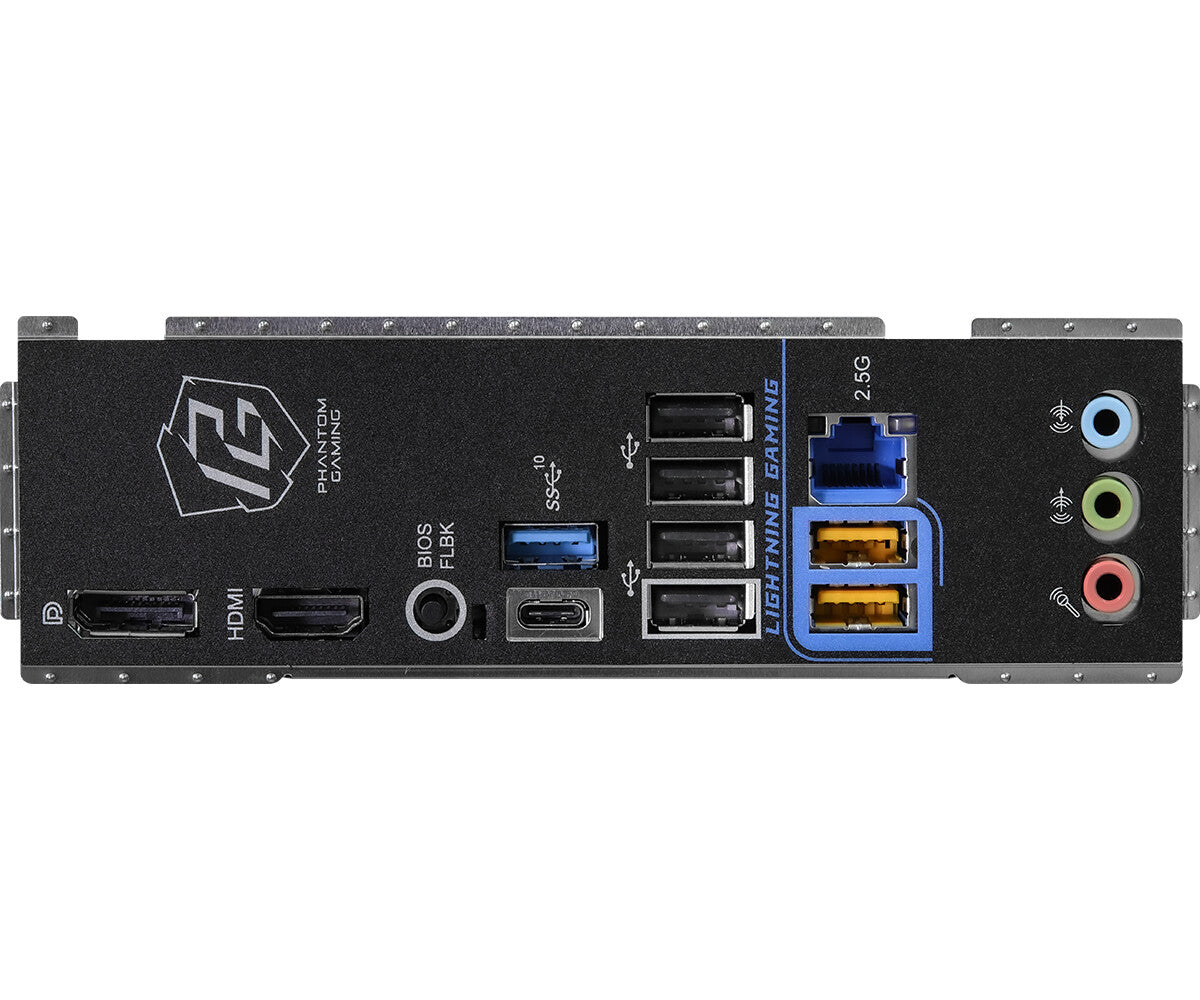

| Rear panel I/O ports | |
|---|---|
| Microphone in | Yes |
| Line-in | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
