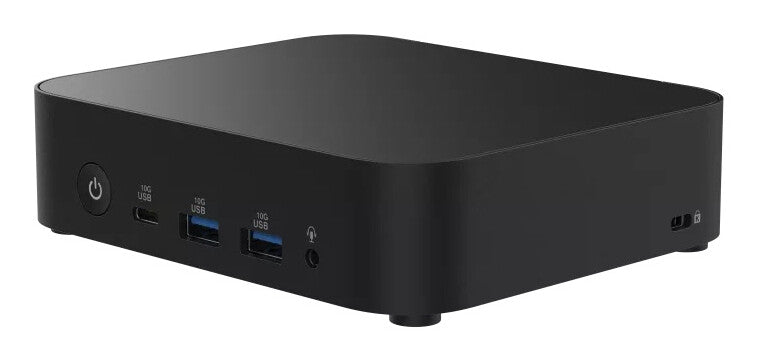

ASUS NUC 14 Essential (Barebone)
ASUS NUC 14 Essential is the next-generation mini PC that takes performance, portability, and versatility to greater heights. Powered by the latest energy-efficient Intel® Core™ N-series processors and equipped with diverse connectivity options, this sleek, compact device is built to boost productivity and makes light work of diverse applications.
Faster Performance
Exceptional responsiveness makes the NUC 14 Essential ideal for image editing and speedier web navigation
Reduced Power Consumption
The energy-efficient Intel® Core™ N-Series processor that powers NUC 14 Essential delivers outstanding performance while consuming less power
Learn, Create, and Stream Anywhere
The Intel® Core™ N-series processor supports improved graphics processing so you can create digital content and stream videos at the same time without slowing down
Multitask with Triple Display Support
Unleash the power of multitasking in a compact 0.56L chassis, supporting up to three 4K displays with reduced latency, minimized power consumption, and smoother data transfer.
Versatile, Lightweight Design
The lightweight 0.56-liter chassis blends well in any setting and can be VESA mounted on a wall or on the back of a monitor, saving space at home or in the office
Compact Size, Abundant I/O

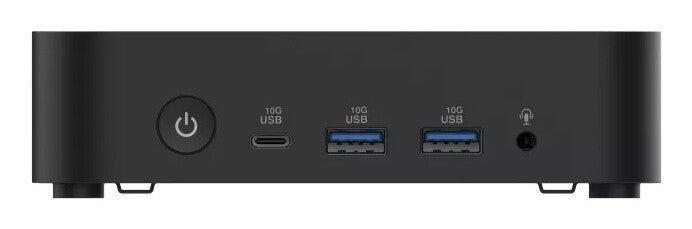

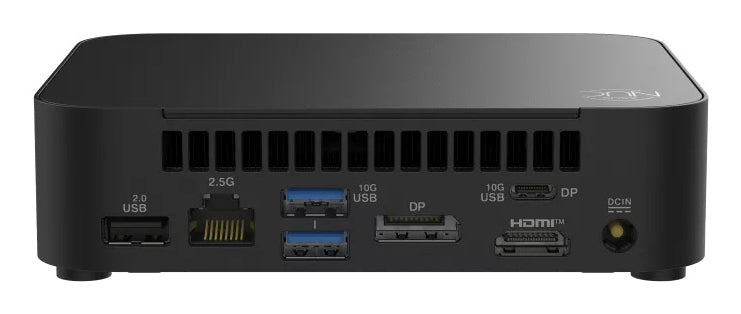

NUC 14 Essential offers seamless connectivity with a host of I/O ports on its front and rear panels, supporting up to three 4K displays and offering high-speed networking performance. The front panel features a headset jack, one USB-C® (10 Gbps ) and a USB Type-A (10 Gbps) port; while the rear includes two USB Type-A (10 Gbps) ports, one USB 2.0, one USB-C with DisplayPort™ (10 Gbps), one DisplayPort, HDMI™, and one LAN port.
Target Usage
Powered by the latest Intel® Core™ N-Series processor, NUC 14 Essential strikes a harmonious balance between energy consumption and efficiency, at a reasonable price. From office productivity to supporting digital signage, it offers outstanding versatility and can be deployed across diverse industries.
| Processor |
|---|
| ECC supported by processor |
No |
| Processor cache |
6 MB |
| Processor frequency |
3.6 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Processor model |
N150 |
| Processor family |
Intel Core 7 |
| Processor manufacturer |
Intel |
| Built-in processor |
Yes |
| Memory |
|---|
| Non-ECC |
Yes |
| ECC |
No |
| Supported memory types |
DDR5-SDRAM |
| Maximum internal memory |
16 GB |
| Number of memory slots |
1 |
| Memory slots type |
SO-DIMM |
| Graphics |
|---|
| Graphics card family |
Intel |
| On-board graphics card |
Yes |
| Network |
|---|
| LAN controller |
Dragon RTL8125BG |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Design |
|---|
| Product type |
PC barebone |
| Product colour |
Black |
| Power |
|---|
| Power supply |
65 W |
| Power supply type |
External AC adapter |
| Weight & dimensions |
|---|
| Height |
36 mm |
| Depth |
115 mm |
| Width |
135 mm |
