SKU: 90YE00U0-B0NA00

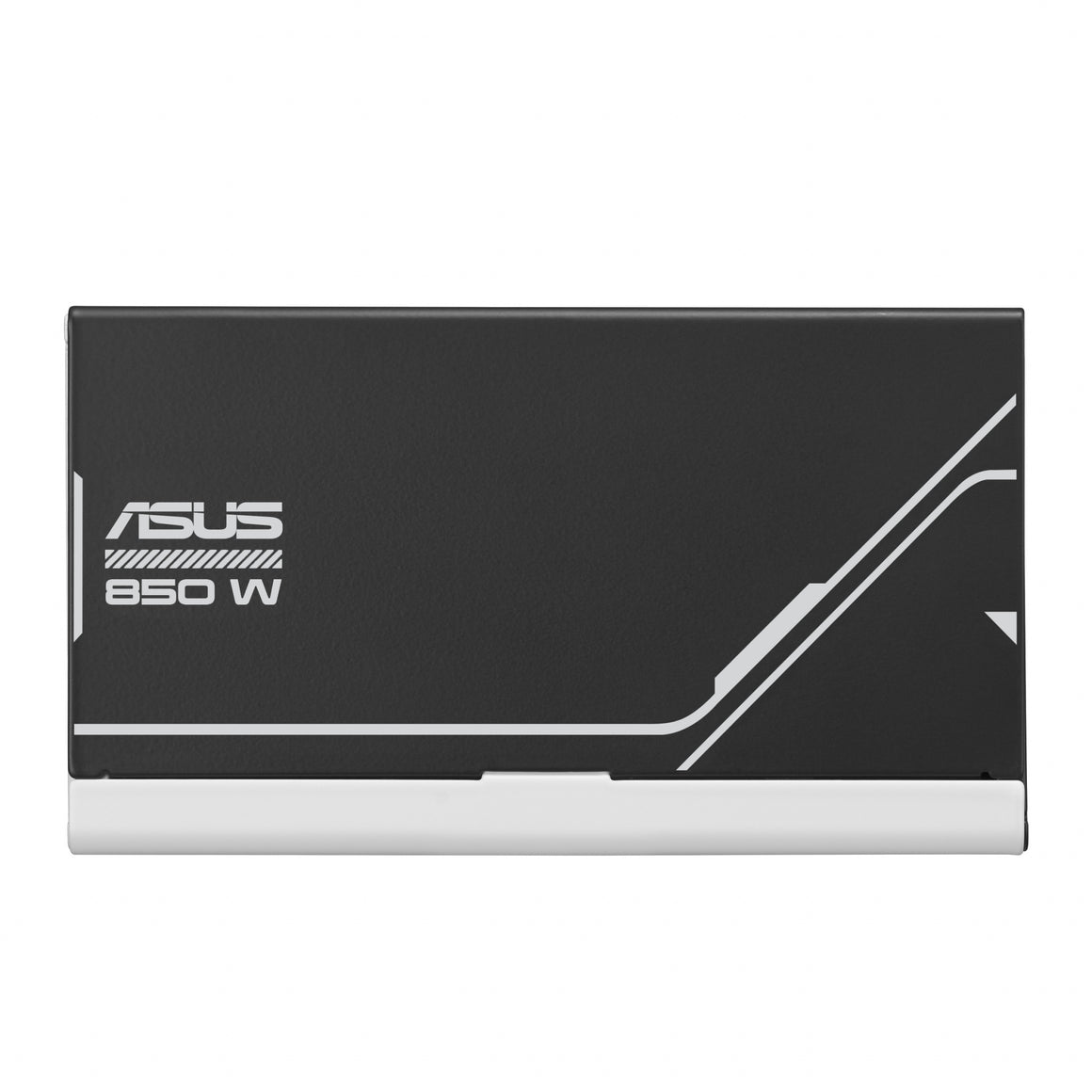

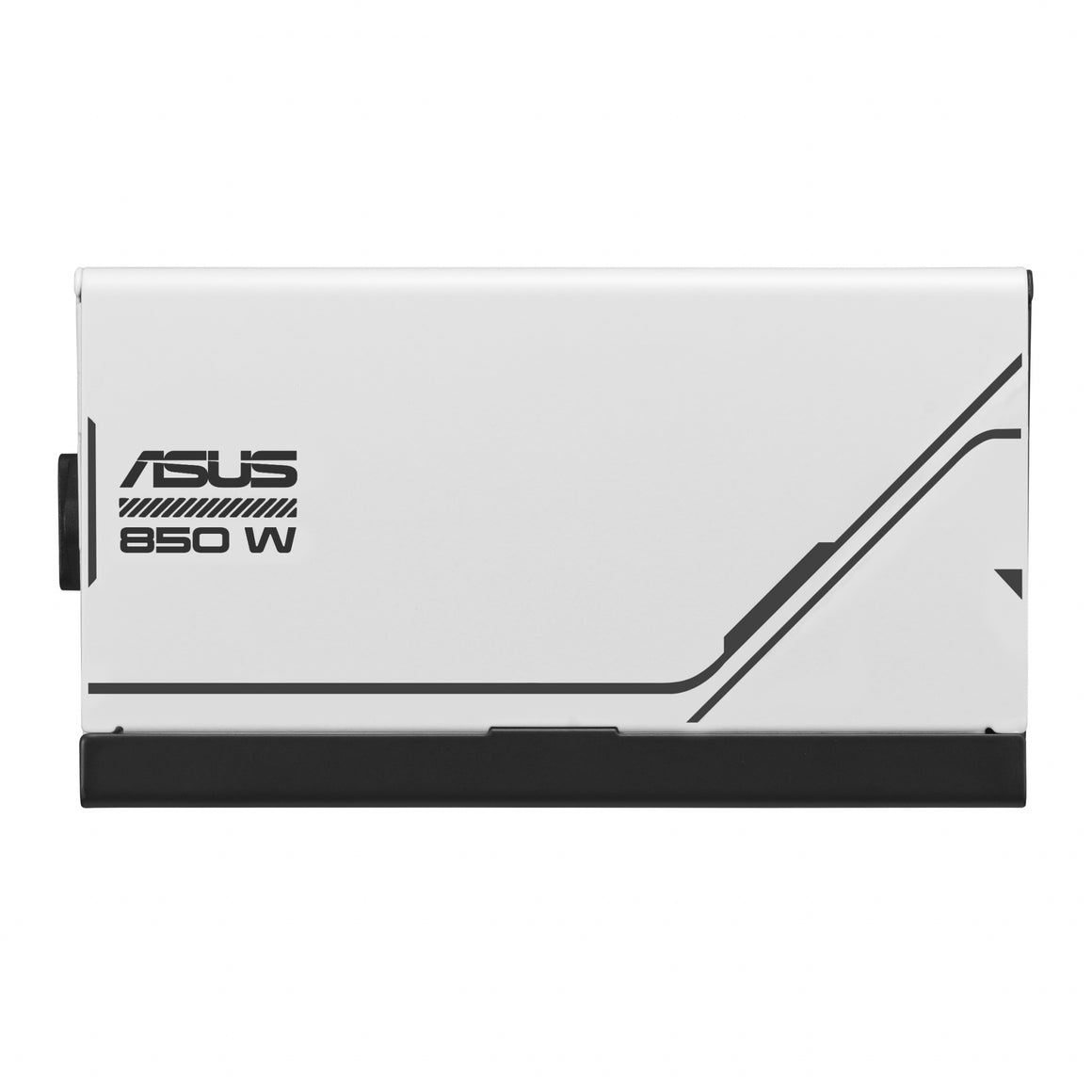

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White

ASUS
£138.98
  • Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
  • An 80 Plus gold certification is the result of low-ESR capacitors and other premium components
  • ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards

Prime Performance
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

Power
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Max output current (+5V) 20 A
Max output current (+12V) 70.5 A
Max output current (+3.3V) 20 A
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Combined power (+5V) 110 W
Combined power (+12V) 846 W
Combined power (+3.3V) 110 W
Power Factor Correction (PFC) type Active
AC input voltage 100 - 240 V
Total power 850 W
Ports & interfaces

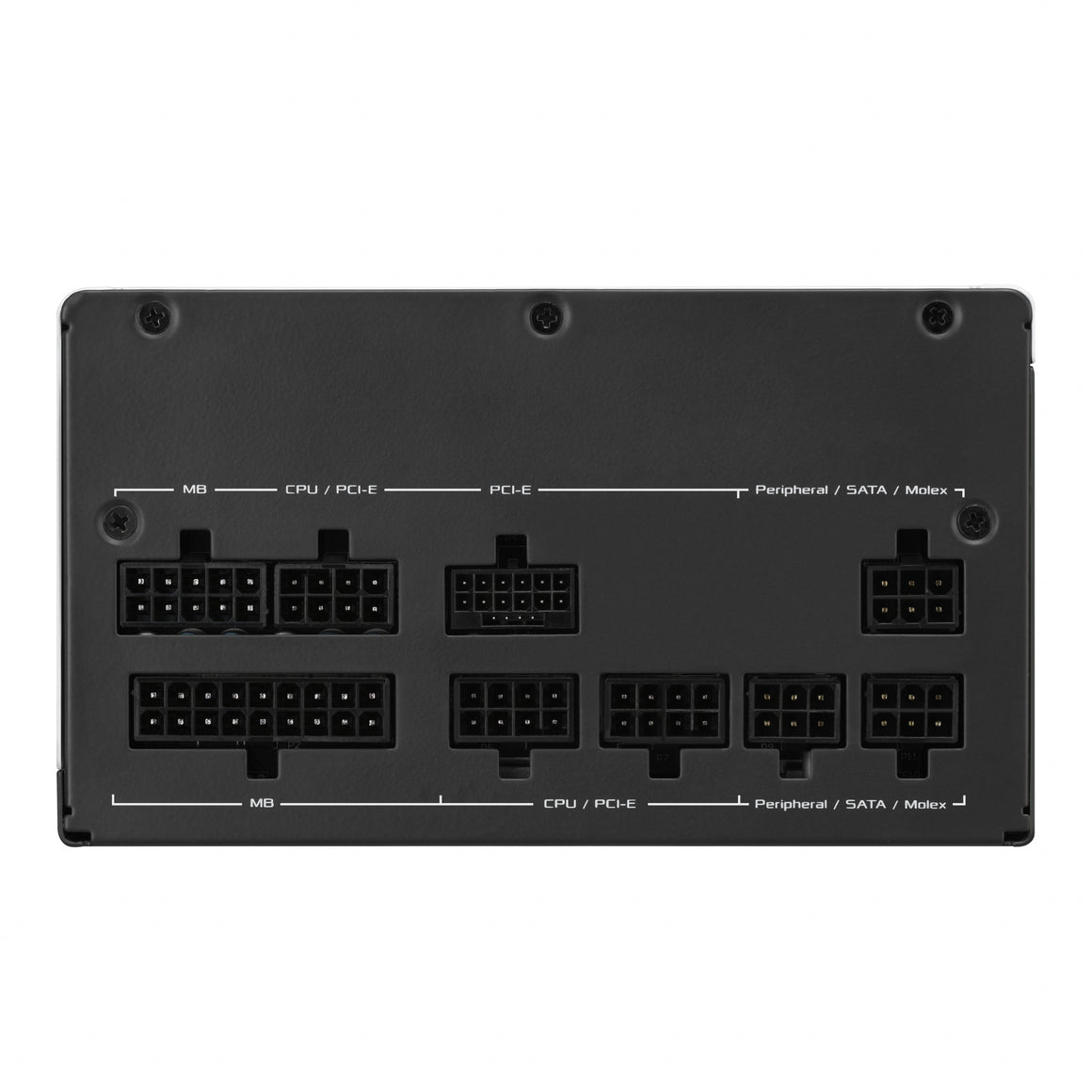

Cabling type Fully-Modular
CPU power cable length 65 cm
CPU power connector (4+4 pin) Yes
PCI Express power cable length 67.5 cm
PCI Express power connectors (8-pin) 3
PCI Express power connectors (16-pin) 1
Peripheral (Molex) power cable length 400,150 mm
Peripheral (Molex) power connectors (4-pin) 3
SATA power cable length 400,120 mm
Number of SATA power connectors 5
Motherboard power cable length 61 cm
Motherboard power connector 20+4 pin ATX
Performance
Mean time between failures (MTBF) 120000 h
ATX version 3.0
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
Purpose PC
Design
Illumination Yes

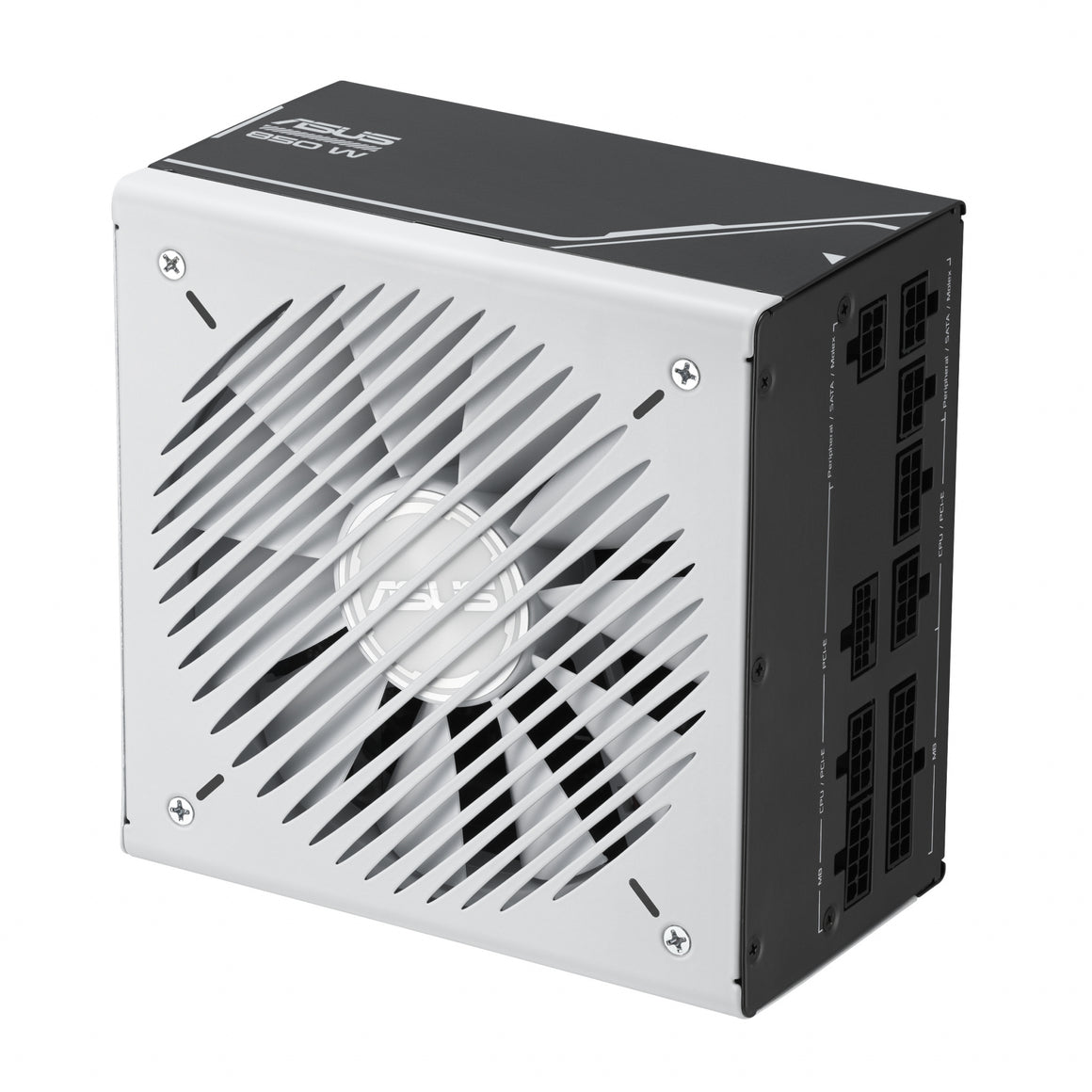

Fan location Top
Number of fans 1 fan(s)
Cooling type Active
Product colour Black, White
Certificates
Compliance certificates RoHS
Packaging content

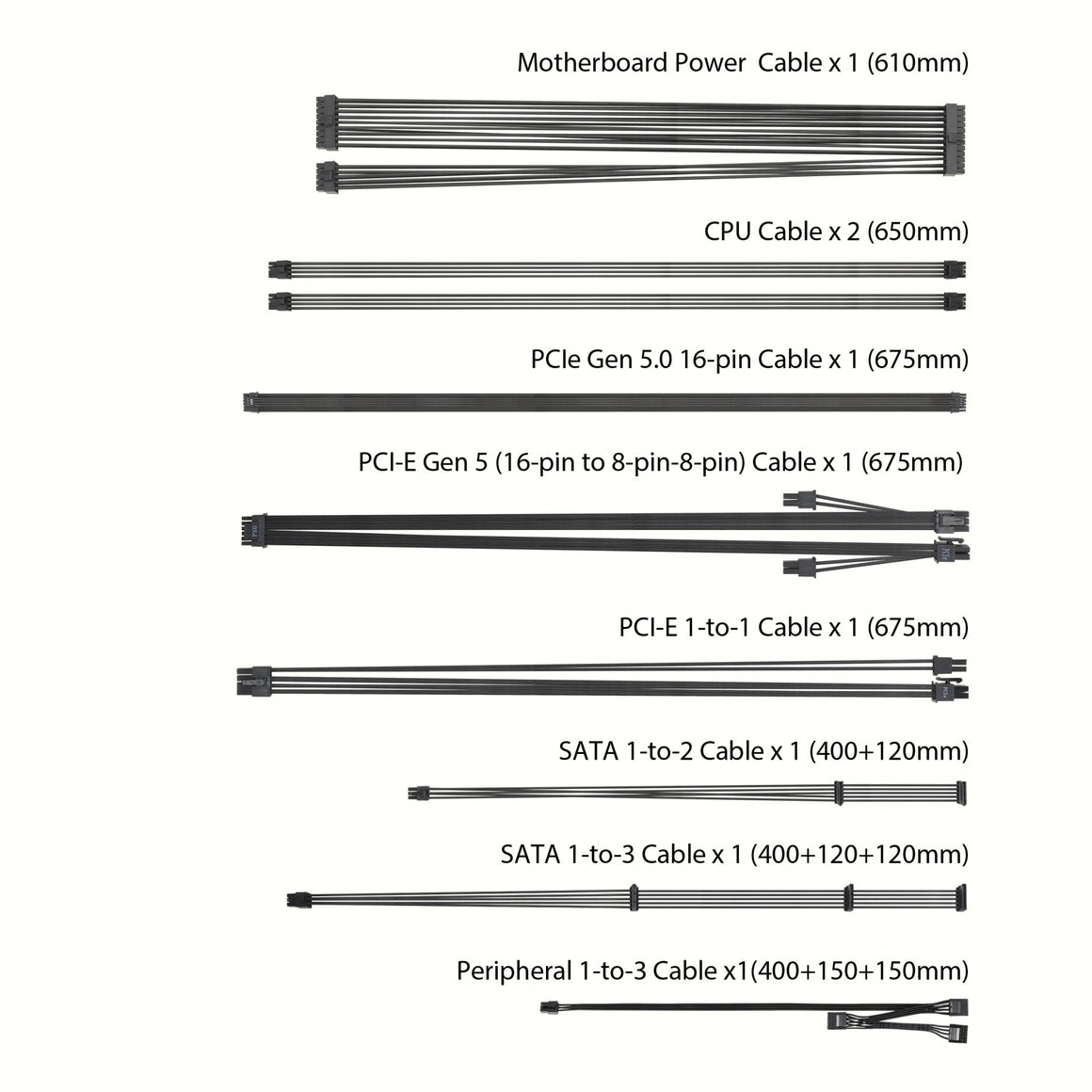

Cables included CPU, PCIe, SATA, Peripheral (Molex)
Weight & dimensions
Weight 1.5 kg
Height 86 mm
Depth 150 mm
Width 150 mm
Packaging data
Package type Box
Package weight 2.92 kg
Package height 144 mm
Package depth 208 mm
Package width 346 mm
