Ruggedized excellence for limitless learning
ASUS BR1204F stands out as an excellent tool for limitless learning in K-12 education, boasting a durable fingerprint-resistant finish and robust modular design that incorporates and replaceable internal components, thereby extending its product lifespan. Smartly crafted to withstand accidental drops, ASUS BR1204F undergoes rigorous testing, meeting US military-grade standards1 and exacting in-house ASUS assessments to ensure unwavering durability — making it the perfect choice for modern education.
| Design |
|---|
| Housing material |
Plastic |
| Form factor |
Convertible (Folder) |
| Colour name |
Mineral Grey |
| Product colour |
Grey |
| Product type |
Hybrid (2-in-1) |
| Display |
|---|
| Contrast ratio (typical) |
1000:1 |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
50% |
| Display brightness |
300 cd/m² |
| Display surface |
Gloss |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| HD type |
WUXGA |
| Touchscreen |
Yes |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
31 cm (12.2") |
| Processor |
|---|
| Processor base power |
6 W |
| Processor cache type |
Smart Cache |
| Processor cache |
6 MB |
| Processor boost frequency |
3.8 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Processor model |
N250 |
| Processor family |
Intel® N |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Maximum internal memory |
16 GB |
| Memory form factor |
On-board |
| Internal memory type |
LPDDR5-SDRAM |
| Internal memory |
8 GB |
| Storage |
|---|
| Optical drive type |
No |
| SSD form factor |
M.2 |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD interface |
PCI Express 3.0 |
| NVMe |
Yes |
| SSD capacity |
128 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
128 GB |
| Storage media |
SSD |
| Total storage capacity |
128 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel Graphics |
| On-board graphics card family |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Audio system |
Dirac |
| Camera |
|---|
| Rear camera resolution (numeric) |
13 MP |
| Rear camera |
Yes |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
|---|
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |

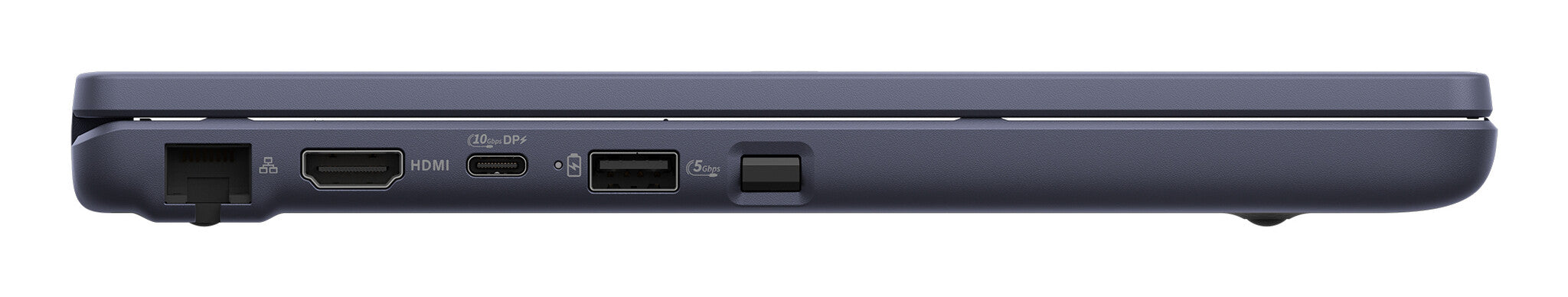

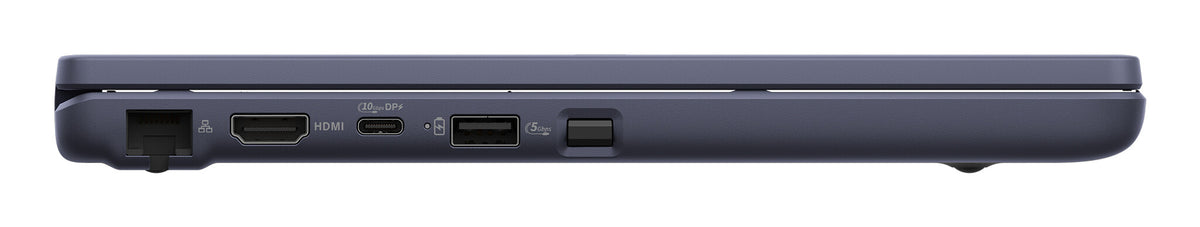

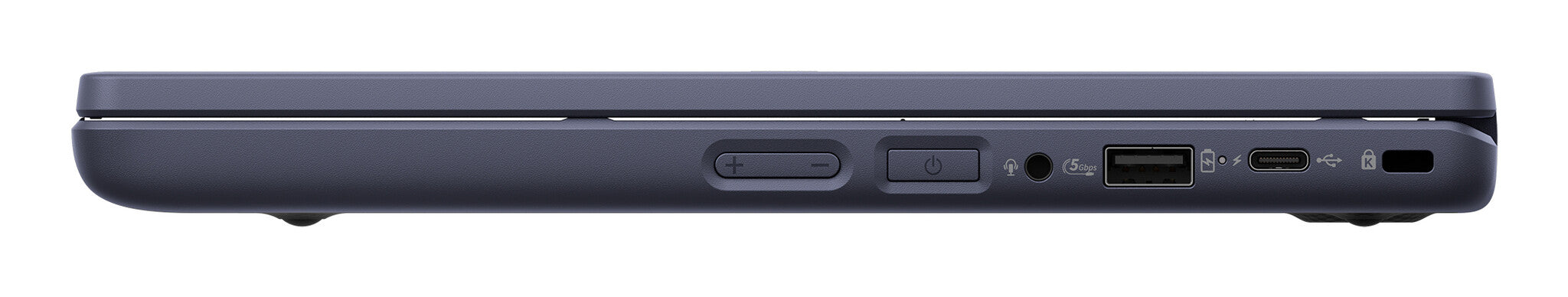

| Ports & interfaces |
|---|
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Keyboard |
|---|
| Numeric keypad |
No |
| Pointing device |
Touchpad |
| Software |
|---|
| Operating system architecture |
64-bit |
| Battery |
|---|
| Battery capacity |
50 Wh |
| Number of battery cells |
3 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
|---|
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| Required charging power (min) |
35 W |
| Required charging power (max) |
45 W |
| AC adapter output voltage |
20 V |
| AC adapter output current |
2.25 A |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50 - 60 Hz |
| AC adapter power |
45 W |
| Security |
|---|
| Password protection type |
BIOS, User |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Certificates |
|---|
| Compliance certificates |
REACH |
| Sustainability |
|---|
| Sustainability certificates |
Forest Stewardship Council (FSC) Mix, TCO, ENERGY STAR, EPEAT Gold |
| Weight & dimensions |
|---|
| Height (rear) |
2.12 cm |
| Height (front) |
2.11 cm |
| Depth |
213 mm |
| Width |
296.9 mm |
| Weight |
1.48 kg |
| Packaging content |
|---|
| AC adapter included |
Yes |
