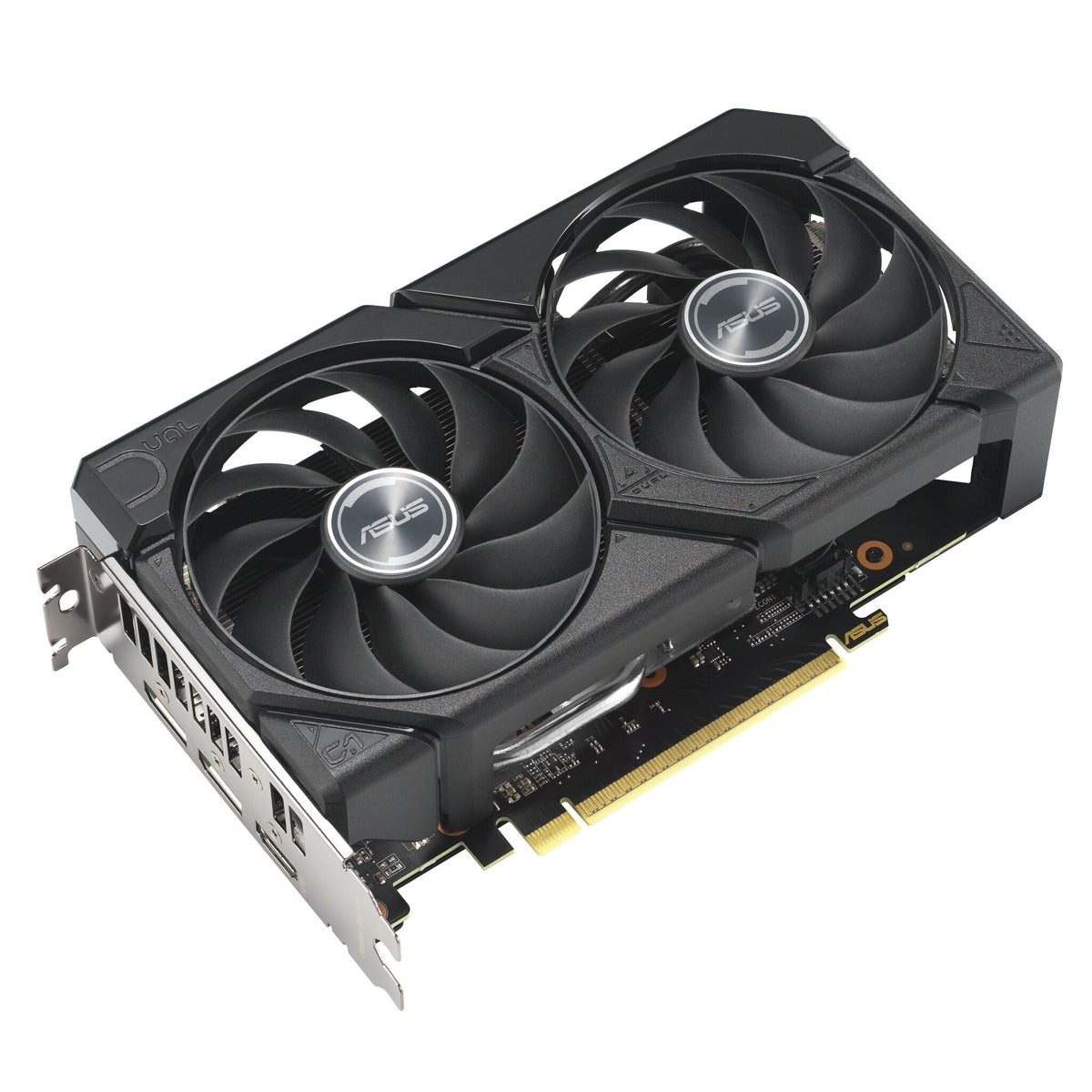

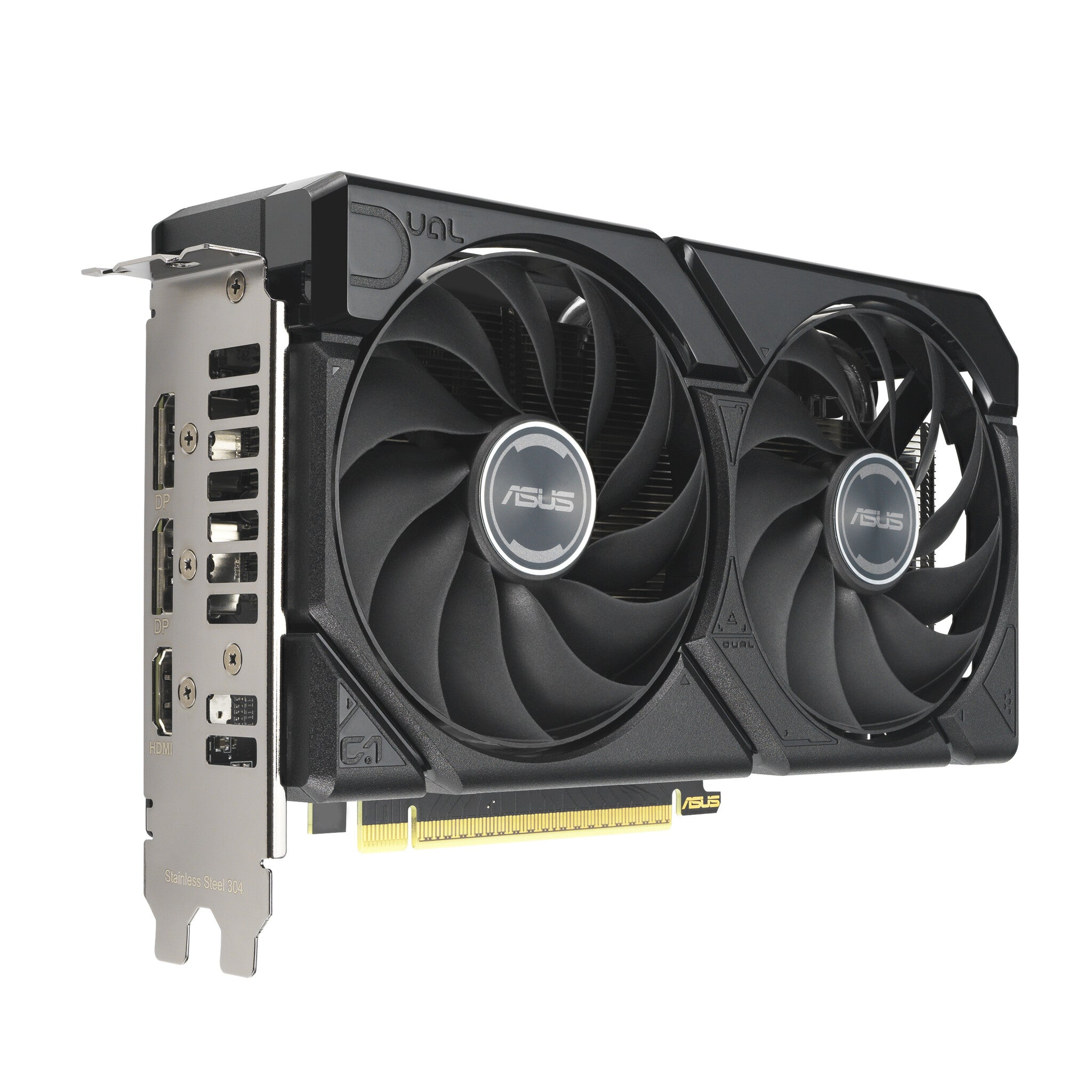

Dual Radeon™ RX 9060 XT
Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.
Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

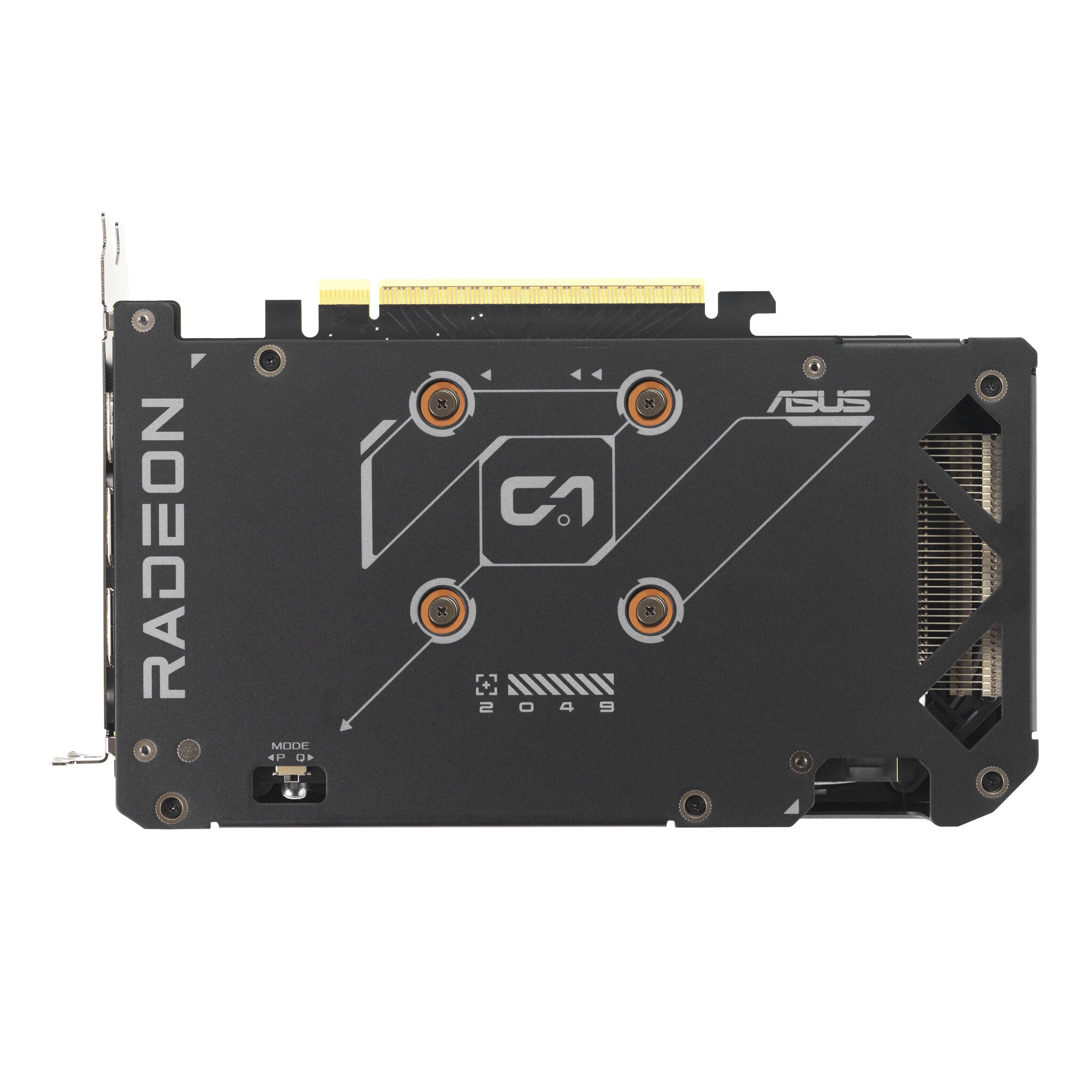

Vented Backplate
A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
3 |
| CUDA |
No |
| Graphics processor family |
AMD |
| Memory |
|---|
| Data transfer rate |
20 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |

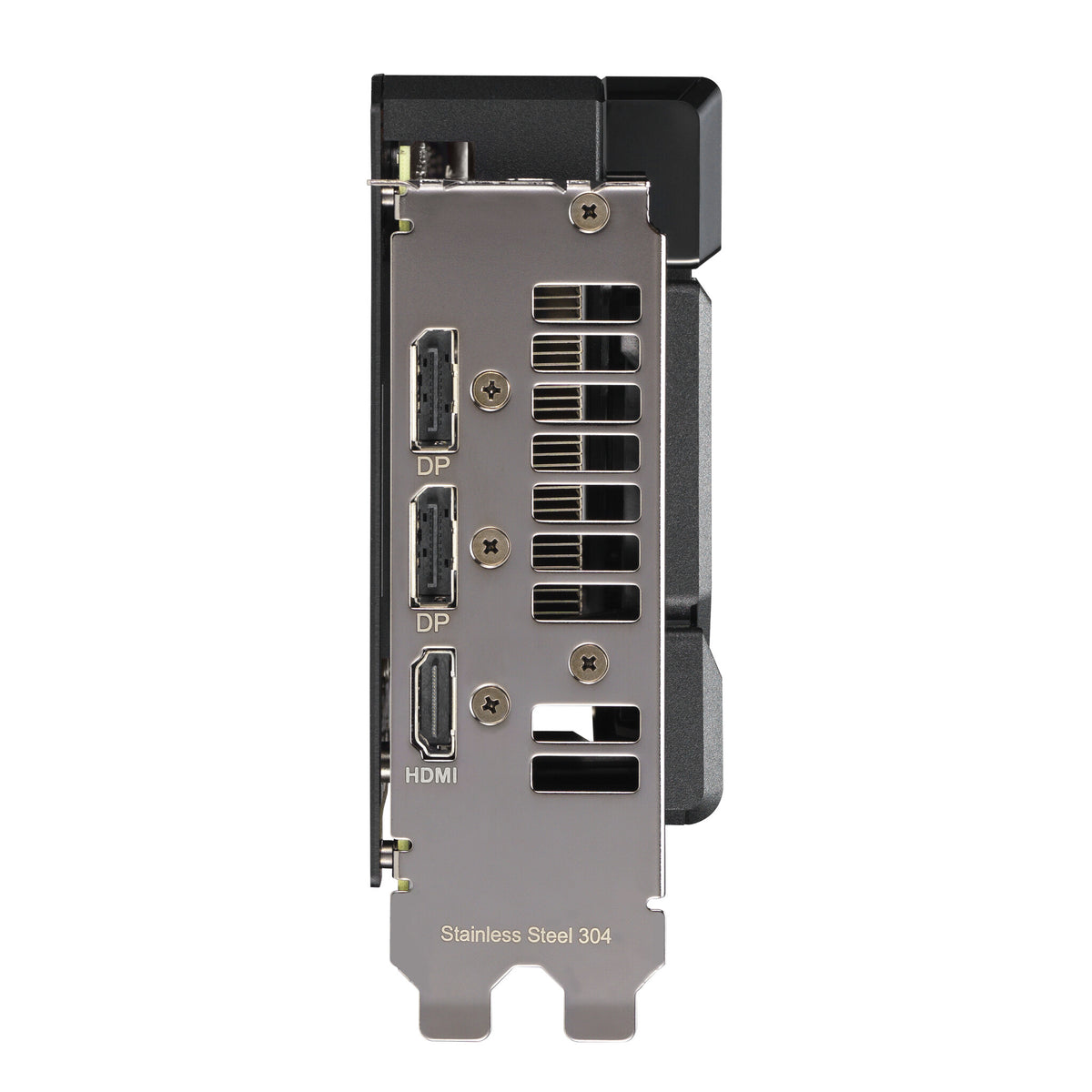

| Ports & interfaces |
|---|
| DisplayPort version |
2.1a |
| HDMI version |
2.1b |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 5.0 |
| Performance |
|---|
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| OpenGL version |
4.6 |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black |
| Number of slots |
2.5 |
| Form factor |
Full-Height/Half-Length (FH/HL) |
| Number of fans |
2 fan(s) |
| Cooling technology |
ASUS Axial-tech |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
550 W |
| Weight & dimensions |
|---|
| Height |
120 mm |
| Depth |
49 mm |
| Length |
202 mm |
| Weight |
601 g |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
1.06 kg |
| Package height |
66 mm |
| Package depth |
219 mm |
| Package width |
364 mm |
| Packaging content |
|---|
| Manual |
Yes |
