Maximum flexibility anytime, anywhere

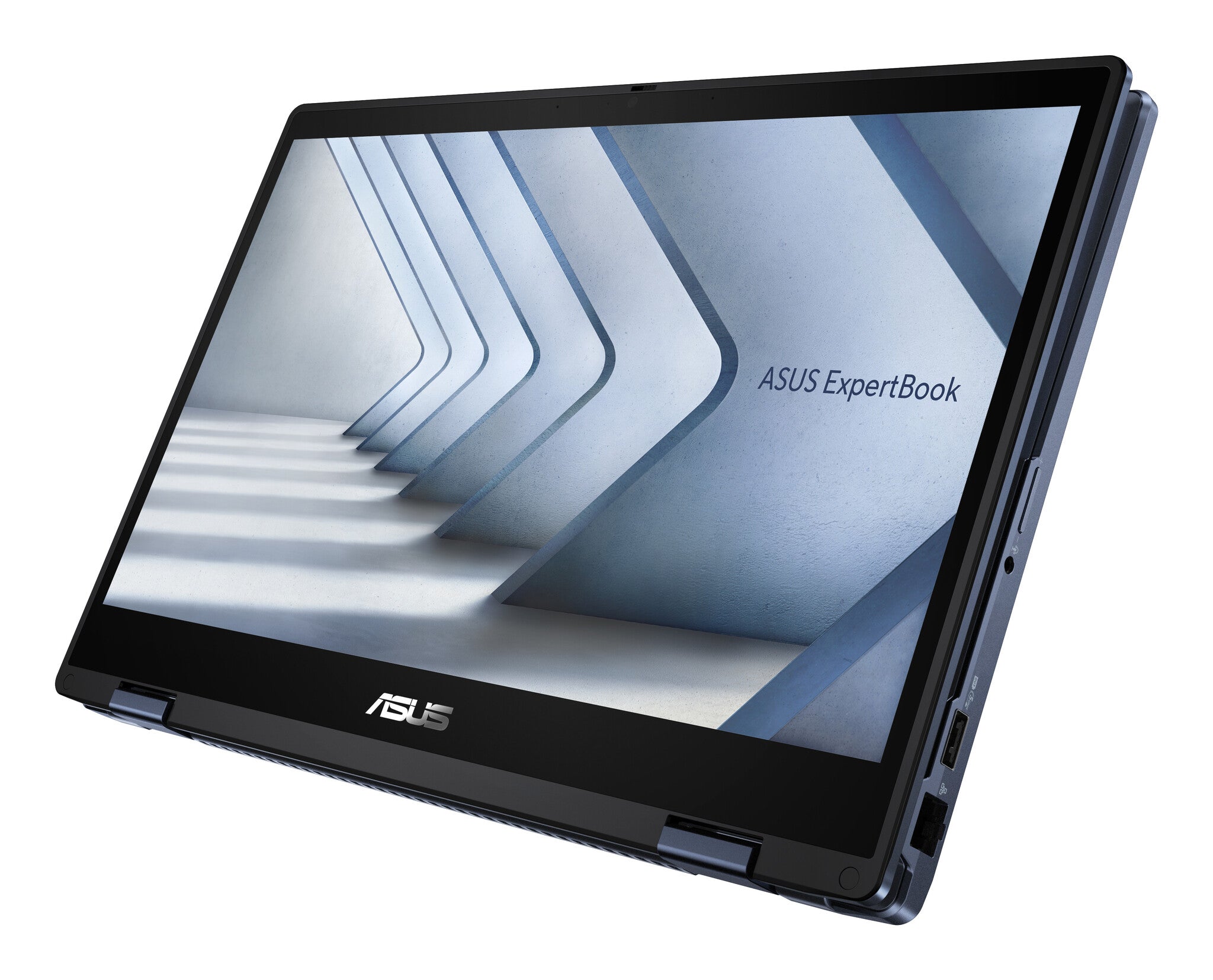

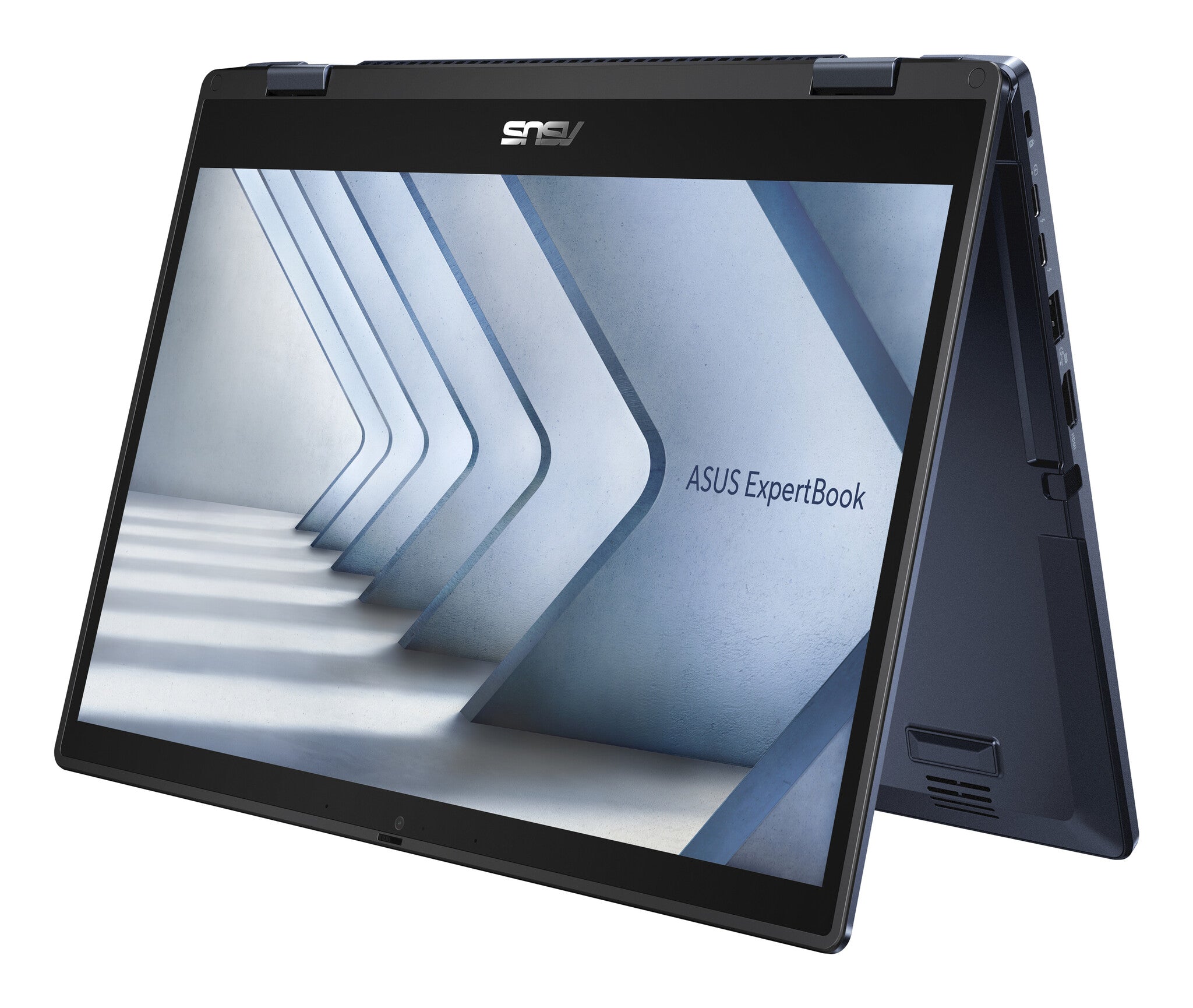

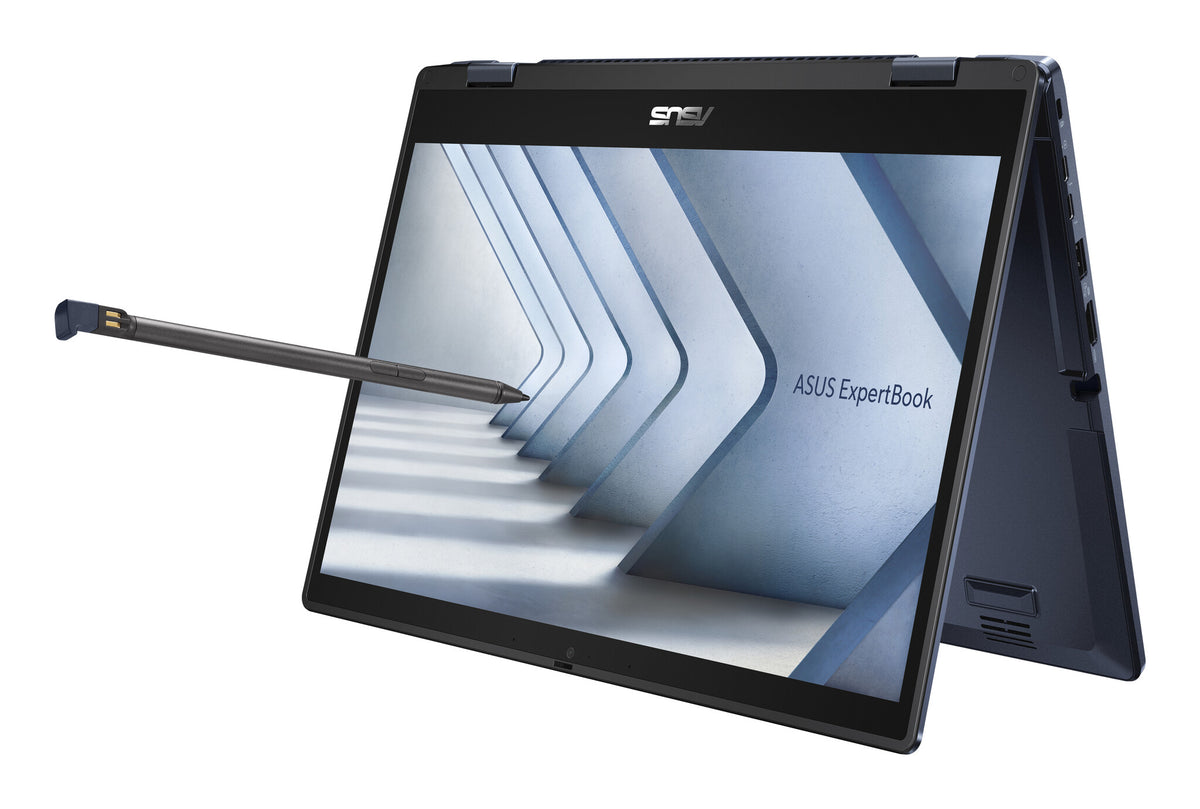

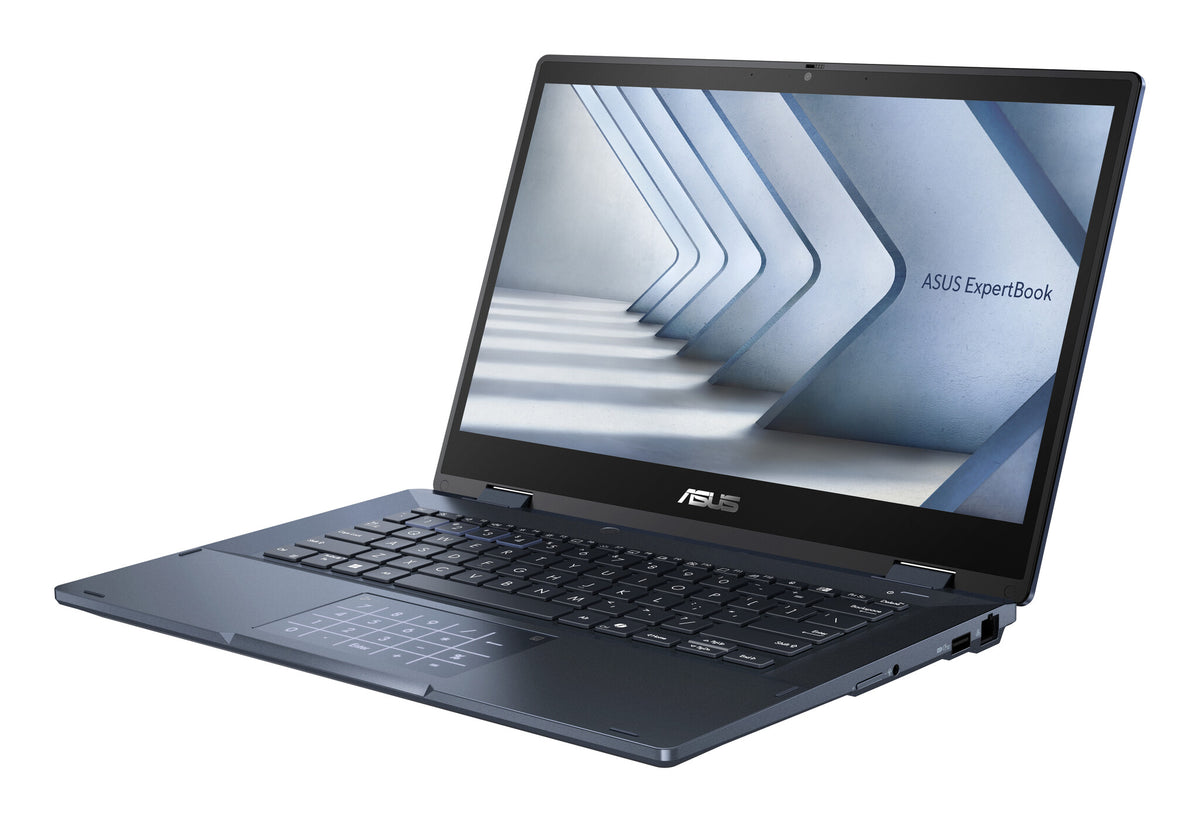

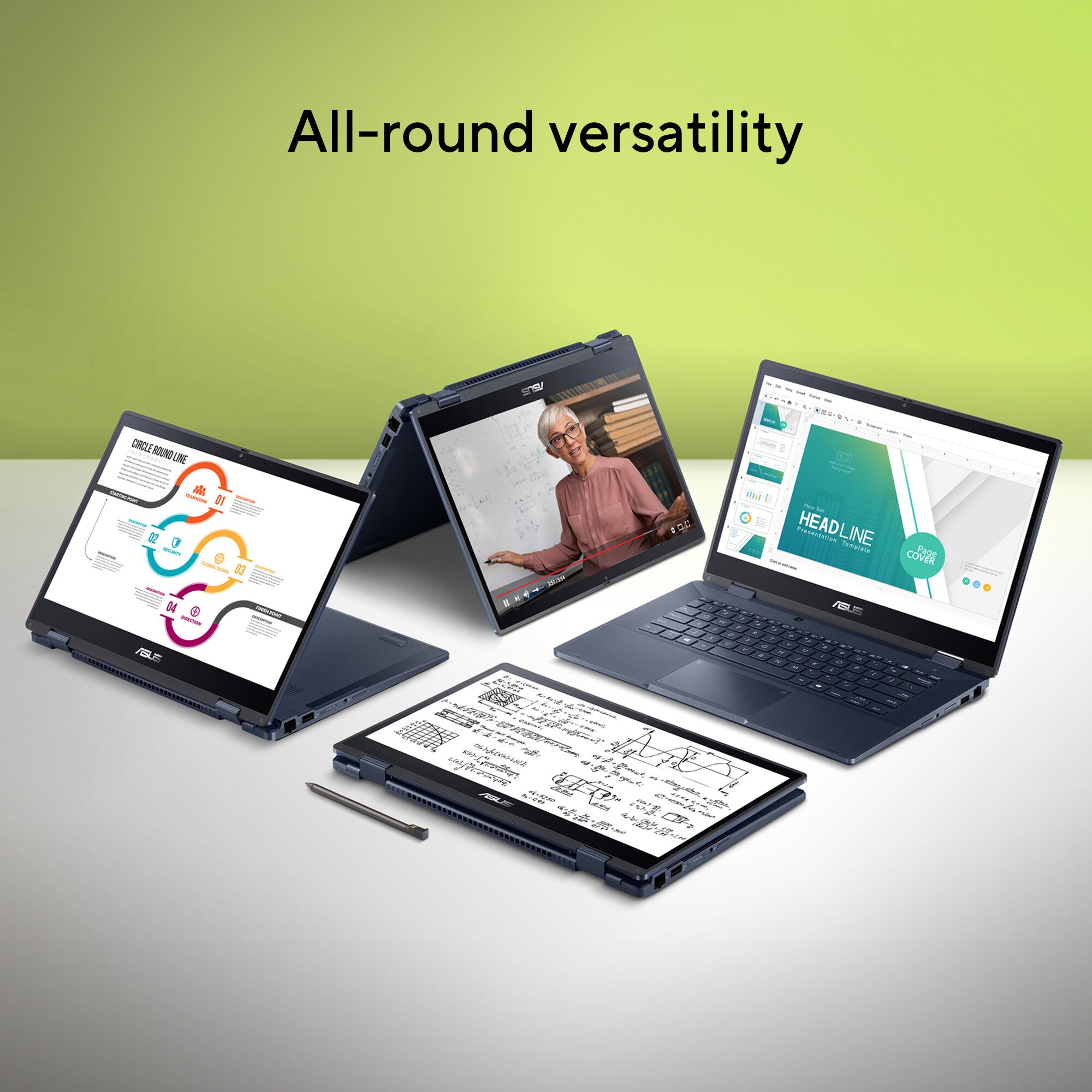

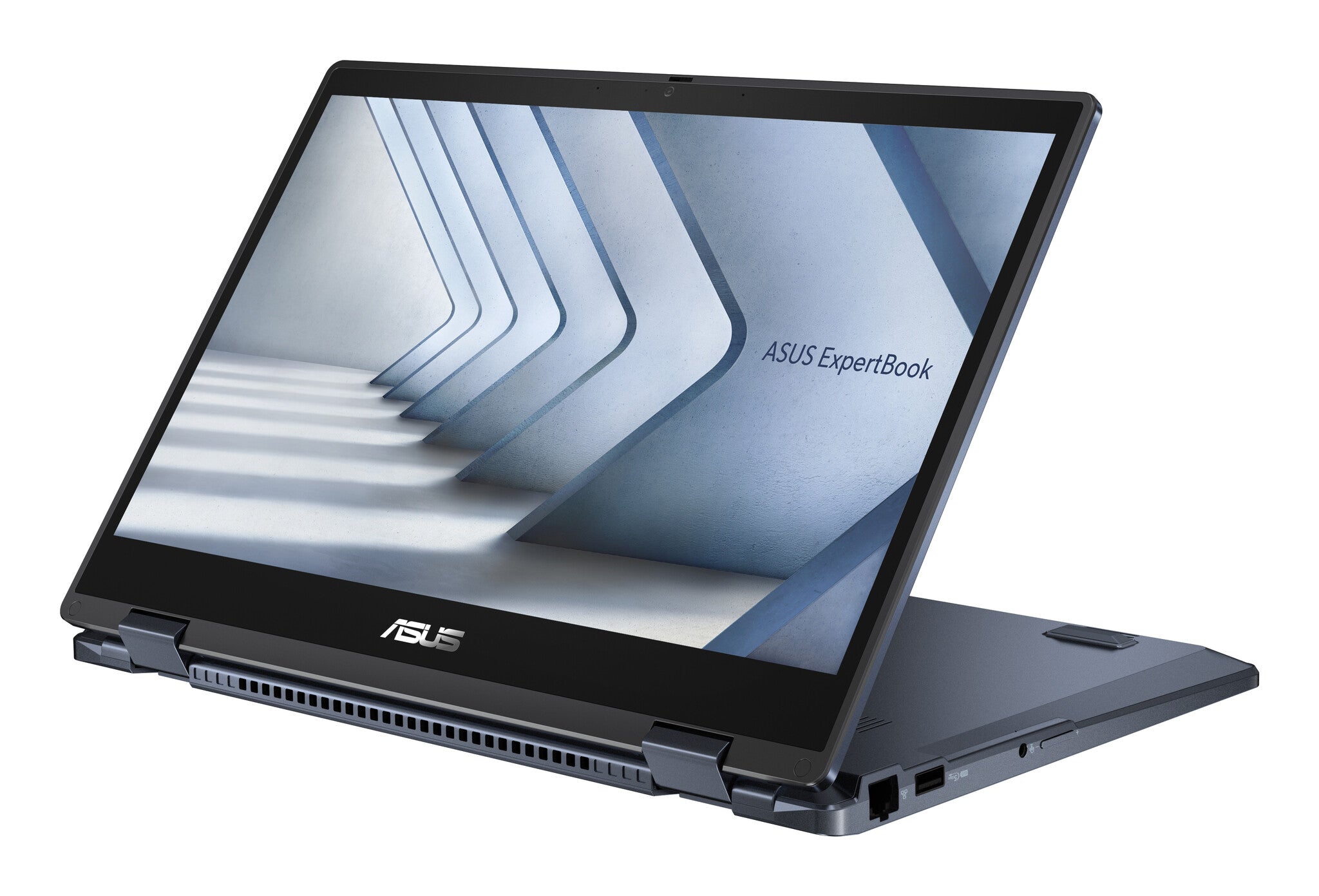

ASUS ExpertBook B3 Flip is built to embrace the new normal, empowering you to work or learn flexibly and effortlessly — anytime and anywhere. Its versatile 360°-flippable design and handy garaged stylus enables total flexibility, empowering use in diverse settings and scenarios. It’s also engineered with two-way AI noise-cancelation technology to ensure distraction-free communications at both ends of online conversations, at home, in the office or on the move. For better everyday hygiene, it’s treated with features ASUS Antibacterial Guard — inhibiting the growth of bacteria by up to 99%. It even has the latest 4G LTE and WiFi 6E technologies, ensuring safe, secure and speedy mobile connectivity is easier than ever.
| Design |
|---|
| Introduction year |
2024 |
| Market positioning |
Work |
| Housing material |
Aluminium |
| Form factor |
Convertible (Folder) |
| Colour name |
Star Black |
| Product colour |
Black |
| Product type |
Hybrid (2-in-1) |

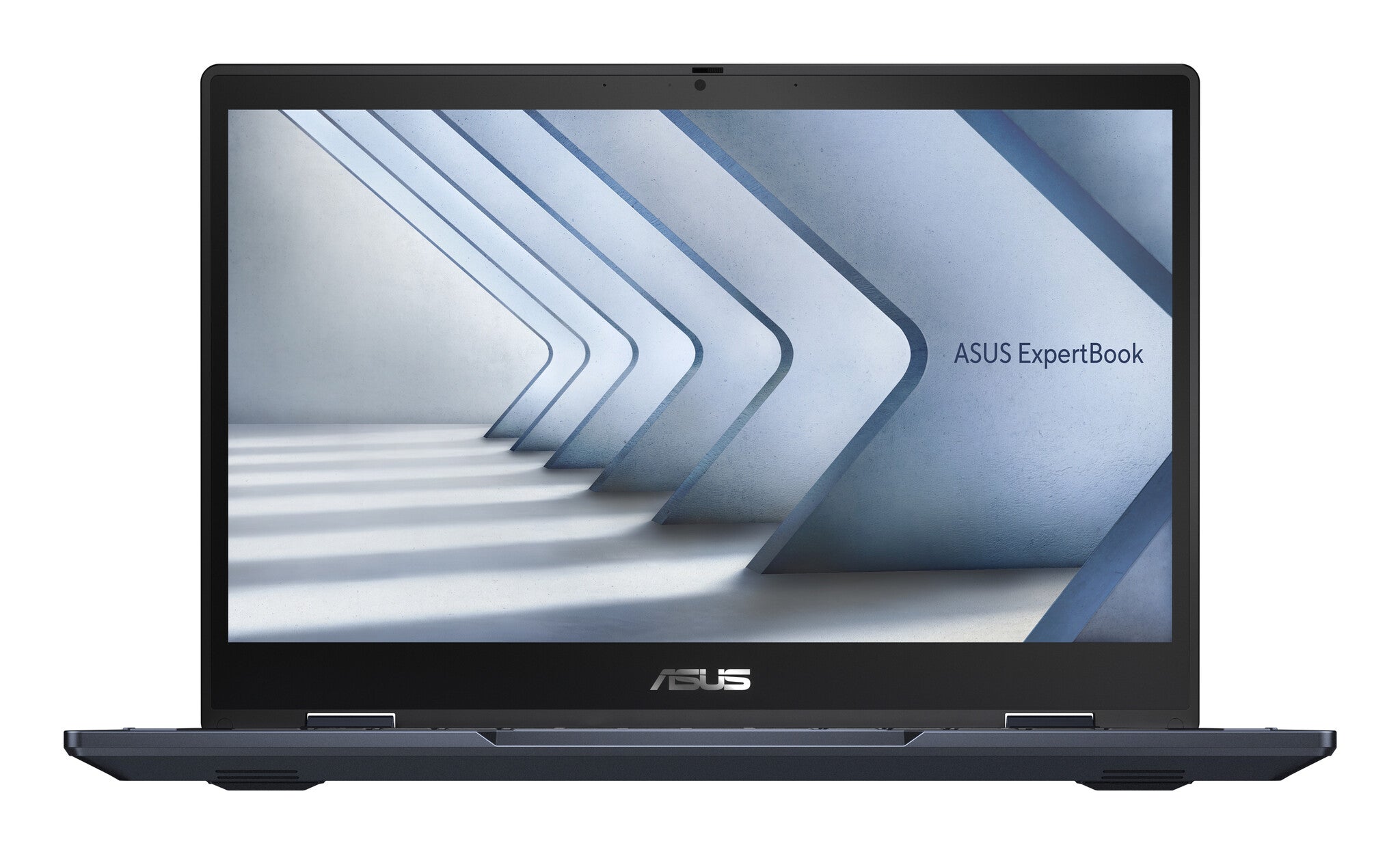

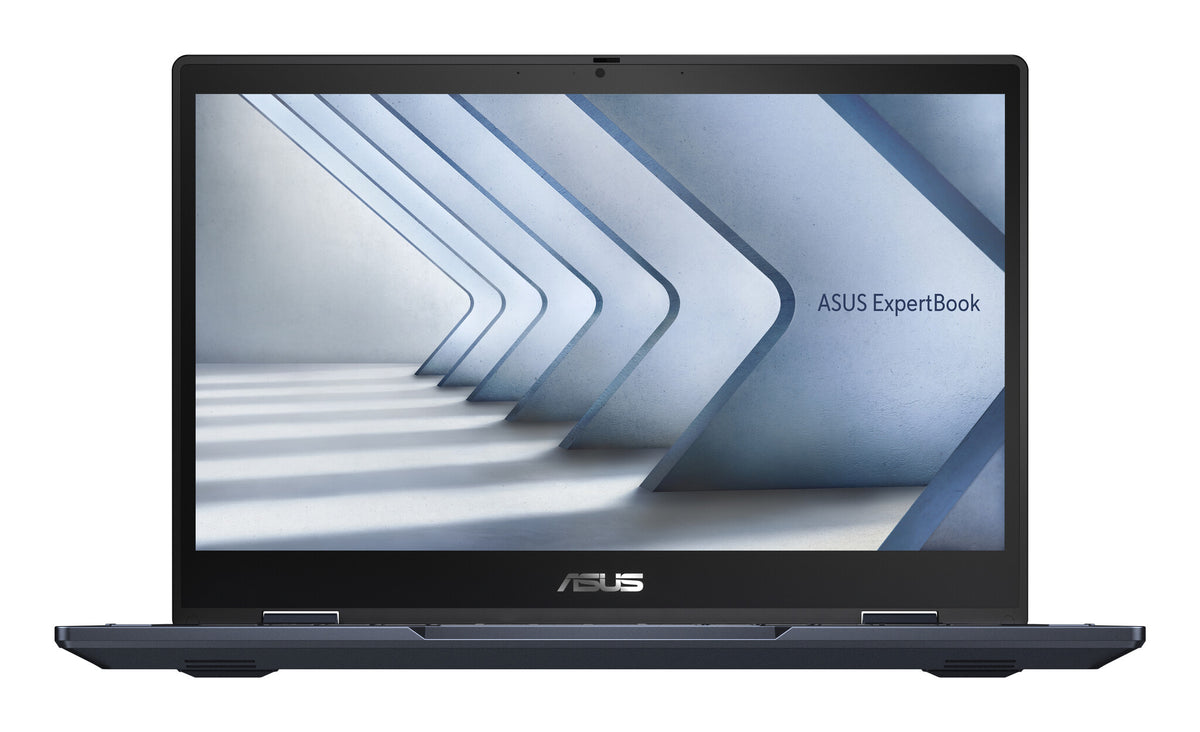

| Display |
|---|
| Contrast ratio (typical) |
700:1 |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Display brightness |
250 cd/m² |
| Display surface |
Gloss |
| Native aspect ratio |
16:9 |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
35.6 cm (14") |
| Processor |
|---|
| Processor base power |
15 W |
| Maximum turbo power |
55 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.4 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
5 GHz |
| Efficient cores |
8 |
| Performance cores |
2 |
| Processor boost frequency |
5 GHz |
| Processor threads |
12 |
| Processor cores |
10 |
| Processor model |
120U |
| Processor generation |
Intel Core (Series 1) |
| Processor family |
Intel Core 5 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Maximum internal memory |
40 GB |
| Memory slots |
1x SO-DIMM |
| Memory form factor |
On-board + SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
|---|
| Optical drive type |
No |
| SSD form factor |
M.2 |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Total storage capacity |
256 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel Graphics |
| On-board graphics card family |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Audio system |
SonicMaster |
| Camera |
|---|
| Rear camera resolution (numeric) |
13 MP |
| Rear camera |
Yes |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
|---|
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |

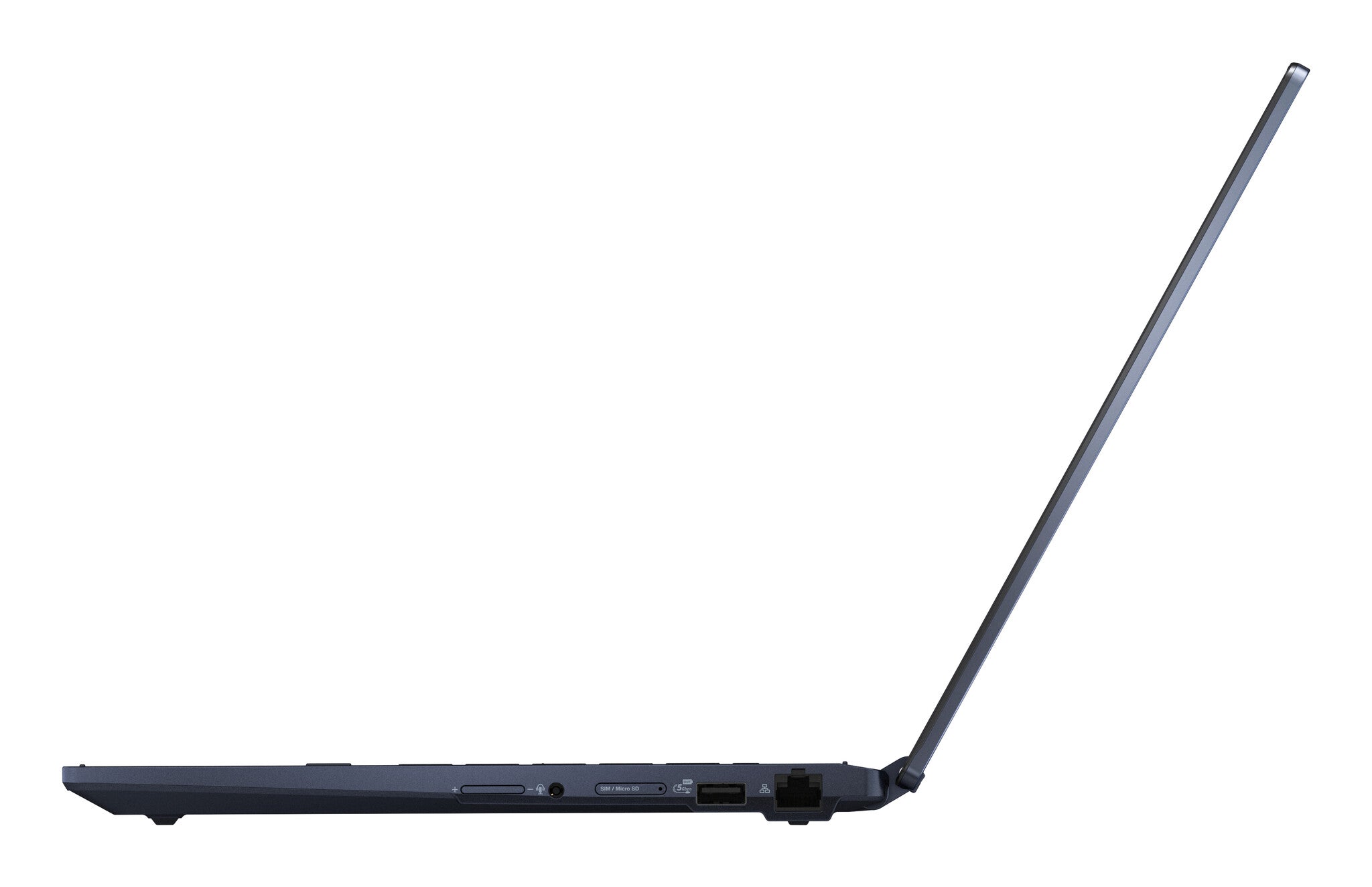

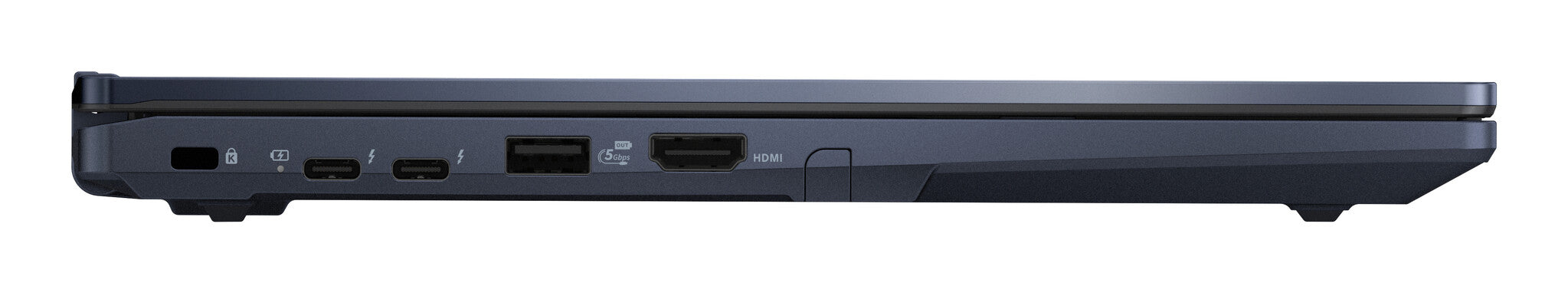

| Ports & interfaces |
|---|
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |

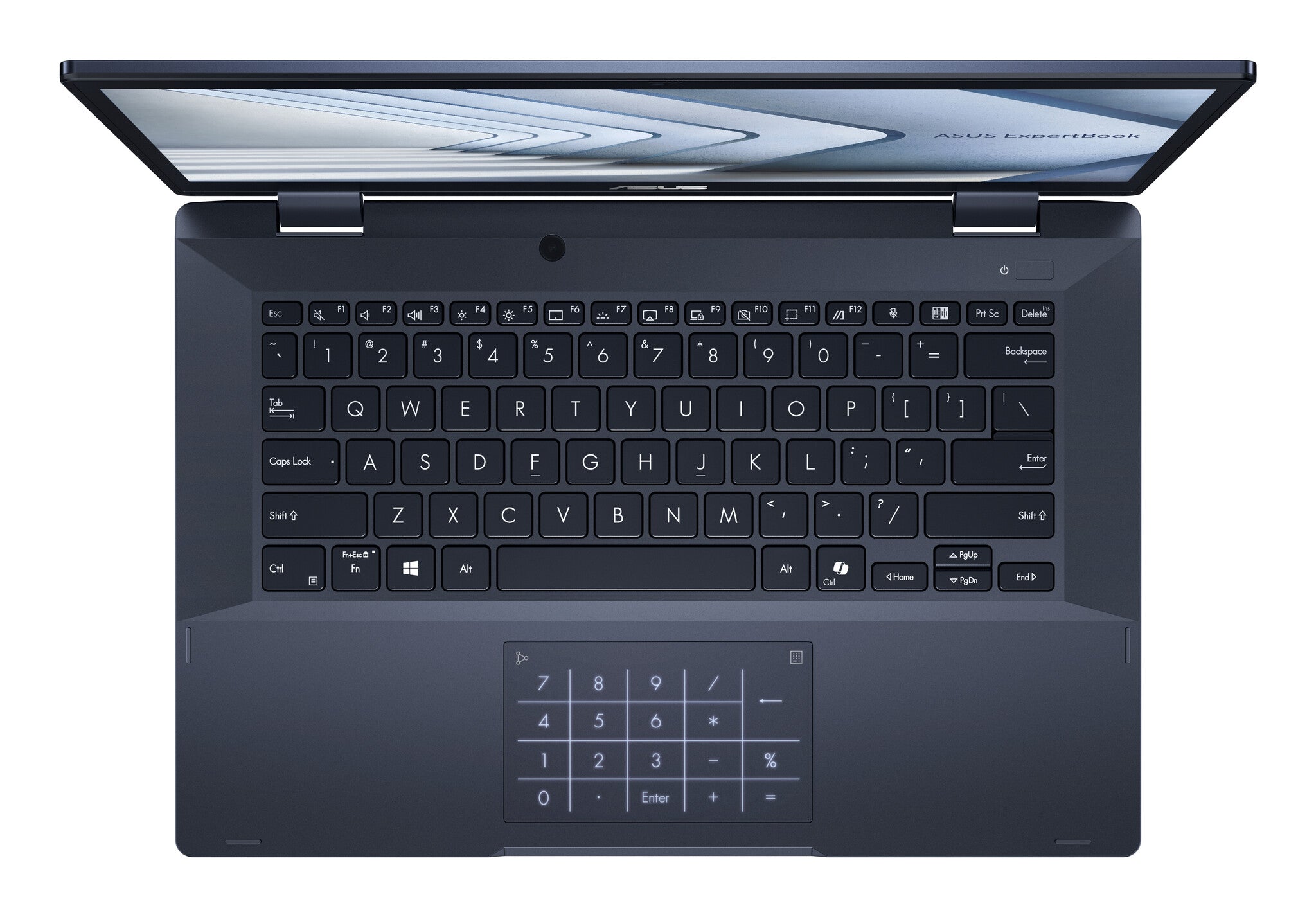

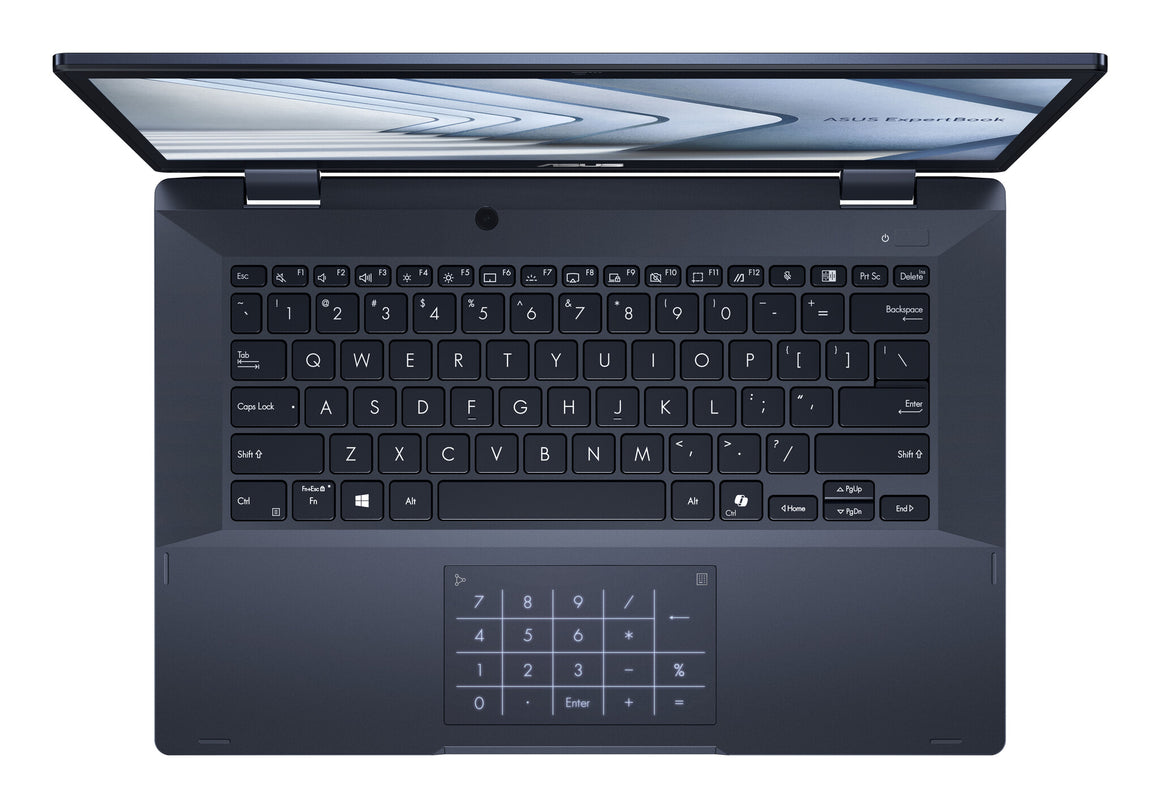

| Keyboard |
|---|
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
NumberPad |
| Software |
|---|
| Operating system architecture |
64-bit |
| Battery |
|---|
| Battery capacity |
50 Wh |
| Number of battery cells |
3 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
|---|
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| Required charging power (min) |
55 W |
| Required charging power (max) |
65 W |
| AC adapter output voltage |
19 V |
| AC adapter output current |
3.25 A |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50 - 60 Hz |
| AC adapter power |
65 W |
| Security |
|---|
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Certificates |
|---|
| Compliance certificates |
REACH |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Gold, Forest Stewardship Council (FSC) Mix |
| Weight & dimensions |
|---|
| Height (rear) |
1.95 cm |
| Height (front) |
1.92 cm |
| Depth |
223.9 mm |
| Width |
329 mm |
| Weight |
1.61 kg |
| General |
|---|
| Product family |
ExpertBook |
| Product series |
B3 Flip |
| Packaging content |
|---|
| AC adapter included |
Yes |
