A WORKSTATION WONDERLAND

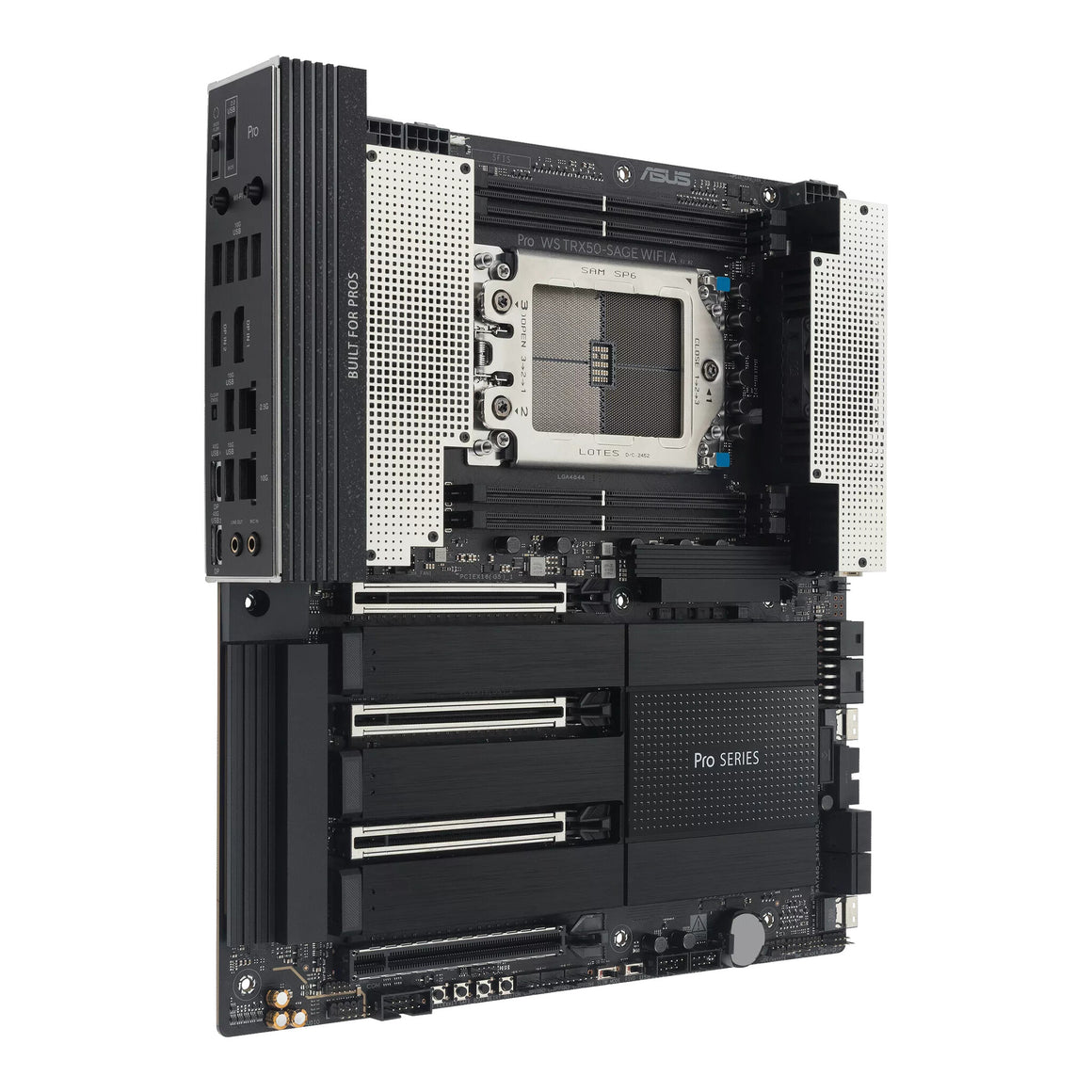

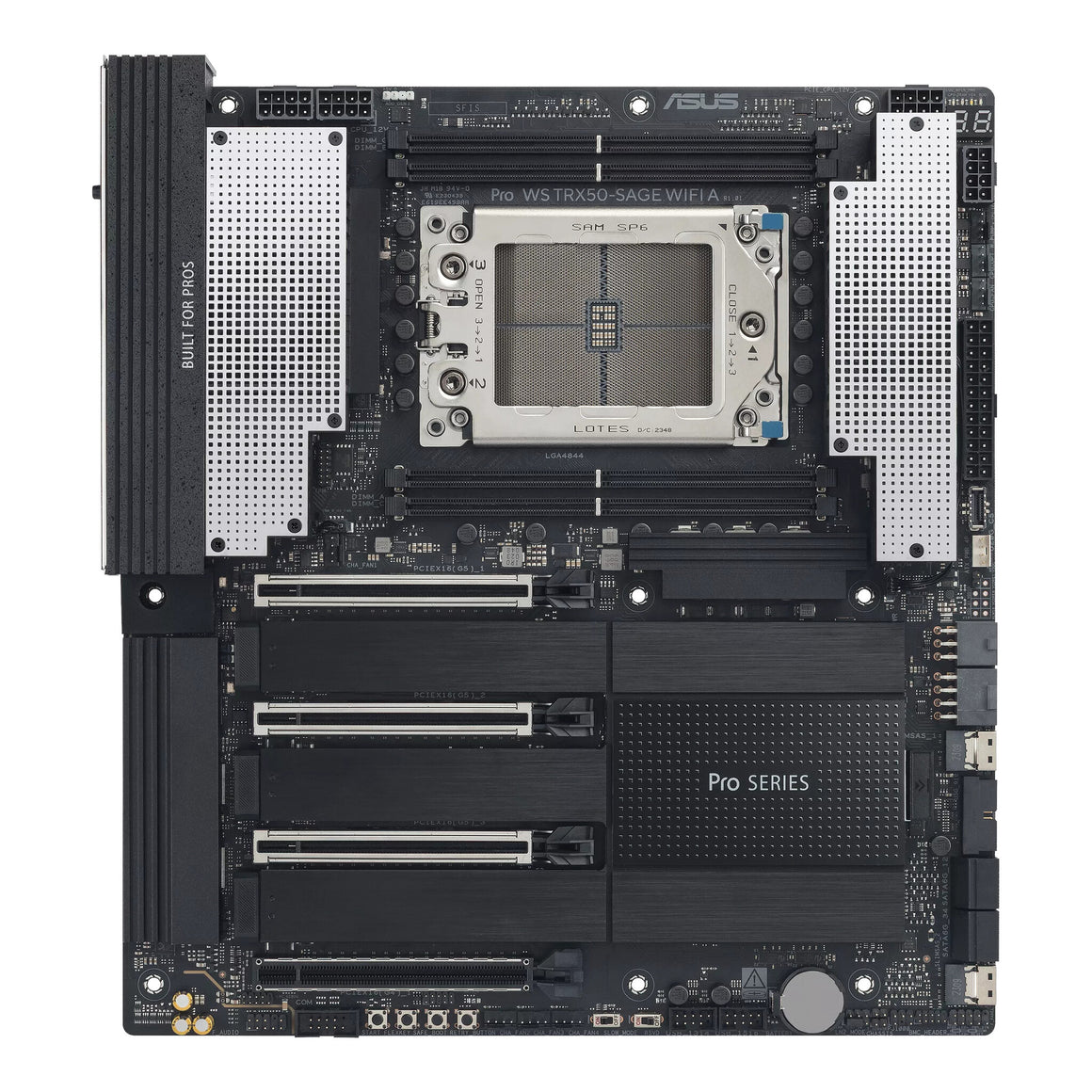

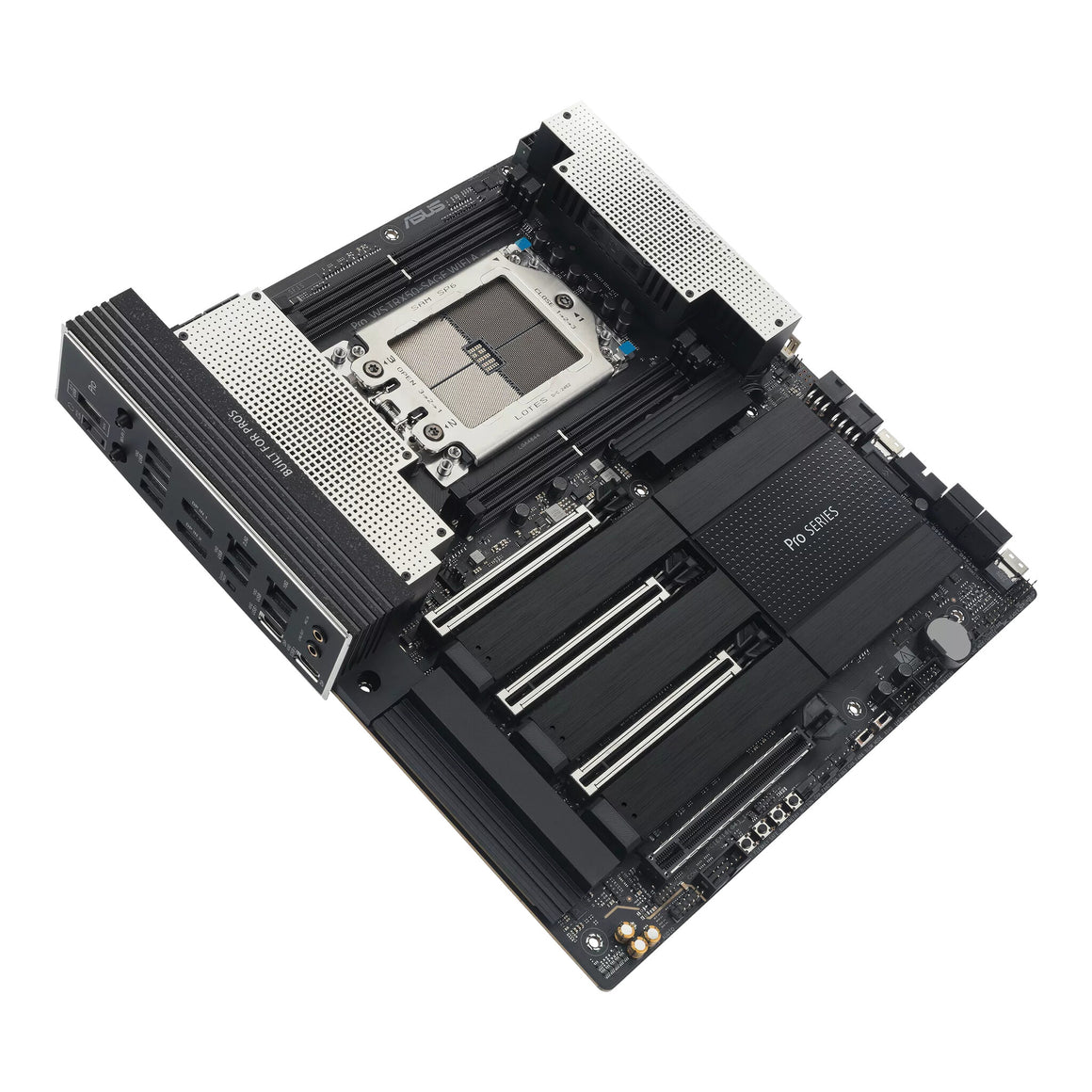

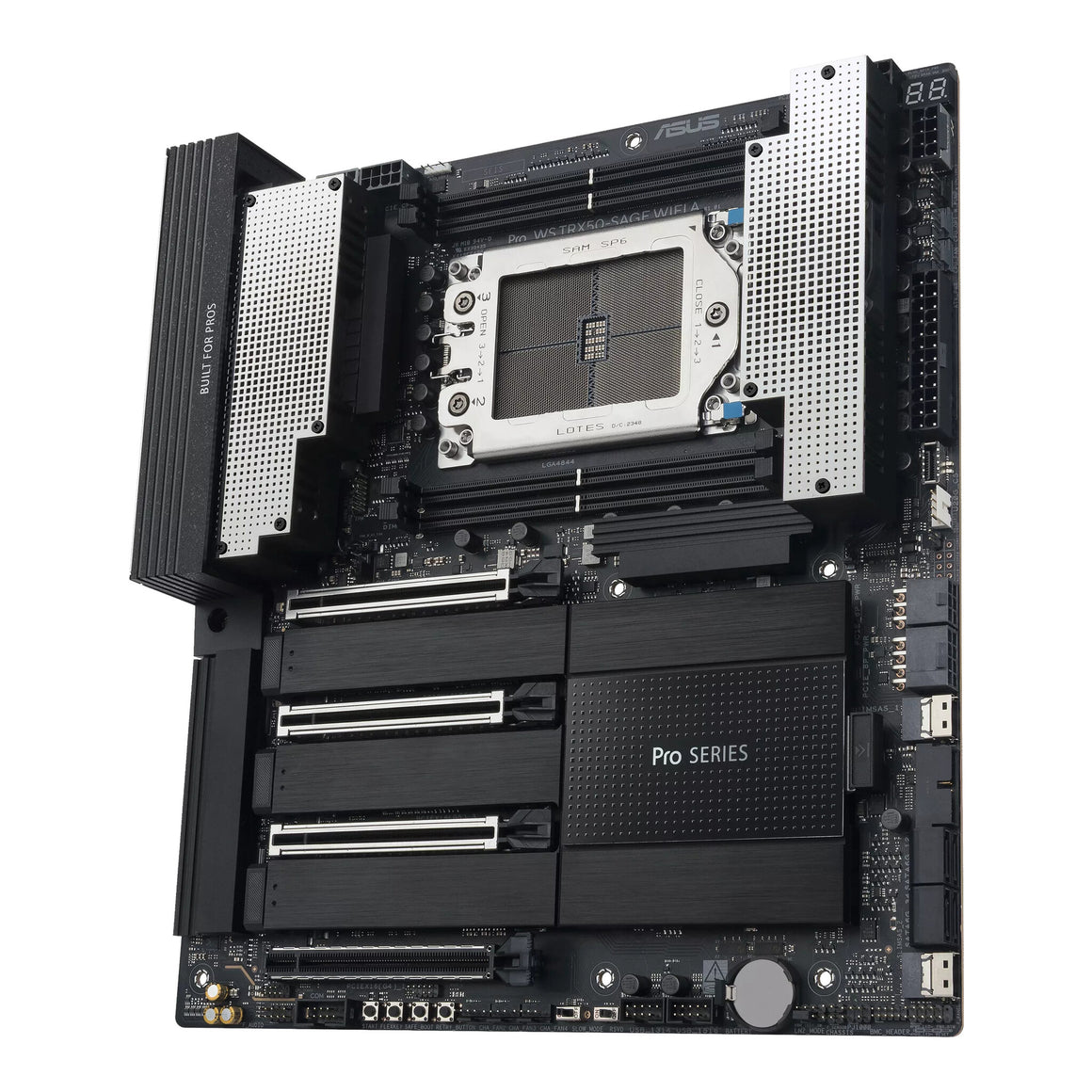

The Pro WS TRX50-SAGE WIFI A motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and AI era applications. Twenty power stages fuel AMD Ryzen™ Threadripper™ processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.
With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, WiFi 7, USB4® (40 Gbps), SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI A comes prepared for a wide array of scenarios and industries.
| Processor |
|---|
| Supported processor sockets |
Socket sTR5 |
| Compatible processor series |
AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series |
| Processor socket |
Socket sTR5 |
| Processor manufacturer |
AMD |
| Memory |
|---|
| ECC сompatibility |
ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of storage drives supported |
10 |
| Number of HDDs supported |
4 |
| Supported storage drive interfaces |
M.2, SATA III, SlimSAS |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| On-board graphics card |
No |
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| RGB LED pin header |
Yes |
| Number of temperature sensor headers |
1 |
| TPM connector |
Yes |
| Number of COM connectors |
1 |
| 12V power connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
4 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2x2 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

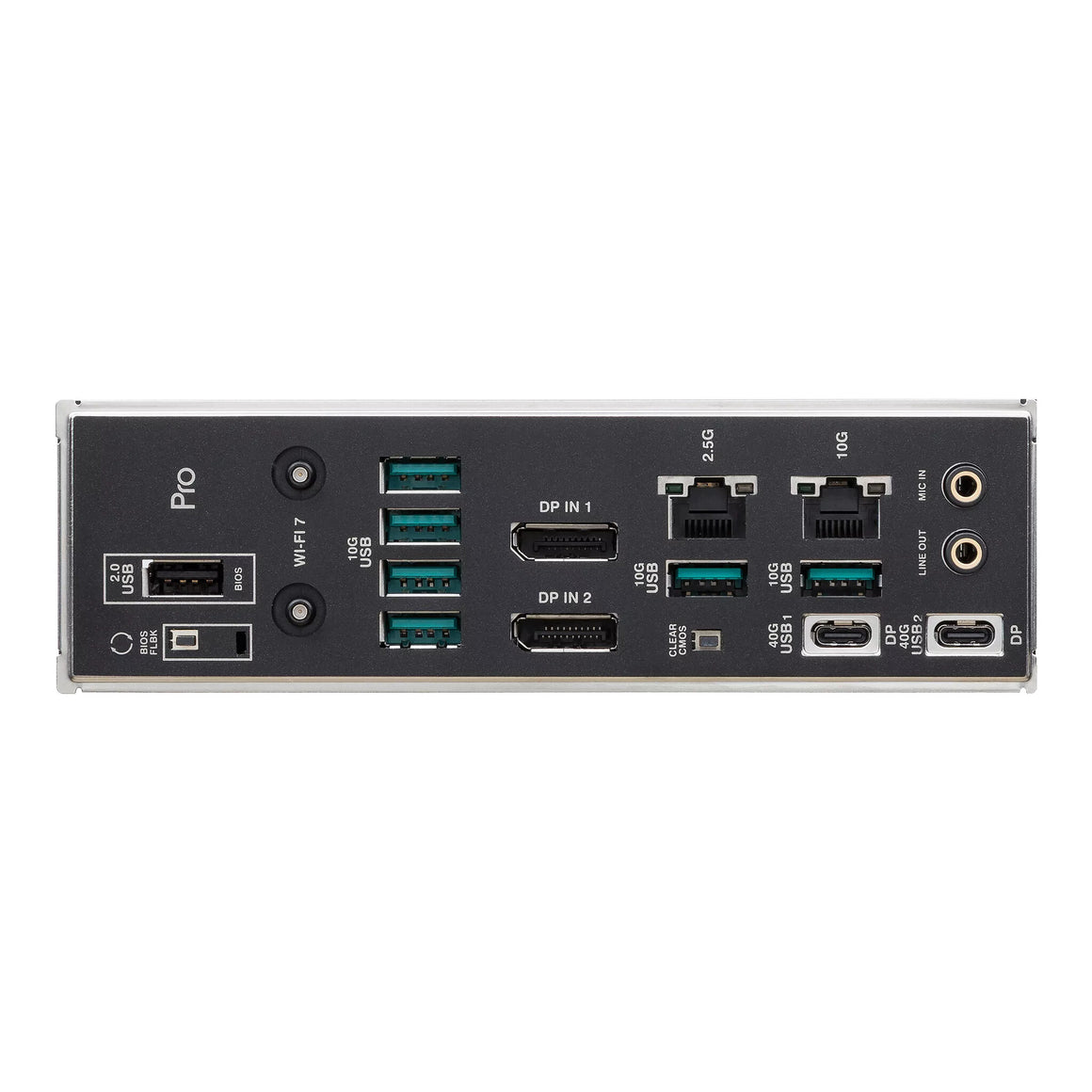

| Rear panel I/O ports |
|---|
| WiFi-AP antenna jack |
1 |
| DisplayPorts quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB4 Gen 3x2 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
6 |
| USB 2.0 ports quantity |
1 |
| Network |
|---|
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| LAN controller |
Intel I226-LM |
| Ethernet interface type |
2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Windows operating systems supported |
Windows 11 |
| Product colour |
Aluminium, Black |
| Audio output channels |
5.1 channels |
| Audio chip |
Realtek ALC1220P |
| Motherboard chipset |
AMD TRX50 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
CEB |
| Component for |
Workstation |
| Expansion slots |
|---|
| 4th M.2 highest PCI Express generation |
5.0 |
| 4th M.2 largest key size |
2280 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
2580 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 1st M.2 largest key size |
2280 |
| Number of M.2 (M) slots |
4 |
| PCI Express x16 (Gen 5.x) slots |
3 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| BIOS |
|---|
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
|---|
| Package weight |
4.85 kg |
| Package height |
100 mm |
| Package depth |
380 mm |
| Package width |
320 mm |
| Weight & dimensions |
|---|
| Depth |
280 mm |
| Width |
305 mm |

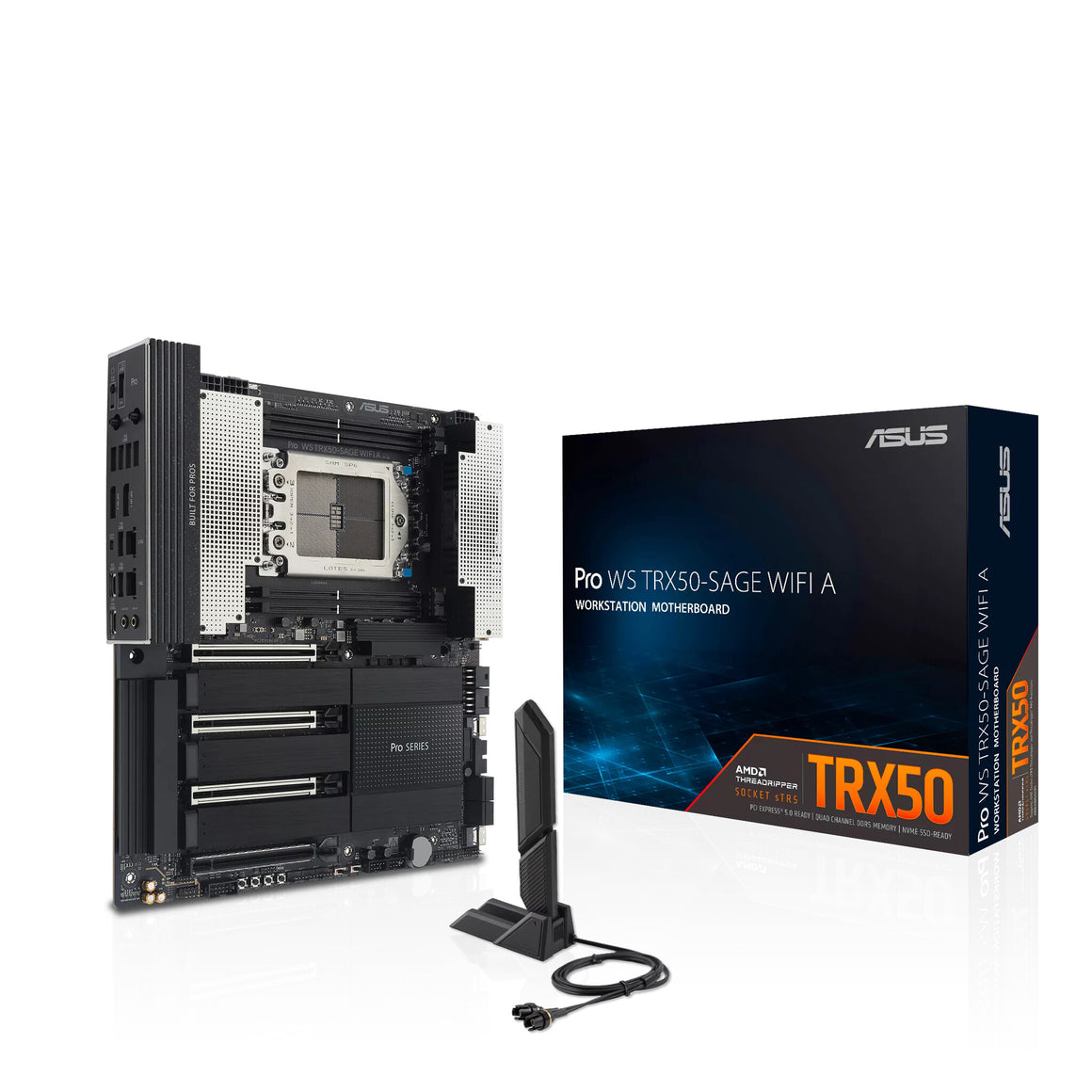

| Packaging content |
|---|
| Antenna included |
Yes |
| Cables included |
DisplayPort, SATA |
