Visionary. Versatile. Timeless.

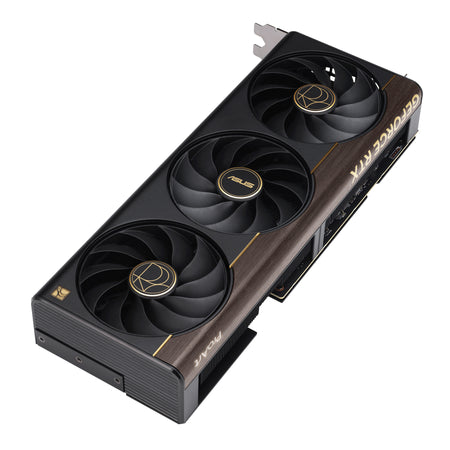

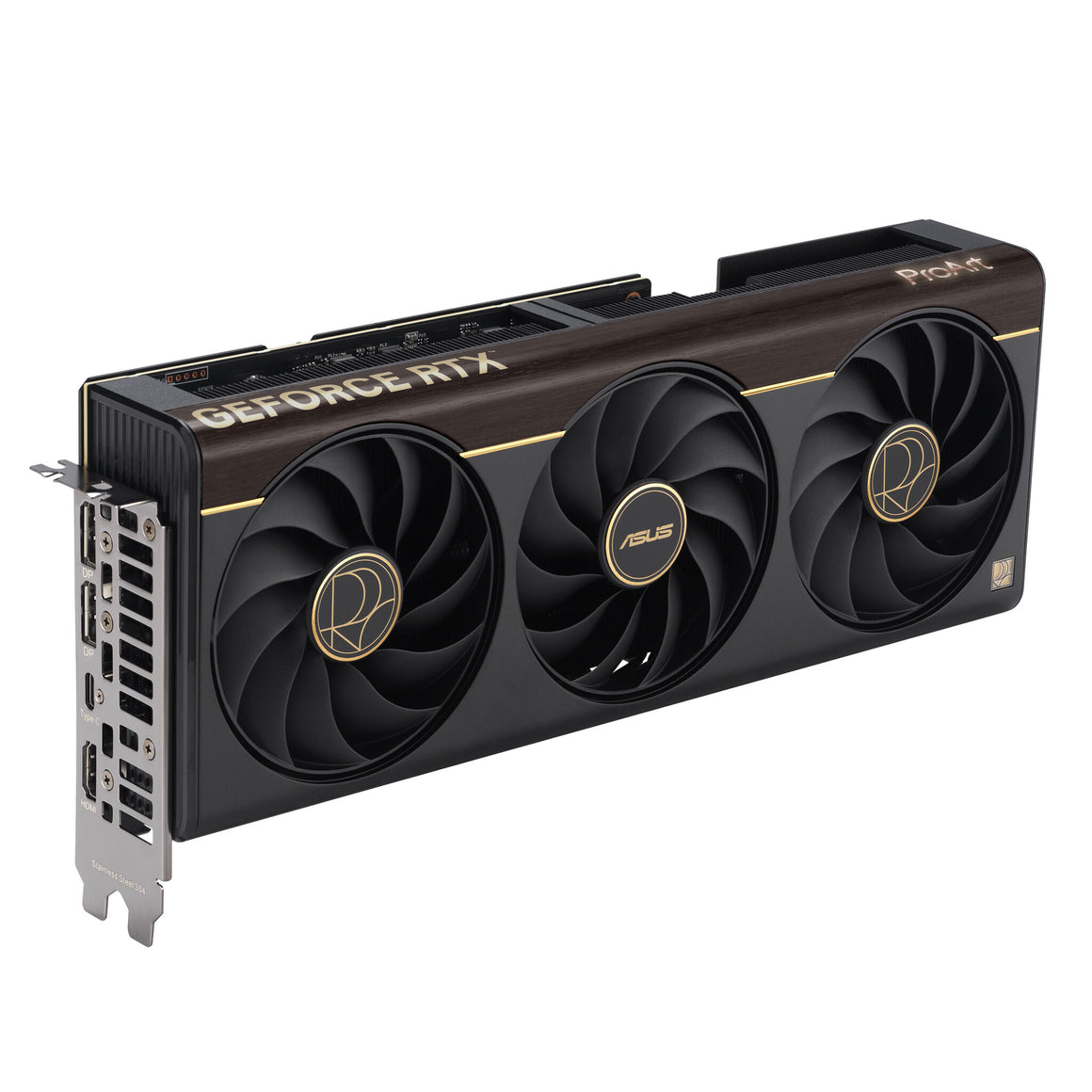

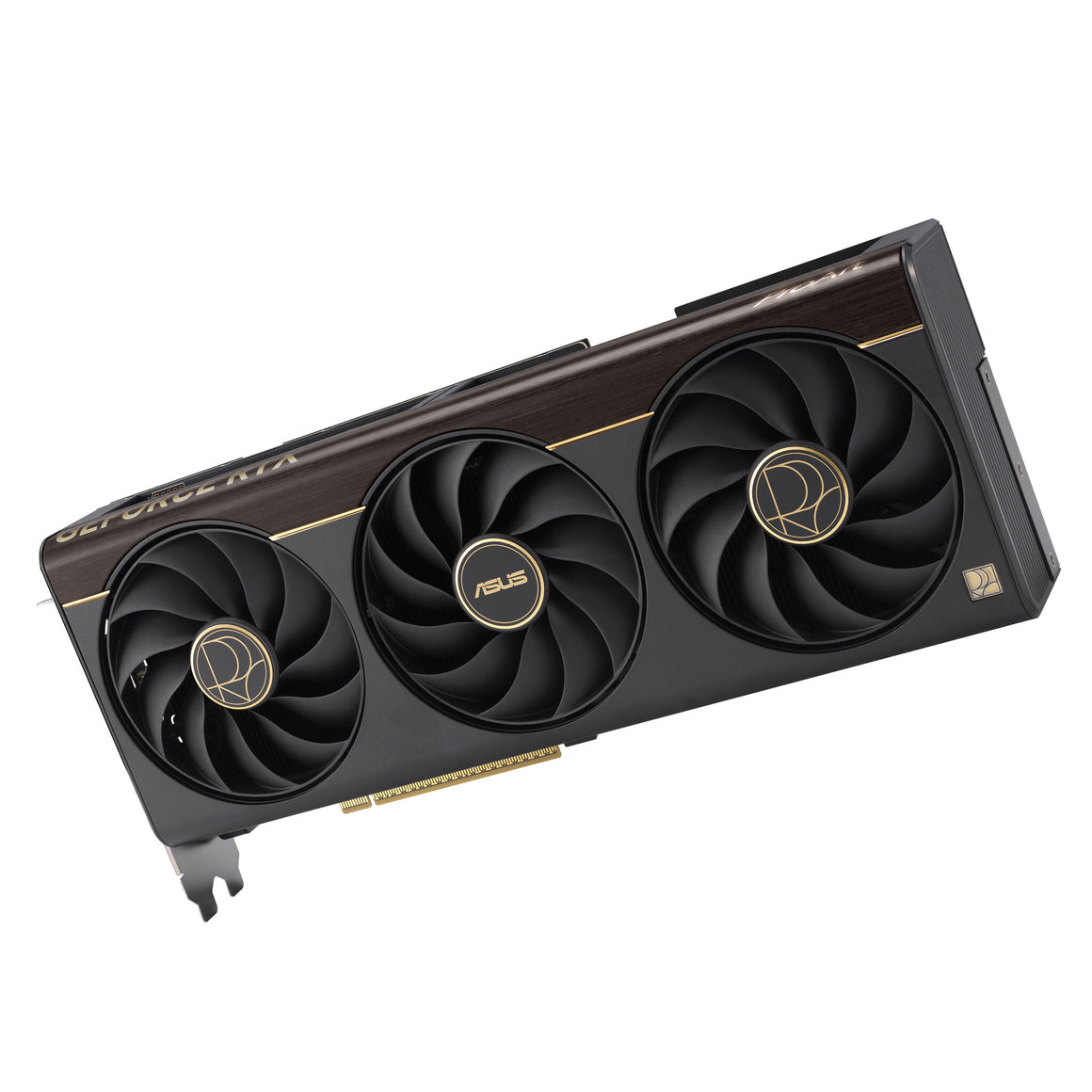

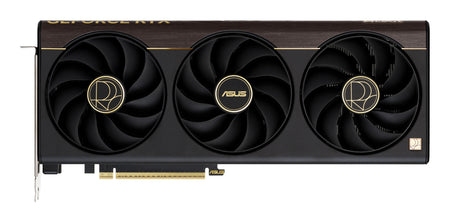

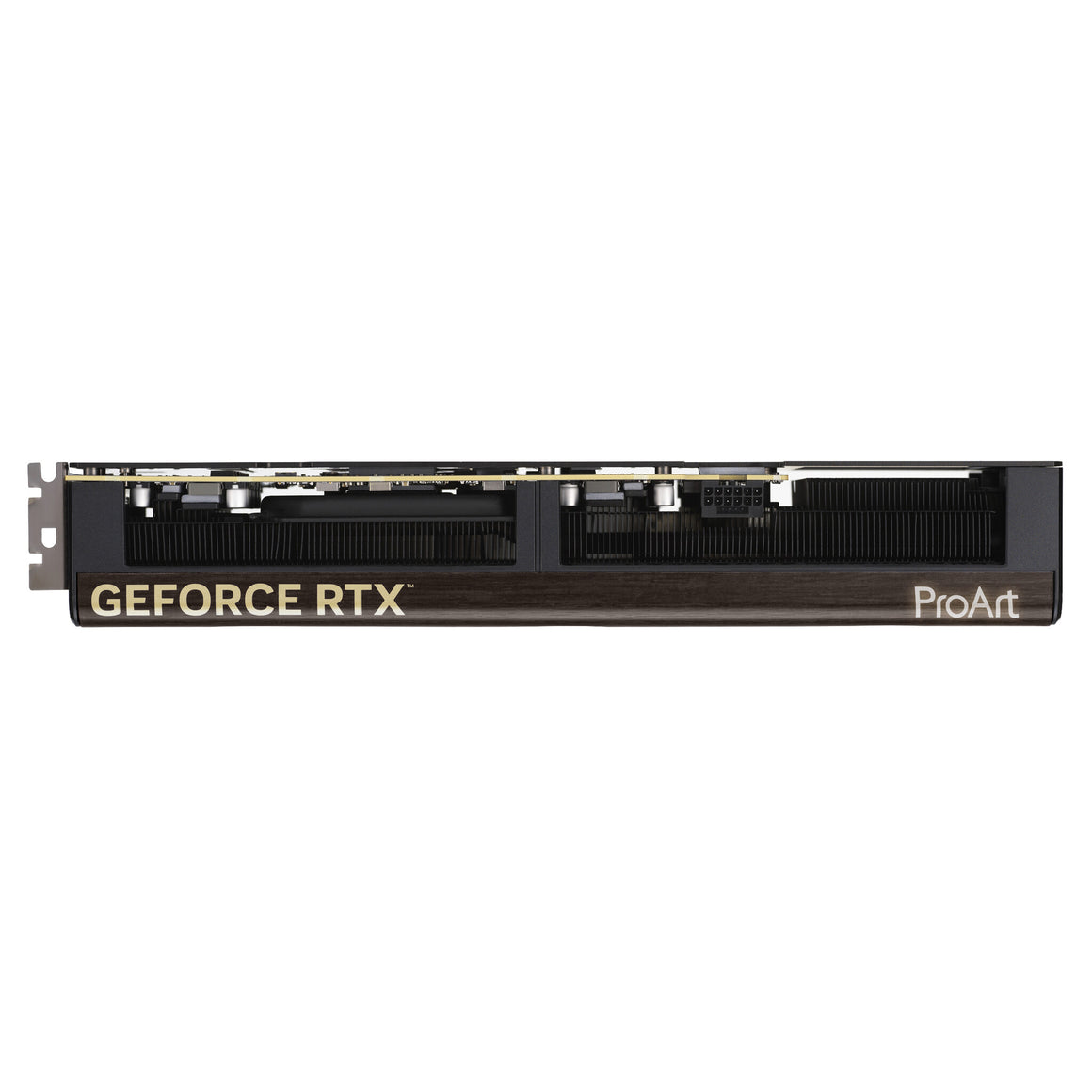

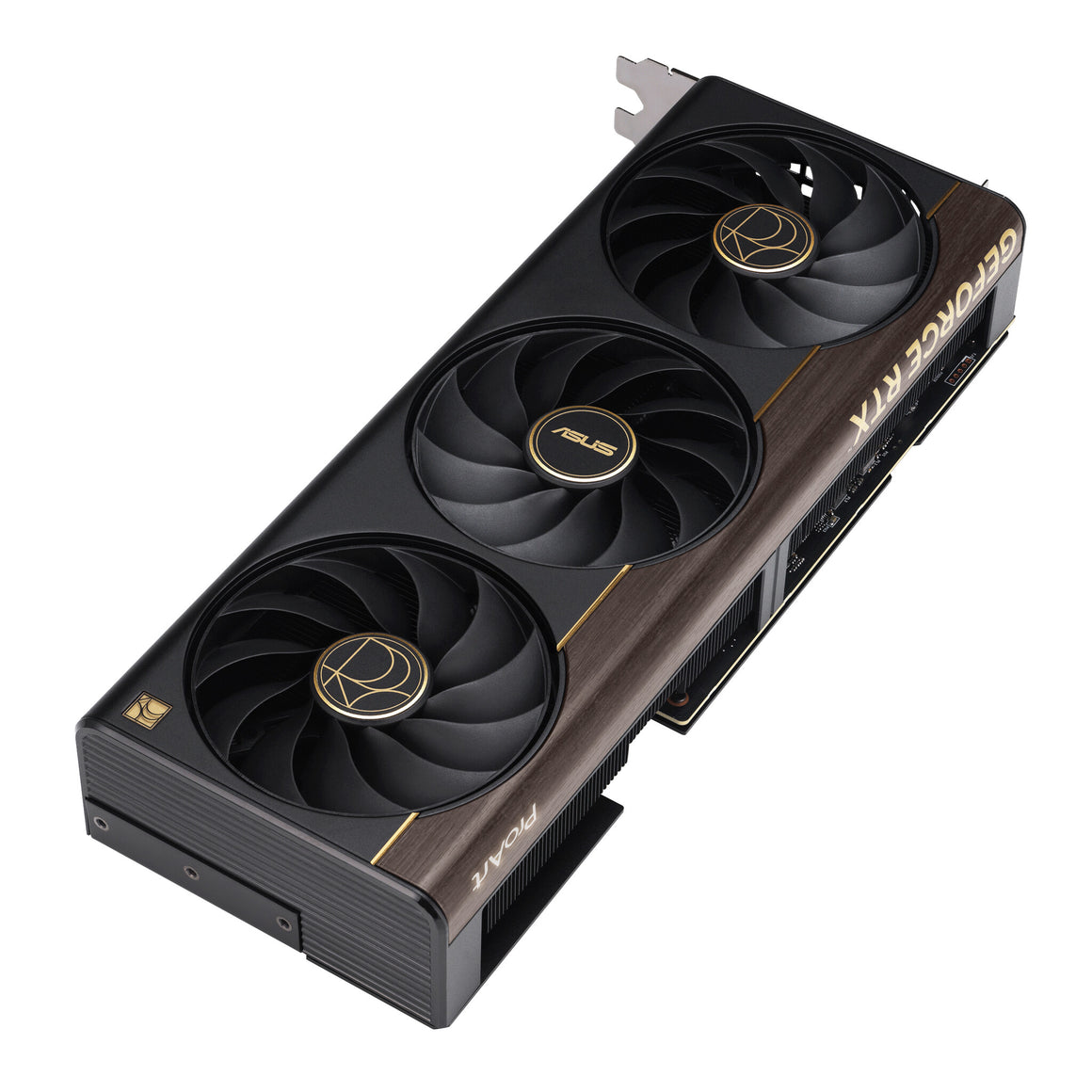

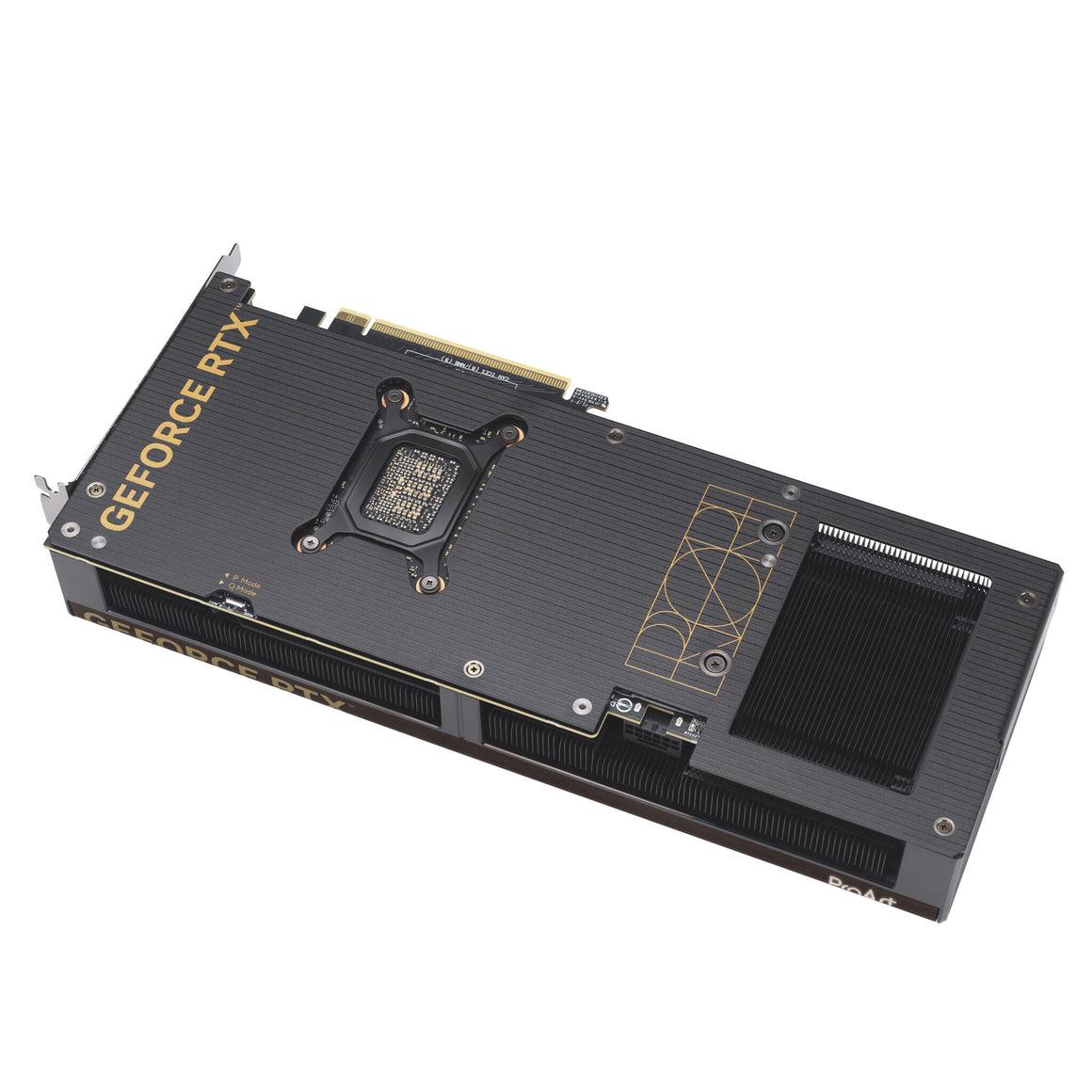

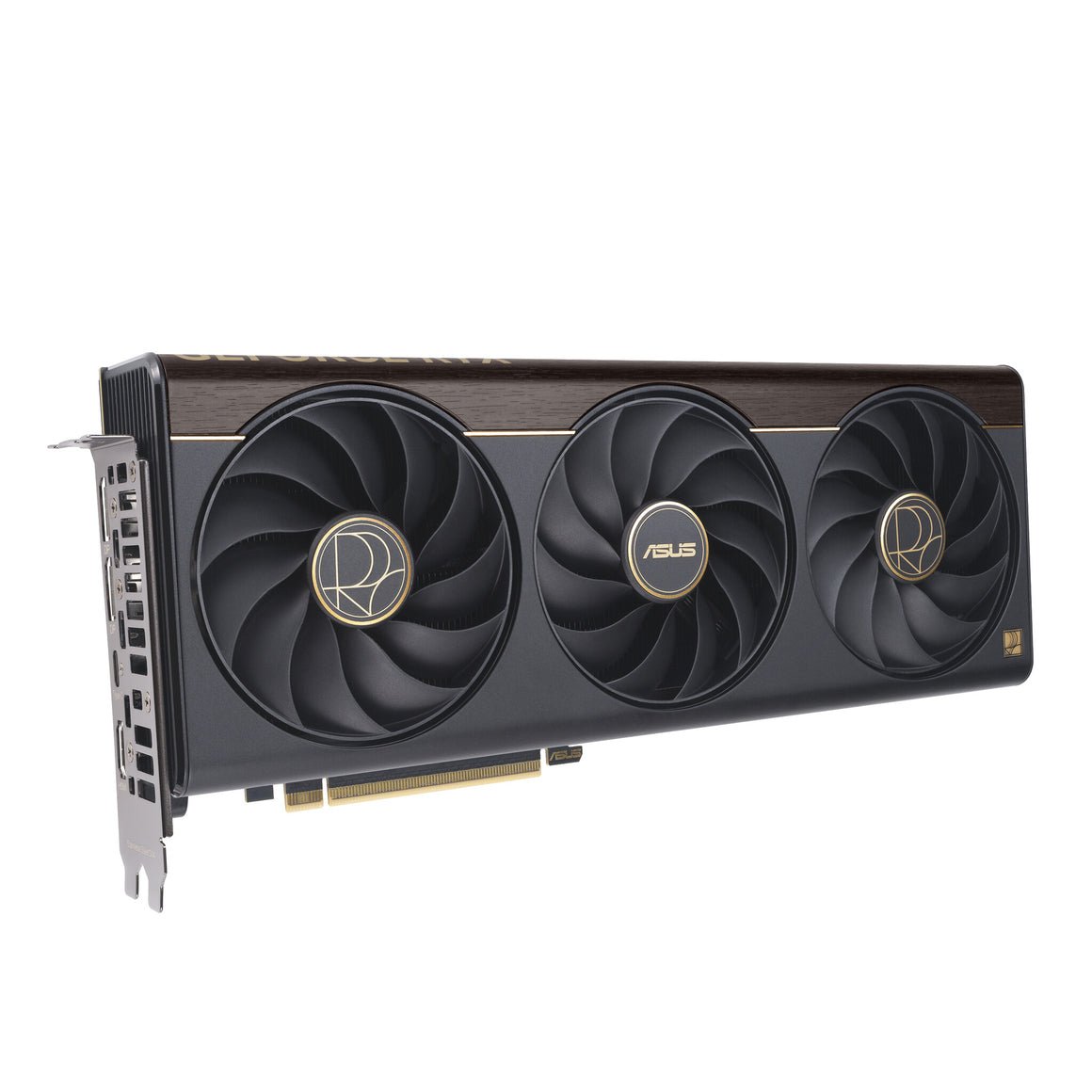

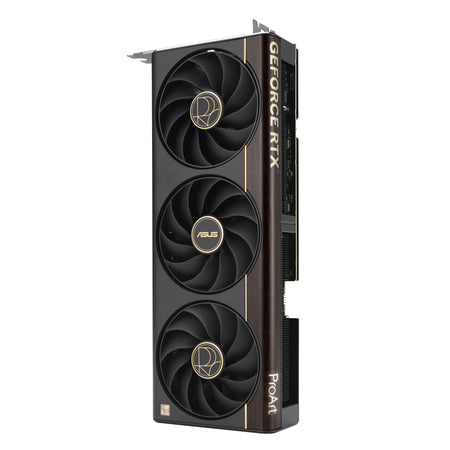

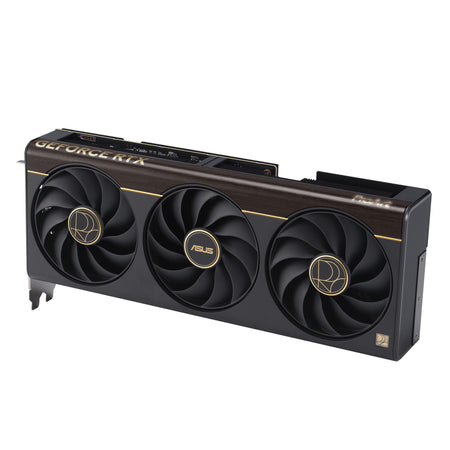

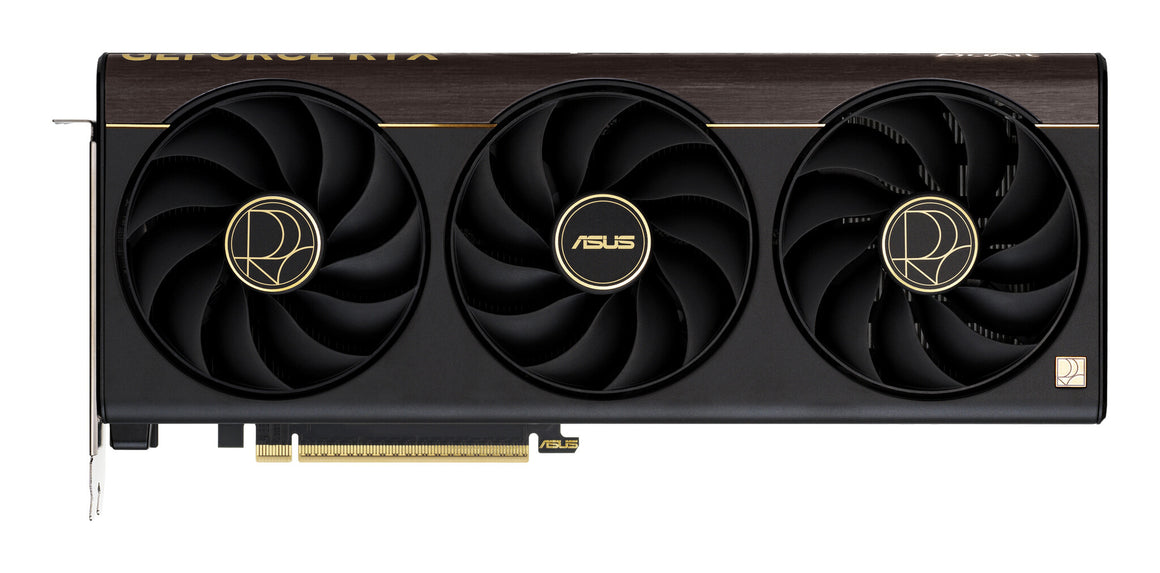

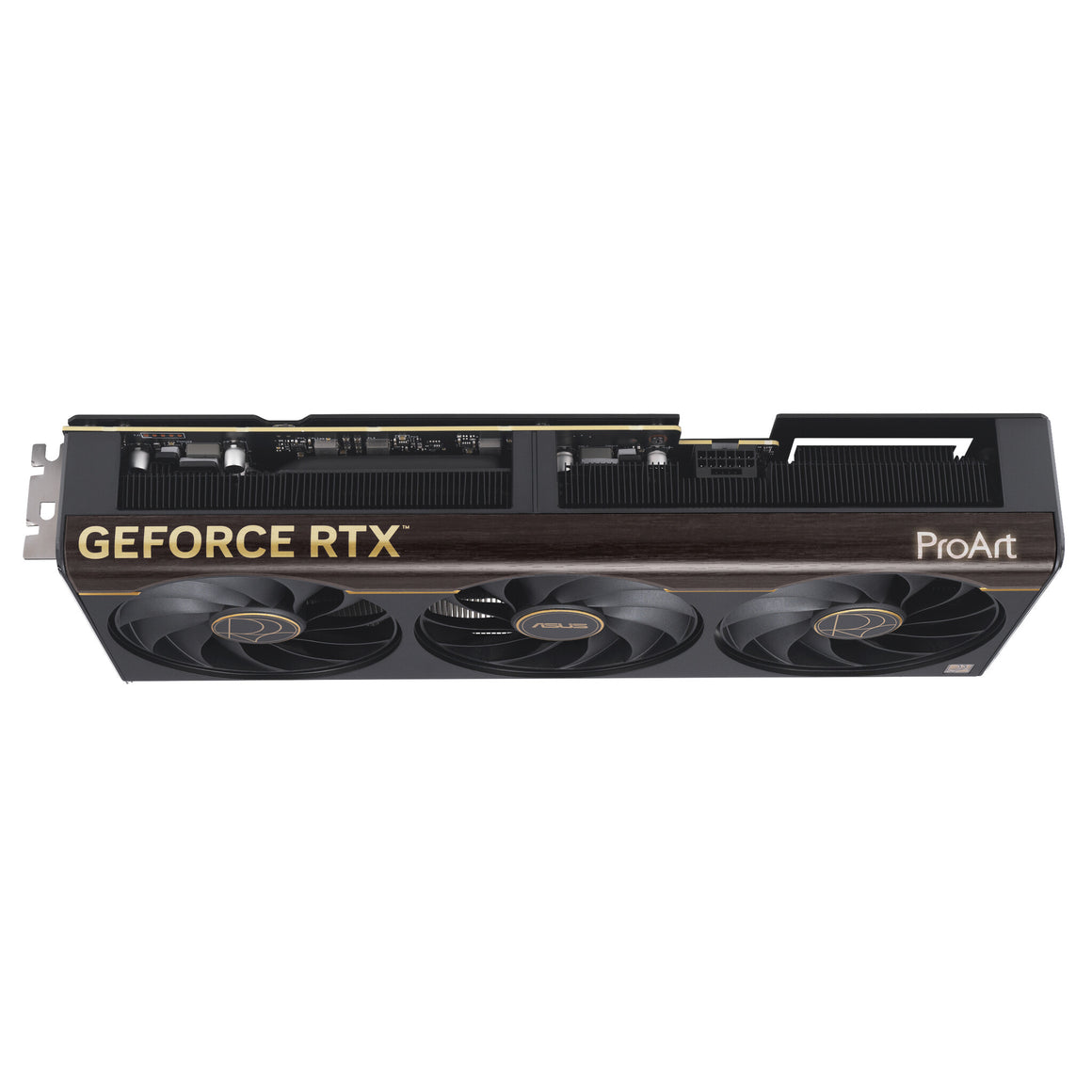

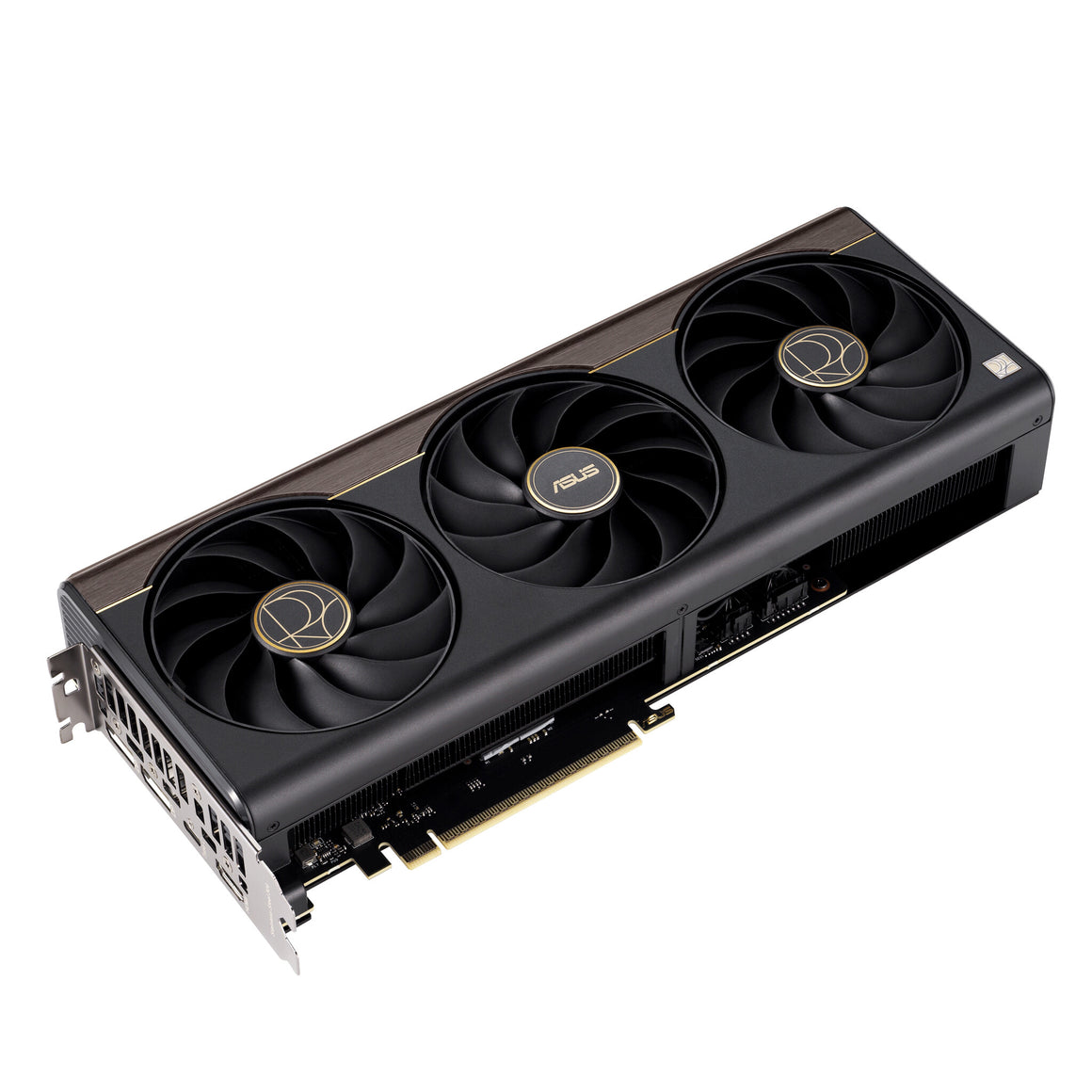

The ProArt GeForce RTX™ 5070 Ti combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA |
Yes |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Data transfer rate |
28 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR7 |
| Discrete graphics card memory |
16 GB |

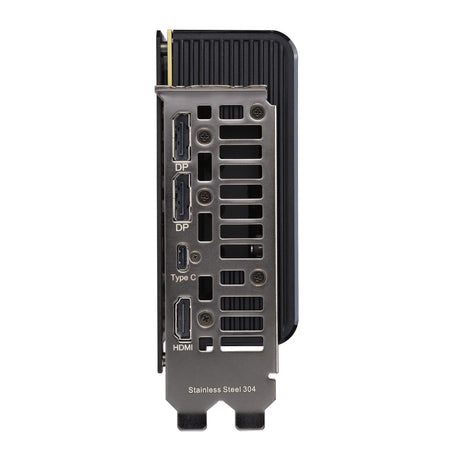

| Ports & interfaces |
|---|
| DisplayPort version |
2.1b |
| USB Type-C ports quantity |
1 |
| HDMI version |
2.1b |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 5.0 |
| Performance |
|---|
| Overclocked (OC) edition |
Yes |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| OpenGL version |
4.6 |
| Design |
|---|
| Product colour |
Multicolour |
| SFF ready |
Yes |
| Number of slots |
2.5 |
| Number of fans |
3 fan(s) |
| Cooling technology |
ASUS Axial-tech |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
850 W |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Height |
126 mm |
| Depth |
50 mm |
| Length |
304 mm |
| Weight |
1.39 kg |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.04 kg |
| Package height |
88.5 mm |
| Package depth |
233 mm |
| Package width |
405 mm |
| General |
|---|
| Product family |
ProArt |
