The Final Frontier

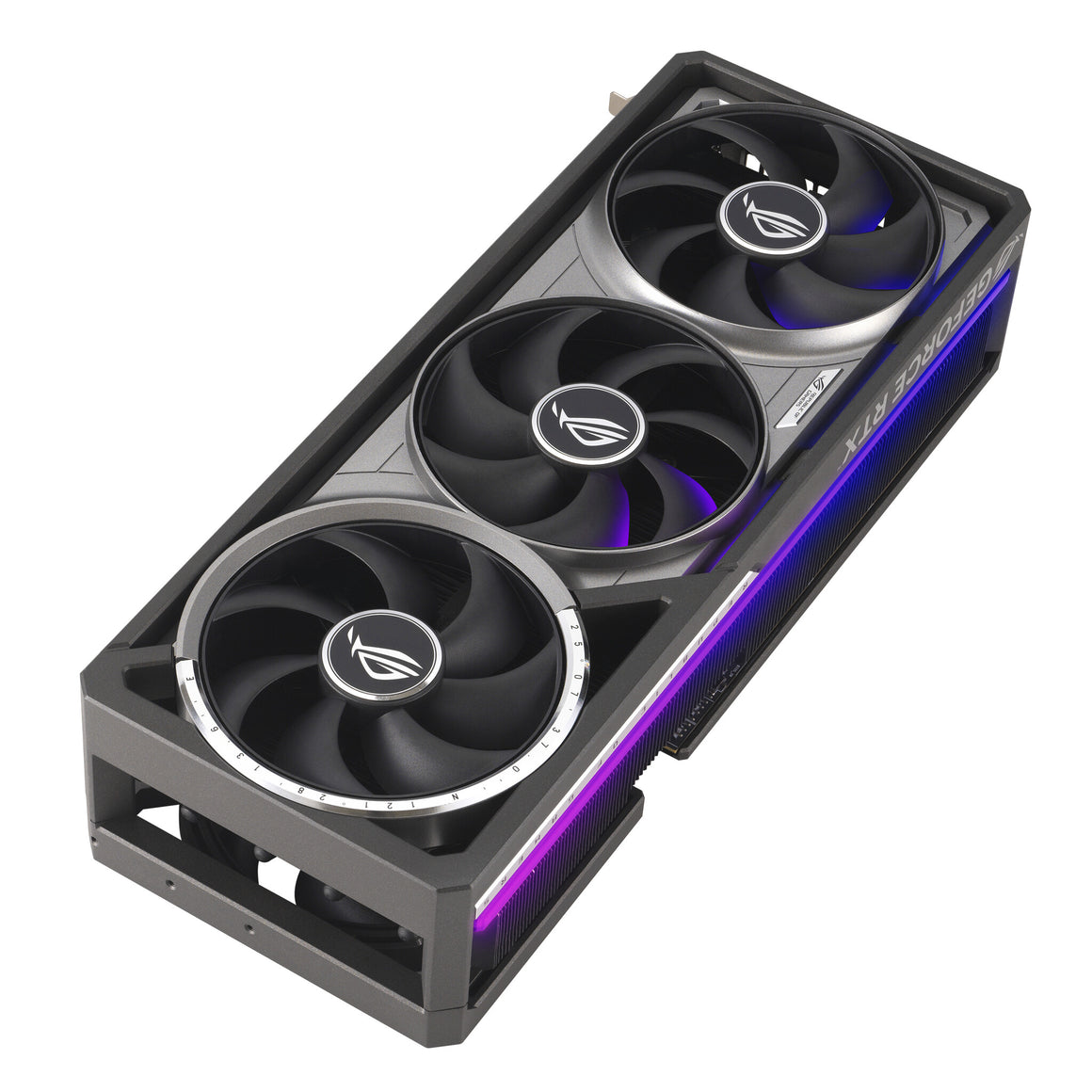

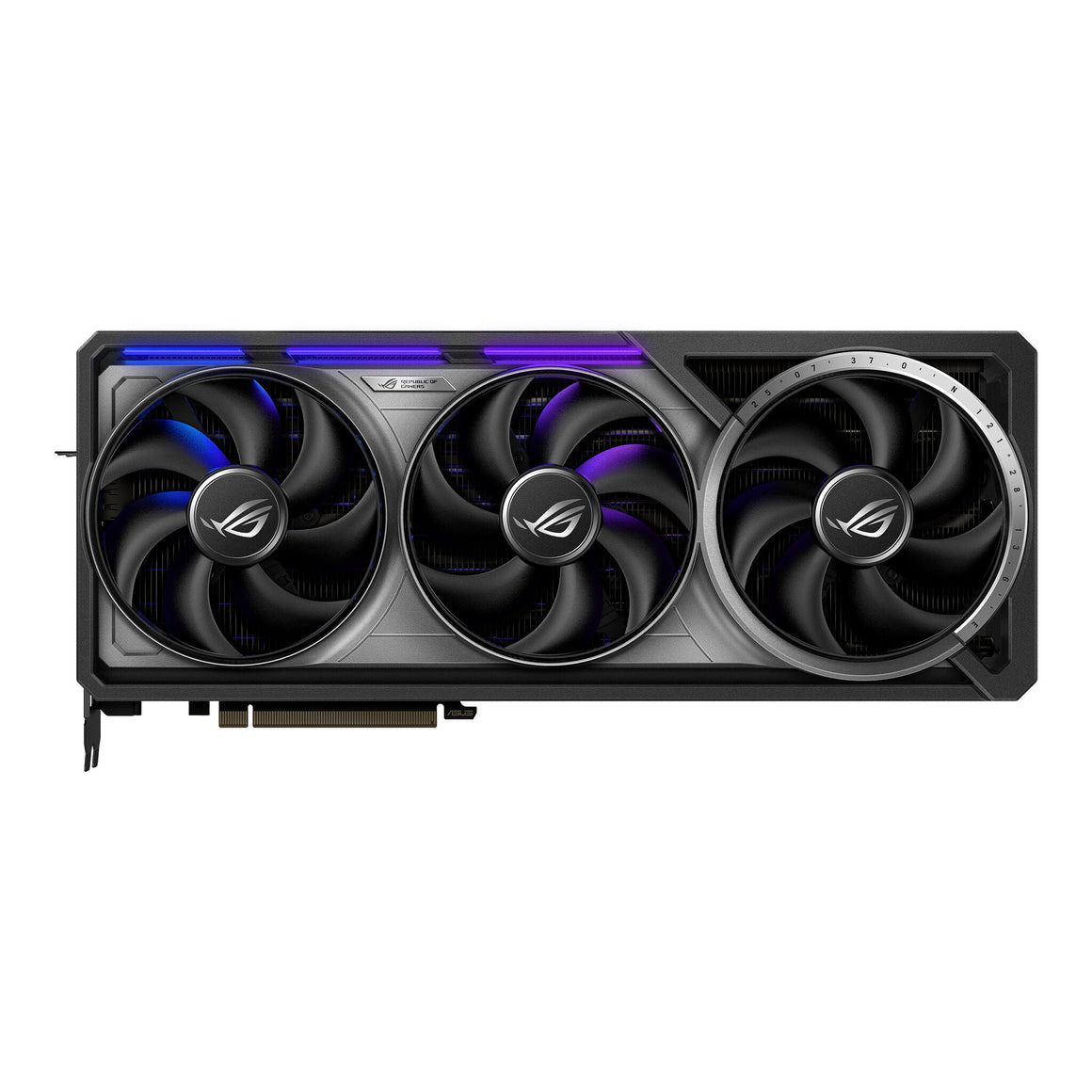

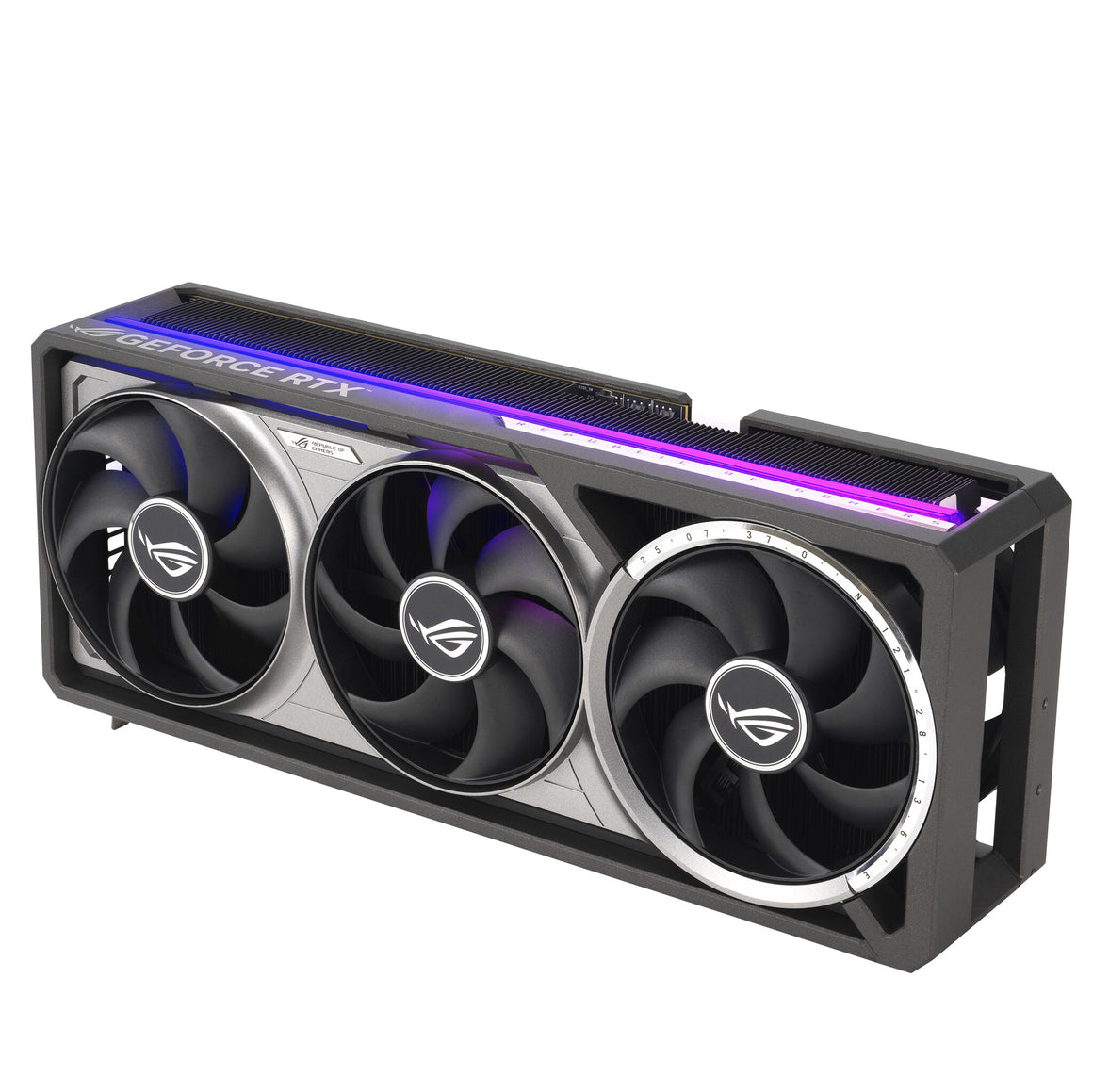

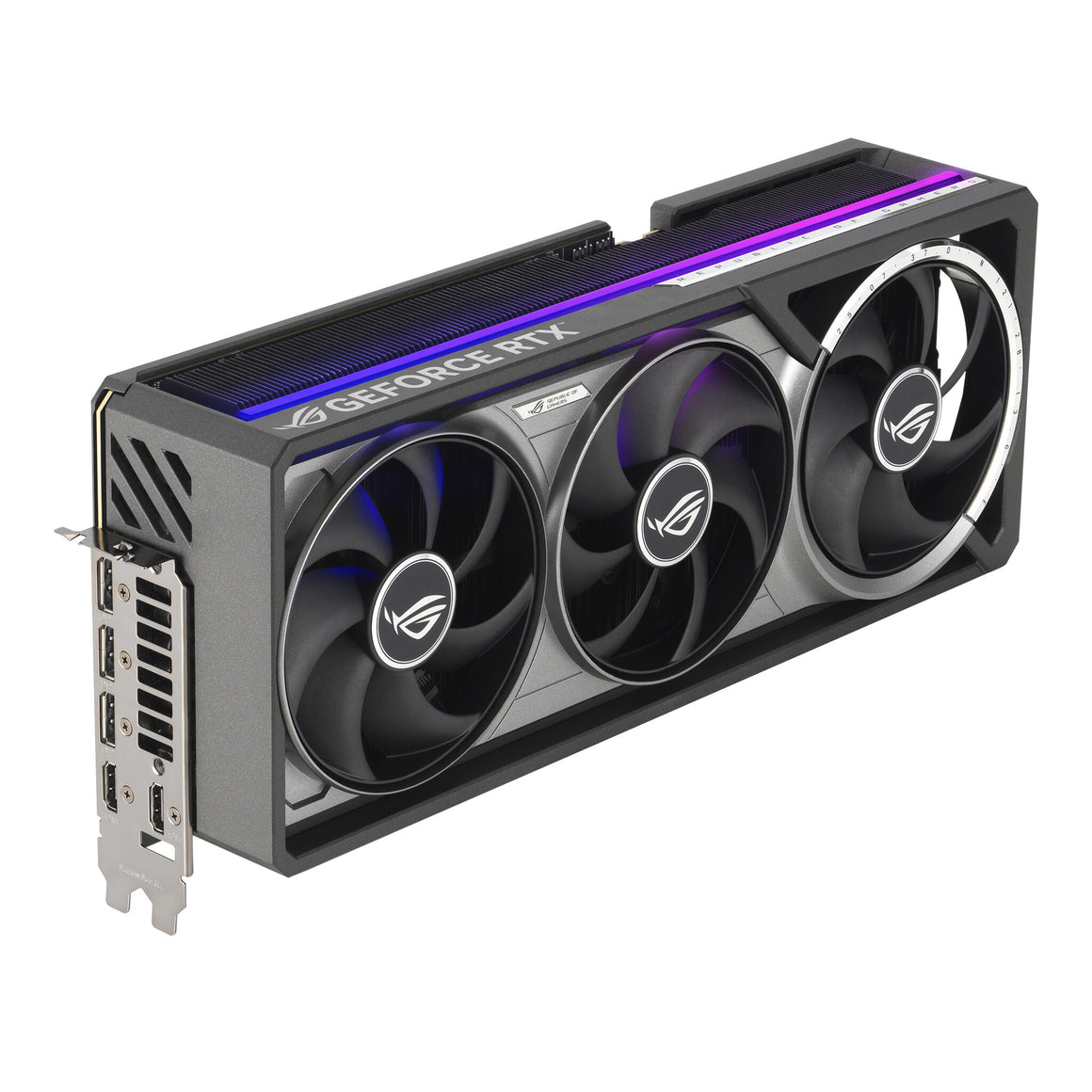

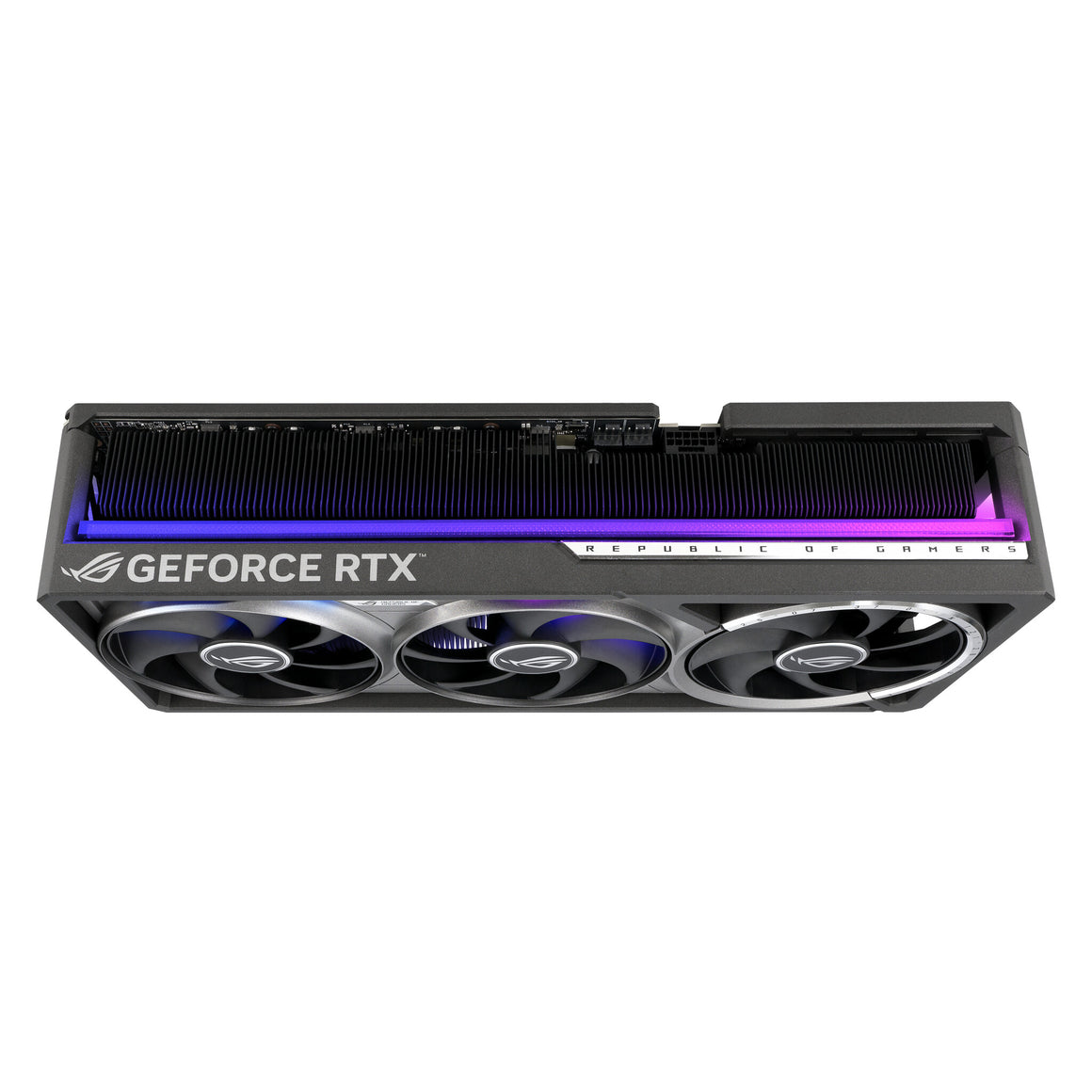

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA |
Yes |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Data transfer rate |
30 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR7 |
| Discrete graphics card memory |
16 GB |
| Ports & interfaces |
|---|
| DisplayPort version |
2.1a |
| HDMI version |
2.1b |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
2 |
| Interface type |
PCI Express 5.0 |
| Performance |
|---|
| NPU performance up to |
1801 TOPs |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| Design |
|---|
| Product colour |
Multicolour |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Number of slots |
3.8 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of fans |
4 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
850 W |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Height |
149.3 mm |
| Depth |
76 mm |
| Length |
357.6 mm |
| Weight |
2.86 kg |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
4.3 kg |
| Package height |
126 mm |
| Package depth |
226 mm |
| Package width |
420 mm |
| General |
|---|
| Product family |
ROG |
| Product series |
Astral |
