Superior Stability. Next-Level Efficiency

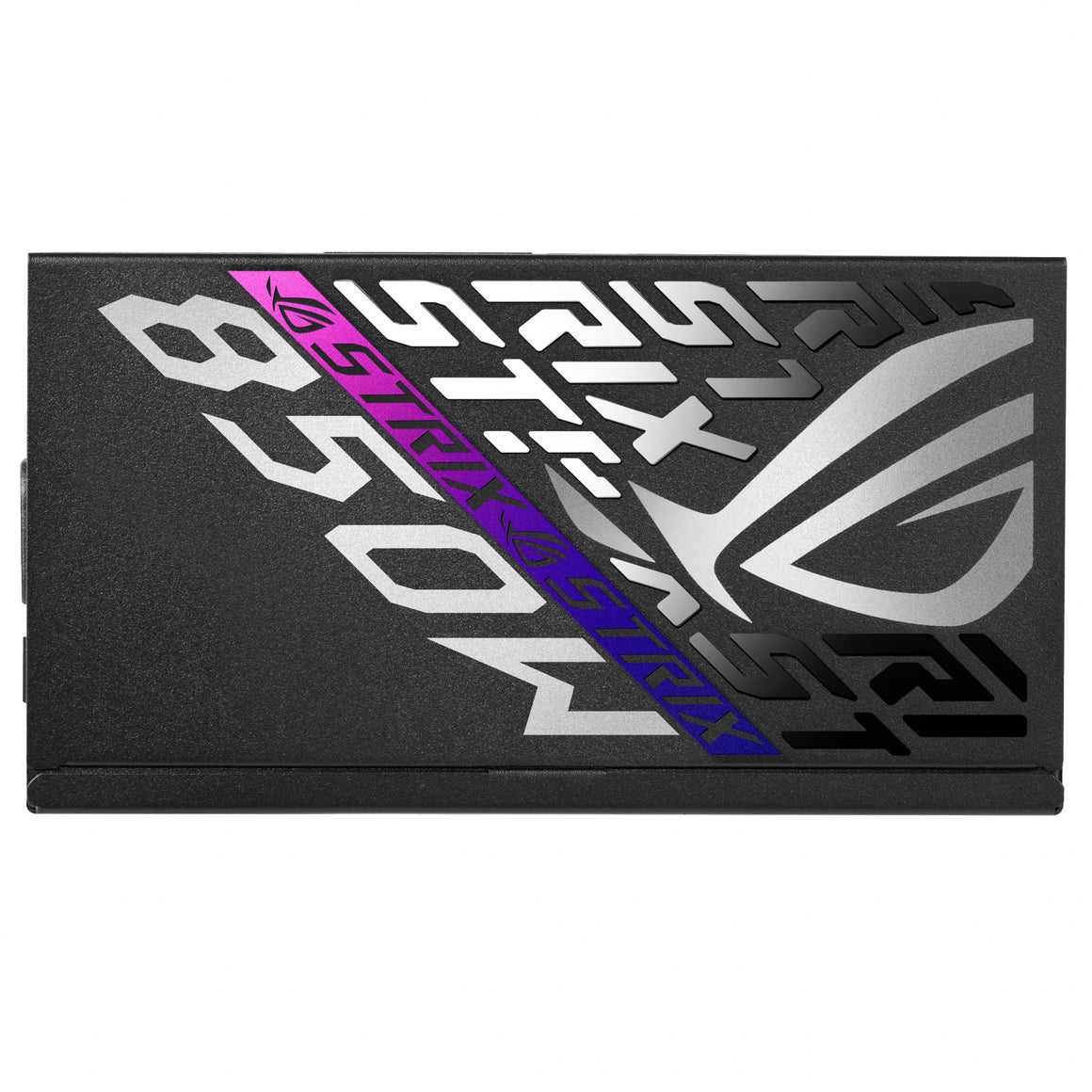

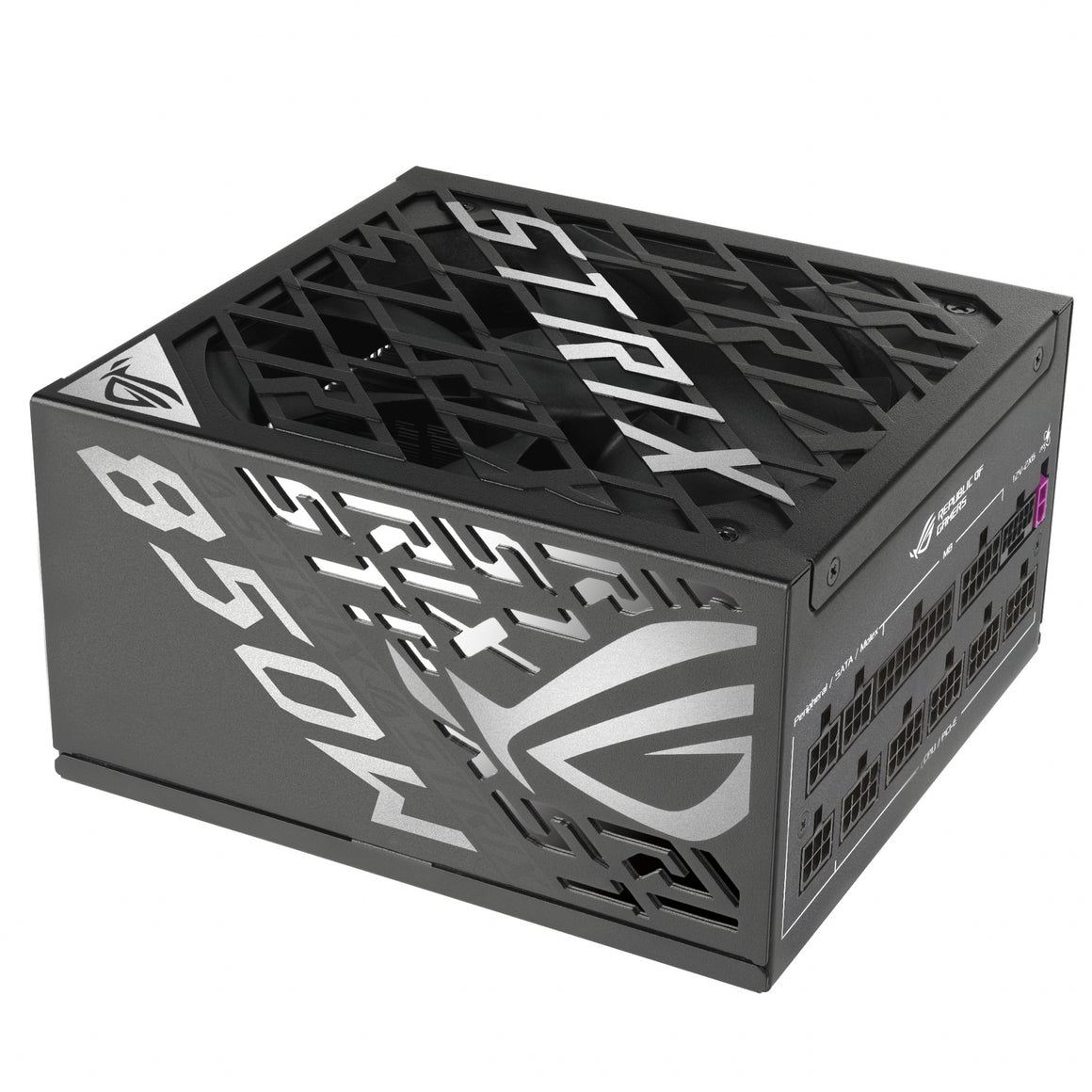

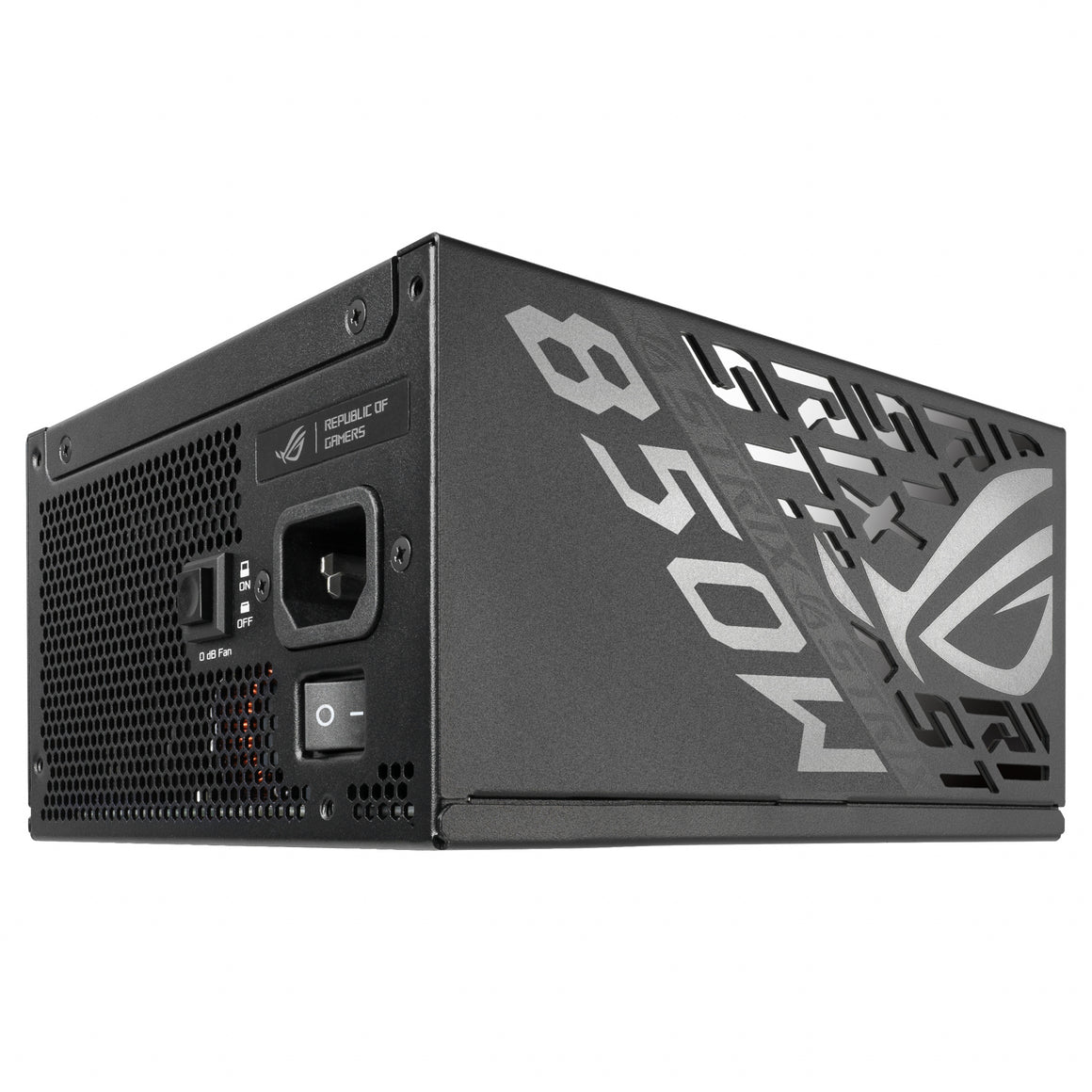

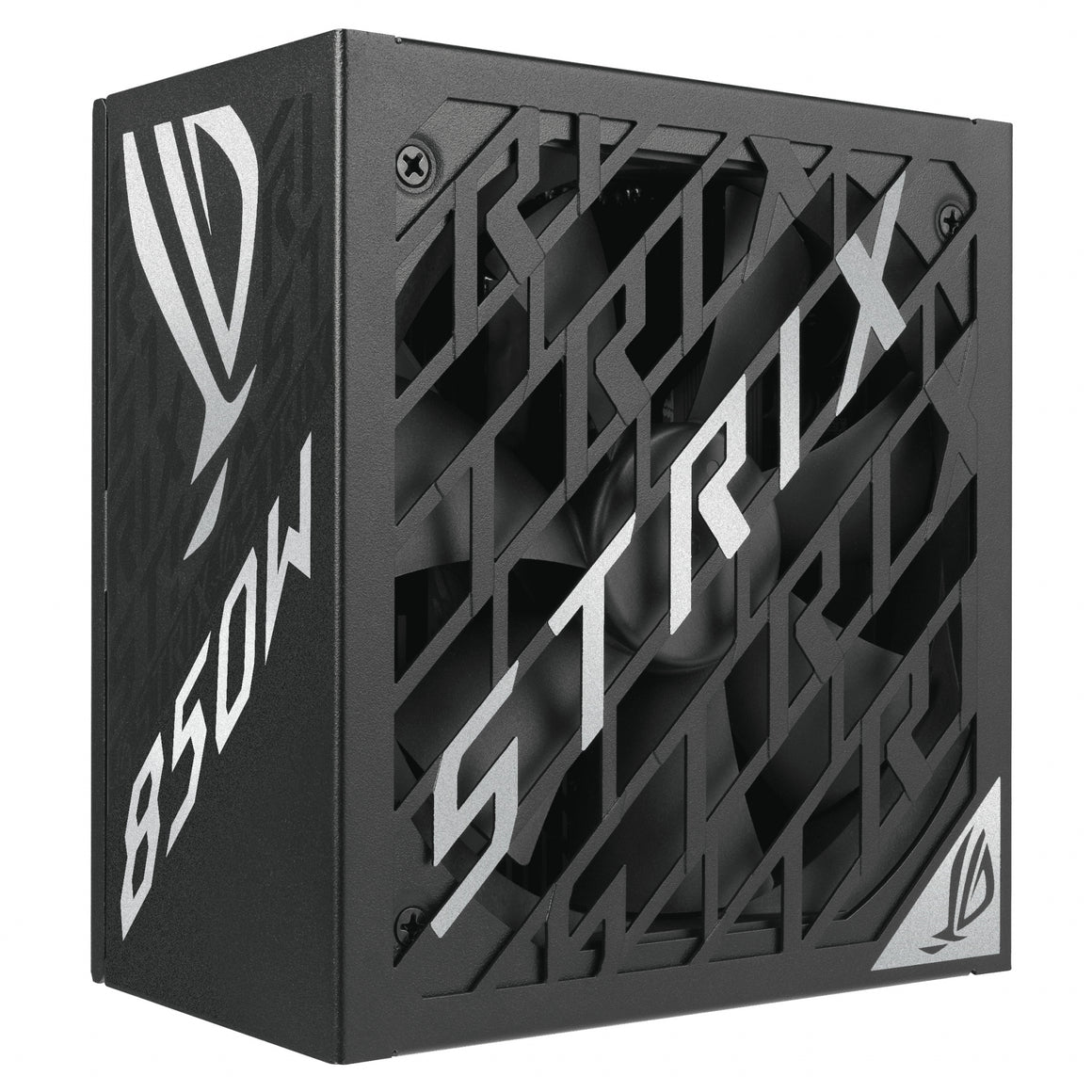

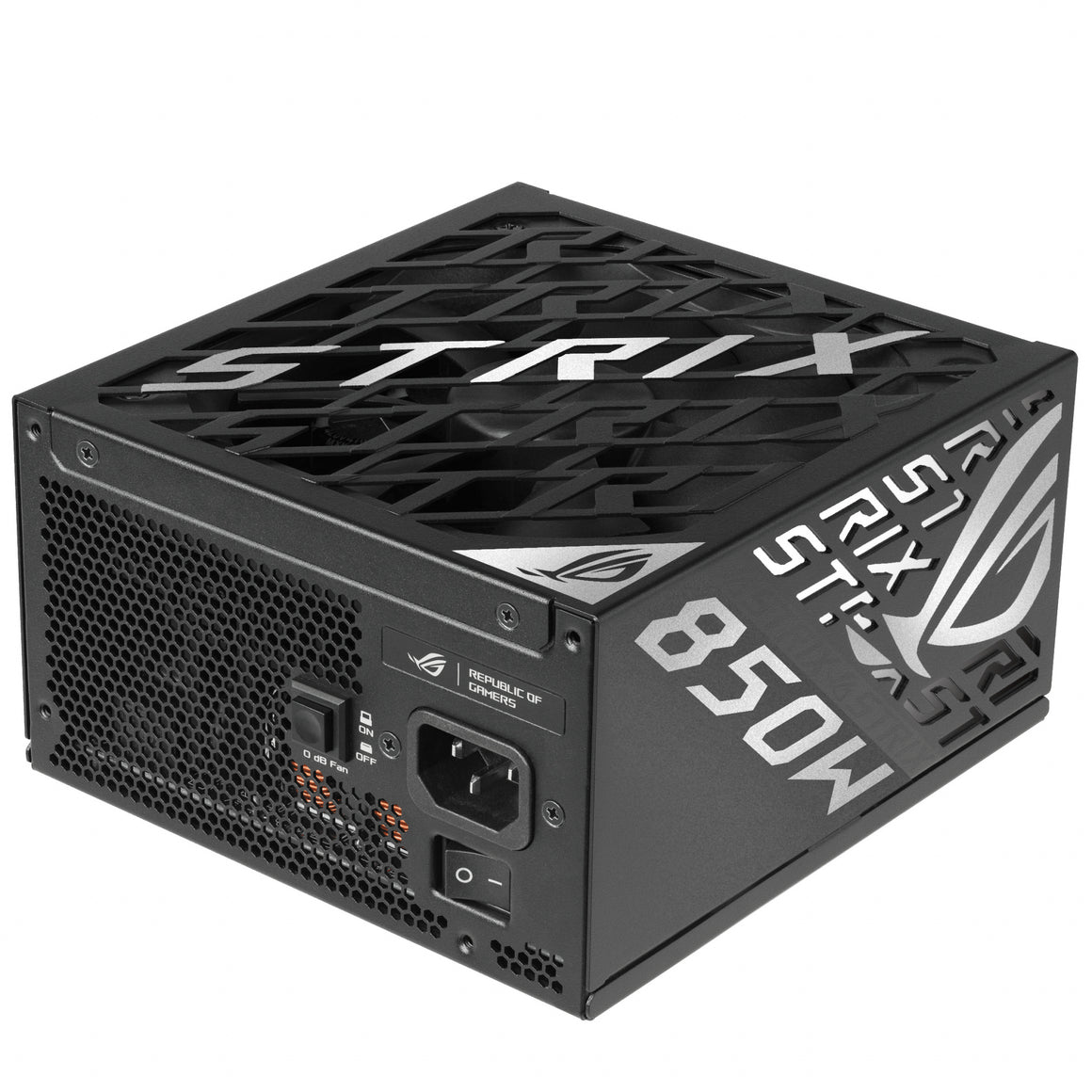

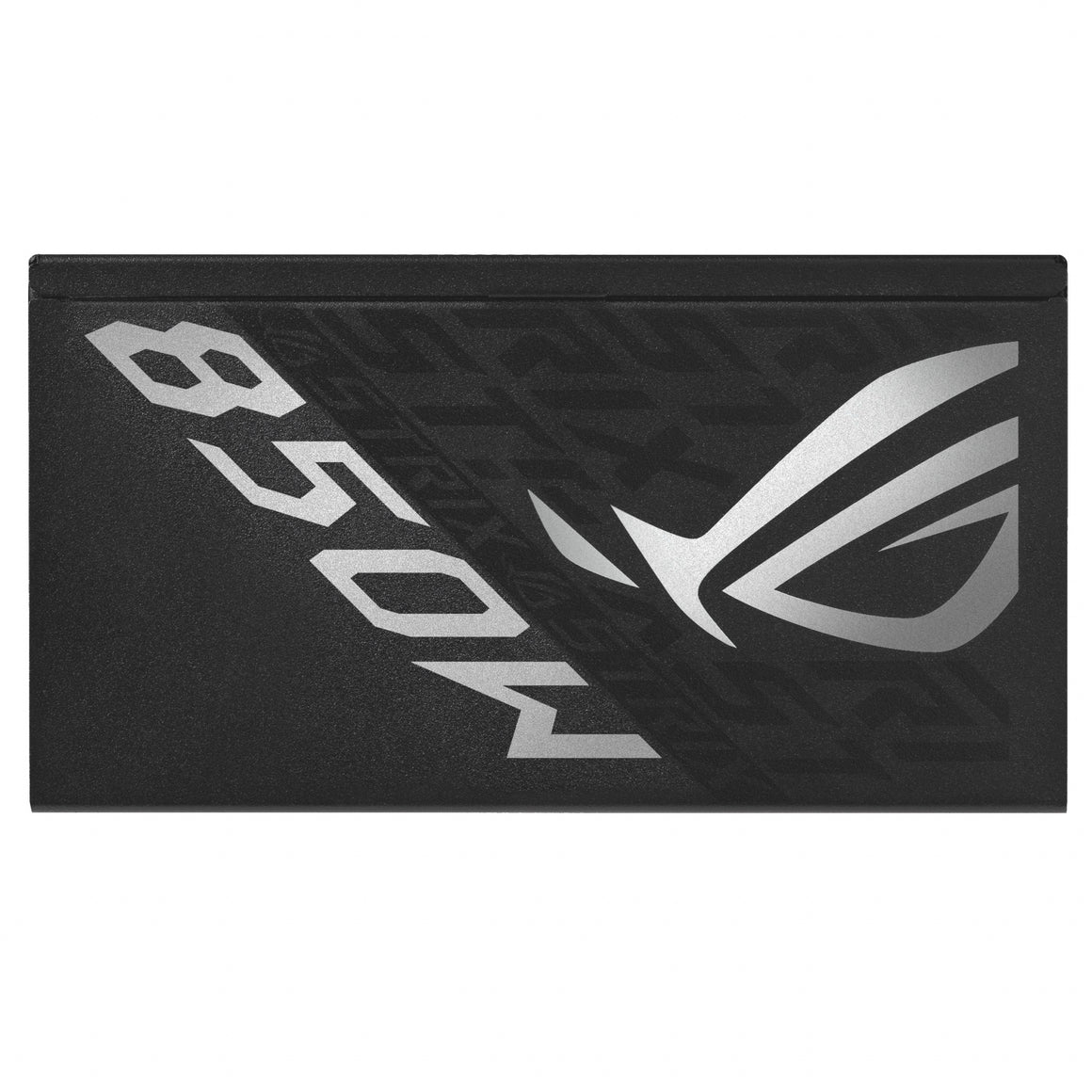

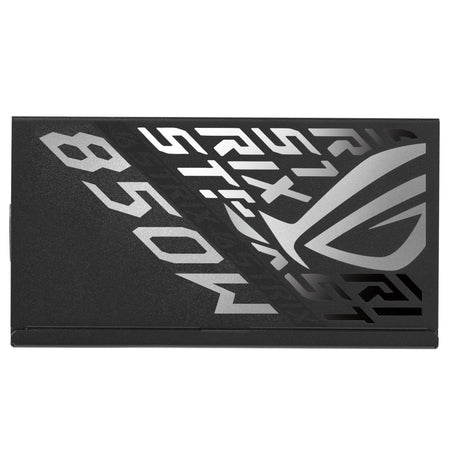

The ROG Strix Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The Intelligent Voltage Stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
GaN MOSFET
The ROG Strix Platinum PSU boasts innovative GaN MOSFET that delivers superior power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of GaN MOSFET allows for a more organized internal layout within the PSU. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V) |
70.8 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
130 W |
| Combined power (+12V) |
850 W |
| Combined power (+3.3V) |
130 W |
| Power Factor Correction (PFC) type |
Active |
| AC input voltage |
100 - 240 V |
| Total power |
850 W |
| Ports & interfaces |
|---|

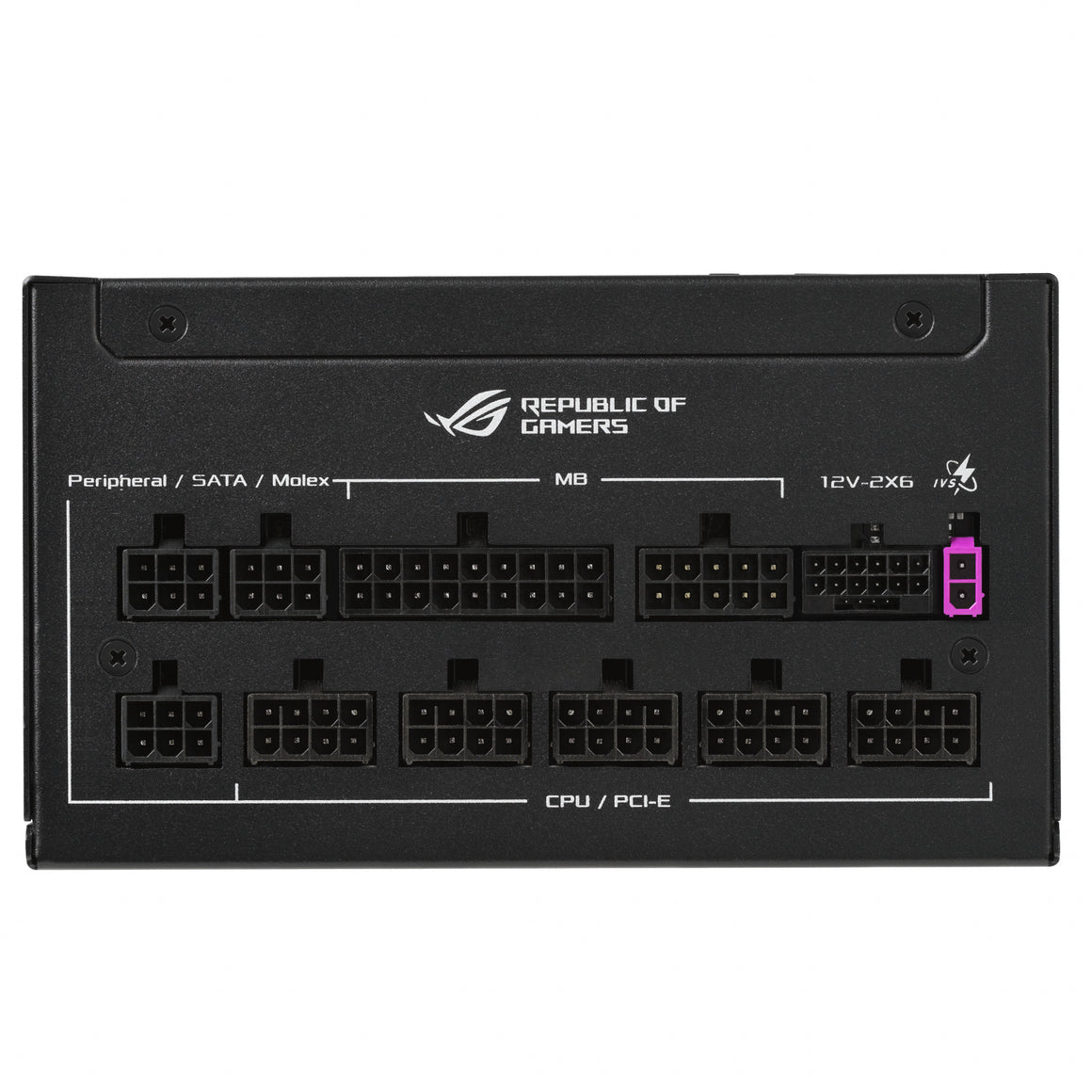

| Cabling type |
Fully-Modular |
| CPU power cable length |
100 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
75 cm |
| PCI Express power connectors (16-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
3 |
| Peripheral (Molex) power cable length |
400,150 mm |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| SATA power cable length |
400,120 mm |
| Number of SATA power connectors |
6 |
| Motherboard power cable length |
61 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Mean time between failures (MTBF) |
120000 h |
| Silent mode |
Yes |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Cooling type |
Semi-passive |
| Product colour |
Black |
| General |
|---|
| Product family |
ROG |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Cables included |
CPU, PCIe, SATA, Peripheral (Molex) |
| Weight & dimensions |
|---|
| Weight |
1.78 kg |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
160 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.8 kg |
| Package height |
108 mm |
| Package depth |
200 mm |
| Package width |
320 mm |
